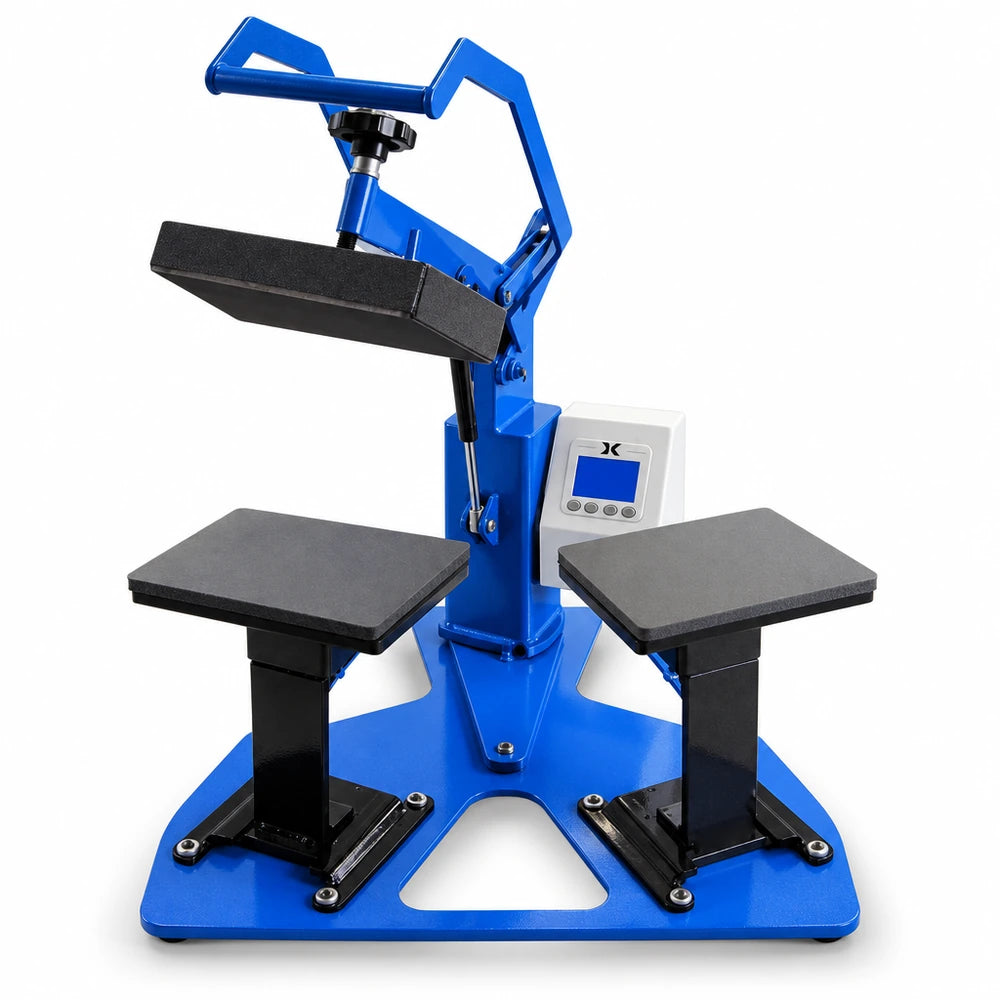

Geo Knight DK8T 6x8 Twin Label Heat Press with 3 Tables
Press Labels Twice as Fast With the Geo Knight DK8T Heat Press Machine
Tired of waiting on one press cycle before you can load the next label? With two pedestals and a head that swings between them, you set up one side while the other side presses. Pockets, collars, socks and sleeves get heat only where you want it, so bulky garments never get flattened across a full T shirt platen. Add a fully digital controller, a lifetime heat platen warranty and a choice of 120V or 220V (+$35 for 220V), and your label work gets faster and cleaner from the first press.
- Twin pedestal speed: Press on one side while you set up the next piece on the other.
- Precise small area pressing: Tall pedestal handles pockets, collars, socks and sleeves without flattening the rest of the garment.
- Three tables included: 6" x 8", 3" x 5" and 3" x 3" bottom tables come in the box.
- Fully digital control: 32° to 600°F range, plus or minus 2°F accuracy, °C or °F display.
- 70 programmable presets: Save settings for every label or transfer type, with automatic timer and dual pre press timer.
- Built to last: Solid steel frame, hardened pivot points, self lifting gas spring and a Teflon coated 3/4" thick platen.
- Power options: Available in 120V or 220V (+$35 for 220V). 120V model runs at 600W / 5A.
- Warranty coverage: Lifetime on heat platen, 5 years on frame, 3 years on controller, 1 year on parts, plus free lifetime tech support.
- Shipping: Built to order, typically ships in 3 to 5 working days by FedEx at $150 per press.

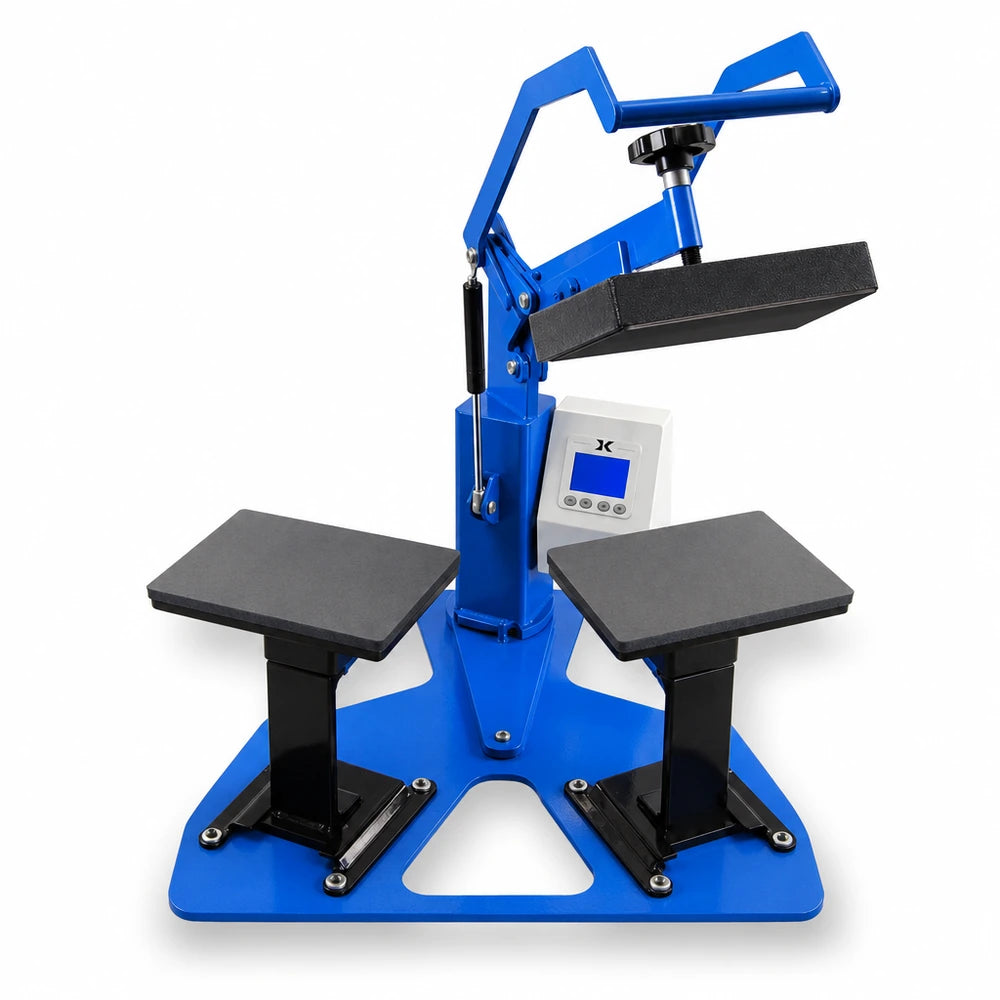

Twin Pedestal Workflow on the Geo Knight DK8T Label Press Machine

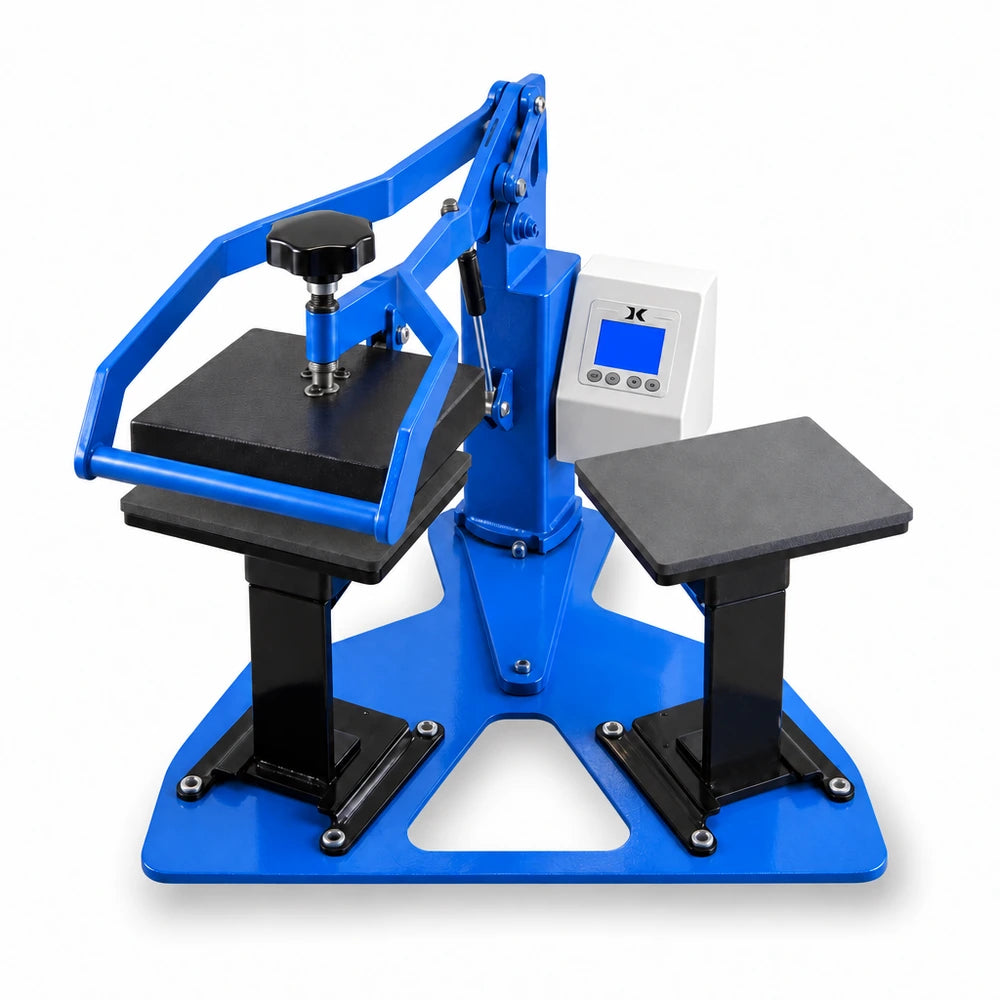

Two pedestals mean your hands are never idle. The head pivots back and forth effortlessly between both stations, so pressing and loading happen at the same time.
- Press on one side: the heat platen works on your first label or transfer.
- Prep on the other: position the next garment, bag or label while the timer runs.
- Swing and repeat: move the head over and start the next cycle right away.
This high productivity design makes the DK8T a popular pick for label printing and small transfer and applique sealing.
Press Small Areas Precisely With the Geo Knight DK8T Small Platen Heat Press Machine
If your image area is under 8 inches, a standard T shirt press wastes heat and squashes parts of the garment that should stay untouched. The tall pedestal lets you slip a pocket, collar, sock or sleeve over the table and press just the area needed.

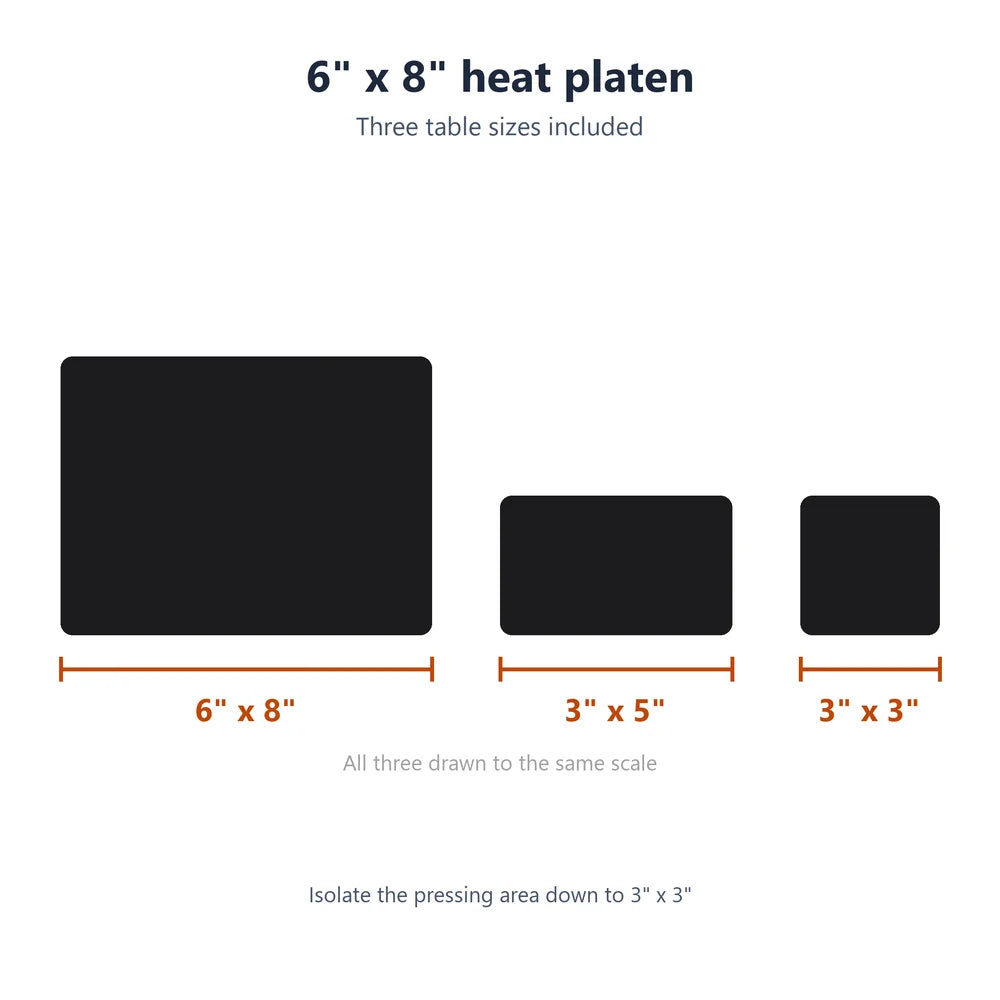

Three interchangeable bottom tables come in the box:
- 6" x 8": full platen coverage for labels and small transfers.
- 3" x 5": for narrow spots like collars and sleeves.
- 3" x 3": isolates the pressing area down to a mere 3x3 inches.
You skip pressing large sections of bulky items for no reason, and your finished pieces keep their shape.

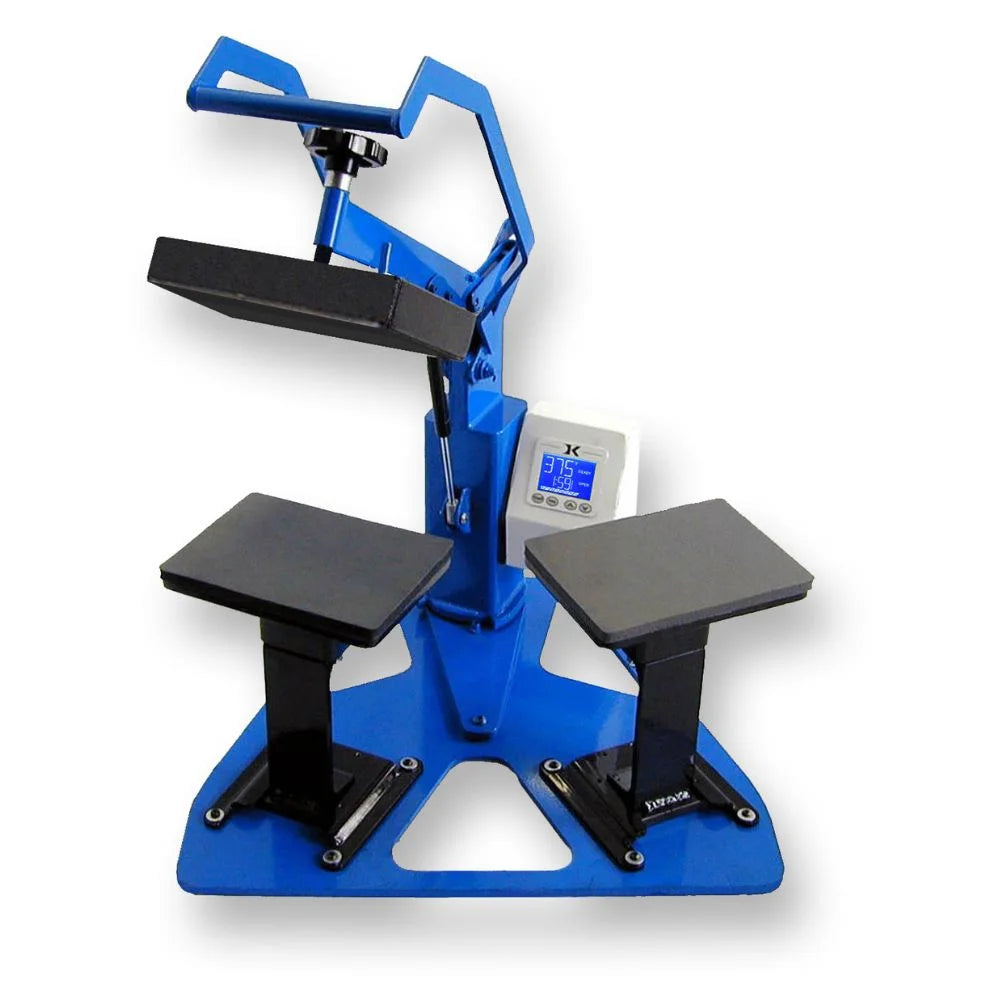

Easy Digital Controls on the Geo Knight DK8T Digital Heat Press Machine
A four button digital panel (minus, plus, up and down) with a blue LCD screen, set in a white controller housing with the K logo, puts every setting at your fingertips, so repeat jobs come out the same every time.
- Fully digital temperature control from 32° to 600°F, with readout accuracy of plus or minus 2°F.
- Show °C or °F, whichever you prefer.
- Automatic digital timer plus a dual pre press timer.
- 70 programmable presets to save settings for each label or transfer type.
- User selectable end of cycle alarms so you know the moment a press is done.
- Cycle counter that records the number of pressing cycles completed.

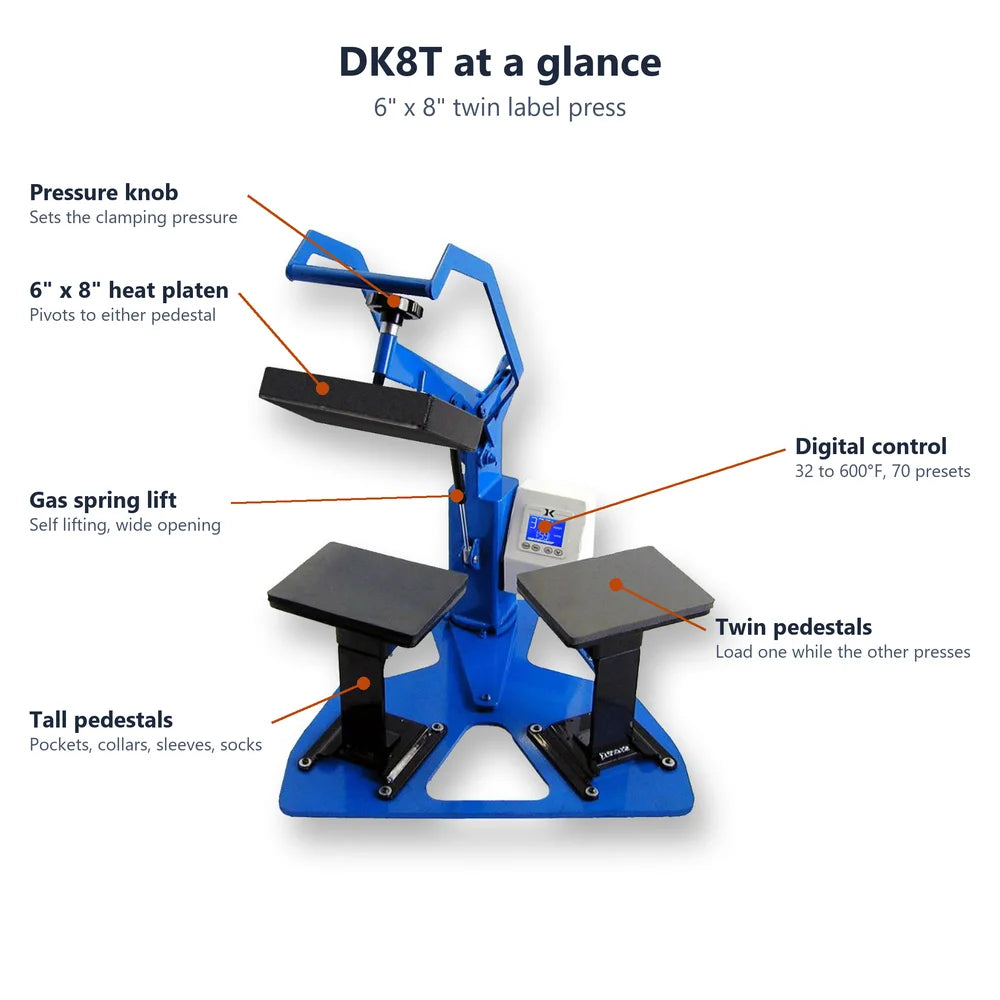

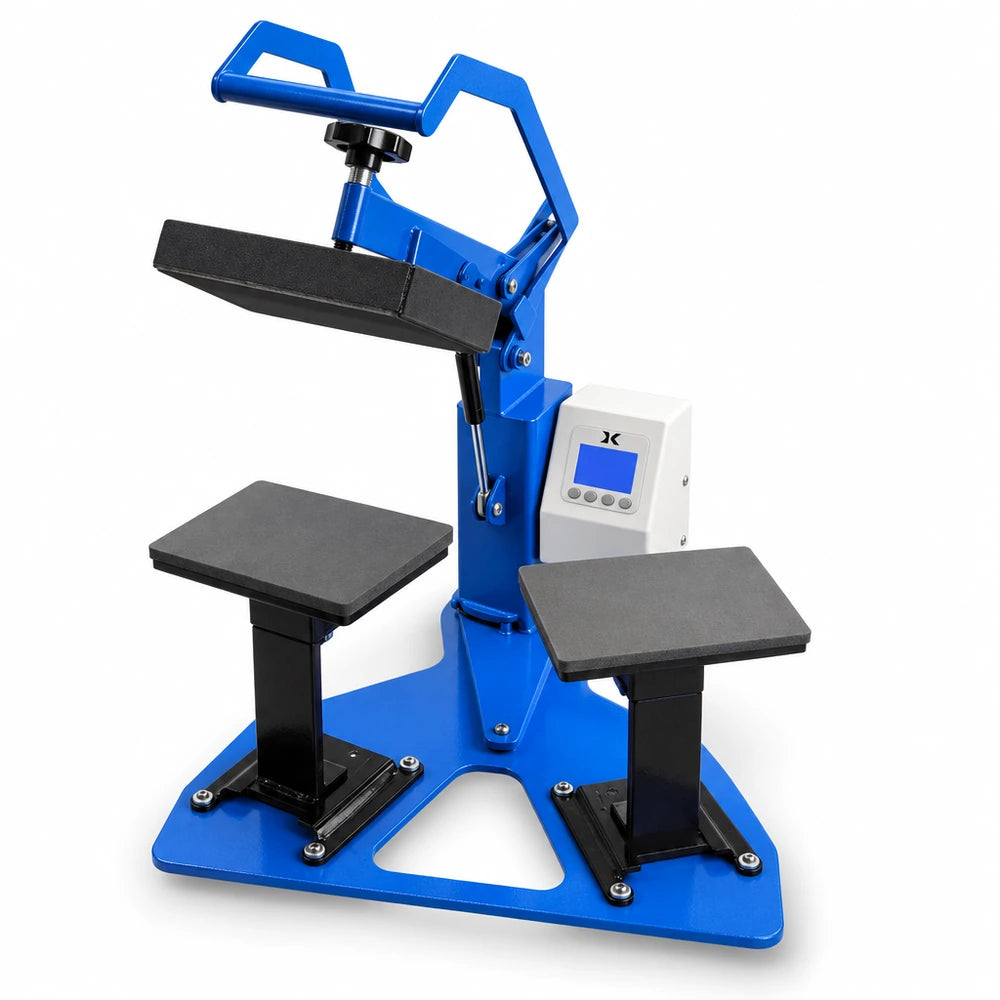

Solid Steel Build Behind the Geo Knight DK8T Digital Knight Heat Press Machine
A press that swings between two stations all day needs a frame that stays tight. Geo Knight built the DK8T with solid steel framework and hardened high strength pivot points made for constant back and forth motion.
- Self lifting gas spring raises the head on its own for a wide opening and easy loading. Allow headroom above the press for the head to open.
- Pressure knob on the head for adjusting pressure.
- Teflon coated 3/4" thick heat platen holds heat evenly and releases cleanly from your work.
Optional Add Ons for the Geo Knight DK8T 6x8 Heat Press Machine
Want more flexibility? These suggested accessories pair with the DK8T:
- DKA-68BHT 6 x 8 Label Bottom Heat Fixture
- DKA-33TBL DK8 / DC 3" x 3" Drop On Table
- DKA-35TBL DK8 / DC 3" x 5" Drop On Table
Warranty and Shipping for the DK8T Heat Press by Geo Knights
You get long term coverage plus lifetime tech support at no charge.
- Lifetime warranty on the heat platen
- 5 year warranty on the frame
- 3 year warranty on the controller
- 1 year warranty on parts
Each press is built to order. Manual presses typically ship in 3 to 5 working days, with transit time on top. We ship by FedEx in a 128 lb box at $150 per press; two presses ship at twice the rate. Contact Us with any questions about your order.
Product Specs
| Spec | Value |
|---|---|
| Brand | Geo Knight |
| Model / SKU | DK8T |
| Product Line | Digital Knight |
| Heat Platen Size | 6" x 8" |
| Included Bottom Tables | 6" x 8", 3" x 5", 3" x 3" |
| Heat Platen | Teflon coated, 3/4" thick |
| Temperature Range | 32° to 600°F |
| Temperature Readout Accuracy | Plus or minus 2°F, displays °C or °F |
| Programmable Presets | 70 |
| Timers | Automatic digital timer and dual pre press timer |
| Frame | Solid steel |
| Voltage | Available in 120V or 220V (+$35 for 220V) |

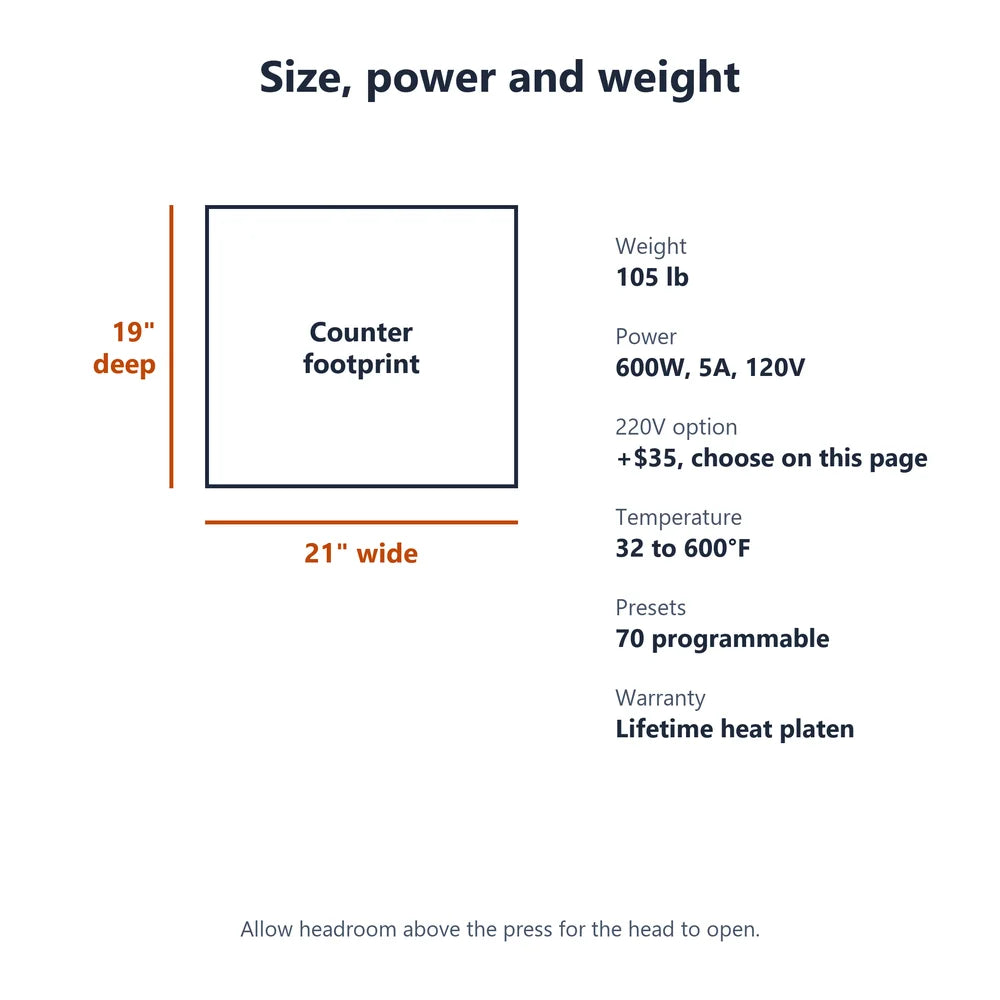

| Electrical (120V) | 600W / 5A / 120V |
| Weight | 105 Lbs |
| Counter Footprint | 19"D x 21"W |
| Shipping Dims | 24"L x 24"W x 24"H |
| Shipping Weight | 128 lb box |
| Warranty | Lifetime heat platen, 5 year frame, 3 year controller, 1 year parts |
| Tech Support | Lifetime, free |
