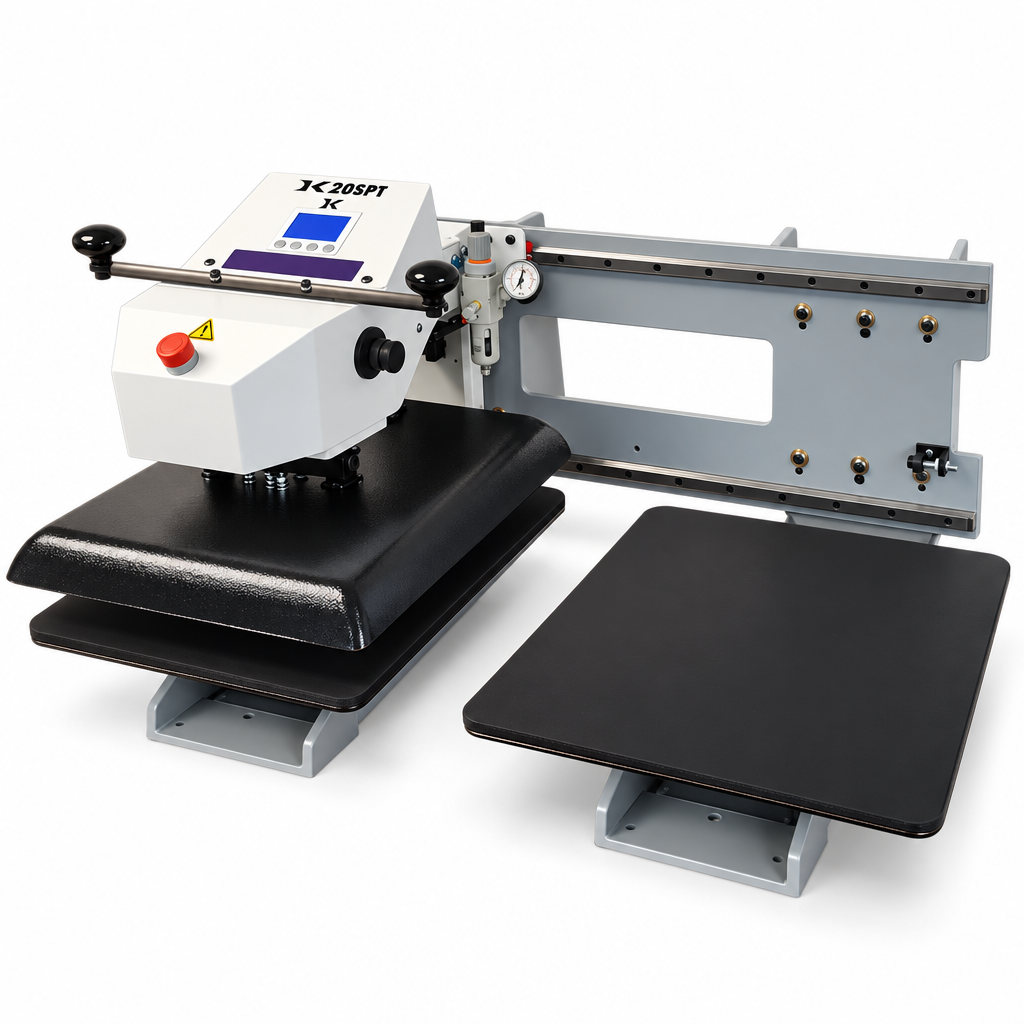

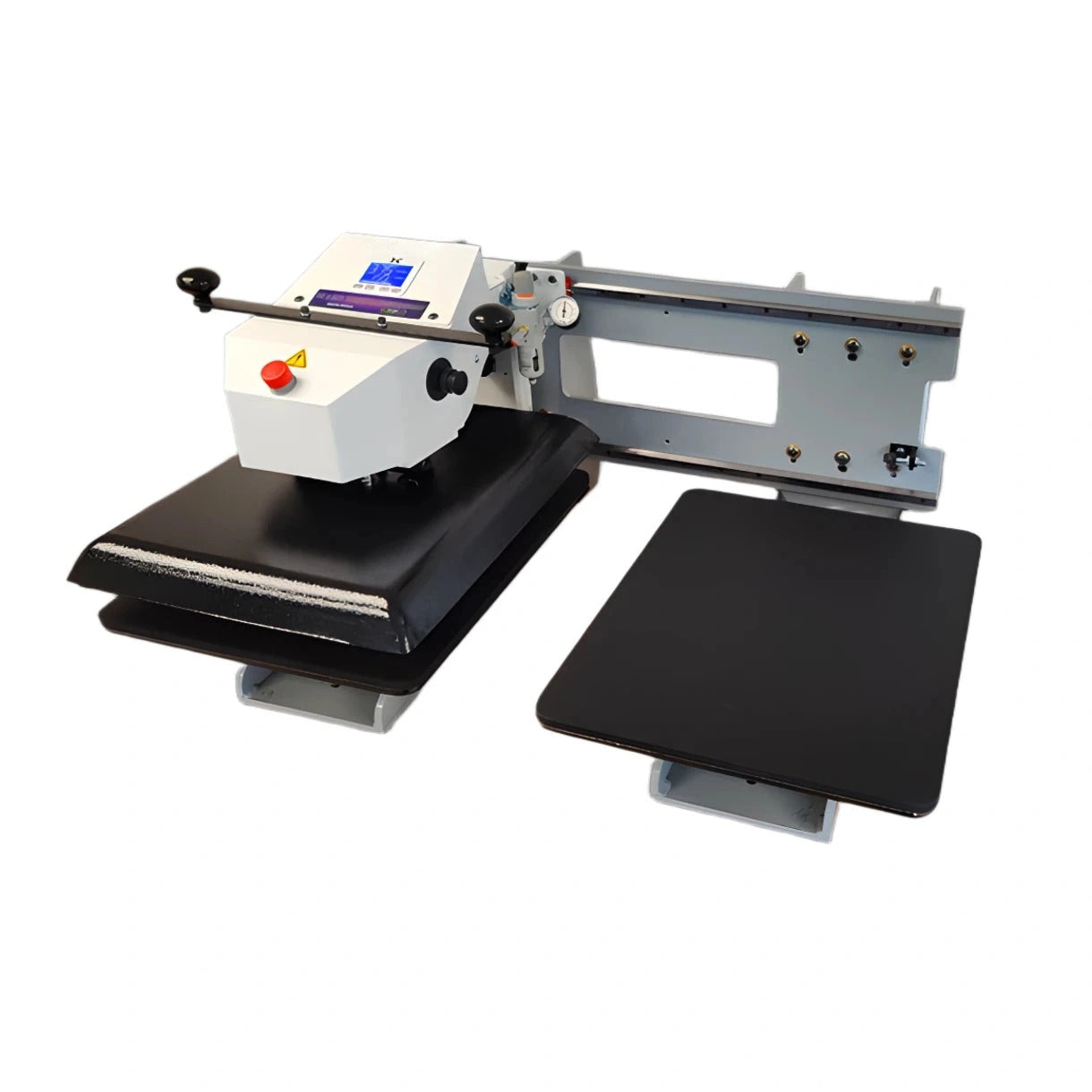

Geo Knight DK20SPT Twin Heat Press 16x20 Air Operated Swing Away

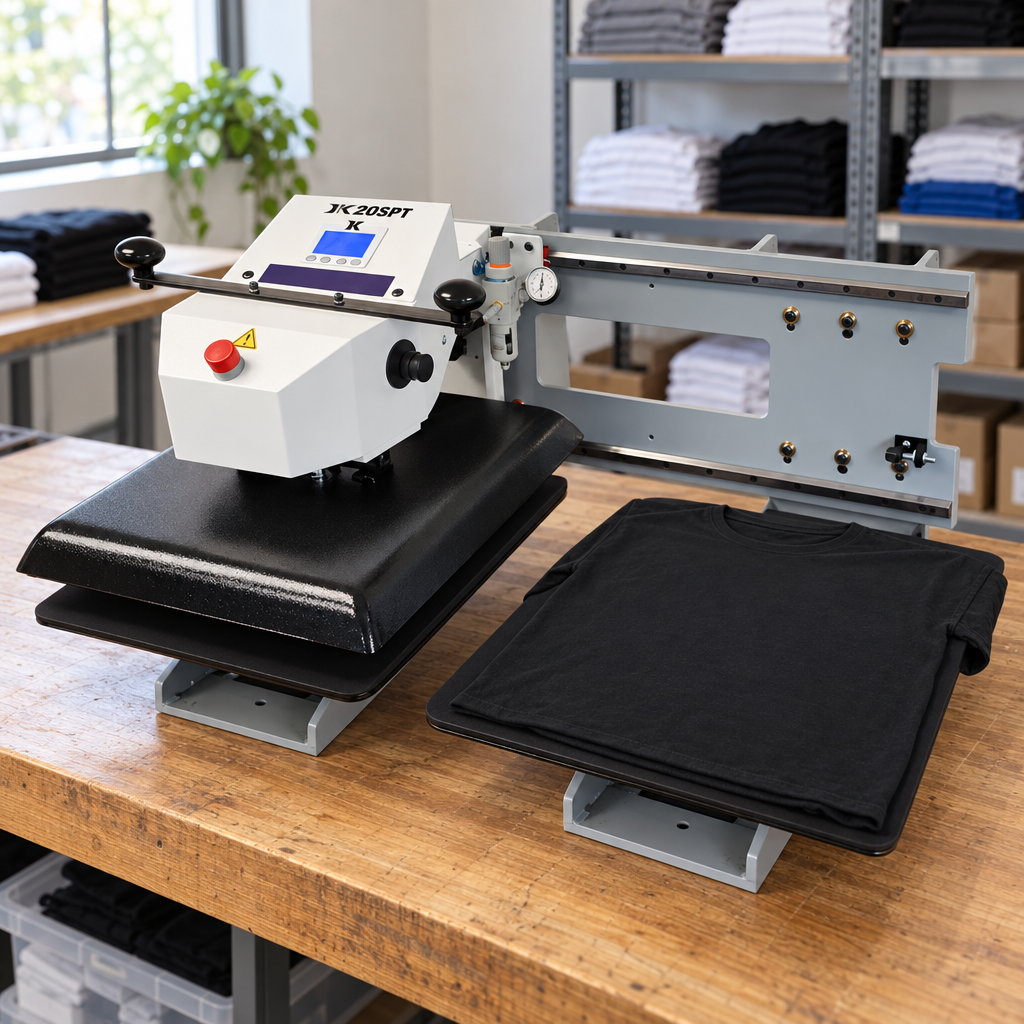

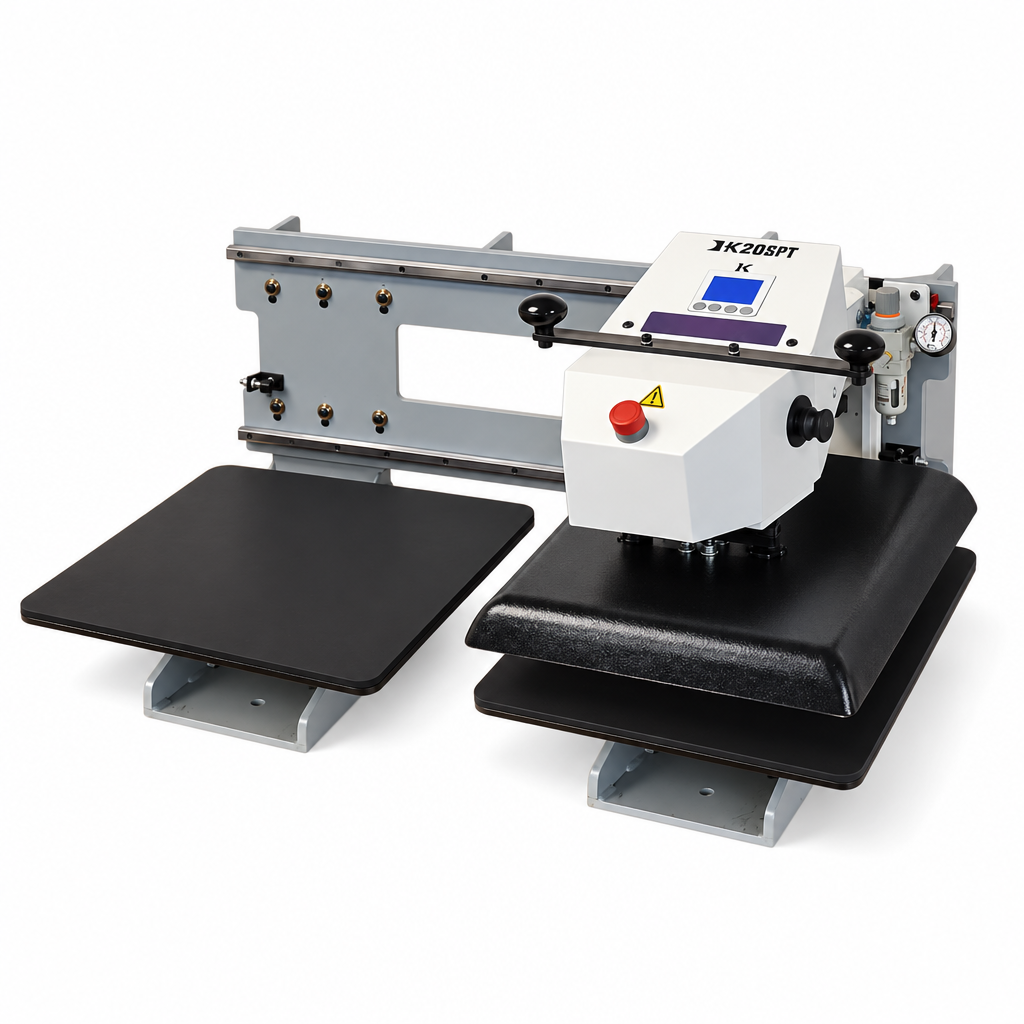

The dual shuttle framework is what separates this machine from its single table sibling. One table slides under the heat while the other sits out front, open and waiting for you.

• Load and unload during the press cycle instead of standing by
• Operator idle time drops, and so does heat platen idle time
• A dual pre press timer keeps both stations on schedule
• Built for demanding runs that a manual press and a single table simply cannot keep up with

Everything else matches the DK20SP. Same overall press, same features, just doubled at the loading end.

The heater swings completely clear of the loading area, so you are never reaching under a hot platen to position a transfer. That means better alignment, fewer scorched knuckles, and easier work on thicker items.

• Handles materials up to 1.5" thick
• Teflon coated 3/4" thick heat platen for even release

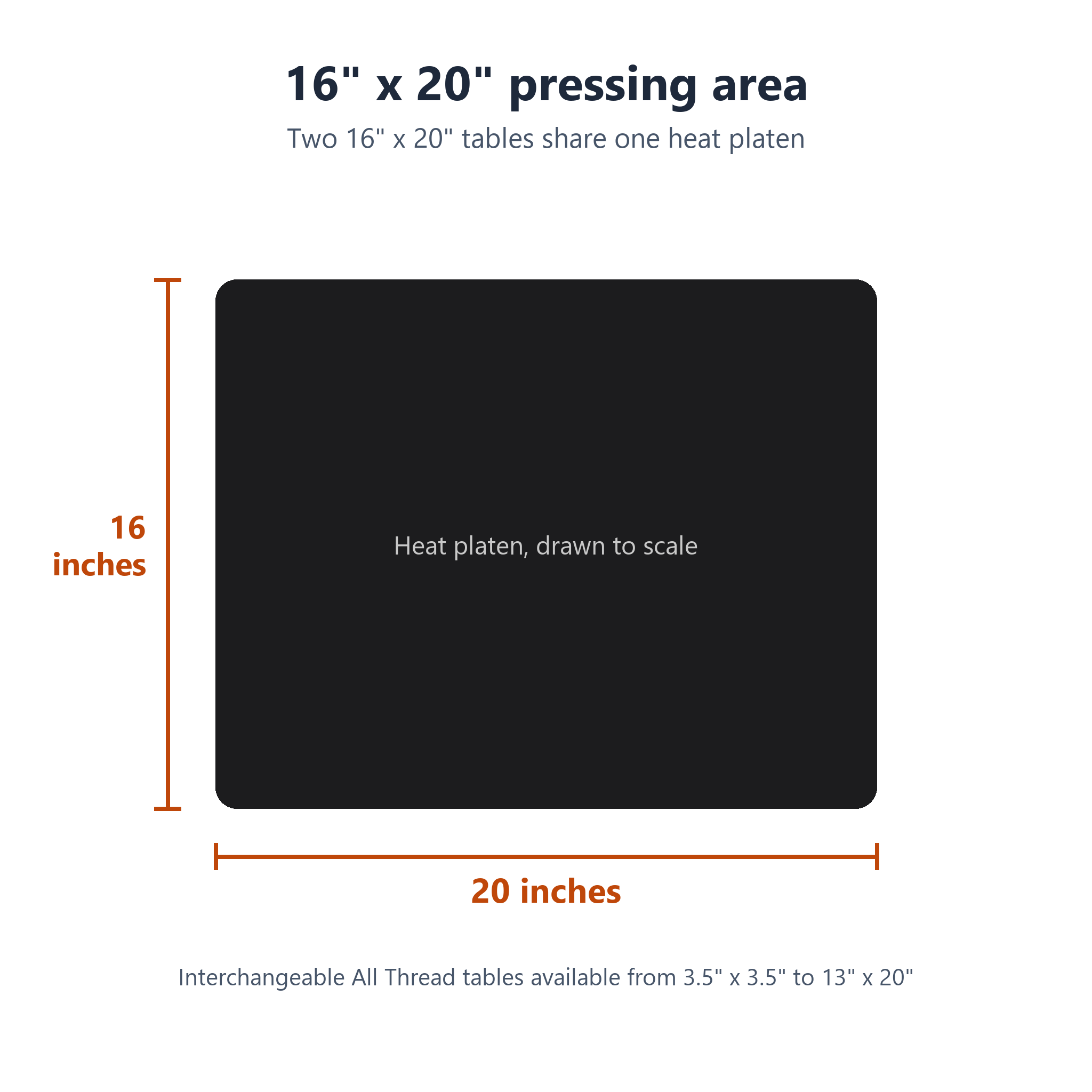

• SuperCoil Microwinding™ heater technology spreads heat across the full 16" x 20" surface

Air does the pressing, not your shoulder. Set it once and every garment gets the same pressure, all day long.

• 3000 lbs of total applied force at maximum
• Air regulator and gauge with a 20 to 100 PSI range
• Requires a compressor rated at least 7 gal, 1 cfm, 100 psi with a 1/4" line
• Simple push button operation from cycle to cycle

Guesswork ruins garments. The digital controller locks in your settings and tells you exactly what the platen is doing.

• Temperature range of 32° to 600°F, readable in °C or °F
• Readout accuracy of +-2°F
• 70 programmable presets so recurring jobs load instantly
• Automatic digital timer with user selectable end of cycle alarms
• Records the number of pressing cycles completed for production tracking

The All Thread™ bottom tables drop in and out, so the same press handles flat goods one hour and specialty items the next. Optional tables cover sizes from 3½ x 3½ up to 13 x 20, plus sleeve, cap bill, shoe, koozie and circular shapes. The all thread drop in table range includes the DK 10 x 12 Table, the DK 12 x 14 Table, the DK 14 x 16 Table, the DK 13 x 20 Table, the DK 3½" Sleeve Table, the DK 5" Sleeve Table, the DK Cap Bill Table, the DK Koozie Can Cooler Table, the DK Shoe Table, the DK 3½ x 3½ Table, the DK 3½ x 5 Table, the DK 6 x 8 Table and the DK 8 Dia Circular Table. Optional bottom heat and control units are available as the DK20/A/S/SP 16 x 20 Bottom Heat & Control and the DK20/A/S/SP 14 x 16 Bottom Heat & Control, and Teflon protection is offered as the 16x20 Teflon Sheet, the 16x20 Teflon Bottom Table Wrap with elastic corners and the 16x20 Teflon Top Heater Wrap with elastic corners for both the top heater and the bottom table.

A solid steel welded framework and solid casting design keep alignment true through years of production.

• Lifetime warranty on the heat platen
• 5 year warranty on the frame
• 3 year warranty on the controller
• 1 year warranty on parts
• Free lifetime tech support

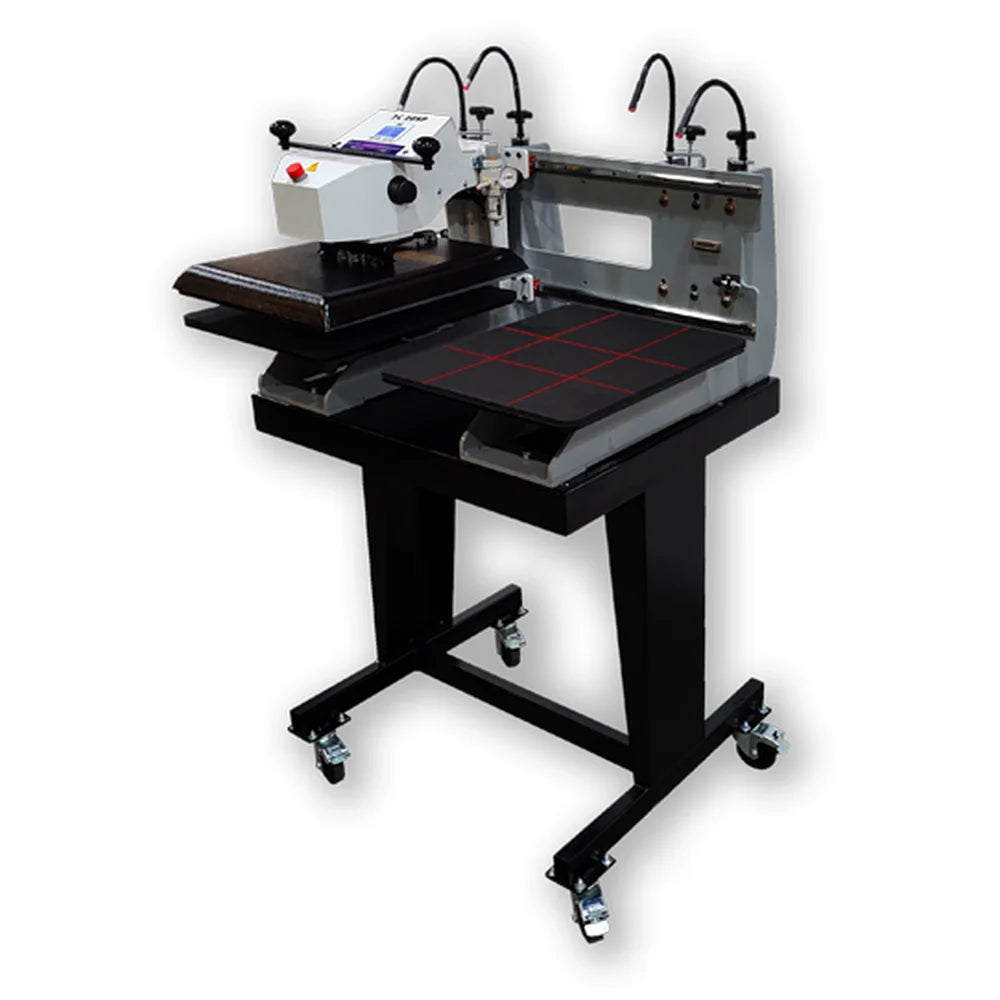

Optional add ons include the DK20SPT & DC16APT Twin Auto Stand with Casters, a twin auto stand with locking casters, and the DK20SPT 4 Crosshair Registration Lasers system for fast, repeatable placement.

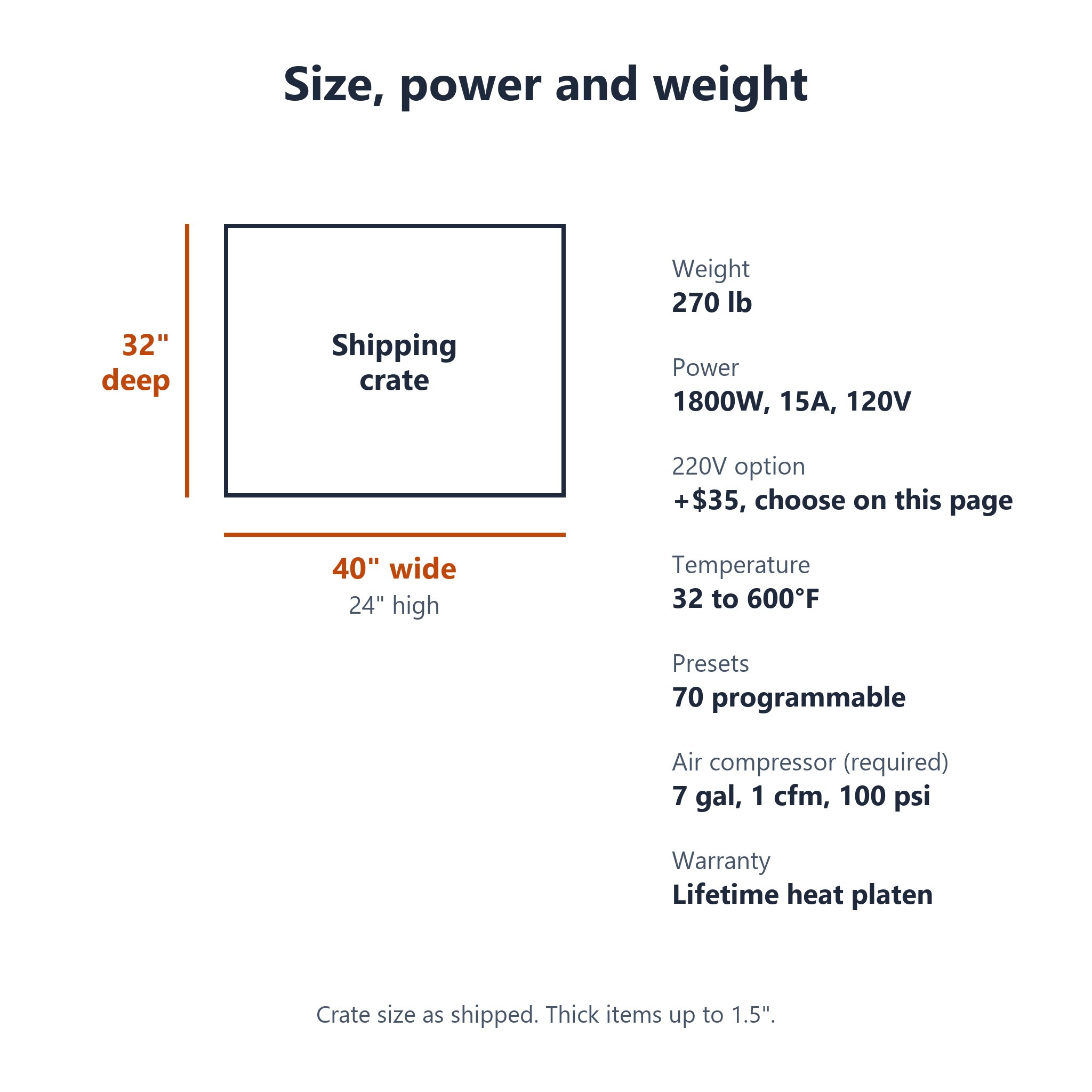

Each press is built to order, and this model takes 7 to 10 working days to build before it ships, with transit time on top of that. Shipping is $300 per press, and two presses ship at twice the rate. It travels by truck freight in a 420 lb crate, delivered curbside with a liftgate included, so no loading dock or forklift is required. The carrier calls ahead to schedule delivery and someone needs to be there to sign.
