Geo Knight DK20S 16x20 Swing Away Heat Press

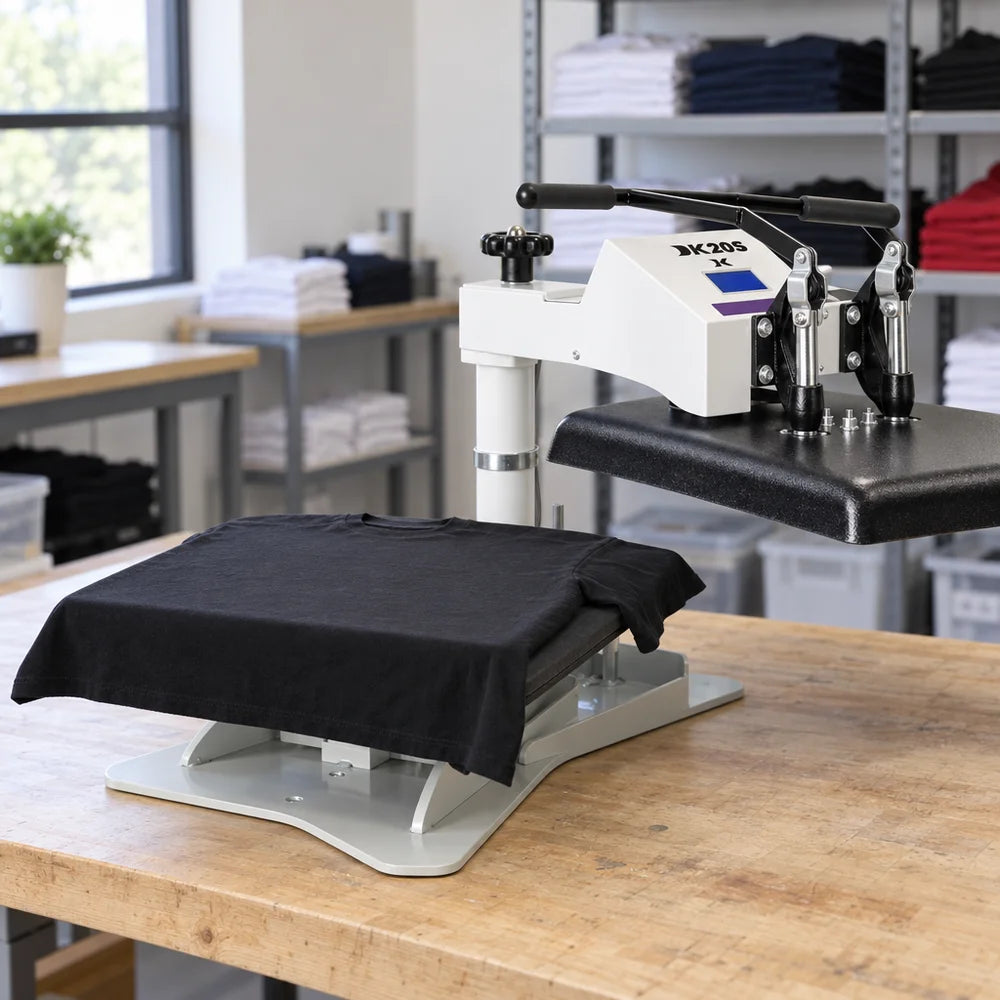

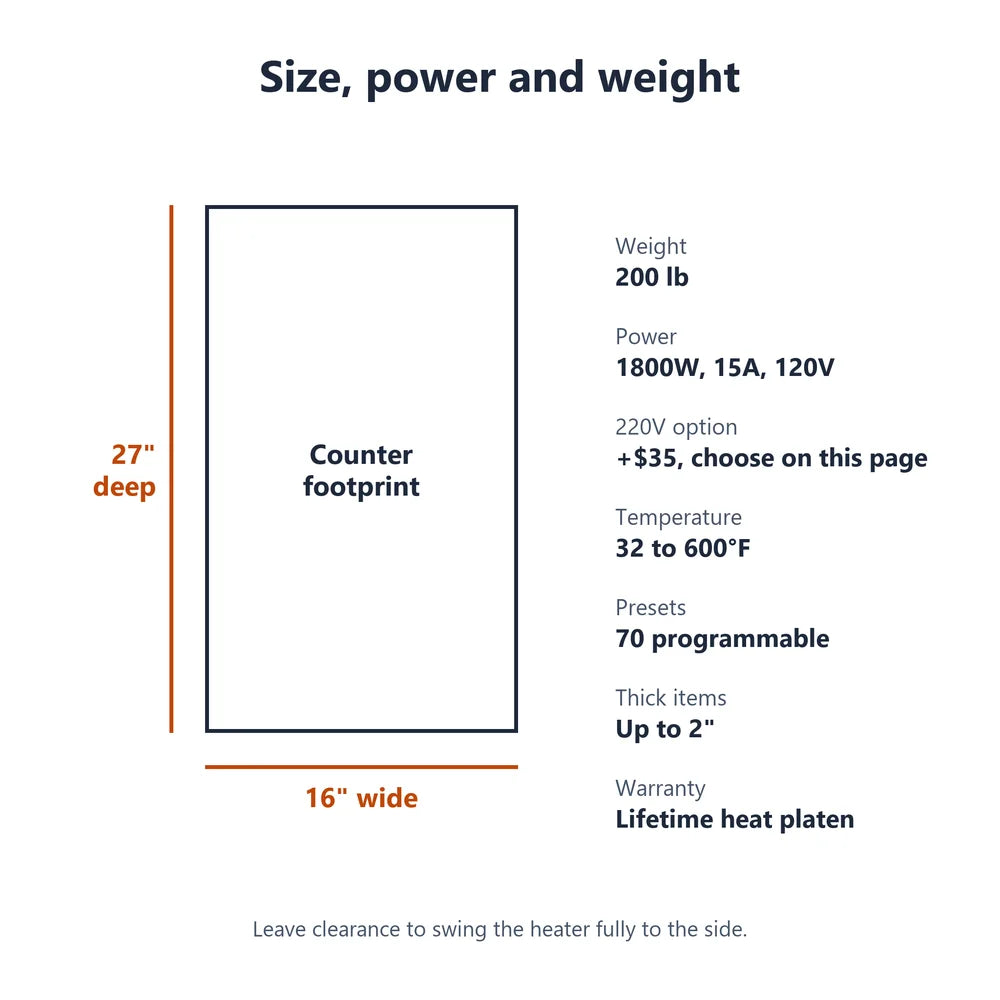

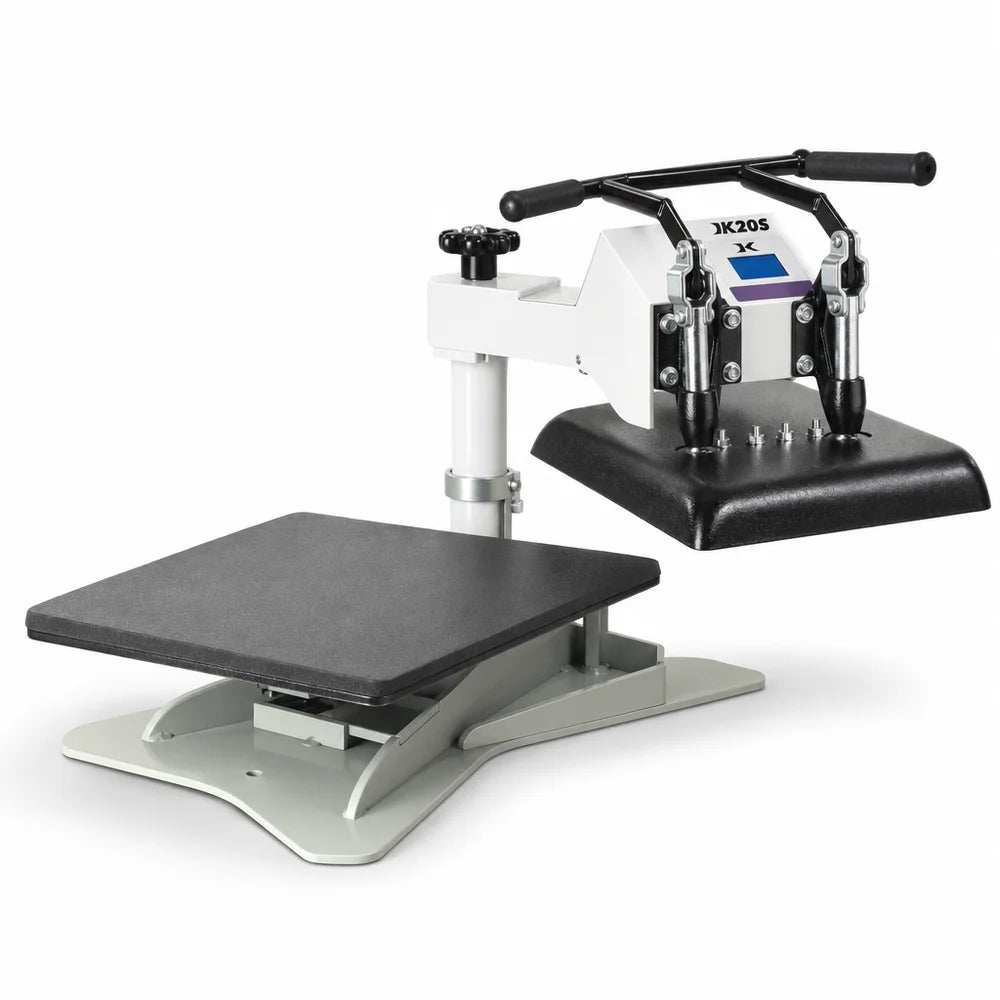

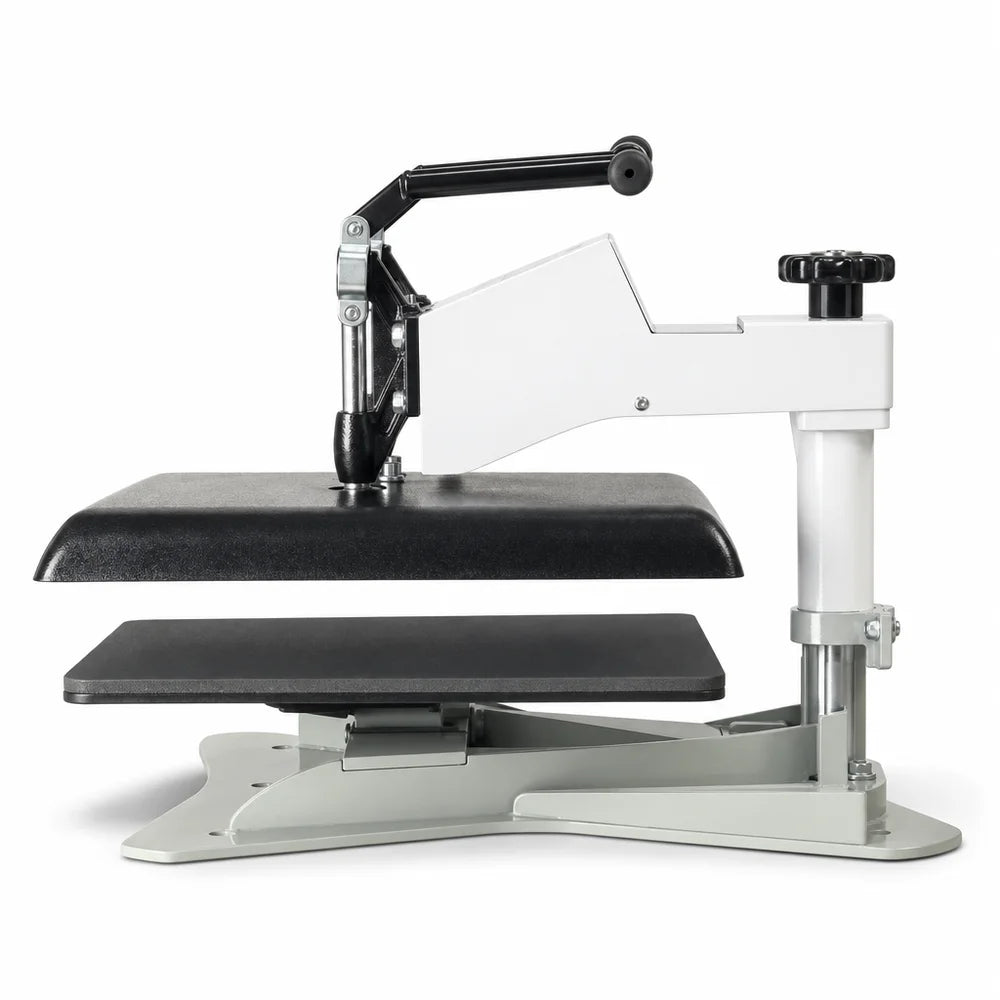

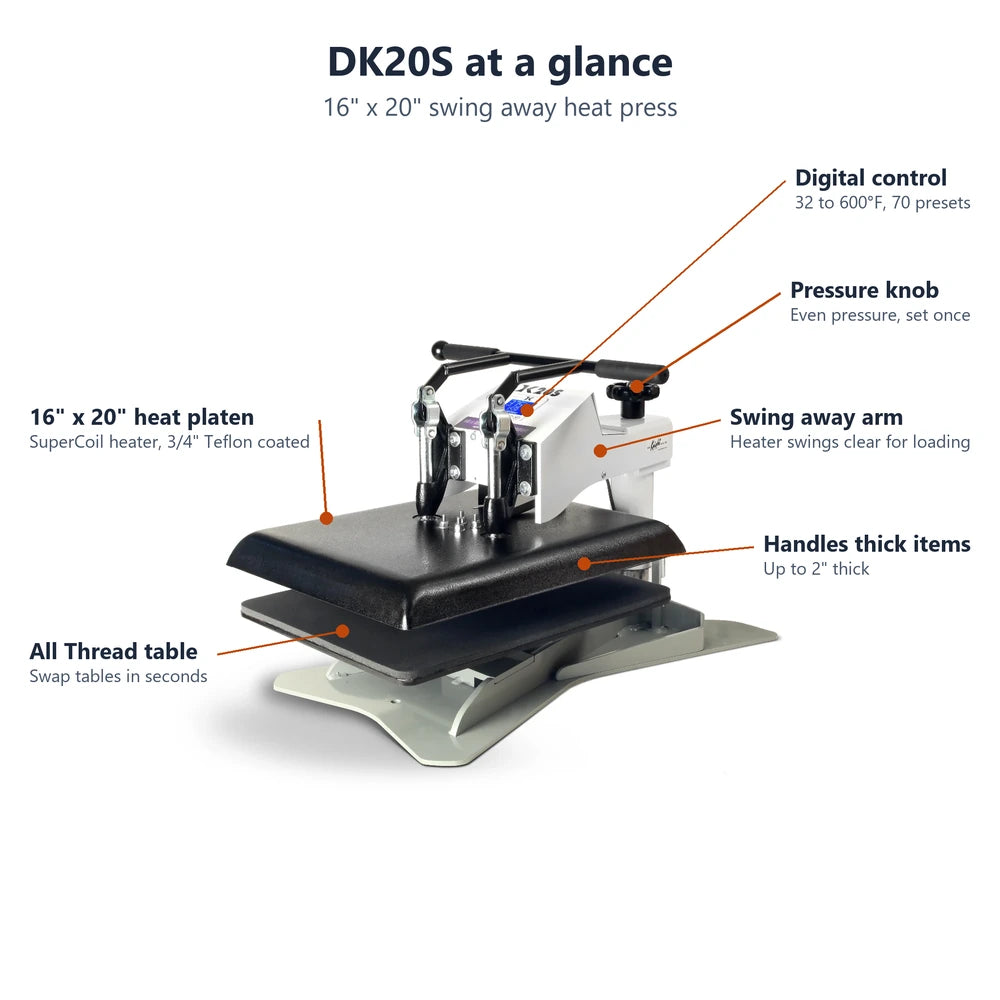

The heated upper platen pivots to the side on its post, so your lower table sits completely open while you lay out garments and transfers. No reaching under a hot heater, no guessing at alignment. When you place the press, leave swing clearance around it so the heater can pivot freely.

• All Thread™ table loading design: tables thread on and off for quick changes.
• Instantly interchangeable and rotatable tables: swap sizes or turn the table to suit the job in front of you.
• Room for thick items: accommodates materials up to 2" thick.

Add the All Thread style tables you need for specialty work:

• DKP-1012TBL: DK 10 x 12 Table
• DKP-1214TBL: DK 12 x 14 Table
• DKP-1416TBL: DK 14 x 16 Table
• DKP-1320TBL: DK 13 x 20 Table
• DKP-SLV3TBL: DK 3½" Sleeve Table
• DKP-SLV5TBL: DK 5" Sleeve Table
• DKP-CAPBILL: DK Cap Bill Table
• DKP-KOOZIE: DK Koozie Can Cooler Table
• DKP-SHOE: DK Shoe Table
• DKP-33TBL: DK 3½ x 3½ Table
• DKP-35TBL: DK 3½ x 5 Table
• DKP-68TBL: DK 6 x 8 Table
• DKP-8TBL: DK 8 Dia Circular Table

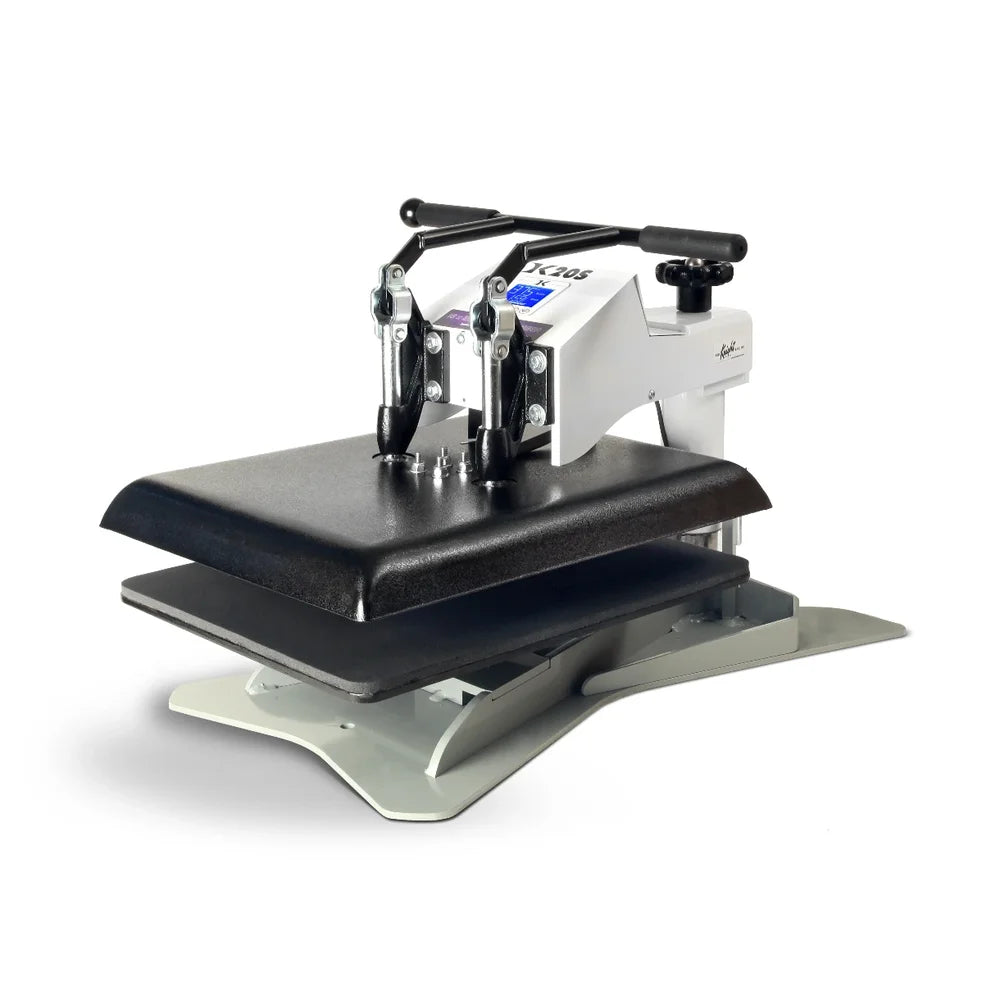

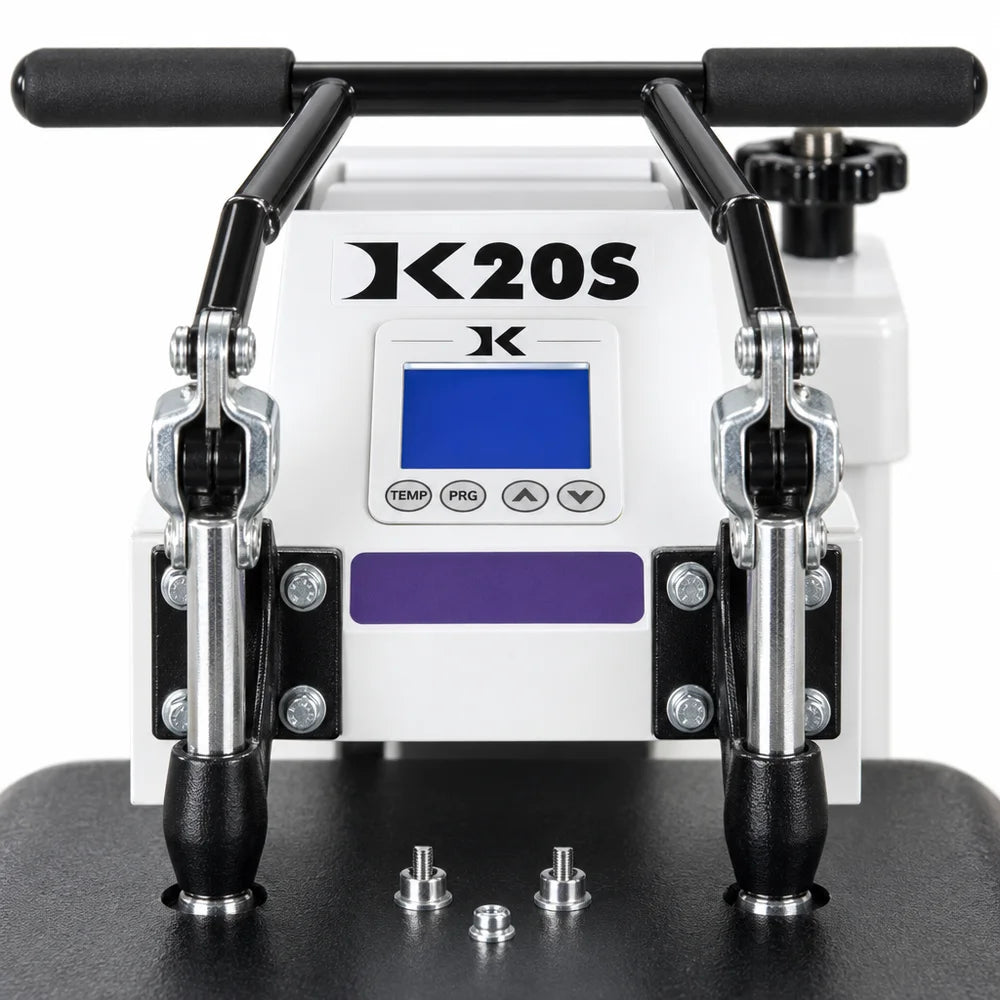

Set it once and repeat it perfectly. The blue LCD controller, with TEMP, PRG, up and down buttons, puts every setting a few button presses away.

• Fully digital temperature control from 32° to 600°F
• Readout accuracy of +-2°F, displayed in °C or °F
• Automatic digital timer and dual pre press timer for multistep applications
• 70 programmable presets to save temperature and time for each transfer type
• User selectable end of cycle alarms so you know exactly when to lift
• Cycle counter records the number of pressings done, handy for tracking job volume and upkeep

Pressure is just as important as heat, and this press shows it to you instead of leaving it to feel. A Digital Pressure Bar Graph displays your setting, so you can dial it in with the black pressure knob and match it again on the next run or the next shift. Chrome lock down handle linkages on the head casting close the press firmly over your work.

Repeatable pressure means fewer peeling transfers and more consistent results across every garment in an order.

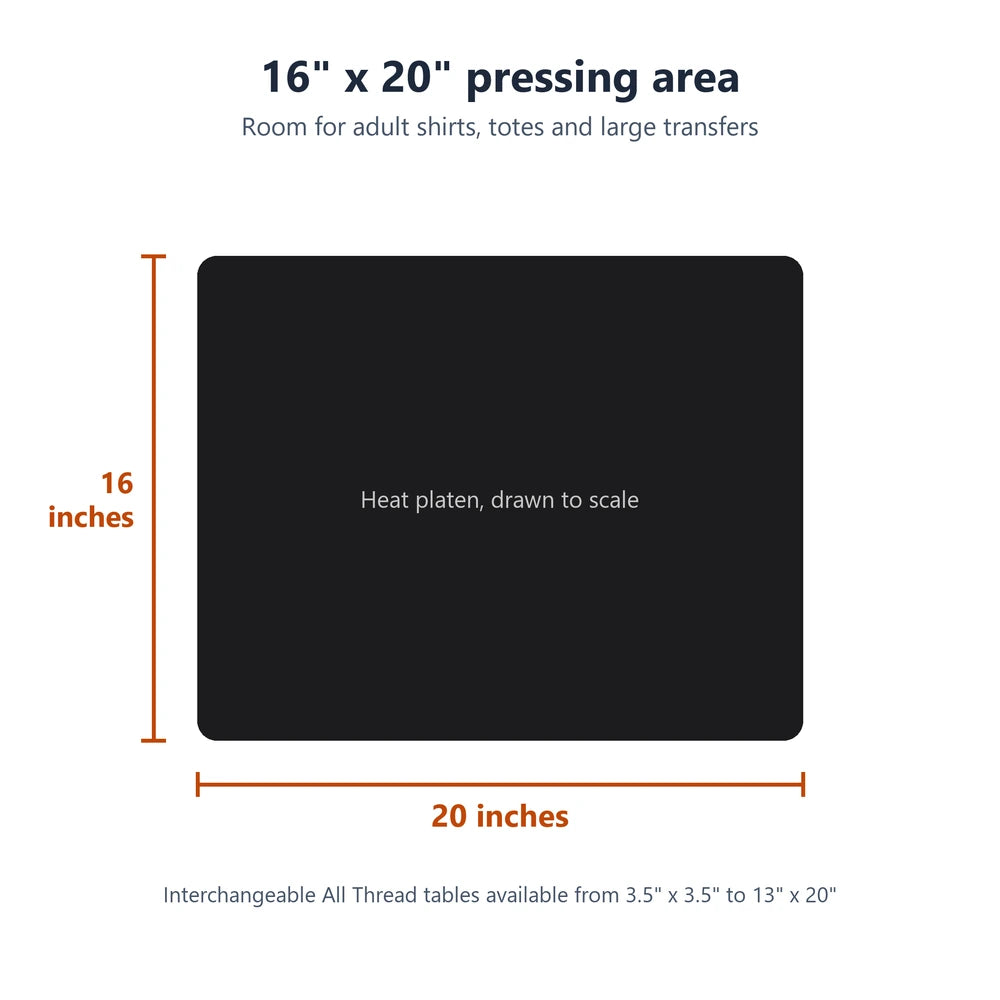

The 16x20 heat platen gives you room for adult shirts, totes, and large transfers. Geo Knight built it with SuperCoil Microwinding™ heater technology for heat spread across the full surface.

• Teflon coated surface helps keep transfers from sticking
• 3/4" thick platen holds heat steadily between presses
• Lifetime warranty on the heat platen

Round out your setup with matching accessories:

• DKP-1620BHT: DK20/A/S/SP 16 x 20 Bottom Heat and Control
• DKP-1416BHT: DK20/A/S/SP 14 x 16 Bottom Heat and Control
• RMN-½NOM1620: 1/2" x 16 x 20 White Nomex/Heat Felt
• CTW-1620: 16x20 Teflon Bottom Table Wrap with elastic corners
• CHW-1620: 16x20 Teflon Top Heater Wrap with elastic corners
• TRM-SM1620: 16x20 Teflon Sheet
• DKA-STAND: DK Universal Stand

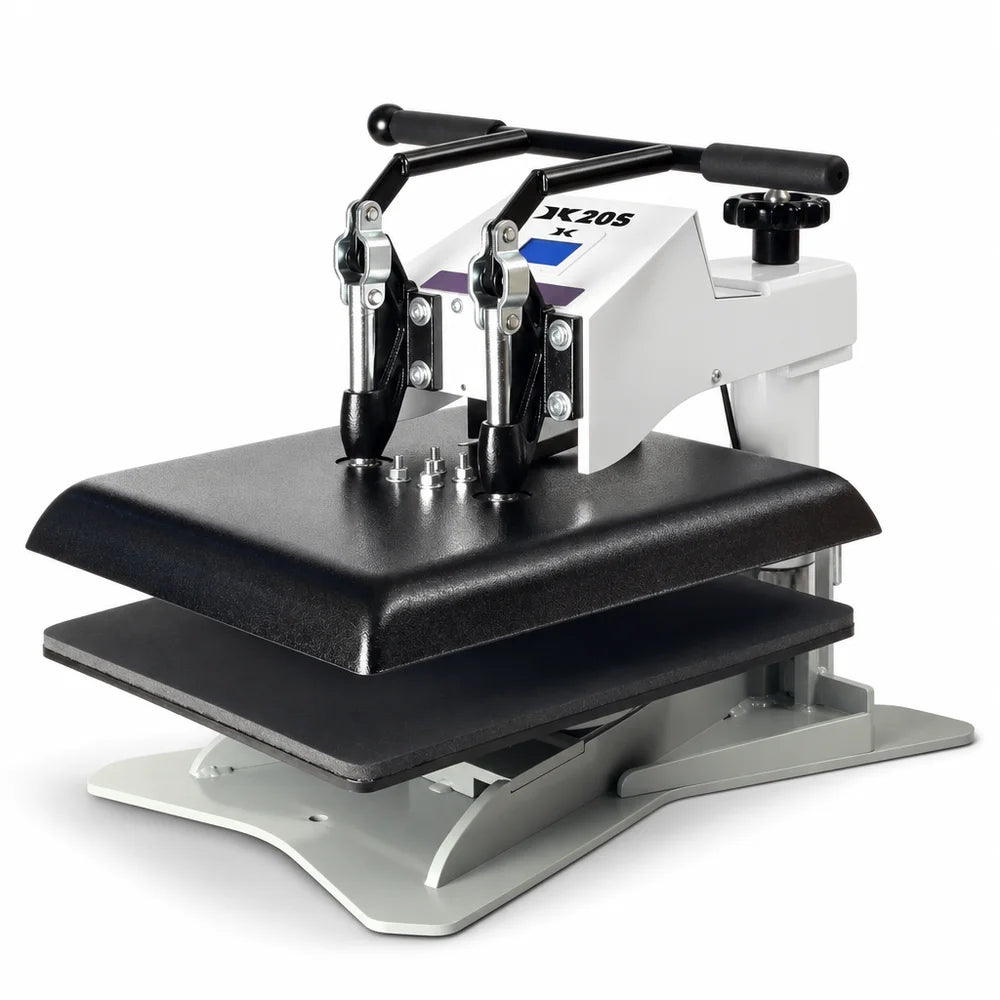

Geo Knight calls this its flagship 16x20 swing away press, and it is world renowned as the top end workhorse of all swing away heat presses. A heavy duty solid steel welded framework of industrial grade pairs with accurate, easy to use electronics for today's wide range of heat transfer work.

Need a different size or style? A jumbo 20x25 platen version is available as the DK25S, and an air operated automatic version is available as the DK20SP.

Your press is backed for the long haul:

• FREE LIFETIME Tech Support
• Lifetime warranty on heat platen
• 5 year warranty on frame
• 3 year warranty on controller
• 1 year warranty on parts

Available in 120V or 220V (+$35 for 220V). Choose your voltage on this page.

Shipping is $360 per press; two presses ship at twice the rate. Your press travels by truck freight in a 210 lb crate, with curbside delivery and liftgate included. The carrier calls ahead to schedule, and someone must be there to sign. Each press is built to order, and manual presses typically ship in 3 to 5 working days, with transit time on top. Contact Us with any questions about your order.
