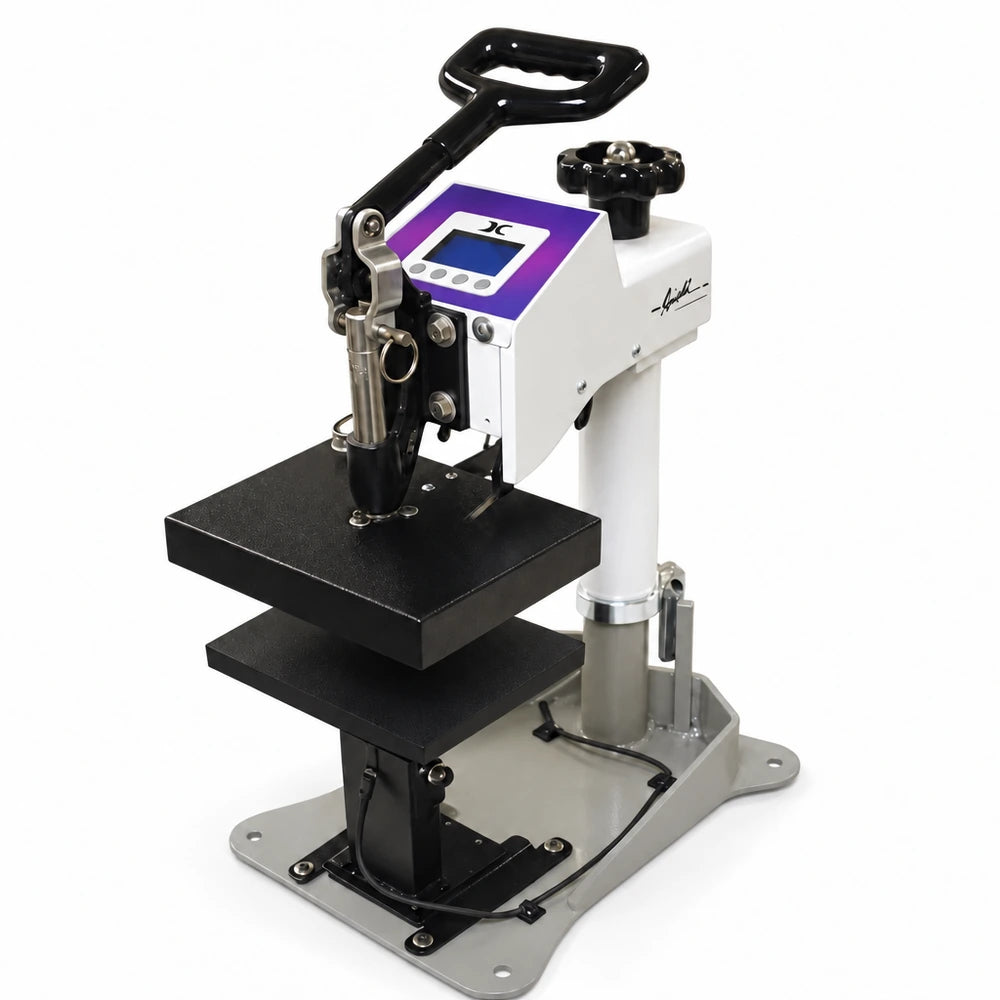

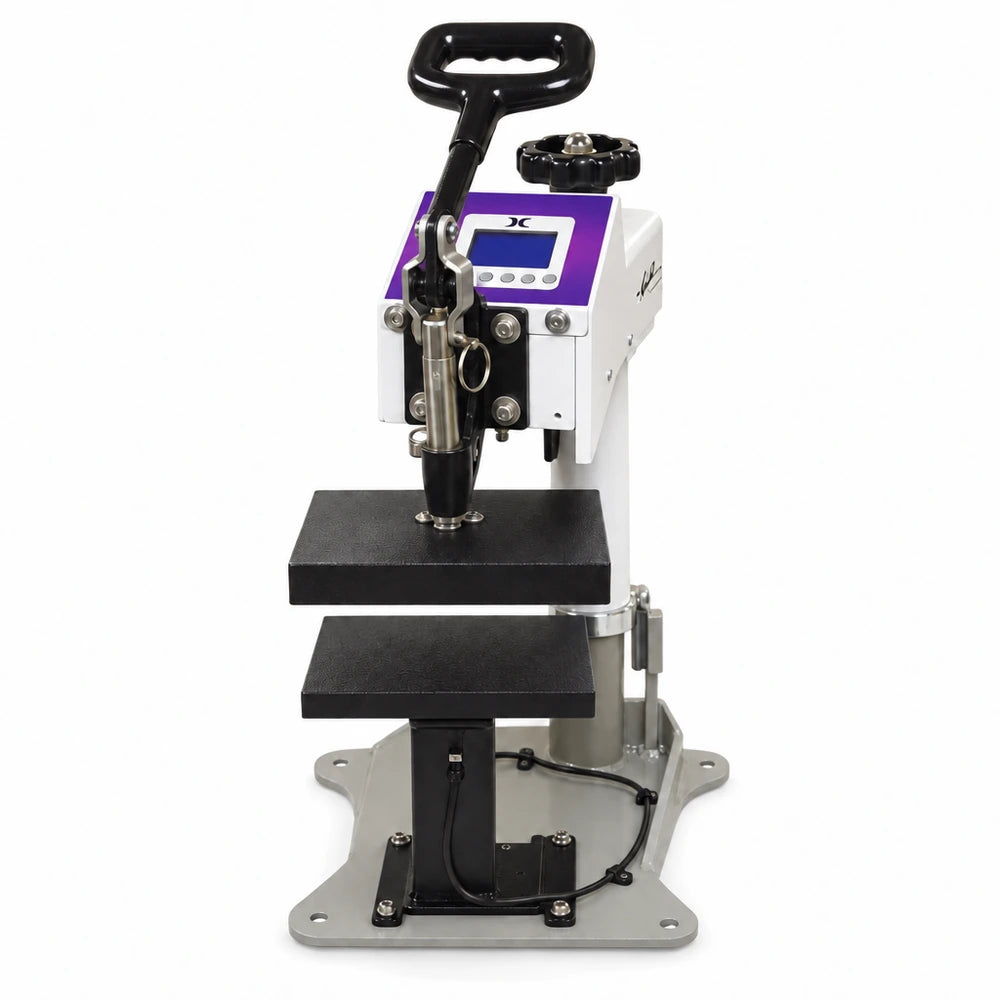

Geo Knight DC8 Heat Press Machine Digital Combo 6x8 Swing Away
Press Labels and Patches Cleanly With the Geo Knight DC8 Transfer Press Machine
Trying to press a tagless label or a small embroidered patch on a big platen? You fight wasted heat, awkward positioning and a crowded workbench. This compact swing away press puts a 6" x 8" heat platen right where your small jobs need it, backed by fully digital controls and a solid steel welded frame. You set the heat, time and pressure once, save it as a preset, and repeat it on every garment. It is available in 120V or 220V (+$35 for 220V), so you pick the power that fits your shop.
- Made for small jobs: 6" x 8" heat platen and table for labels, tagless garment labels and embroidered patches.
- Swing away design: Upper platen moves clear of the table for open, heat free layout.
- Precise digital control: 32°-600°F range, +-2°F readout accuracy, shown in °C or °F.
- Repeatable results: Automatic digital timer, dual prepress timer, Digital Pressure Bar Graph and 70 programmable presets.
- Tough build: Solid steel welded frame, 3/4" thick Teflon coated platen, fits materials up to 1" thick.
- More than labels: Interchangeable platens and tables, works with all DC16 attachments like cap, mug and plate.
- Power choice: Available in 120V or 220V (+$35 for 220V). 120V model runs on 600W / 5A / 120V.
- Long warranty: Lifetime on heat platen, 5 years frame, 3 years controller, 1 year parts, plus free lifetime tech support.
- Shipping: Built to order, typically ships in 3 to 5 working days. $150 per press by FedEx in a 128 lb box.
Variant comparison
| SKU | DC8-120 | DC8-220 |
|---|---|---|
| Voltage (electrical) | 120V · 600W · 5A | 220V · 220V option (no watts/amps listed) |
| Price | $1,525.00 | $1,560.00 (120V + $35 220V option) |

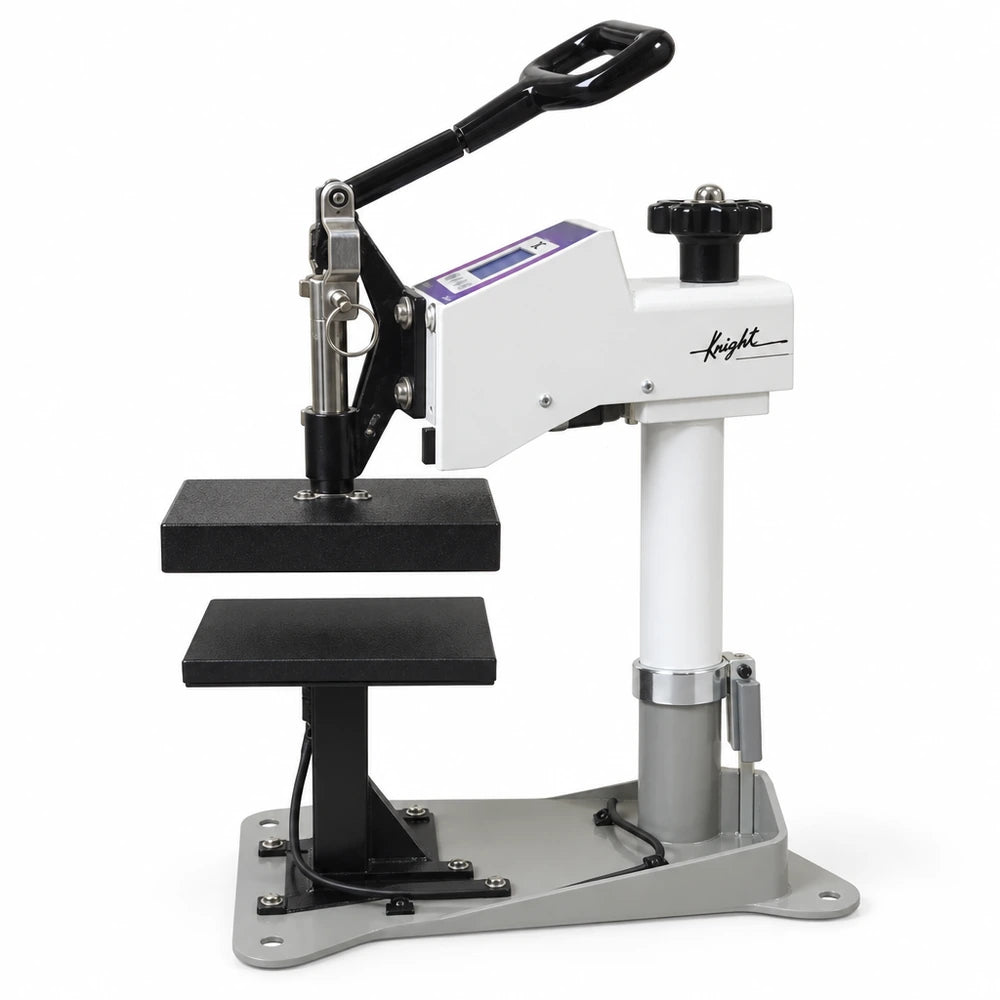

Geo Knight DC8 Swing Away Heat Press Machine Built on a Solid Steel Frame

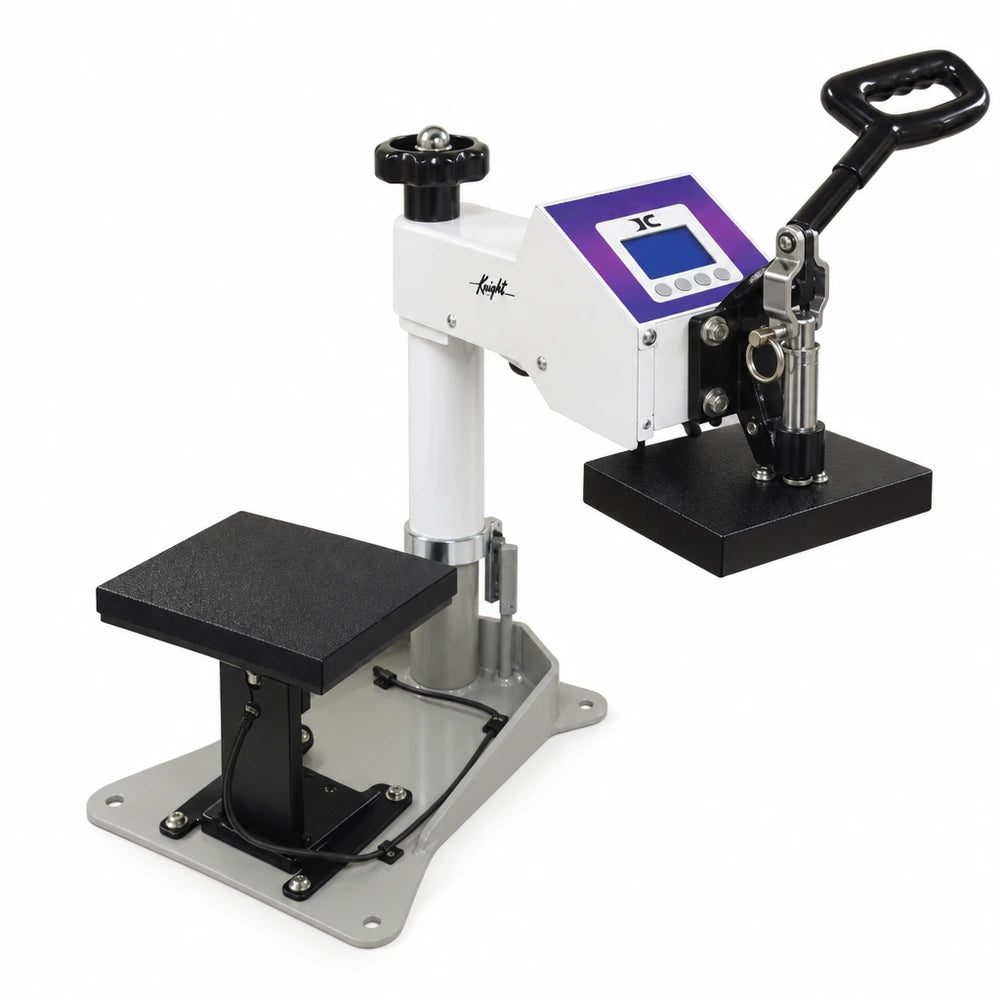

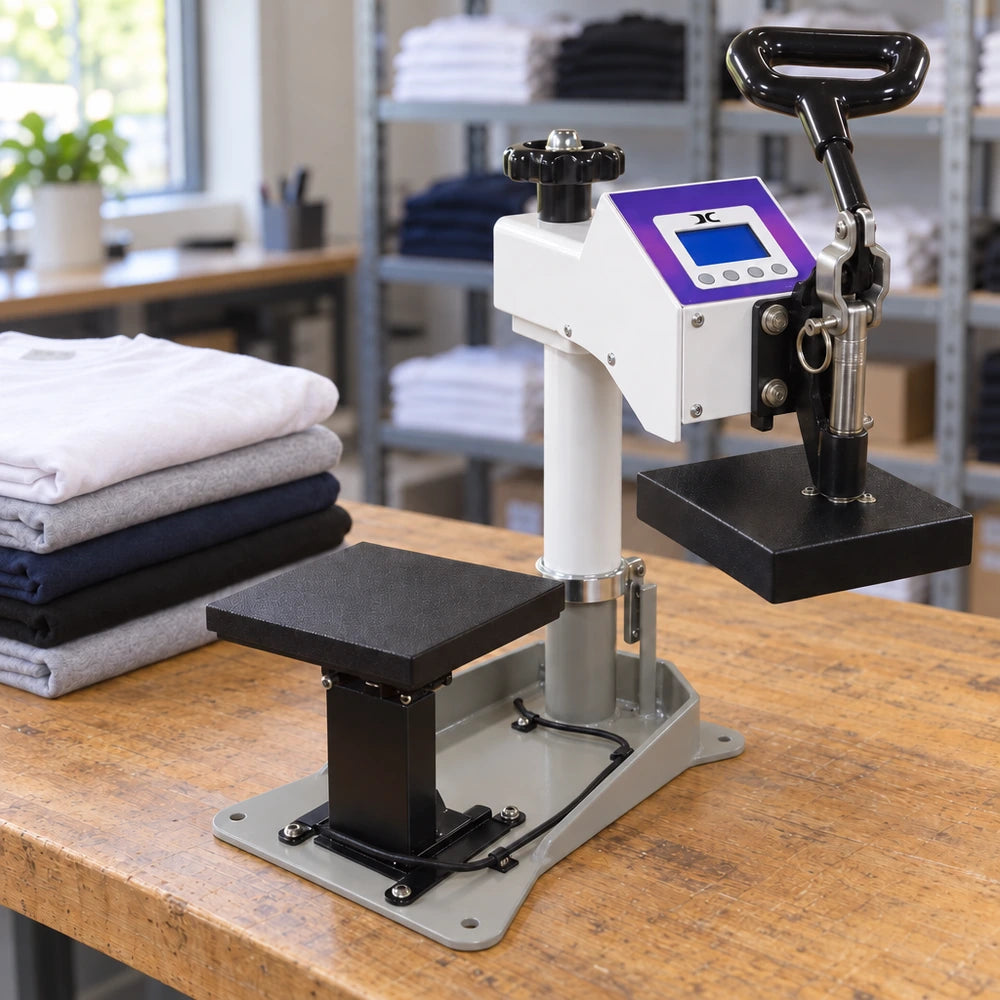

The upper platen swings away from the bottom table, so you get open, heat free access while you lay out a label or line up a patch. No reaching under a hot surface, no guessing.
- Solid steel welded framework holds steady through long runs.
- Accommodates materials up to 1" thick, so thicker patches and layered pieces still fit.
- A heavier duty swing away version of the DK8 clamshell.
- Shares all the interchangeability and design of the larger DC16 manual combo press, in a smaller format.
Need even more output? The DC8AP automatic press is the higher production version of this design.

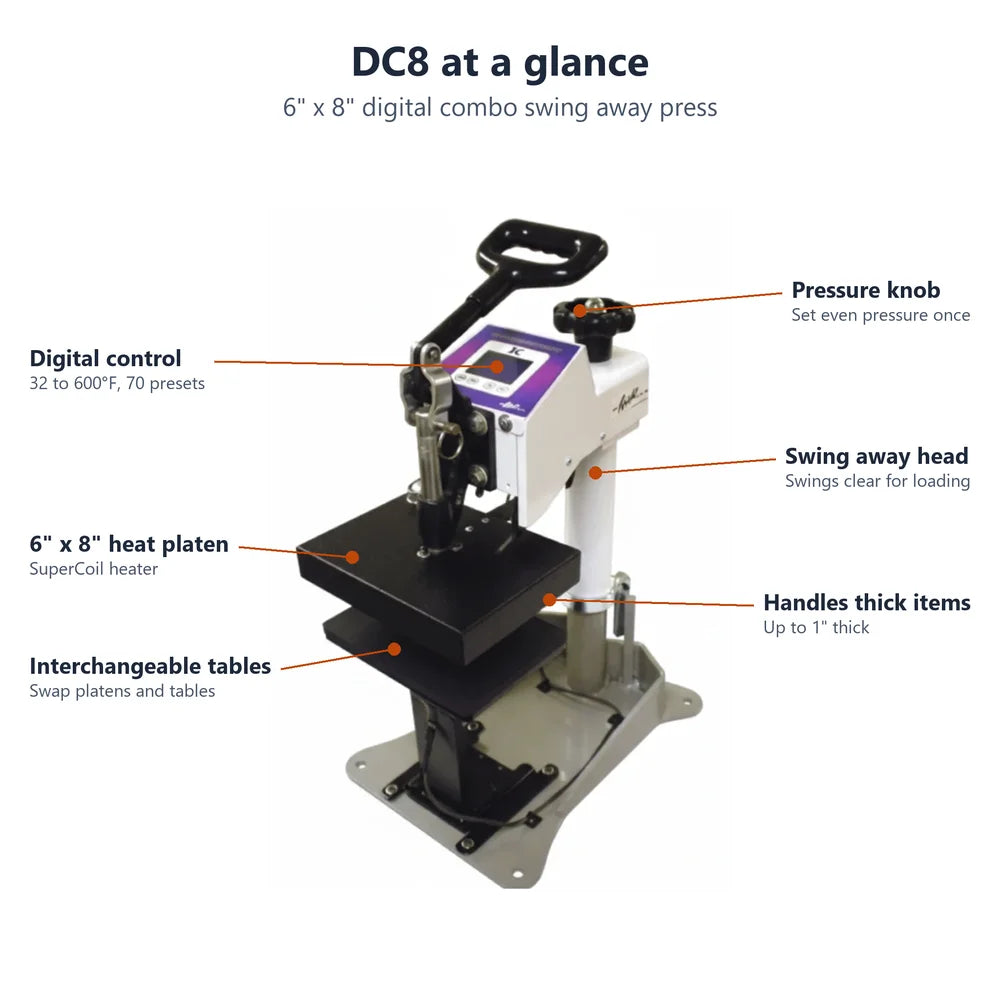

Exact Heat and Timing From the Geo Knight DC8 Digital Combo Heat Press Machine
Small transfers leave little room for error. The digital controller gives you tight command over every press.
- Purple Digital Combo controller with a blue LCD screen and four buttons, set beside the black pressure adjustment knob and handle linkage.
- Fully digital temperature control across a 32°-600°F range.
- Temperature readout accuracy of +-2°F, shown in °C or °F.
- Automatic digital timer and dual prepress timer for consistent dwell times.
- Digital Pressure Bar Graph so you see your pressure instead of guessing.
- 70 programmable presets to recall settings for each label or patch type.
- Records the number of pressing cycles done, handy for tracking jobs.
Heat comes from SuperCoil Microwinding™ heater technology, built into the platen for even results.
Small Jobs Fit Perfectly on the Geo Knight DC8 6x8 Heat Press Machine

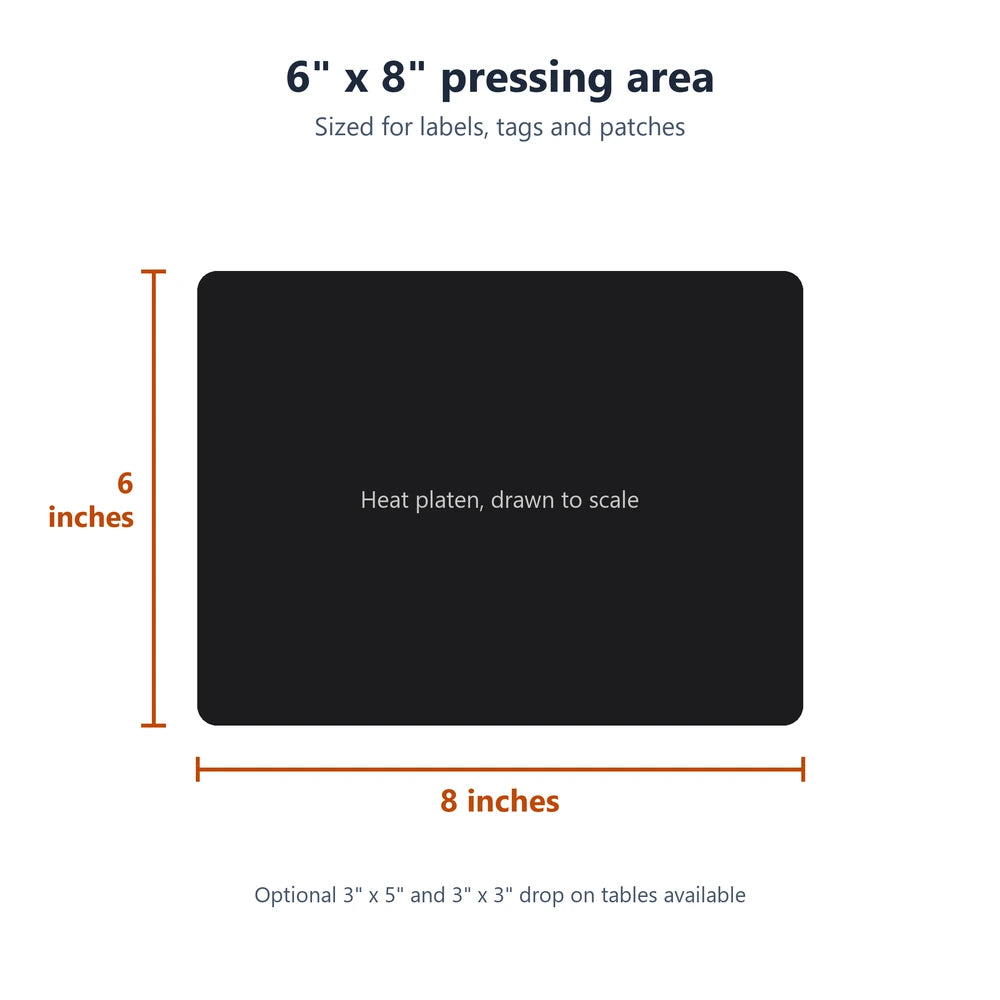

A large platen is the wrong tool for a neck label. The 6" x 8" heat platen and bottom table are sized for the jobs this press was made for:
- Label printing
- Applying "tagless" labels to garments
- Embroidered patches
- Any small pressing area where a large heat platen is not appropriate
The platen is 3/4" thick and Teflon coated, so it holds heat well and releases cleanly from your transfers.
Swap Attachments to Take the Geo Knight DC8 Label Heat Press Machine Beyond Labels
With interchangeable heat platens and tables, one press covers far more than labels. All attachments available for the DC16 also work on the DC8. Suggested accessories include:
- Cap Attachment and Cap Bottom Heat Attachment for the Digital Combo
- Full Wrap Mug Attachment for the Digital Combo press
- Plate Attachment
- 6 x 8 Label Bottom Heat Fixture
- DK8 / DC 3" x 5" Drop On Table and 3" x 3" Drop On Table
- DK Universal Stand
Warranty, Power Options and Shipping
This press is covered by one of the longest warranties in its class, plus free lifetime tech support.
- Lifetime warranty on the heat platen
- 5 year warranty on the frame
- 3 year warranty on the controller
- 1 year warranty on parts
Available in 120V or 220V (+$35 for 220V); choose your voltage on this page. The 120V model runs on 600W / 5A / 120V.
Each press is built to order. Manual presses typically ship in 3 to 5 working days, with transit time on top. Shipping is $150 per press (two presses ship at twice the rate) by FedEx in a 128 lb box. Contact Us with any order questions.
Product Specs
| Spec | Value |
|---|---|
| Brand | Geo Knight |
| Model | DC8 |
| Press Type | Digital Combo 6x8 swing away press |
| Heat Platen Size | 6" x 8" |
| Heat Platen | Teflon coated, 3/4" thick |
| Temperature Range | 32°-600°F |
| Temperature Accuracy | +-2°F, °C or °F display |
| Programmable Presets | 70 |
| Max Material Thickness | Up to 1" |
| Voltage | 120V or 220V (+$35 for 220V) |
| Electrical (120V) | 600W / 5A / 120V |

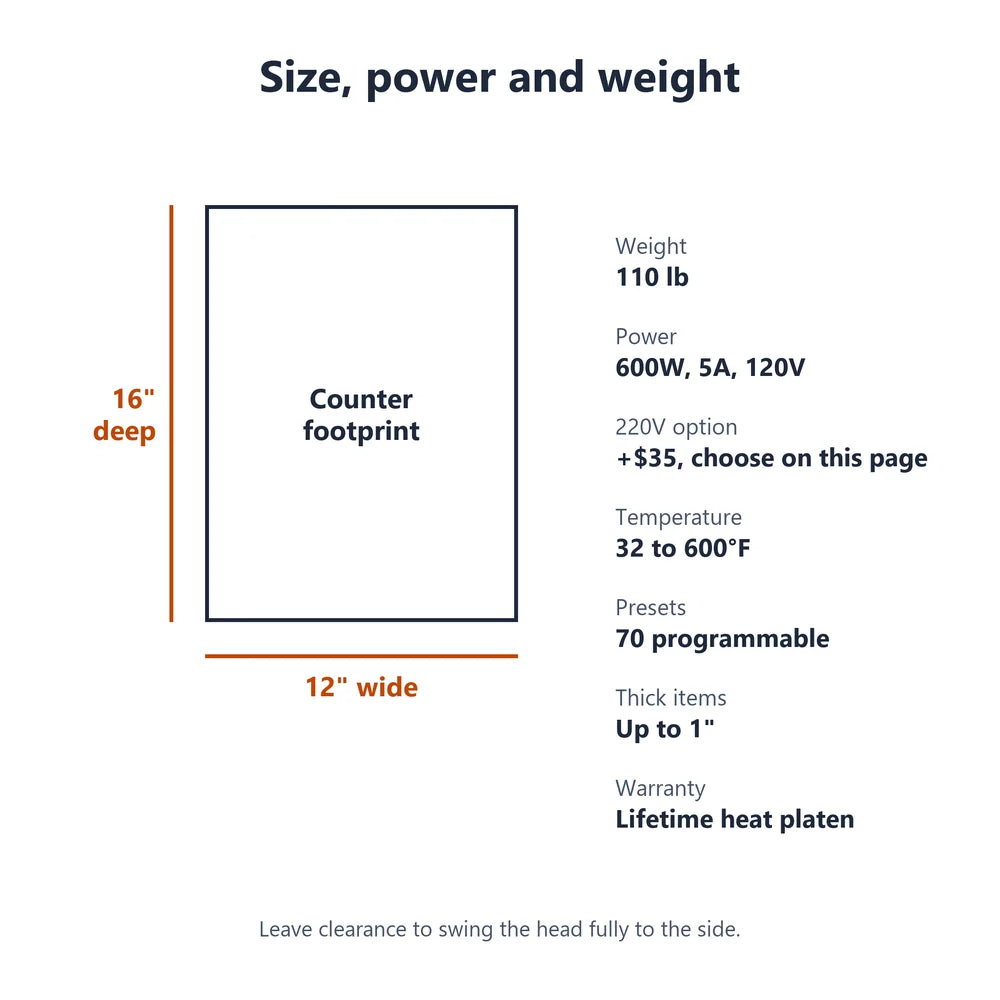

| Weight | 110 lbs |
| Counter Footprint | 16"D x 12"W |
| Shipping Dims | 24"W x 24"D x 24"H |
| Shipping Weight | 128 lb box |
| Price | $1,525.00 (120V) / $1,560.00 (220V) |
| Warranty | Lifetime heat platen, 5 year frame, 3 year controller, 1 year parts |
