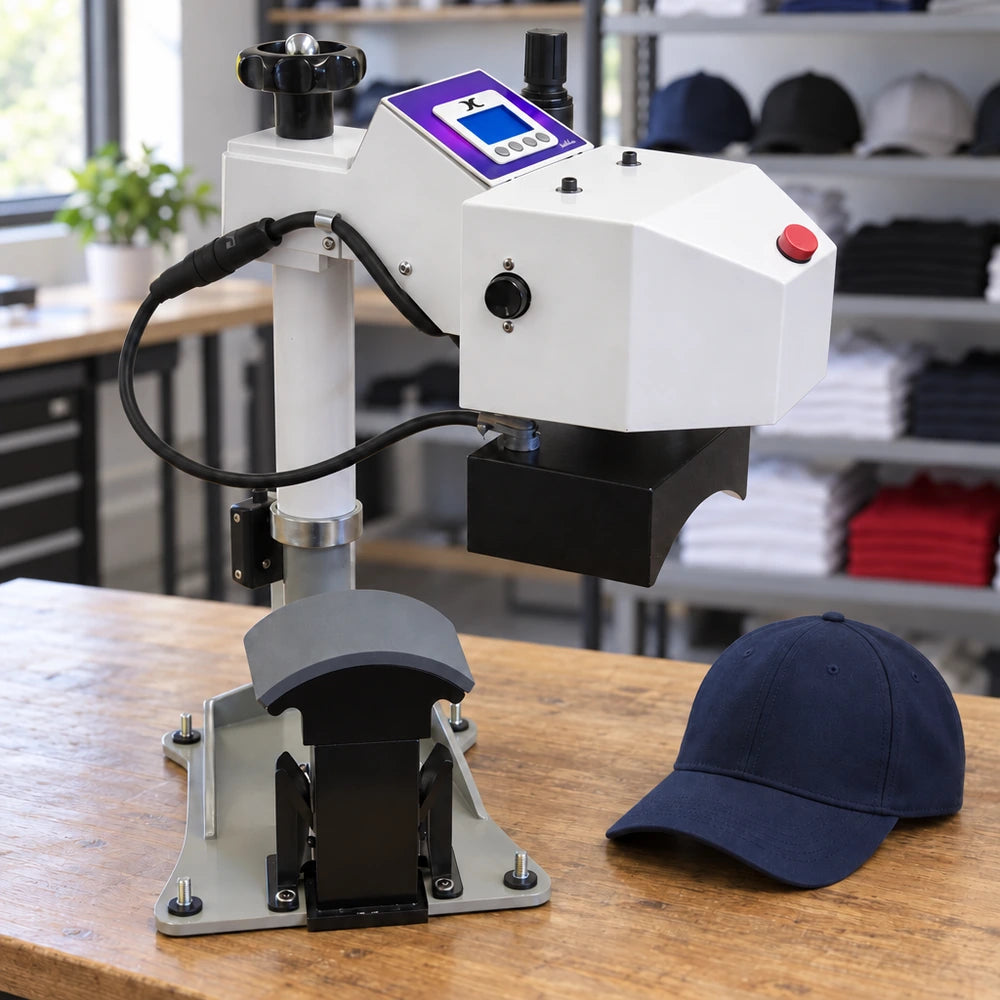

Geo Knight DC7AP Heat Press Machine Automatic Cap Swing Away
Crisp, Even Cap Transfers From the Geo Knight DC7AP Cap Heat Press Machine
Tired of wrestling curved caps under a manual handle, run after run? Your arms get sore, your pressure drifts, and your logos show it. Here you get automatic air operated pressing with pushbutton activation, so every hat gets the same smooth press while you stay fresh all shift. With three bottom forms included, fully digital controls and a lifetime warranty on the heat platen, you can turn cap orders into a steady, fatigue free routine.

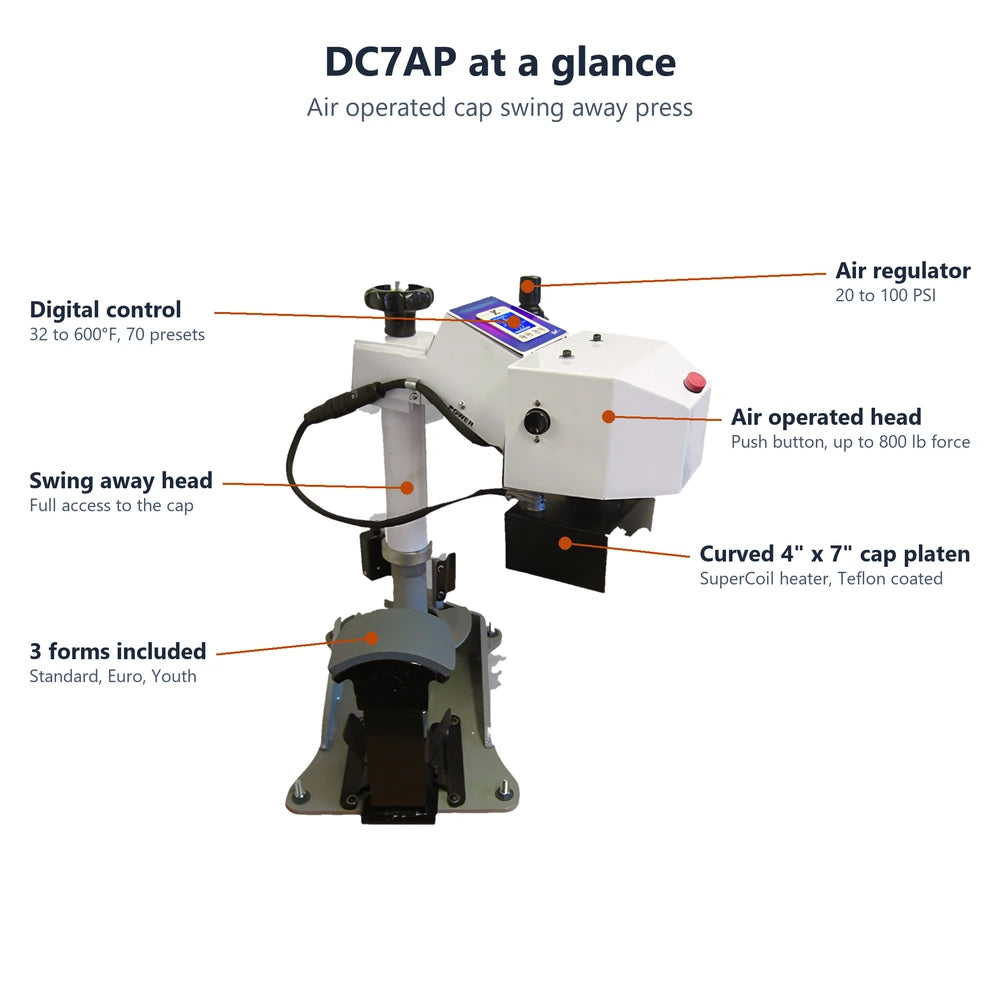

- Automatic air pressing: pushbutton activation gives smooth, fatigue free cap runs
- Firm, even pressure: up to 800 lbs applied force, regulator and gauge from 20 to 100 PSI (compressor required)
- Three bottom forms included: Standard, Euro (mid sized) and Youth caps out of the box
- Precise digital control: 32° to 600°F, accurate to +-2°F, in °C or °F
- Repeat jobs fast: 70 programmable presets, auto timer, dual pre press timer and cycle counter
- Swing away design: heat platen moves clear so you load caps away from the hot surface
- Built to last: solid steel welded frame, Teflon coated 3/4" platen, SuperCoil Microwinding™ heater
- Room to grow: interchangeable platens and tables, optional bottom heat, mug, plate and label attachments
- Power options: available in 120V or 220V (+$35 for 220V), 450W / 3.75A / 120V
- Warranty and support: lifetime platen, 5 year frame, 3 year controller, 1 year parts, FREE LIFETIME Tech Support
- Shipping: built to order in about 1 to 2 weeks plus transit, $250 per press by FedEx

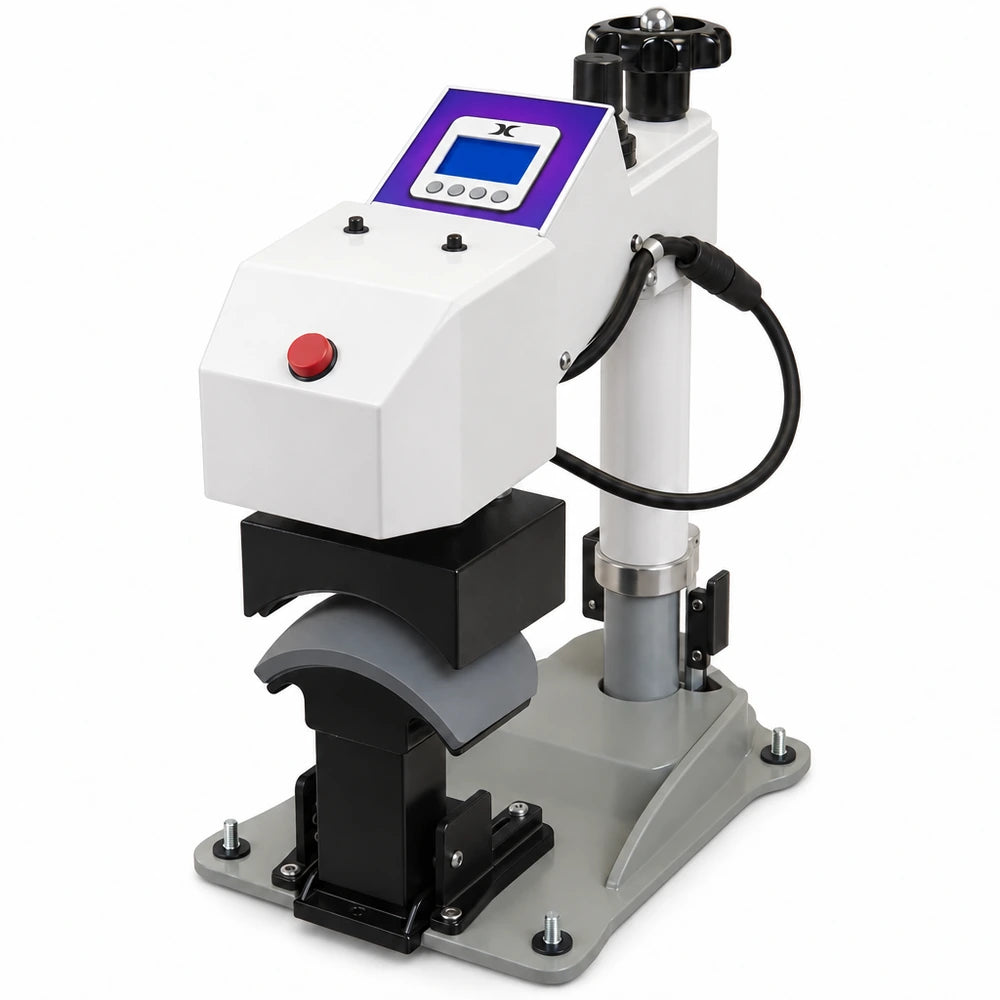

Pushbutton Pressing With Geo Knight DC7AP Air Operated Heat Presses
Press a button and let the air cylinder do the work. The smooth automatic action closes and opens the press for you, so your output depends on your workflow, not your stamina.
- Air regulator and gauge: dial in pressure anywhere from 20 to 100 PSI
- Up to 800 lbs total applied force for firm contact on curved crowns
- Compressor required: connect your shop air supply to run the press
- Repeatable results: the same pressure lands on cap after cap
Repeat Every Job With the Geo Knight DC7AP Automatic Cap Press Machine

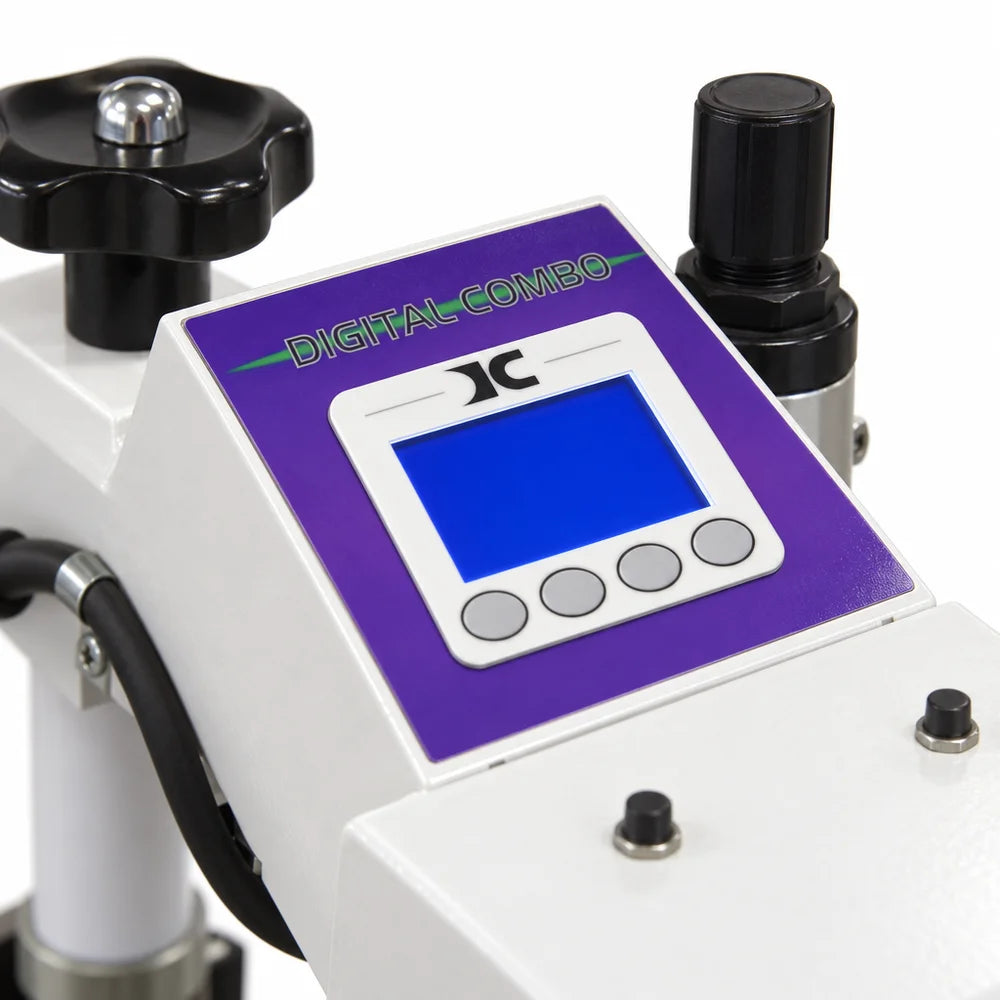

Every setting you need sits on one clear panel: the purple Digital Combo control panel with a blue LCD screen and four buttons, flanked by the height knob and the air regulator. Save your favorite recipes and recall them in seconds when the same job comes back.
- Fully digital temperature control from 32° to 600°F
- Readout accuracy of +-2°F, shown in °C or °F
- Automatic digital timer plus a dual pre press timer
- 70 programmable presets for your go to transfers and garments
- Cycle counter records how many pressings you have done
Three Bottom Forms Included With Your Geo Knight DC7AP Hat Press Machine
Caps come in different sizes, so the press arrives ready for all of them. You get Standard, Euro (mid sized) and Youth bottom forms in the box, letting you switch between adult and kids' orders without buying extra parts.

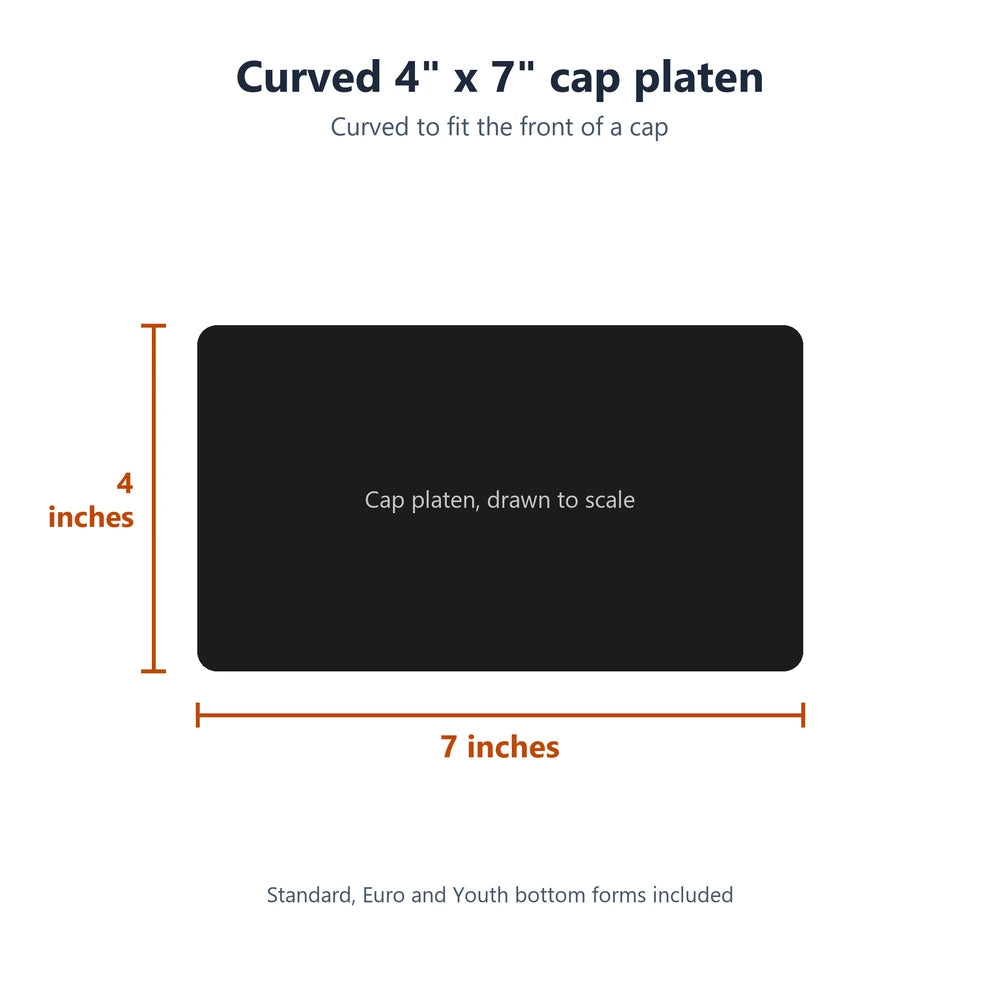

- Curved 4 x 7 inch cap platen shaped to fit cap crowns
- Handles materials up to 1" thick
- Optional bottom heat with the DCP-35BHT Cap Bottom Heat Attachment (for Digital Combo AIR-AUTO)
Solid Steel Build on the Geo Knight DC7AP Swing Away Heat Press Machine

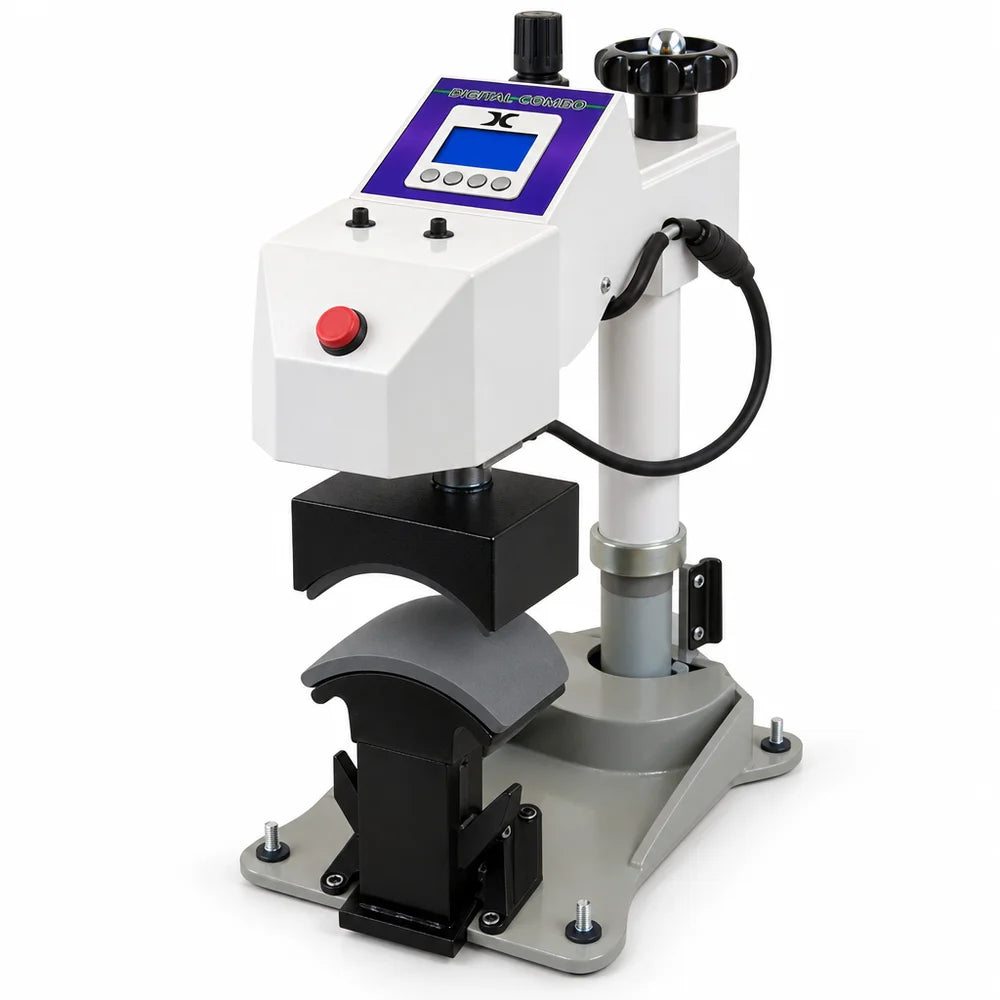

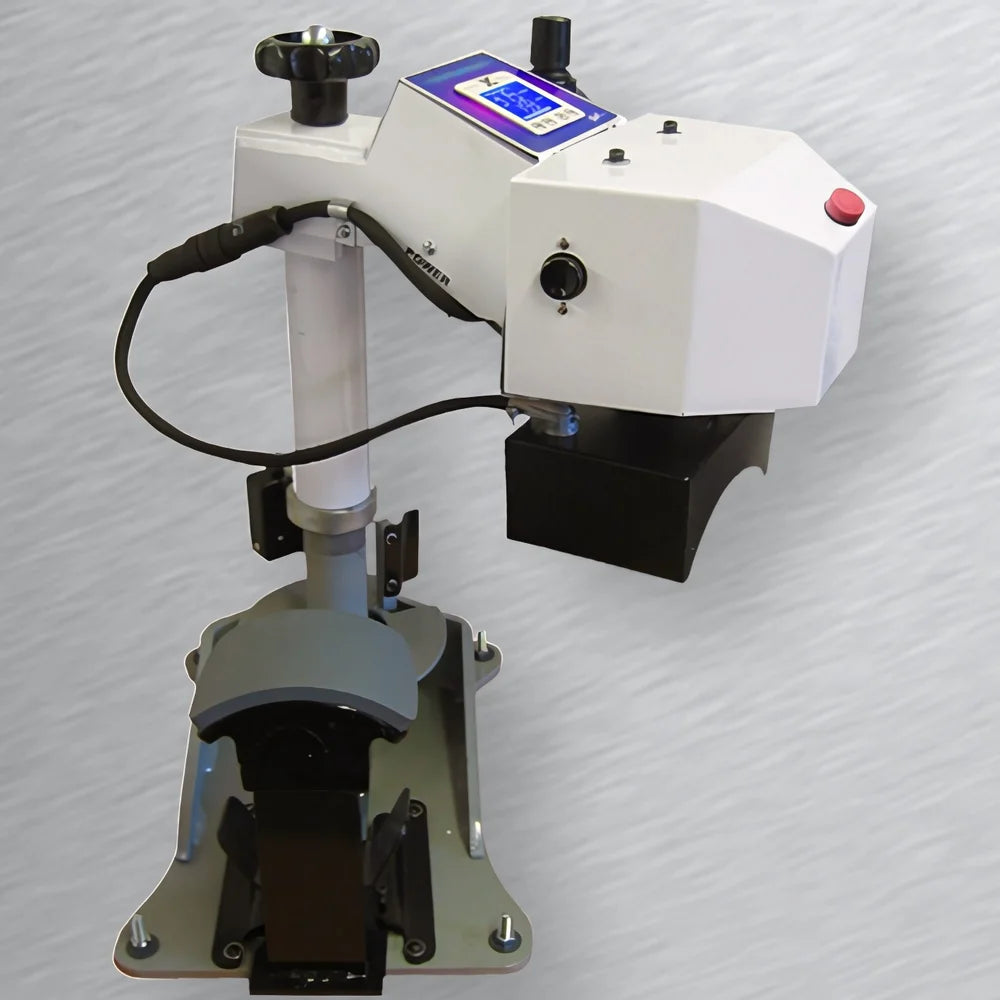

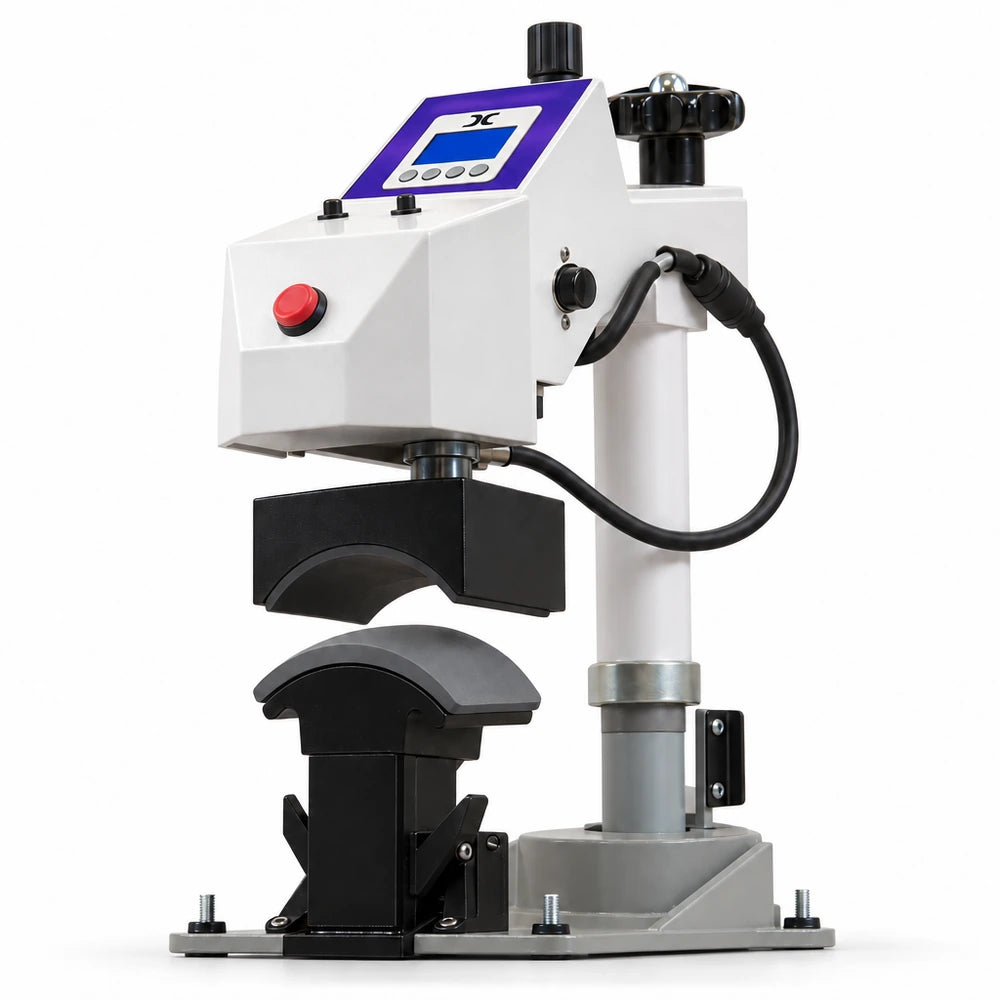

The swing away design moves the heat platen clear of your work area, so you can load and position caps with your hands away from the hot surface.
- Solid steel welded framework built for daily production
- Teflon coated 3/4" thick heat platen for steady heat and easy release
- SuperCoil Microwinding™ heater technology for even heat across the platen
Grow Past Caps With the Geo Knight DC7AP Digital Combo Heat Press Machine
Thanks to interchangeable heat platens and tables, one press can take on more product types as your shop grows. It is identical to the larger DC16AP automatic combo press, sized and set up for cap printing. Prefer a hand operated model? Look at the DC7.
Suggested add ons:
- DCP-LABEL DC-Air Auto Label Attachment
- DC-Mug Full Wrap Mug Attachment (for Digital Combo press)
- DC-Plate Plate Attachment
- DKA-STAND DK Universal Stand
Warranty, Tech Support and Shipping for This Press
Buy with confidence, backed by long term coverage and FREE LIFETIME Tech Support.
- Lifetime warranty on heat platen
- 5 year warranty on frame
- 3 year warranty on controller
- 1 year warranty on parts
Available in 120V or 220V (+$35 for 220V). Each press is built to order; air operated presses typically take 1 to 2 weeks to build, then transit time is added. Shipping is $250 per press by FedEx in a 115 lb box, and two presses ship at twice the rate.
Product Specs
| Brand | Geo Knight |
|---|---|
| Model / SKU | DC7AP |
| Type | Automatic CAP Digital Combo Swing Away Press |
| Operation | Air operated, pushbutton activation (compressor required) |
| Price | $2,575 (120V) / $2,610 (220V) |
| Voltage | Available in 120V or 220V (+$35 for 220V) |
| Electrical (120V) | 450W / 3.75A / 120V |
| Temperature Range | 32°-600°F |
| Temperature Accuracy | +-2°F, °C or °F display |
| Air Pressure Range | 20 to 100 PSI |
| Max Applied Force | 800 lbs |
| Programmable Presets | 70 |
| Timers | Automatic digital timer and dual pre press timer |
| Cap Platen | Curved, 4" x 7" |
| Heat Platen | Teflon coated, 3/4" thick |
| Heater | SuperCoil Microwinding™ |
| Material Thickness | Up to 1" |
| Bottom Forms Included | Standard, Euro (mid sized), Youth |
| Frame | Solid steel welded |

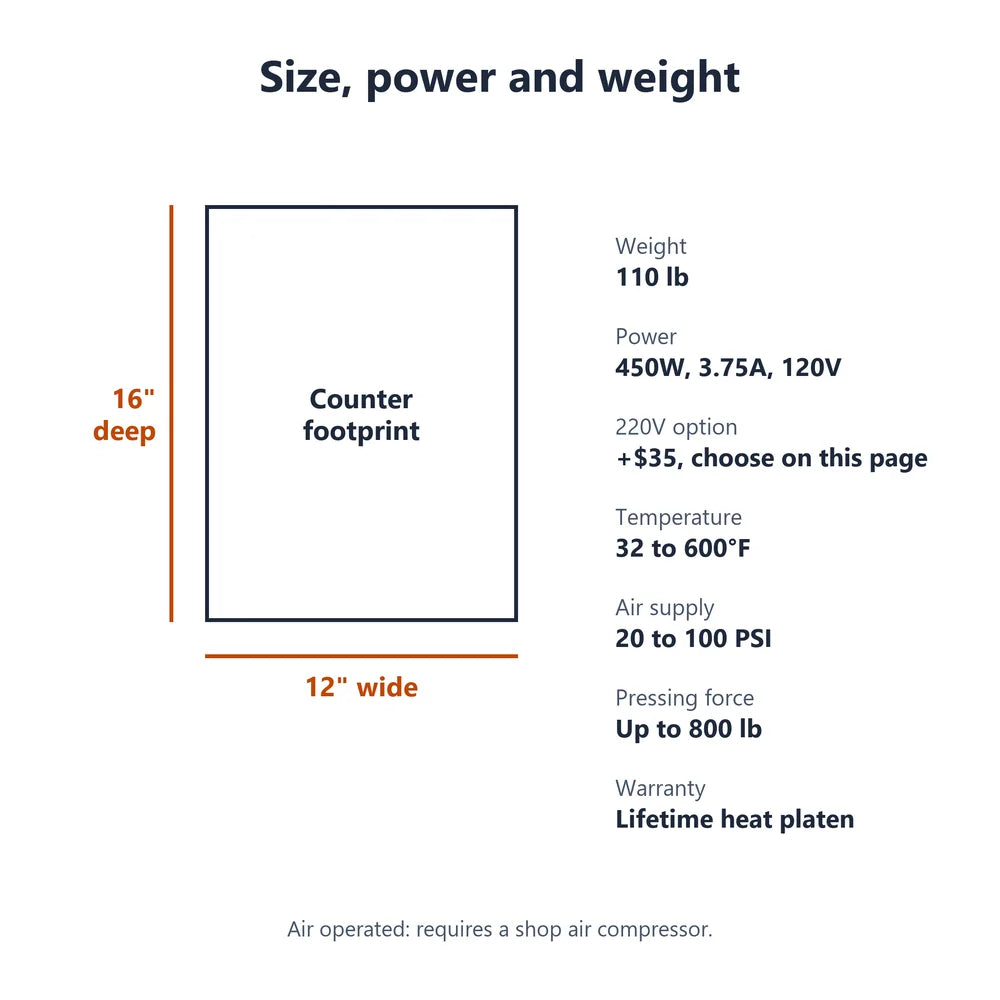

| Weight | 110 lbs |
| Counter Footprint | 16"D x 12"W |
| Shipping Dimensions | 24"W x 24"D x 24"H |
| Shipping Weight | 115 lb box |
| Warranty | Lifetime heat platen, 5 year frame, 3 year controller, 1 year parts |
| Tech Support | FREE LIFETIME |
