Geo Knight DC7 Heat Press Machine Swing Away 4x7 Cap Press
Crisp, Even Logos on Every Hat With the Geo Knight DC7 Cap Heat Press Machine
Tired of crooked transfers and faded spots on curved crowns? A flat press fights the shape of a cap, and your prints show it. The DC7 brings a curved 4"x7" heat platen and matching bottom table so pressure lands evenly across the whole front panel. You get fully digital control, a swing away head that keeps heat away from your hands, and three bottom forms in the box. It's available in 120V or 220V (+$35 for 220V), so your shop can press caps with confidence from day one.

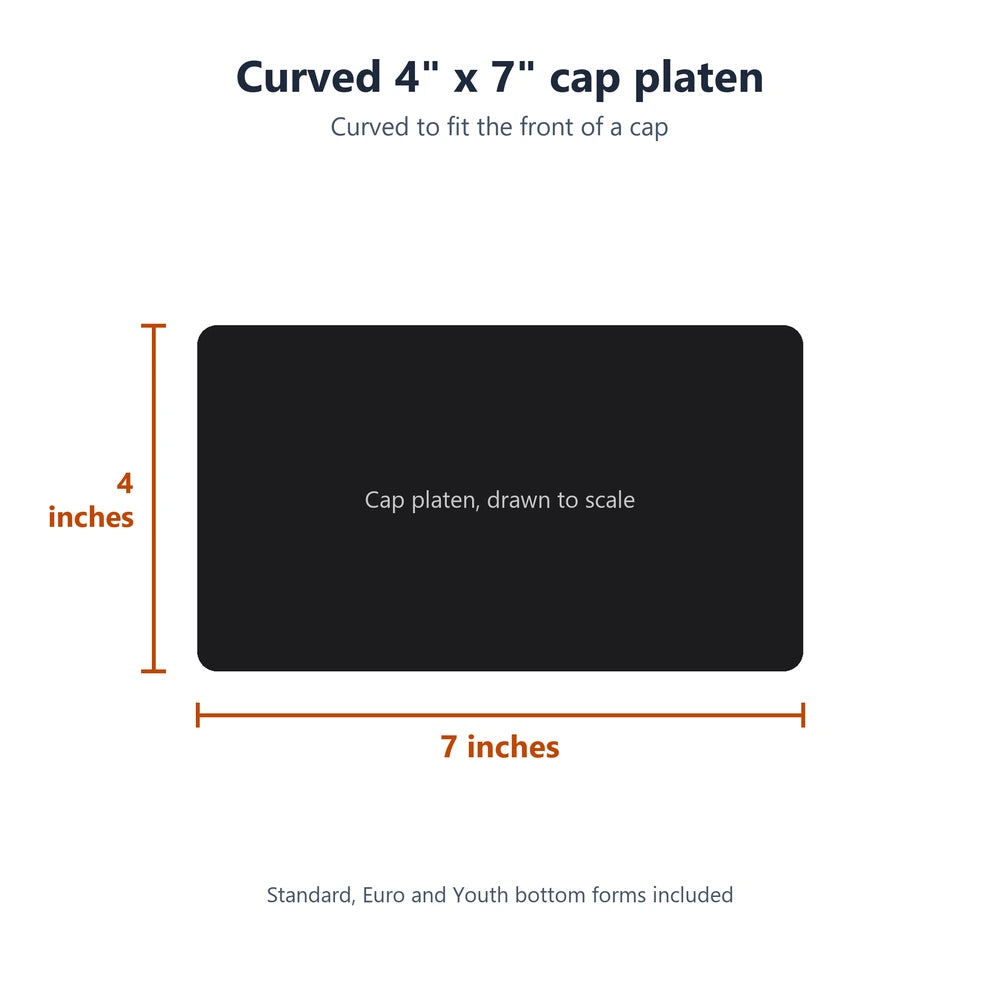

- Curved cap platen: 4"x7" curved heat platen and matching table for even pressure across the cap front.
- Three bottom forms included: Standard, Euro (mid sized) and Youth for adult, mid and kids' caps.
- Swing away head: Load caps in an open, cool work area, away from the hot platen.
- Digital control: 32° to 600°F with +/-2°F accuracy, shown in °C or °F.
- Repeatable results: 70 programmable presets, automatic timer, dual pre press timer and cycle counter.
- Heavy build: Solid steel welded frame and Teflon coated 3/4" thick platen, handles materials up to 1" thick.
- Expandable: Accepts all DC16 attachments, including label, mug, plate and cap bottom heat options.
- Power options: Available in 120V or 220V (+$35 for 220V). 120V draws 450W / 3.75A.
- Price: $1,525 (120V) or $1,560 (220V).
- Warranty: Lifetime on heat platen, 5 years frame, 3 years controller, 1 year parts, plus FREE LIFETIME tech support.
- Shipping: Built to order, typically ships in 3 to 5 working days by FedEx at $150 per press, transit time extra.
Variant comparison
| SKU | DC7-120 | DC7-220 |
|---|---|---|
| Voltage | 120V | 220V |
| Price | $1,525 | $1,560 (add $35) |
Precise Digital Controls on the Geo Knight DC7 Digital Combo Heat Press Machine

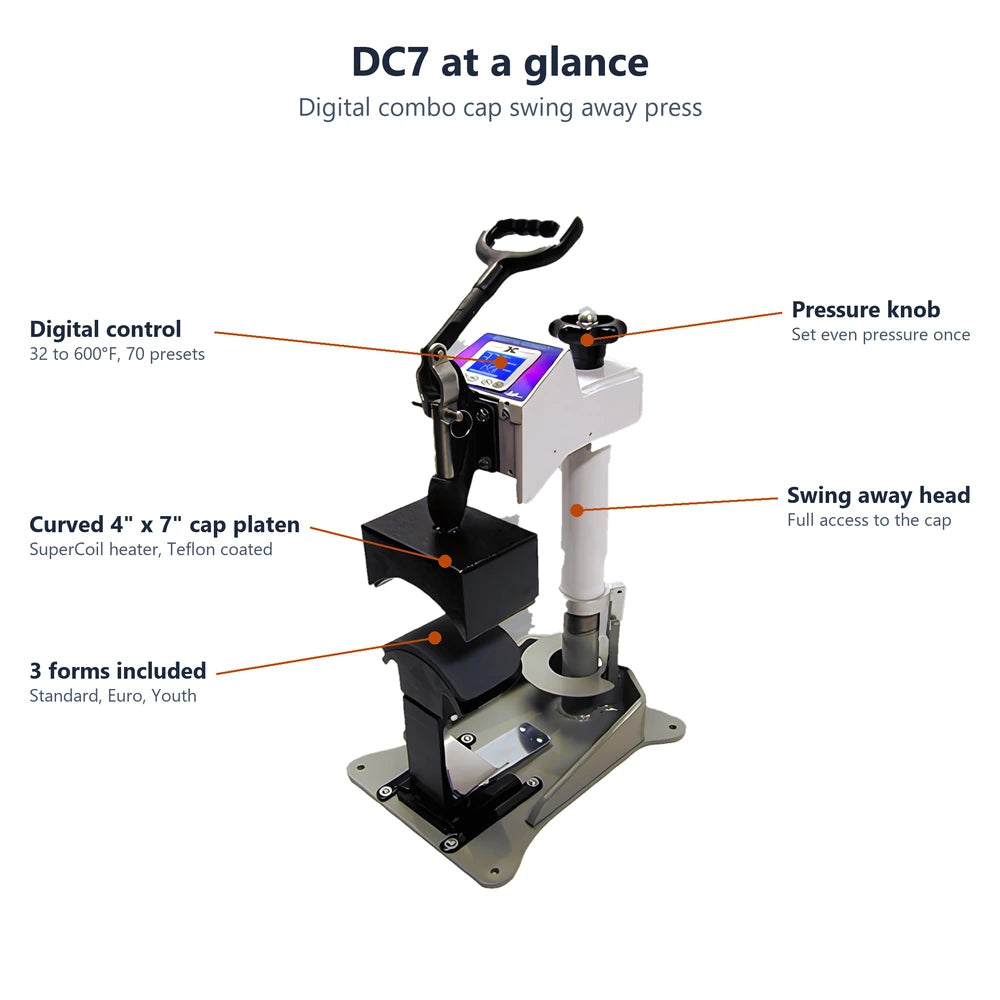

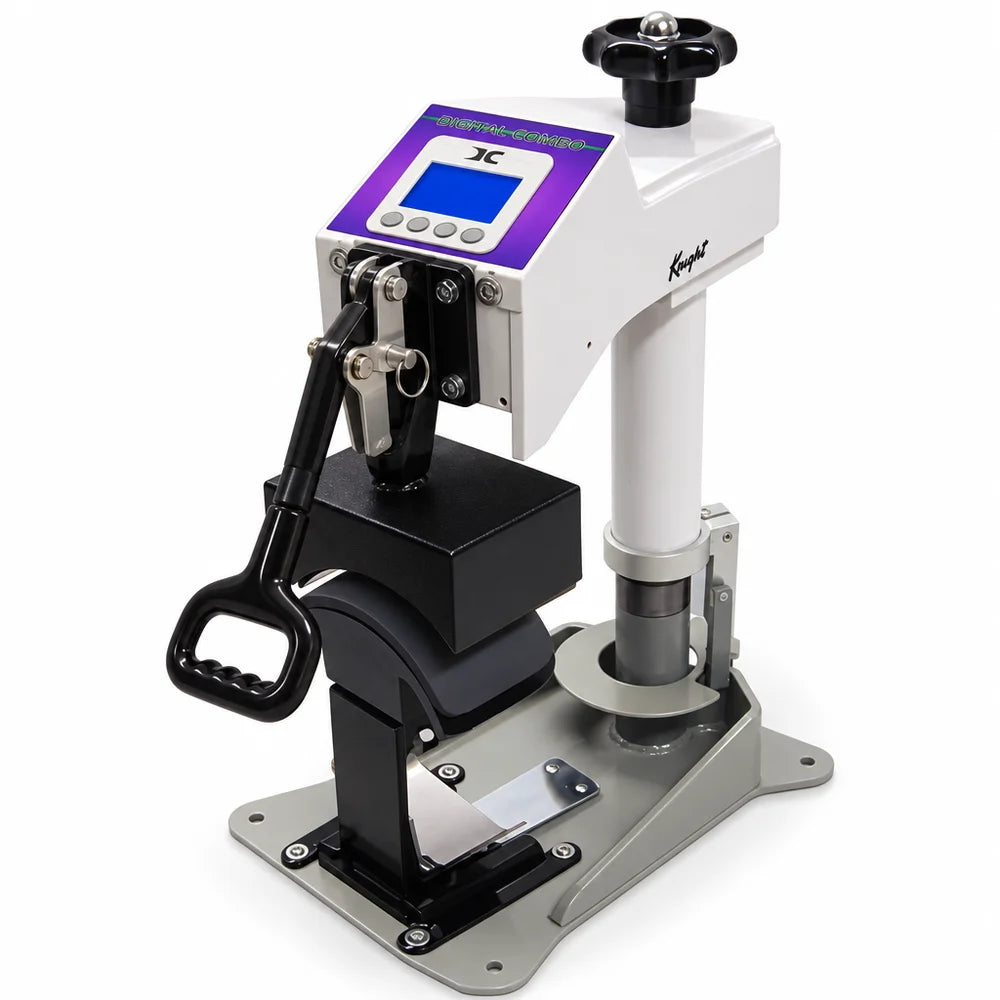

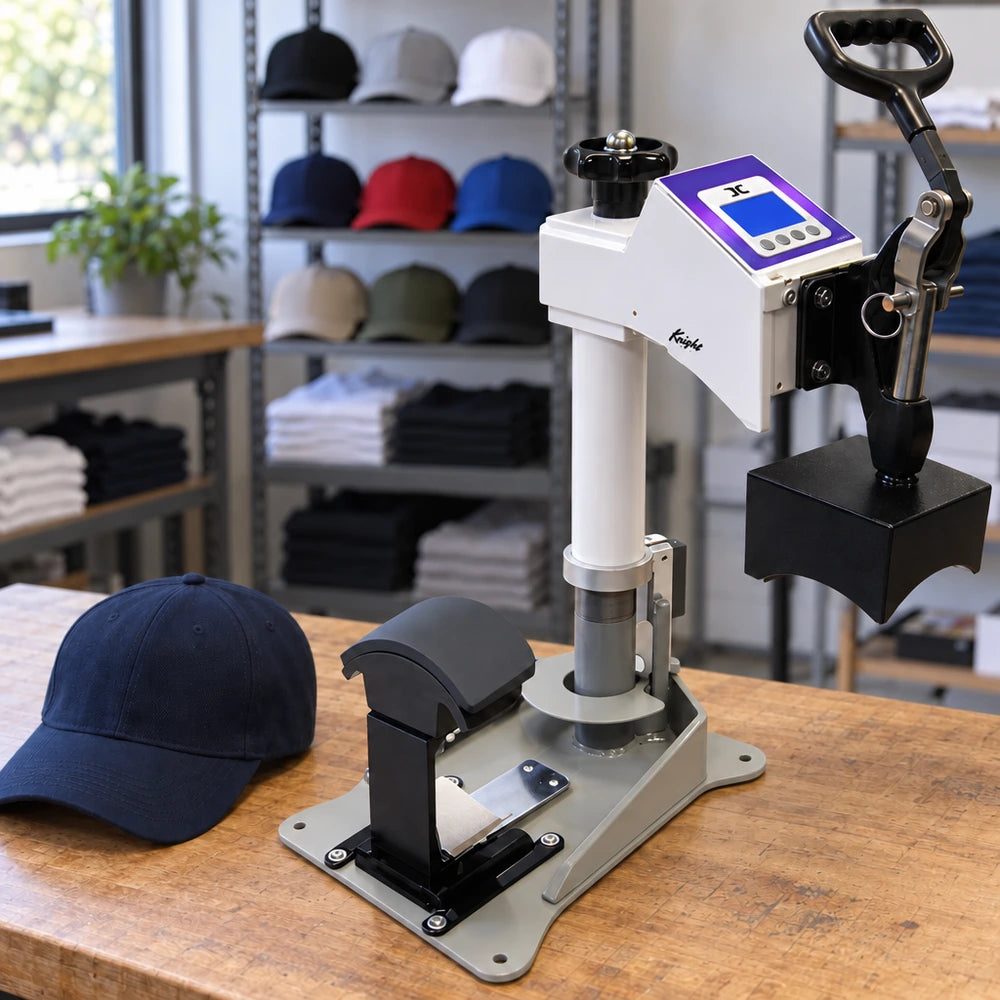

Guesswork ruins hats. This controller replaces it with repeatable numbers you set once and trust every run. It sits on the white head with a blue LCD screen and four buttons on a purple panel, with the lever handle and pivot linkage at the left and the black pressure knob just above.
- 32° to 600°F range with readout accuracy of +/-2°F, shown in °C or °F
- Automatic digital timer plus a dual pre press timer to warm and flatten the cap before the main press
- 70 programmable presets so each transfer type gets its own saved recipe
- Cycle counter that records how many presses you've done, handy for tracking jobs and wear
Set the time and temperature, load the cap, and let the timer tell you when to lift. New staff can run your saved settings without trial and error.
Safer Loading and a Heavy Duty Build on the Geo Knight DC7 Swing Away Heat Press Machine

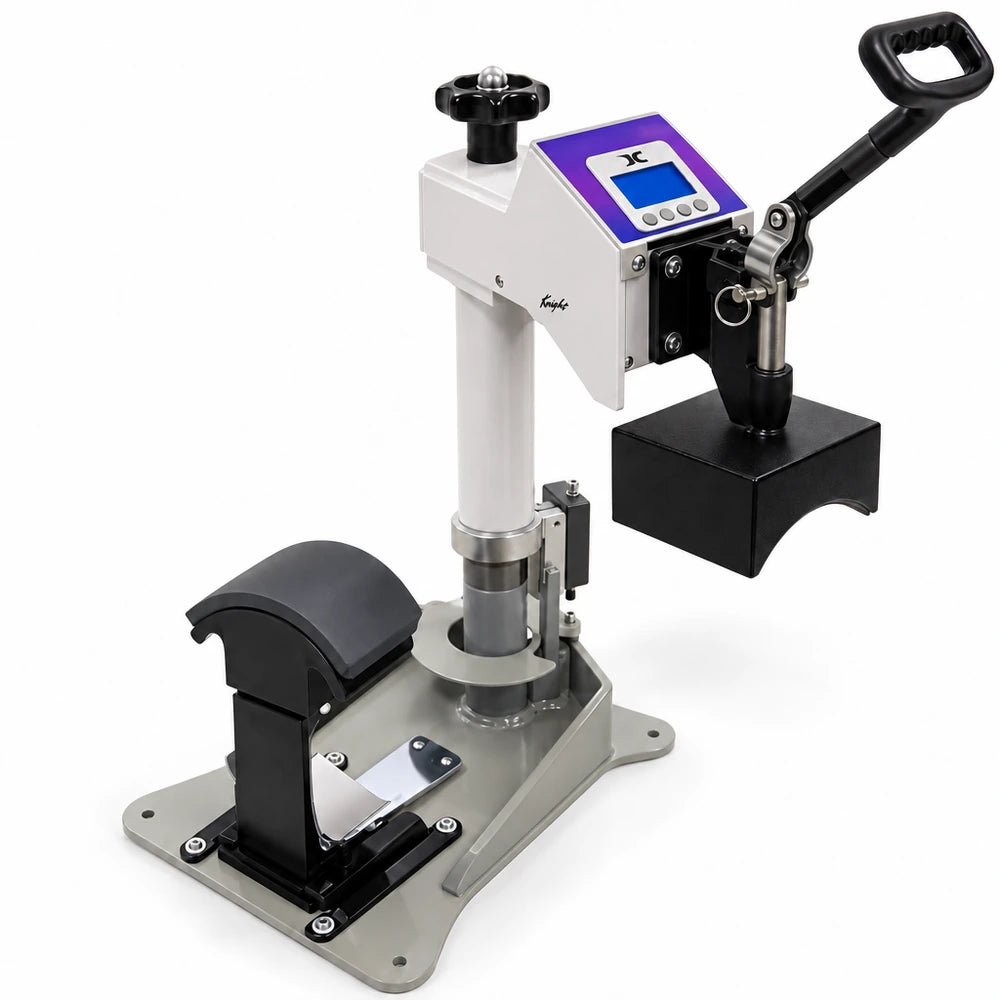

The head swings fully away from the lower table, so you can position caps with an open, cool work area instead of reaching under a hot platen. Think of it as a heavier duty swing away version of the DK7 clamshell cap press.

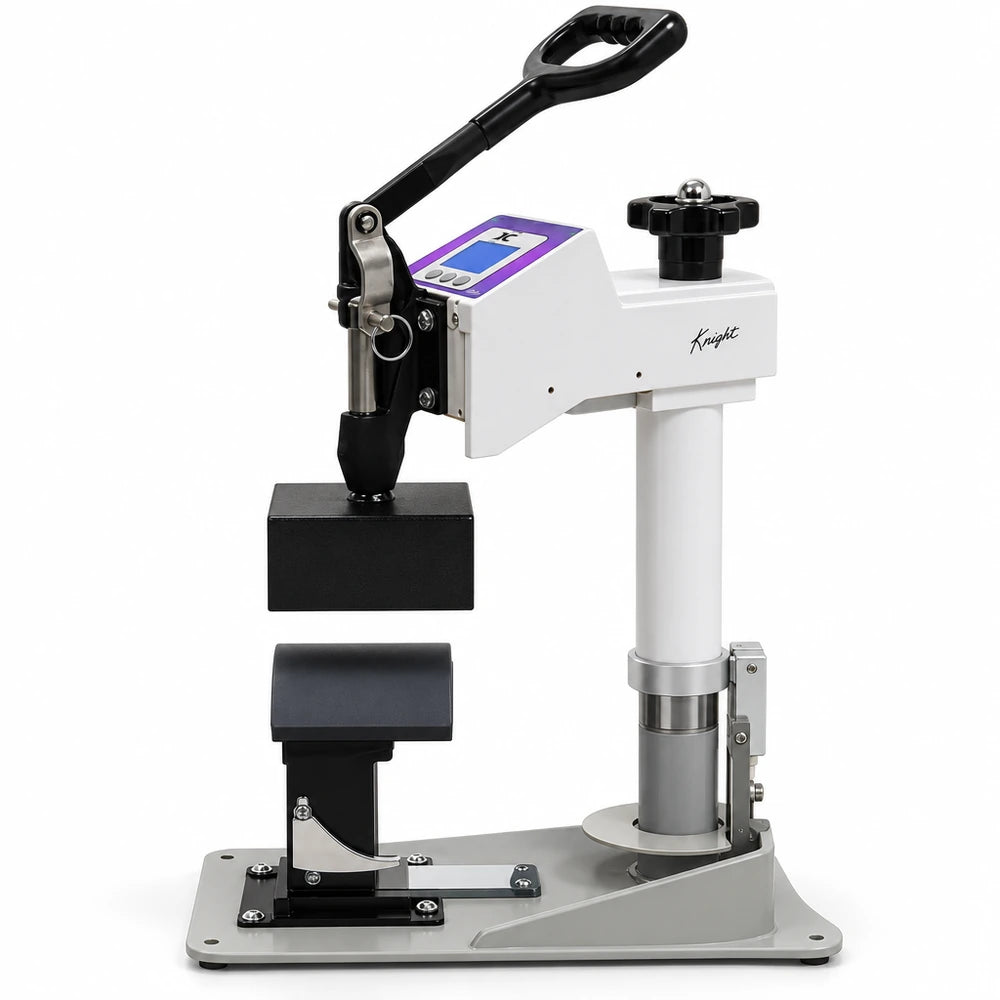

- Solid steel welded framework holds alignment press after press
- SuperCoil Microwinding™ heater technology inside a Teflon coated 3/4" thick heat platen
- Room for materials up to 1" thick
- Interchangeable heat platens and tables share the same design as the DC16
Leave clearance beside the press so the head can swing freely when you set it up.
Three Bottom Forms Fit Every Cap Size on the Geo Knight DC7 Hat Press Machine
Caps come in more than one size, and a single form leaves gaps. You get Standard, Euro (mid sized), and Youth bottom forms included, so adult, mid and kids' hats all sit snug under the curved platen.
Swap forms in seconds and keep the same saved presets running. Need heat from below too? Bottom heat is readily available as an option.
Attachments That Grow With Your Business
Every attachment made for the DC16 fits the DC7, so one press can take on far more than caps. Suggested add ons include:
- Cap Bottom Heat Attachment for the Digital Combo
- 6x8 Label Attachment
- Full Wrap Mug Attachment
- Plate Attachment
- DK Universal Stand
Running big cap orders? The DC7AP automatic press offers an even higher production version of the same platform.
Warranty, Support and Shipping You Can Count On
Geo Knight backs this press with long coverage:
- Lifetime warranty on the heat platen
- 5 year warranty on the frame
- 3 year warranty on the controller
- 1 year warranty on parts
- FREE LIFETIME tech support
Each press is built to order and typically ships in 3 to 5 working days, with transit time on top. We ship by FedEx at $150 per press; two presses ship at twice the rate. Contact Us with any order questions.
Product Specs
| Spec | Value |
|---|---|
| Brand | Geo Knight |
| Model | DC7 |
| Press Type | Digital Combo Cap Swing Away Press |
| Heat Platen Size | 4"x7" curved |
| Bottom Forms Included | Standard, Euro (mid sized), Youth |
| Temperature Range | 32°-600°F |
| Temperature Accuracy | +/-2°F, °C or °F display |
| Programmable Presets | 70 |
| Max Material Thickness | 1" |
| Heat Platen | Teflon coated, 3/4" thick |
| Voltage | Available in 120V or 220V (+$35 for 220V) |

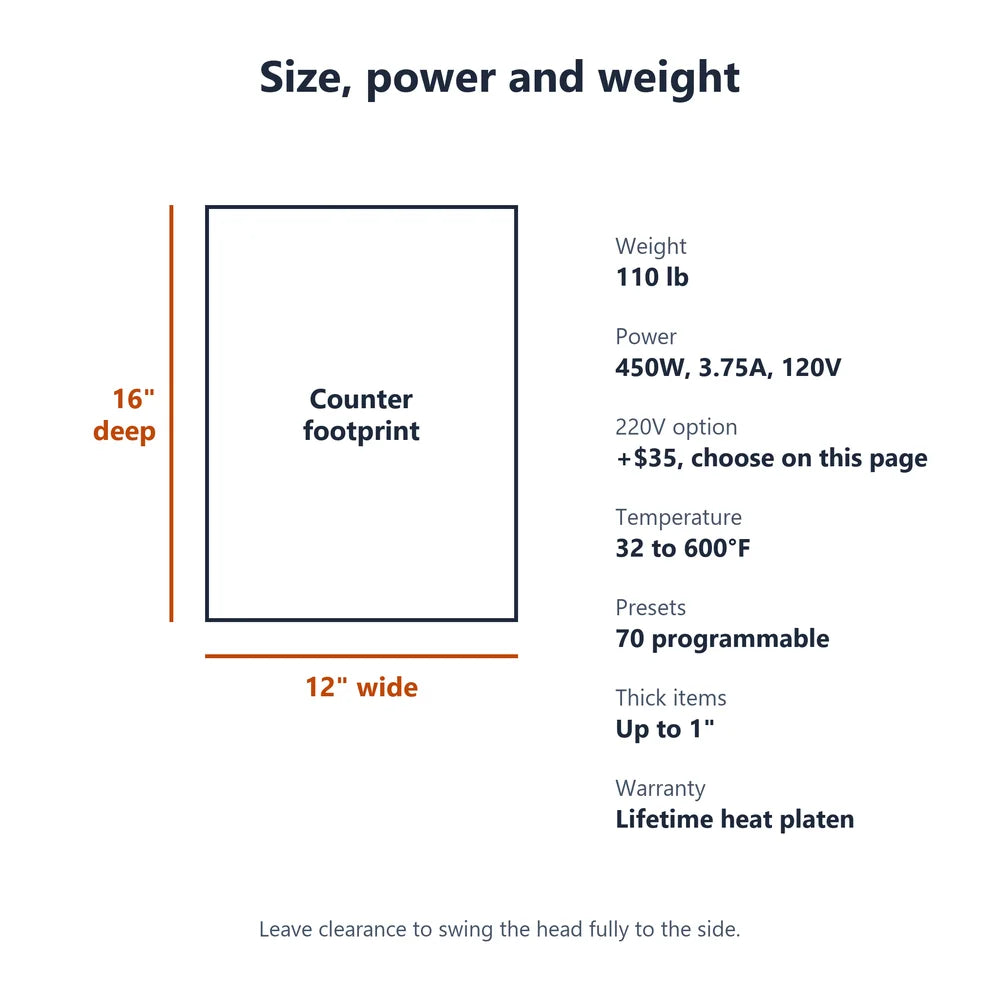

| Electrical (120V) | 450W / 3.75A / 120V |
| Price | $1,525 (120V) / $1,560 (220V) |
| Weight | 110 lbs |
| Counter Footprint | 16"D x 12"W |
| Shipping Dims | 24"W x 24"D x 24"H |
| Frame | Solid steel welded |
