Geo Knight DC16AP Heat Press Machine 14x16 Air Operated Swing Away
Effortless Pressing All Day With the Geo Knight DC16AP Transfer Press Machine
Is your arm worn out after a long run of shirts? Pulling a manual handle hundreds of times a day slows you down and wears you out. This air operated 14x16 swing away press does the pressing for you. Press a button and compressed air brings the platen down with up to 800 lbs of applied force, then releases it on time, every time. You get fatigue free operation, steady results, and the option to swap in interchangeable heat platens and tables for caps, mugs, plates, labels and more.
- Automatic air pressing: pushbutton activation with up to 800 lbs of applied force for fatigue free operation.
- Swing away design: 14x16 heat platen swings clear for safe, open layout.
- Precise digital control: 32°-600°F range, +/-2°F accuracy, shows °C or °F.
- Smart timing: automatic digital timer, dual pre press timer, 70 programmable presets and a cycle counter.
- Adjustable pressure: air regulator and gauge, 20 to 100 PSI. Compressor required (min 5gal, ½cfm, 100psi, 1/4" line).
- Even heat: SuperCoil Microwinding™ heater with a Teflon coated 3/4" thick platen. Fits materials up to 2" thick.
- Many products, one base: raised pedestal table with interchangeable heat platens and tables for caps, mugs, plates, labels and more (sold separately).
- Voltage and price: available in 120V or 220V (+$35 for 220V). $2,575 for 120V, $2,610 for 220V. 120V electrical: 1500W / 12A.
- Built to last: solid steel welded framework, 135 Lbs, 15"D x 11"W counter footprint.
- Warranty: lifetime on heat platen, 5 years frame, 3 years controller, 1 year parts, plus FREE LIFETIME tech support.
- Ordering: built to order, typically 1 to 2 weeks to build plus transit. Shipping is $250 per press, two presses ship at twice the rate.
Push Button Air Pressing on the Geo Knight DC16AP Automatic Heat Press Machine
You get every feature and option of the Manual DC16, plus fully automatic air operated action. Your hands stay free and your rhythm stays smooth from the first print to the last.
- Automatic air operated pressing: pushbutton activation closes the press with a smooth motion.
- Up to 800 lbs total applied force: plenty of pressure for firm, even transfers.

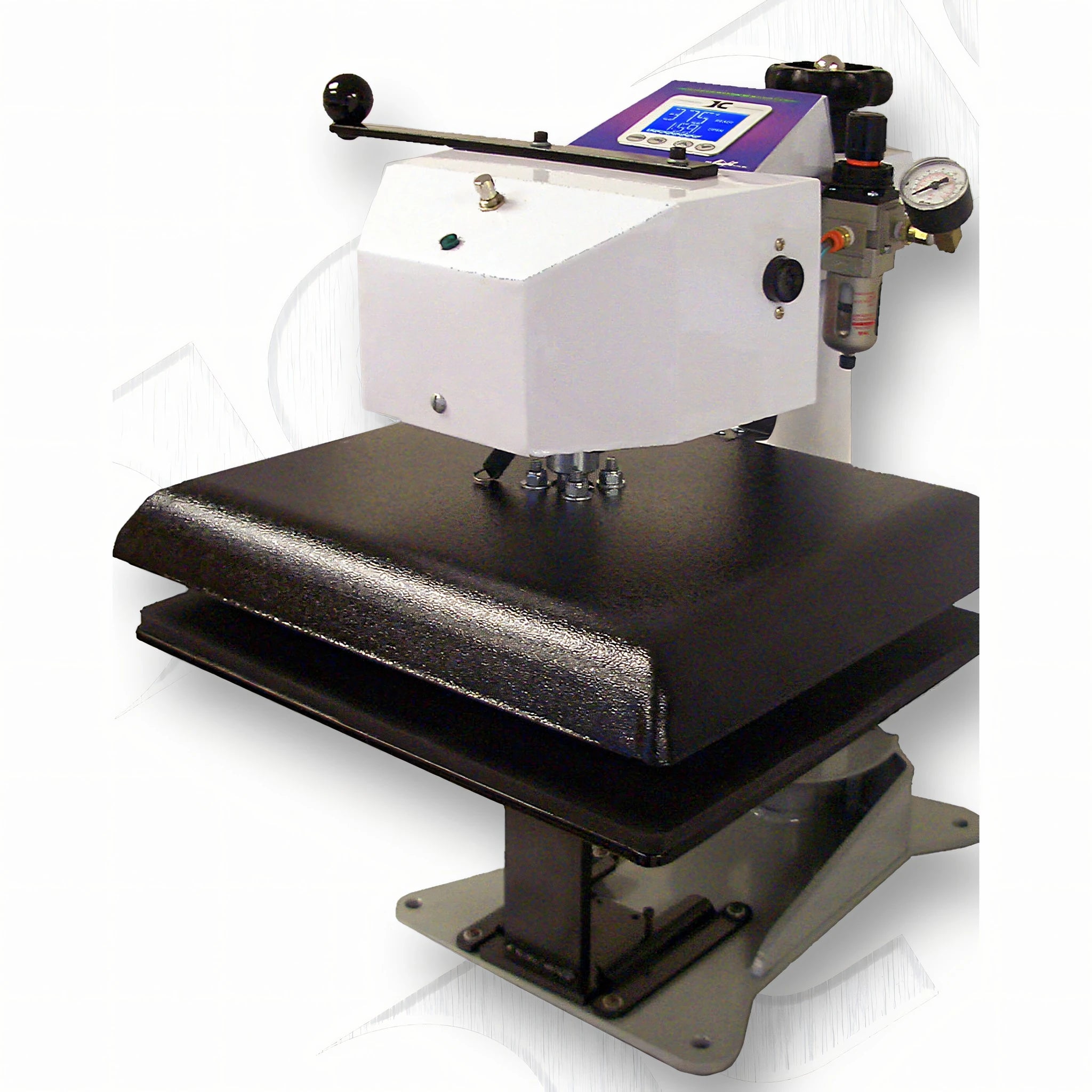

- Air regulator and gauge, 20 to 100 PSI: dial in the pressure each job calls for with the pressure adjustment knob on the air filter regulator and read it at a glance.
- Compressor required: minimum 5gal, ½cfm, 100psi with a 1/4" line.
Because the air does the work, operators stay fresh through long production runs and every press lands with the same pressure.
Precise Settings on the Geo Knight DC16AP Digital Combo Heat Press Machine

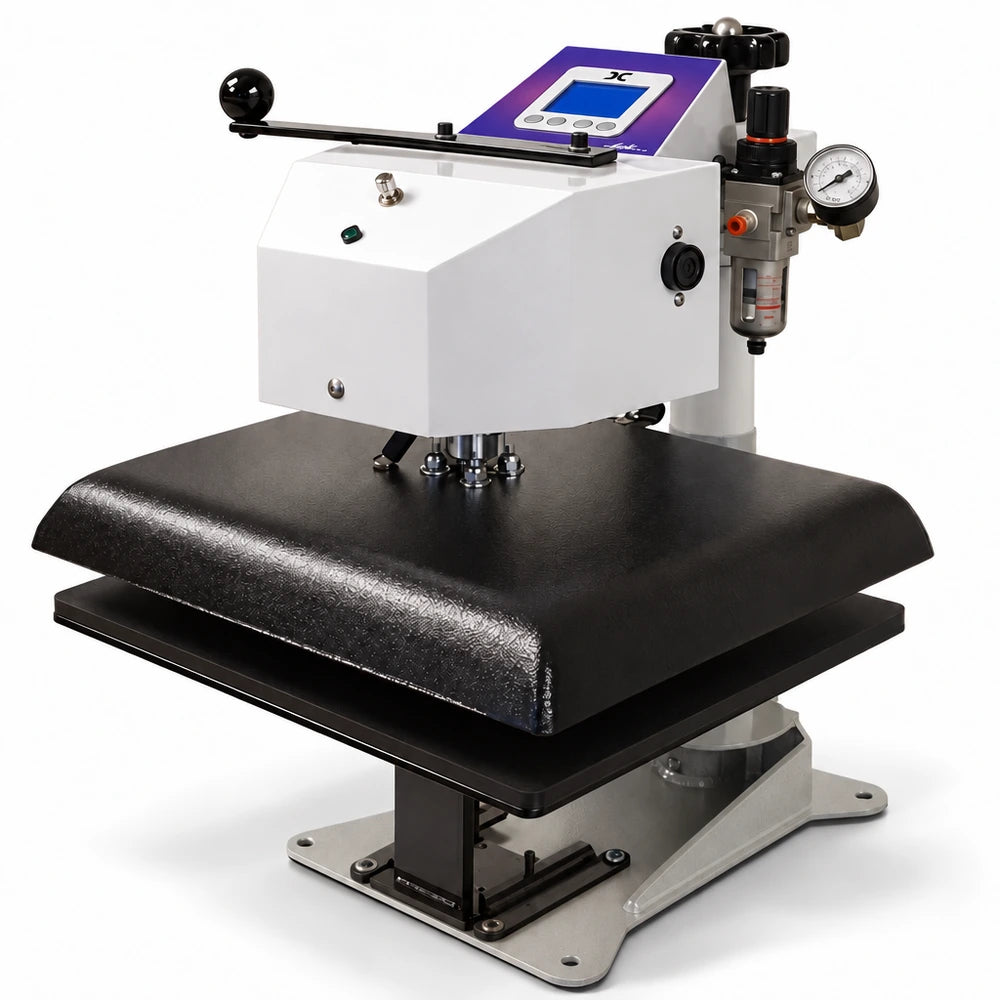

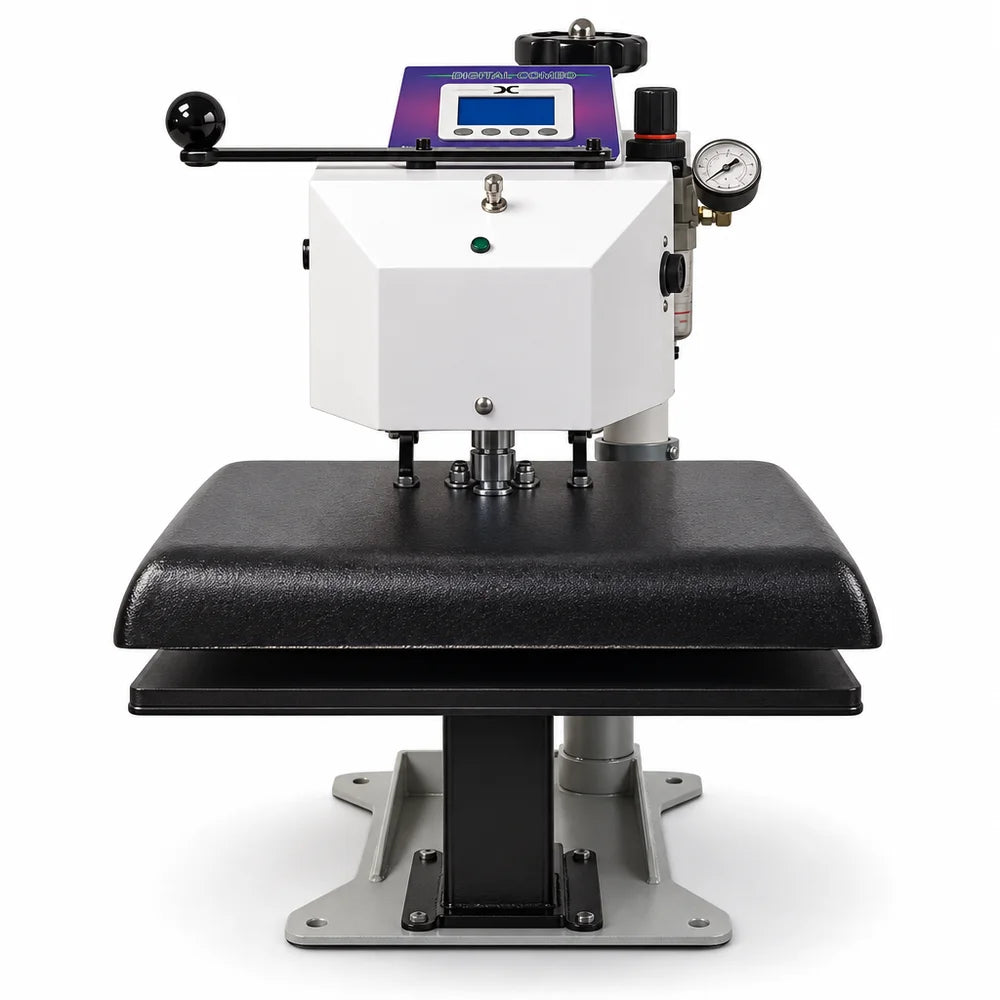

The purple Digital Combo controller panel, with its blue LCD screen and four buttons, gives you exact control over time and temperature, so repeat orders come out just like the first.
- Fully digital temperature control: 32°-600°F range.
- Readout accuracy of +/-2°F: displays in °C or °F.
- Automatic digital timer with dual pre press timer: set your pre press and main press times separately.
- 70 programmable presets: save settings for each transfer type and recall them in seconds.
- Cycle counter: records the number of pressing cycles done, handy for tracking output.
Even Heat and Swing Away Access on the Geo Knight DC16AP Pneumatic Heat Press Machine

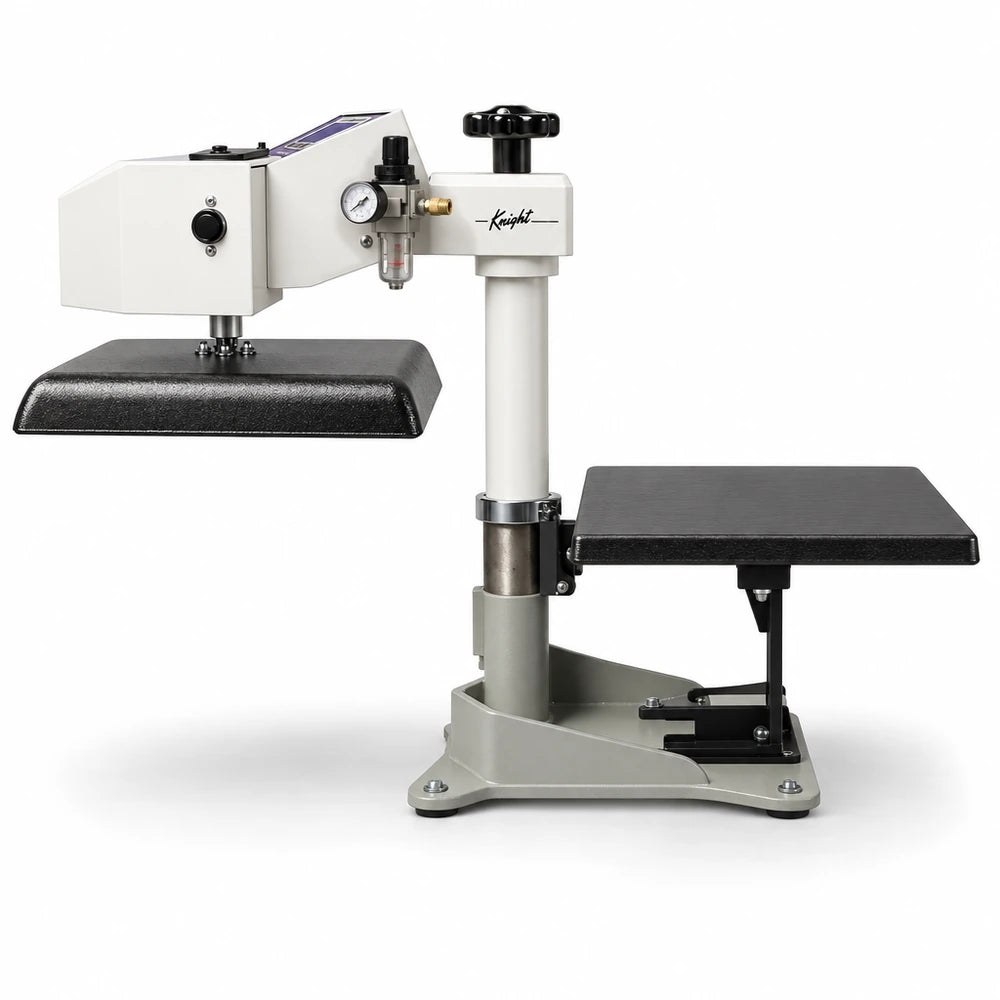

The heat platen swings away from the table, giving you open, safe access to lay out garments and position transfers without reaching under a hot surface.
- SuperCoil Microwinding™ heater technology for consistent heat across the platen.
- Teflon coated 3/4" thick heat platen that holds heat and releases cleanly.
- Accommodates materials up to 2" thick, from thin tees to thicker items.
One Base, Many Products With Geo Knight DC16AP Air Operated Heat Presses

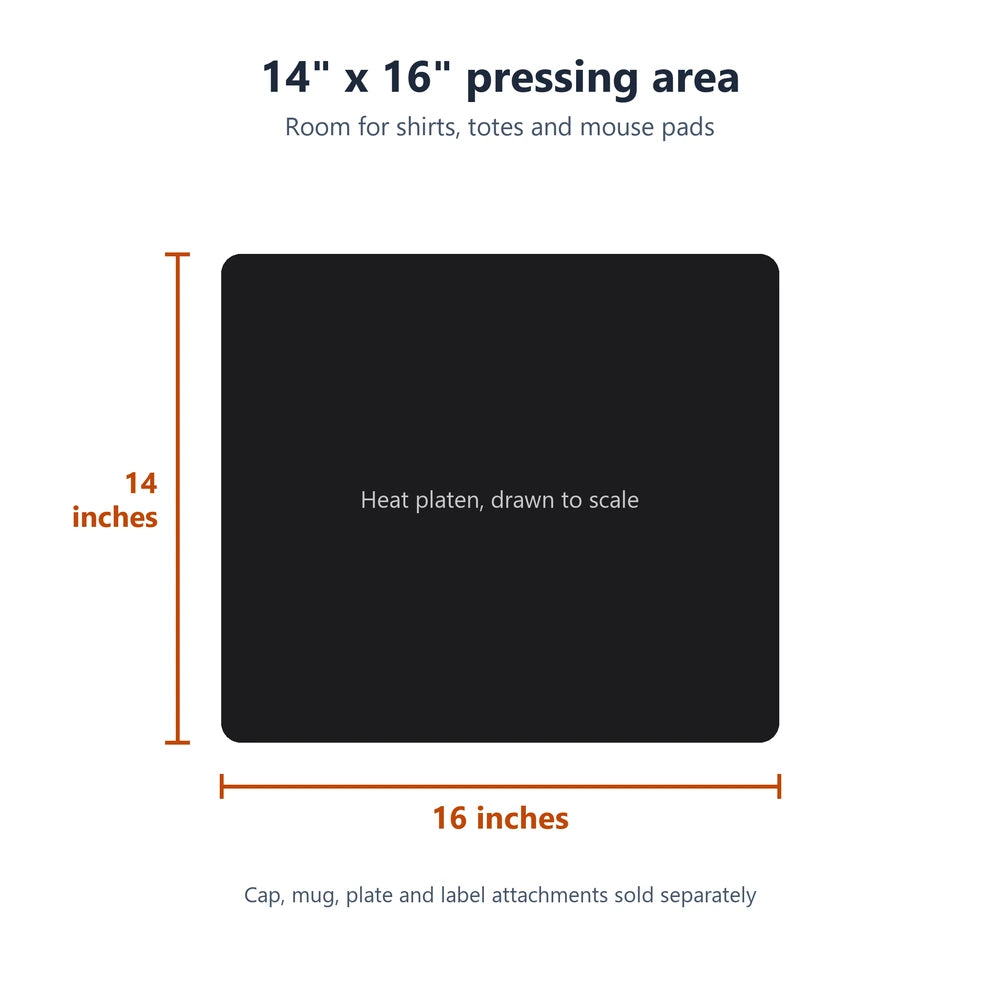

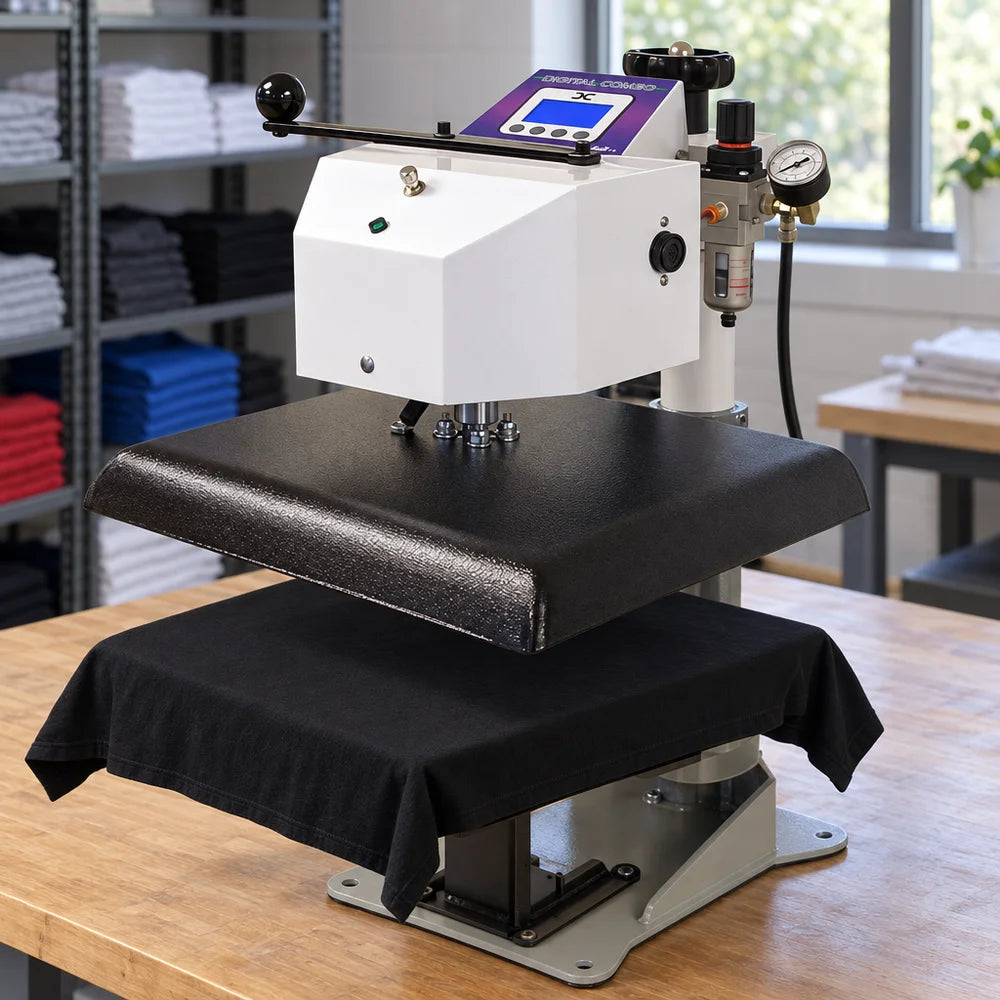

The 14x16 platen fits shirts, totes and mouse pads out of the box. Add interchangeable heat platens and tables to take on caps, mugs, plates, labels, sleeves, shoes and koozies. Suggested accessories, sold separately:
- DCP-Cap DC-Air Cap Attachment
- DC-Mug Full Wrap Mug Attachment (for Digital Combo press)
- DCP-LABEL DC-Air Auto Label Attachment
- DC-Plate Plate Attachment
- DCA-1416BHT Digital Combo 14 x 16 Bottom Heat Fixture
- DKA-68BHT 6 x 8 Label Bottom Heat Fixture
- DCP-35BHT Cap Bottom Heat Attachment (for Digital Combo AIR AUTO)
- DKA-STAND DK Universal Stand
- CTW-1416 14x16 Teflon Bottom Table Wrap w/ elastic corners
- CHW-1416 14x16 Teflon Top Heater Wrap w/ elastic corners
- TRM-SM1416 14x16 Teflon Sheet
- DCA-1214TBL Digital Combo 12" x14" Drop On Table
- DCA-1012TBL Digital Combo 10" x12" Drop On Table
- DCA-SLV3 DC 3.5" Sleeve Table
- DCA-SLV5 DC 5" Sleeve Table
- DCA-CAPBILL 4 UP CAP BILL DC COMBO STYLE
- DCA-KOOZIE DC KOOZIE TABLE FOR DIGITAL COMBO
- DCA-SHOE Digital Combo Shoe Drop On Table
- DKA-68TBL DK8 / DC 6" x 8" Drop On Table
- DKA-35TBL DK8 / DC 3" x 5" Drop On Table
- DKA-33TBL DK8 / DC 3" x 3" Drop On Table
Steel Frame and Lifetime Platen Warranty on the DC16AP Heat Press by Geo Knights
A solid steel welded framework keeps the press stable under full air pressure, day after day. The warranty coverage shows the same confidence:
- FREE LIFETIME tech support
- Lifetime warranty on the heat platen
- 5 year warranty on the frame
- 3 year warranty on the controller
- 1 year warranty on parts
Ordering Your DC16AP Heat Press by Geo Knight Design
The press is available in 120V or 220V (+$35 for 220V). Pick your voltage right on this page: $2,575 for 120V or $2,610 for 220V.
- Built to order: air operated presses typically take 1 to 2 weeks to build, with transit time on top.
- Shipping: $250 per press. Two presses ship at twice the rate.
- Delivery details: we confirm them with you when you order. Contact Us with any questions.
Product Specs
| Spec | Value |
|---|---|
| Brand | Geo Knight |
| Model / SKU | DC16AP |
| Type | Automatic Digital Combo 14x16 Swing Away Press |
| Operation | Automatic air operated |
| Platen Size | 14x16 |
| Heat Platen | Teflon coated, 3/4" thick |
| Heater | SuperCoil Microwinding™ |
| Temperature Range | 32°-600°F |
| Temperature Accuracy | +/-2°F, shows °C or °F |
| Timer | Automatic digital timer and dual pre press timer |
| Presets | 70 programmable |
| Cycle Counter | Records number of pressing cycles |
| Air Regulator | 20 to 100 PSI with gauge |
| Max Applied Force | 800 lbs |
| Max Material Thickness | 2" |
| Air Compressor Required (min) | 5gal, ½cfm, 100psi, 1/4" line |
| Frame | Solid steel welded |
| Electrical | 1500W / 12A / 120V; available in 120V or 220V (+$35 for 220V) |
| Weight | 135 Lbs |
| Counter Footprint | 15"D x 11"W |
| Shipping Dims | 42"L x 32"W x 36"H |
| Warranty | Lifetime heat platen; 5 year frame; 3 year controller; 1 year parts; free lifetime tech support |
