Geo Knight DC16 14x16 Swing Away Heat Press with Digital Controls
Press Thick, Odd Shaped Items With the Geo Knight DC16 Heat Press
Tired of turning away jobs because your flat press can't handle mugs, caps, plates or chunky wood plaques? This 14" x 16" swing away press changes your answer to "yes." Quick change attachments let one machine imprint T shirts, caps, labels, mugs, ceramic tiles, plates, puzzles and more, and a raised pedestal table takes items over 2" thick. Add fully digital controls, 70 presets and a lifetime warranty on the heat platen, and you get one press that keeps up as your product line grows.
- One press, many products: quick change attachments imprint T shirts, caps, labels, mugs, tiles, plates, puzzles, wood, metals and more.
- Handles bulky items: presses products over 2" thick, with a raised pedestal table for drape space.
- Swing away design: the heat platen swings off to the side for safe loading and accurate layout.
- 14" x 16" heat platen: Teflon coated, 3/4" thick, with shirt and tile attachments included.
- Precise digital controls: 32°-600°F range, +-2°F accuracy, °C or °F readout.
- Repeatable results: automatic timer, dual pre press timer, Digital Pressure Bar Graph and 70 programmable presets.
- Cycle counter: records the number of pressings done.
- Built to last: solid steel welded frame and SuperCoil Microwinding™ heater technology.
- Power options: available in 120V or 220V (+$35 for 220V); 120V model runs 1500W / 12A.
- Warranty: lifetime on heat platen, 5 years on frame, 3 years on controller, 1 year on parts, plus lifetime tech support.
- Shipping: $150 per press by FedEx in a 128 lb box; built to order, typically ships in 3 to 5 working days plus transit time.
Clear Work Area With the Geo Knight DC16 Swing Away Heat Press Machine

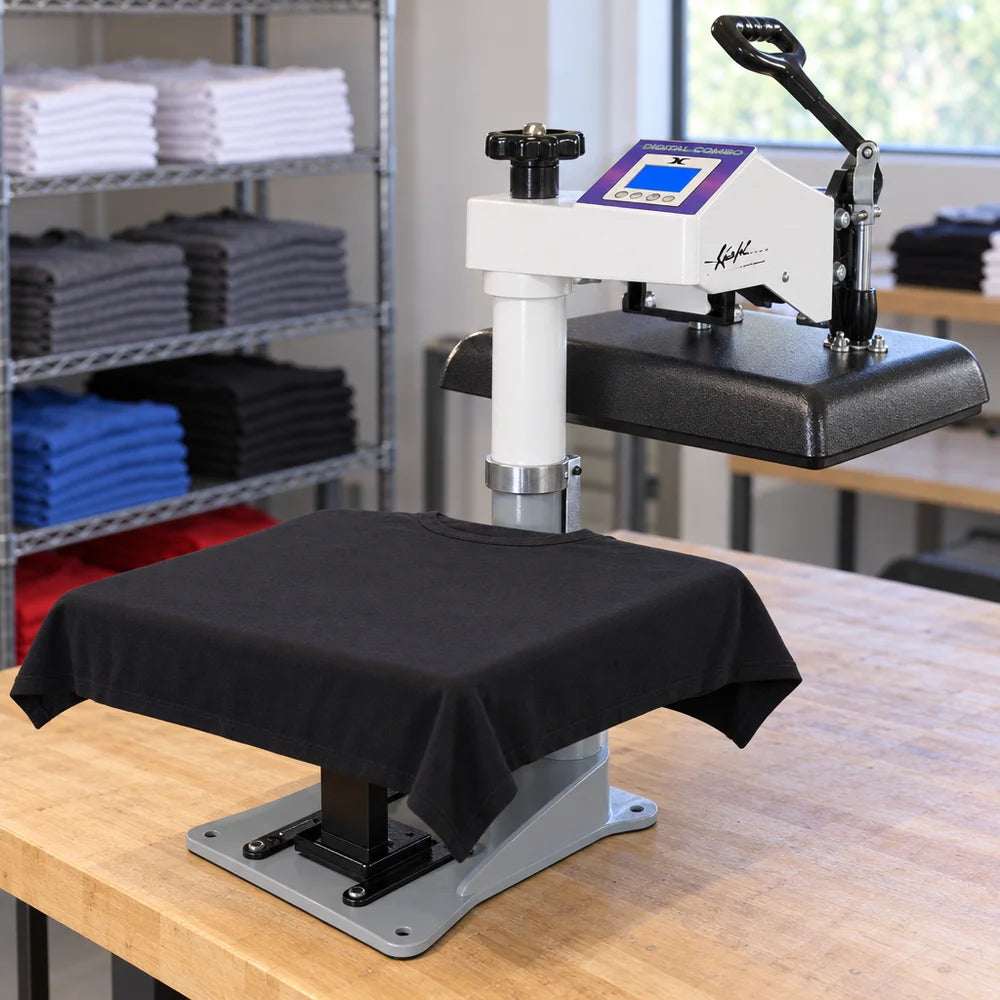

The heat platen swings fully off to the side, so your hands stay away from the hot surface while you load, align and unload. You see your whole layout before you press, which means fewer crooked transfers and less wasted stock. The press pairs a white swing arm post with a grey base.
- Room for bulky pieces: presses products over 2" thick, perfect for items too bulky for a conventional flat press.
- Raised pedestal bottom table: gives garments drape space so seams and collars hang below the pressing surface.
- Adjustable alignment: line up the heater with the table for the job in front of you.
- Safe, quick changeovers: the open position makes swapping tables and platens simple.
Leave some clearance behind the press so the heater has room to swing.
Precise Digital Controls on the Geo Knight DC16 Digital Combo Heat Press Machine

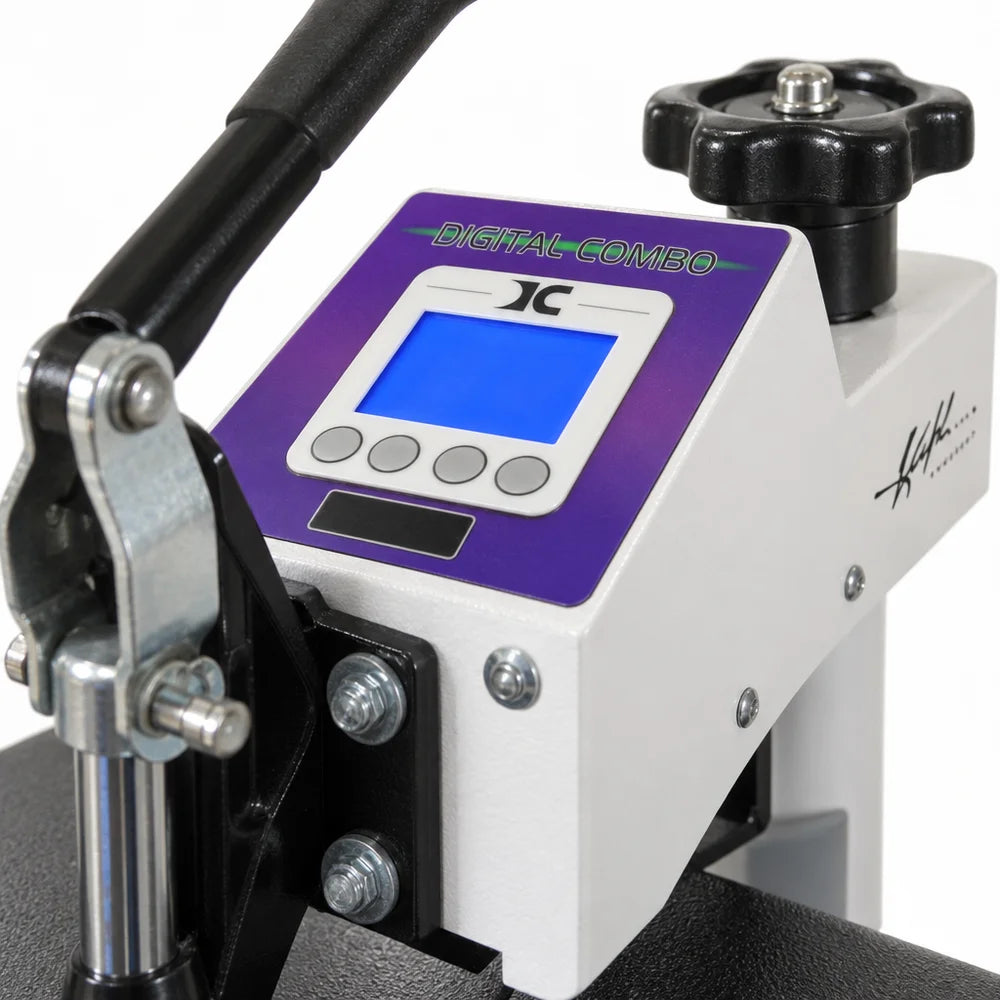

Guesswork ruins transfers. The purple digital control panel, with its blue LCD screen and four buttons, gives you exact numbers for every setting, so a job you nailed last month comes out the same today.
- Temperature range of 32°-600°F with readout accuracy of +-2°F, shown in °C or °F.
- Automatic digital timer plus dual pre press timer for multi step applications.
- Digital Pressure Bar Graph so you can repeat the right pressure every time, set with the black pressure adjustment knob next to the chrome handle linkage.
- 70 programmable presets to recall settings for shirts, mugs, tiles and other materials in seconds.
- Cycle counter that records how many pressings you have done, handy for tracking jobs and maintenance.
Many Products, One Geo Knight DC16 Multipurpose Heat Press Machine

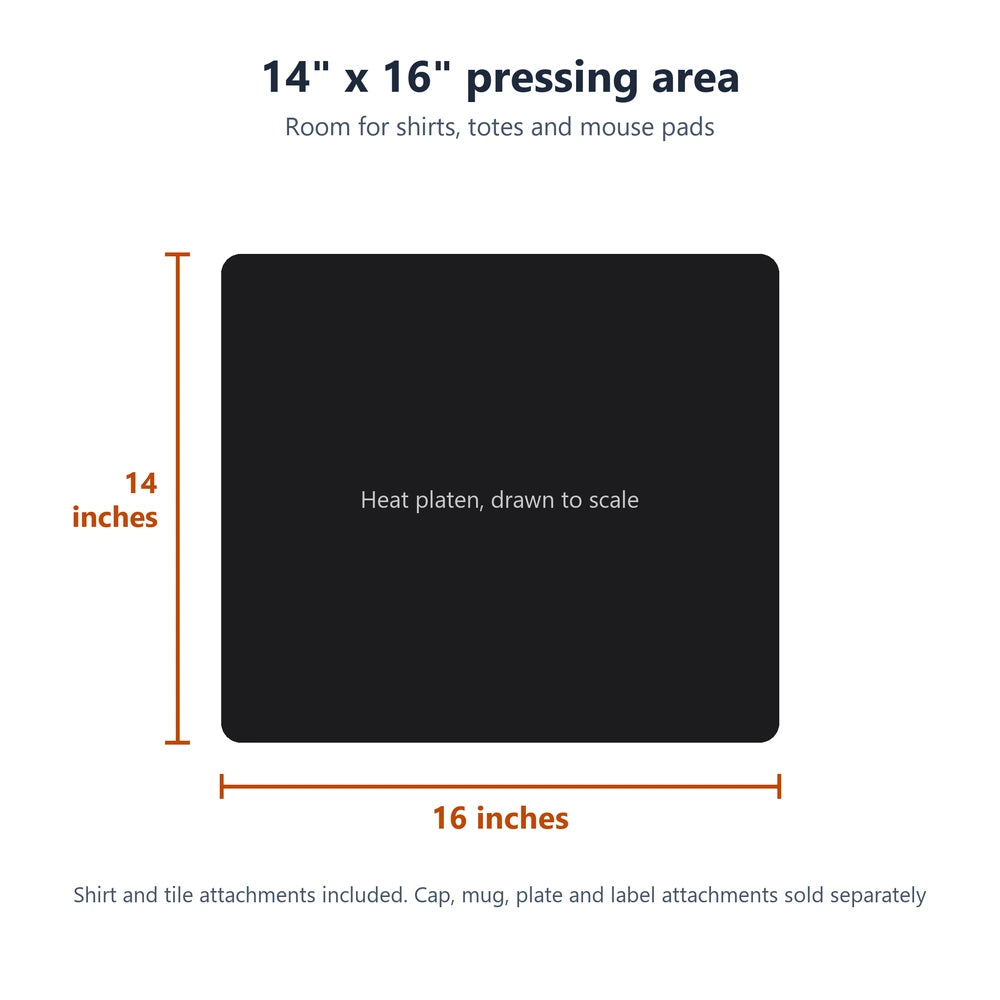

Why buy a separate press for every product type? The standard 14" x 16" heat platen and lower table cover shirts, tote bags and mouse pads, and quick change attachments take you well beyond flat fabric. Shirt and tile attachments are included; other attachments are sold separately.
Attachments are available for this one press to professionally imprint:
- T shirts and tote bags
- Caps and labels
- Mugs
- Ceramic tiles and ceramic plates
- Mouse pads and wrist pads
- Puzzles and ornaments
- Lettering
- Wood, wooden plaques and coated metals
- Other fabrics and materials
Need a smaller footprint for labels? The DC8 with a 6" x 8" label size is also available.
Attachments and Tables Available for the Geo Knight DC16 Combo Heat Press Machine
Expand into new products by adding the accessory you need, when you need it:
- DC-CAP Cap Attachment
- DC-Mug Full Wrap Mug Attachment (for Digital Combo press)
- DC-Label 6x8 Label Attachment
- DC-Plate Plate Attachment
- DCA-1416BHT Digital Combo 14 x 16 Bottom Heat Fixture
- DKA-68BHT 6 x 8 Label Bottom Heat Fixture
- DCA-35BHT Cap Bottom Heat Attachment (for Digital Combo)
- DKA-STAND DK Universal Stand
- CTW-1416 14x16 Teflon Bottom Table Wrap w/ elastic corners
- CHW-1416 14x16 Teflon Top Heater Wrap w/ elastic corners
- TRM-SM1416 14x16 Teflon Sheet
- DCA-1214TBL Digital Combo 12" x14" Drop On Table
- DCA-1012TBL Digital Combo 10" x12" Drop On Table
- DCA-SLV3 DC 3.5" Sleeve Table
- DCA-SLV5 DC 5" Sleeve Table
- DCA-CAPBILL 4-UP CAP BILL DC COMBO STYLE
- DCA-KOOZIE DC KOOZIE TABLE FOR DIGITAL COMBO
- DCA-SHOE Digital Combo Shoe Drop On Table
- DKA-68TBL DK8 / DC 6" x 8" Drop On Table
- DKA-35TBL DK8 / DC 3" x 5" Drop On Table
- DKA-33TBL DK8 / DC 3" x 3" Drop On Table
Heavy Duty Steel Construction on the Geo Knight DC16 Digital Combo
A busy shop needs a press that holds up day after day. Geo Knight built this one with heavy duty parts from the frame to the heater.
- Solid steel welded framework keeps the press stable and rigid under pressure.
- SuperCoil Microwinding™ heater technology for heat across the platen.
- Teflon coated 3/4" thick heat platen that resists sticking and holds heat between pressings.
- Interchangeable heat platens and tables so the same frame serves many applications.
Warranty, Power and Shipping for the Geo Knight DC16 Digital Combo Machine
Buy with confidence thanks to long warranty coverage and lifetime tech support.
- Lifetime warranty on heat platen
- 5 year warranty on frame
- 3 year warranty on controller
- 1 year warranty on parts
Power: available in 120V or 220V (+$35 for 220V). The 120V model draws 1500W / 12A. Price is $1,525 for 120V or $1,560 for 220V; choose your voltage on this page.
Shipping: $150 per press, and two presses ship at twice the rate. Each press ships by FedEx in a 128 lb box. Presses are built to order, and manual presses typically ship in 3 to 5 working days, with transit time on top.
Product Specs
| Spec | Value |
|---|---|
| Brand | Geo Knight |
| Model / SKU | DC16 |
| Press Type | Digital Combo Swing Away Heat Press |
| Heat Platen Size | 14" x 16" |
| Heat Platen | Teflon coated, 3/4" thick |
| Maximum Material Thickness | Up to 2" thick |
| Temperature Range | 32°-600°F |
| Temperature Accuracy | +-2°F, °C or °F readout |
| Timers | Automatic digital timer and dual pre press timer |
| Pressure Display | Digital Pressure Bar Graph |
| Presets | 70 programmable |
| Cycle Counter | Yes |
| Heater | SuperCoil Microwinding™ |
| Frame | Solid steel welded |
| Included Attachments | Shirt and tile attachments |
| Voltage | Available in 120V or 220V (+$35 for 220V) |
| Electrical (120V) | 1500W / 12A / 120V |
| Weight | 135 lbs |

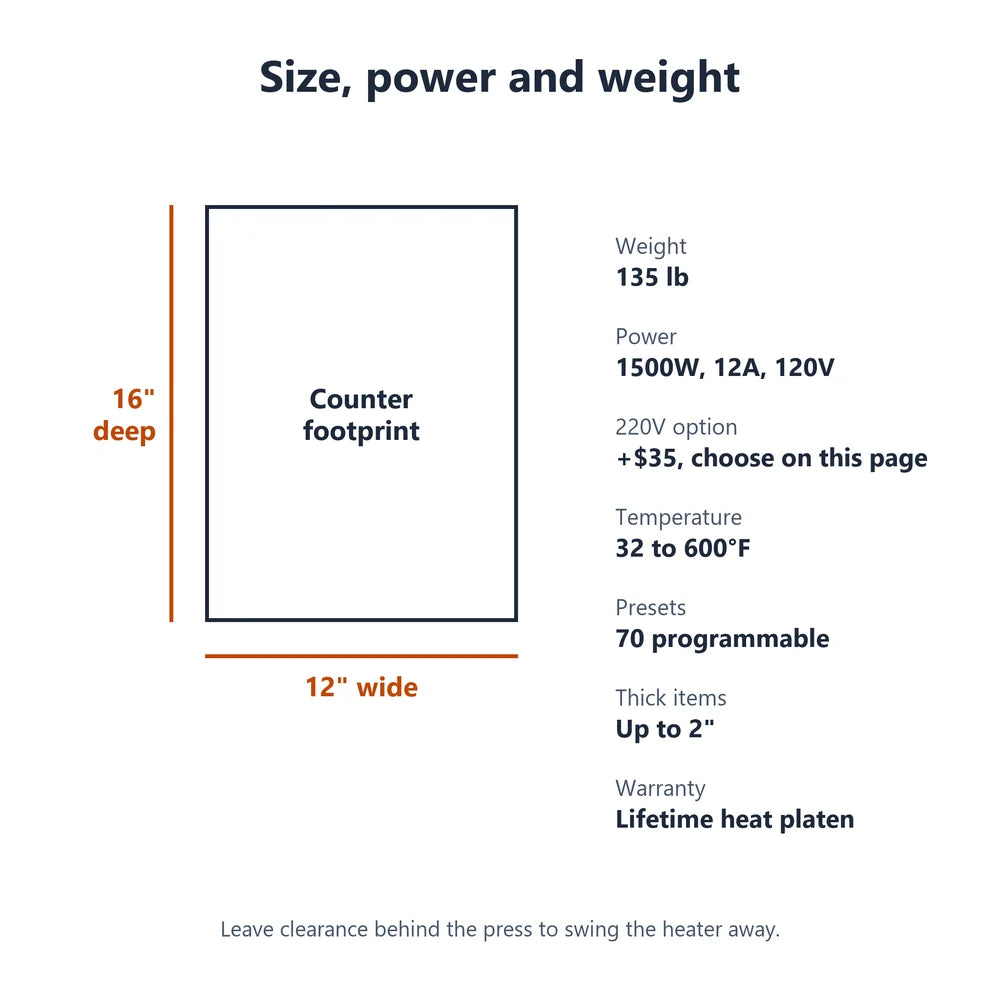

| Counter Footprint | 16"D x 12"W |
| Shipping Dimensions | 24"W x 24"D x 24"H |
| Shipping Box Weight | 128 lb |
| Warranty | Lifetime on heat platen, 5 years on frame, 3 years on controller, 1 year on parts |
| Tech Support | Lifetime |
