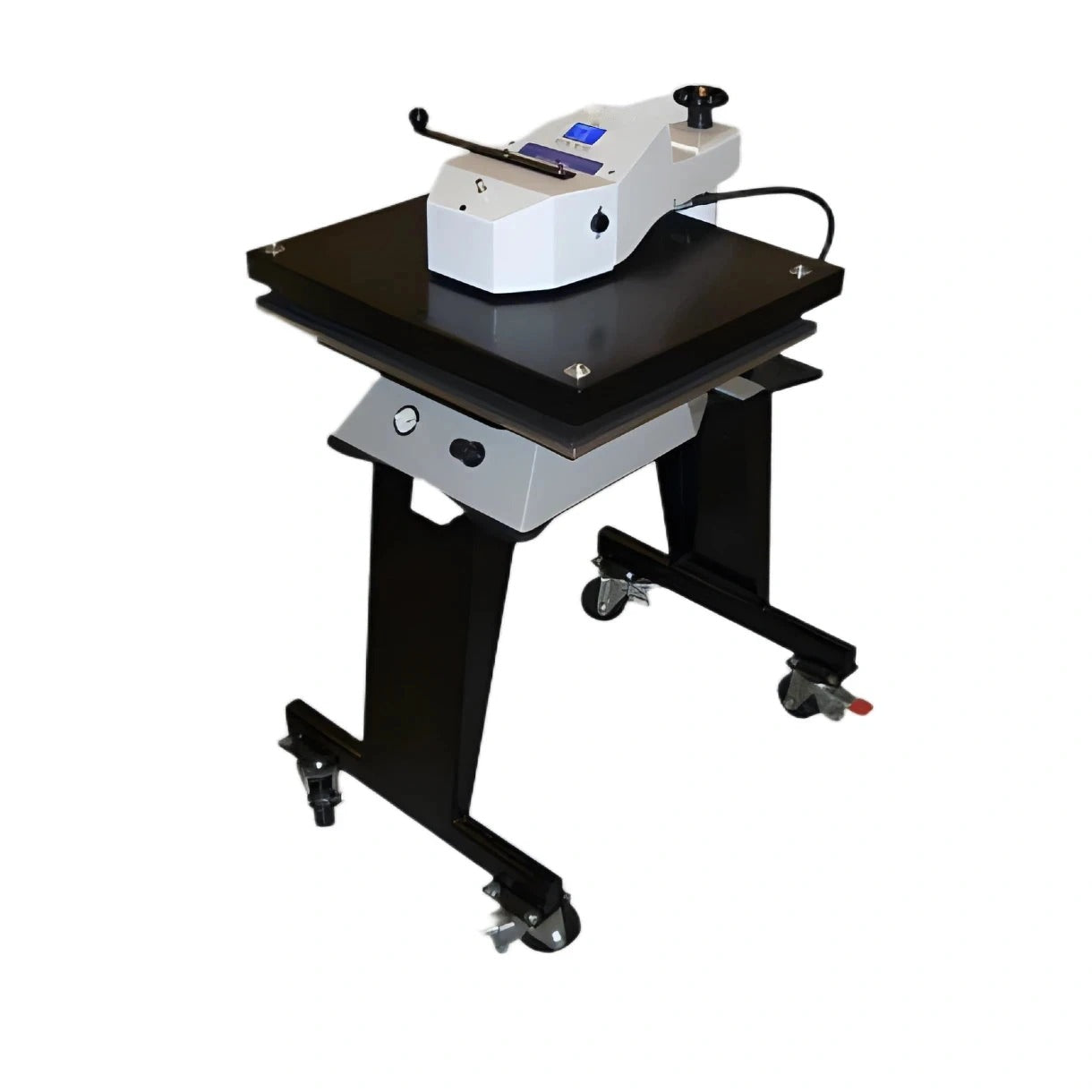

Digital Knight DK25SP Heat Press Automatic 20x25 Swing Away

The press closes itself. Air operation drives the platen down smoothly and holds it there, which means your hands never fight a handle and your results never drift because of operator fatigue.

• Total applied force of 3000 lbs max for heavy, stubborn transfers
• Air regulator and gauge, 20 to 100 PSI range, so you dial in a specific psi instead of guessing
• High accuracy pressure regulator holds that setting cycle after cycle

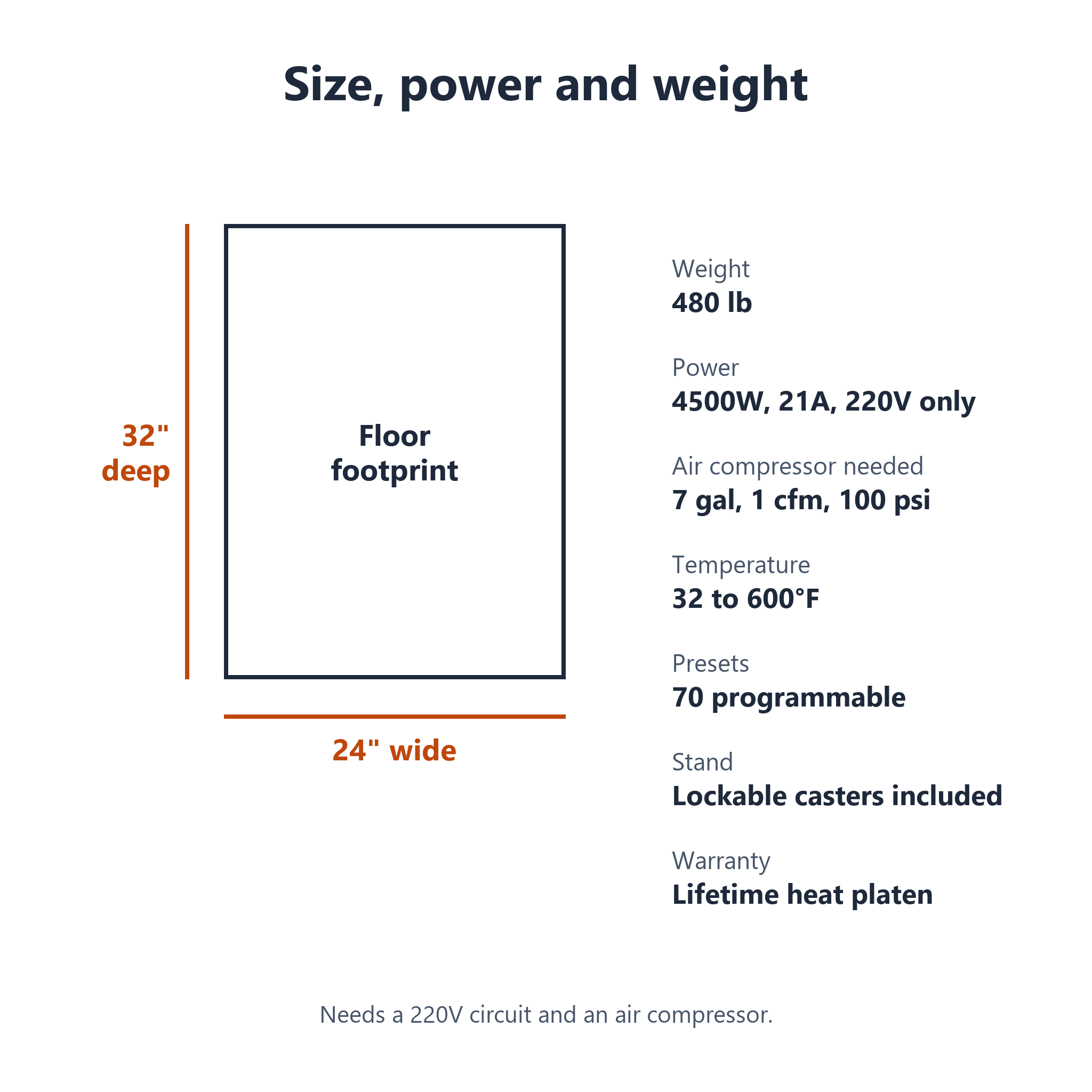

• Requires an air compressor of at least 7 gal, 1 cfm, 100 psi, 1/4" line

Set it once, repeat it all shift.

Cold spots ruin big prints. SuperCoil Microwinding™ heater technology winds the heater elements tightly and closely together across the entire platen, not just the center, so edge to edge temperature stays uniform.

• Fast heat up and fast recovery between presses, so the heater is ready when you are
• Teflon coated 3/4" thick heat platen resists sticking and holds heat steadily
• Temperature readout accurate to +-2°F, switchable between °F and °C
• Heater Teflon Wraps, Bottom Teflon Wraps and Teflon Sheets are available as accessories, along with Nomex, HCR and a Digital Temp Probe

Everything you need to read sits on one screen. The oversized digit LCD shows time and temperature at the same time, so a quick glance tells you where the cycle stands.

• Fully digital temperature control, 32° to 600°F range
• Automatic digital timer plus a dual pre press timer for moisture removal before the real press
• 70 programmable presets to store your common jobs and recall them instantly
• User selectable end of cycle alarms
• Records the number of pressing cycles completed, handy for tracking production

Your product range should not be limited by your press. Adjustability spans fabric thickness all the way up to 2" thick substrates, which opens the door to plaques, tiles, wood panels and signage alongside your apparel work.

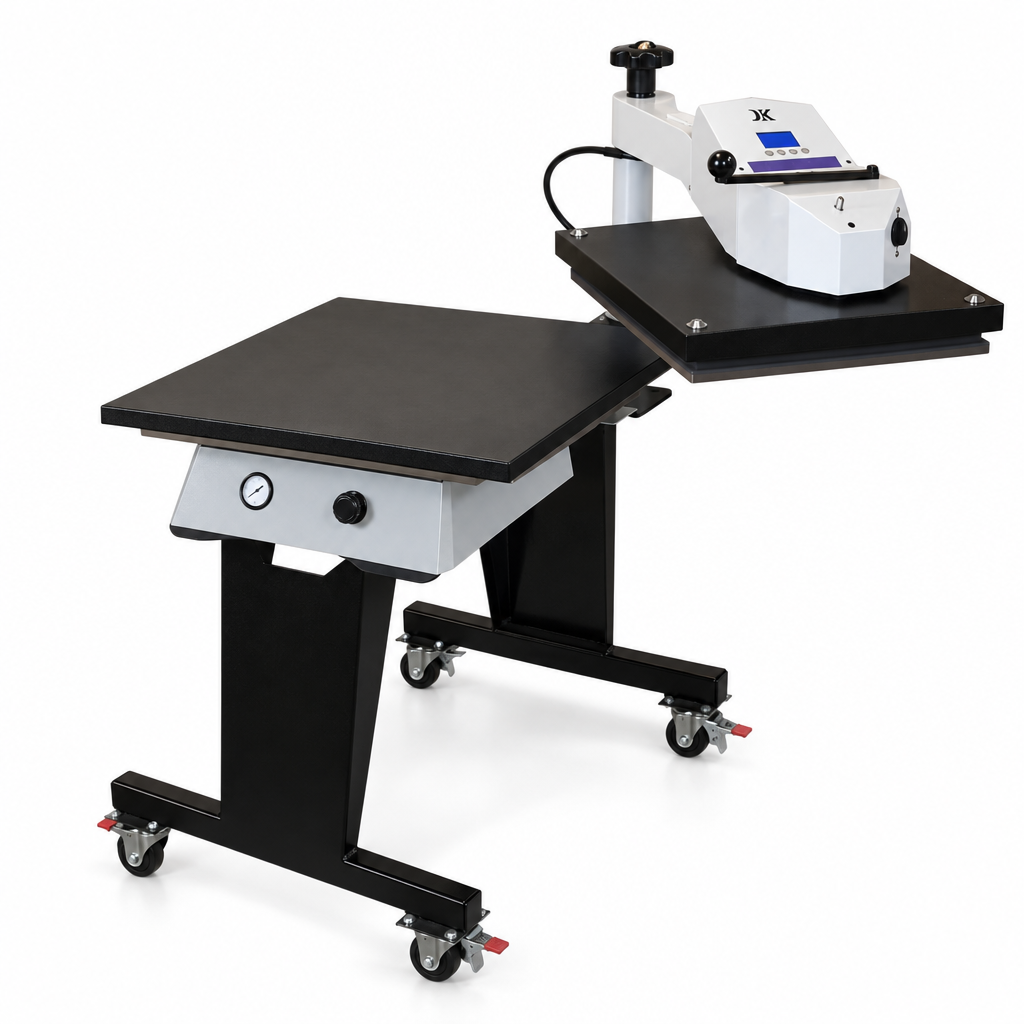

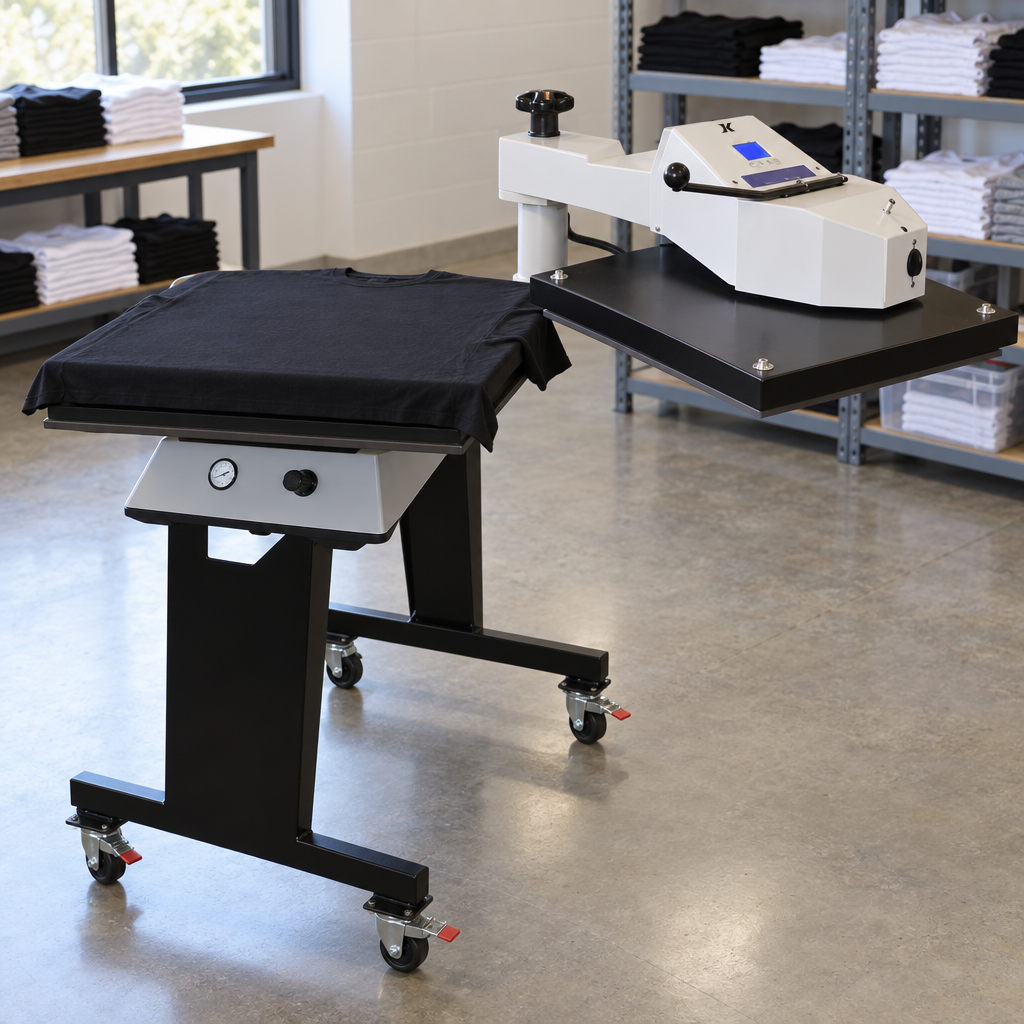

The swing away design moves the hot platen completely clear of the table, so you lay out large prints and reach over thick items safely with no heater above your hands.

One press, many jobs. The interchangeable table system lets you drop in a smaller surface for the item in front of you instead of buying another machine.

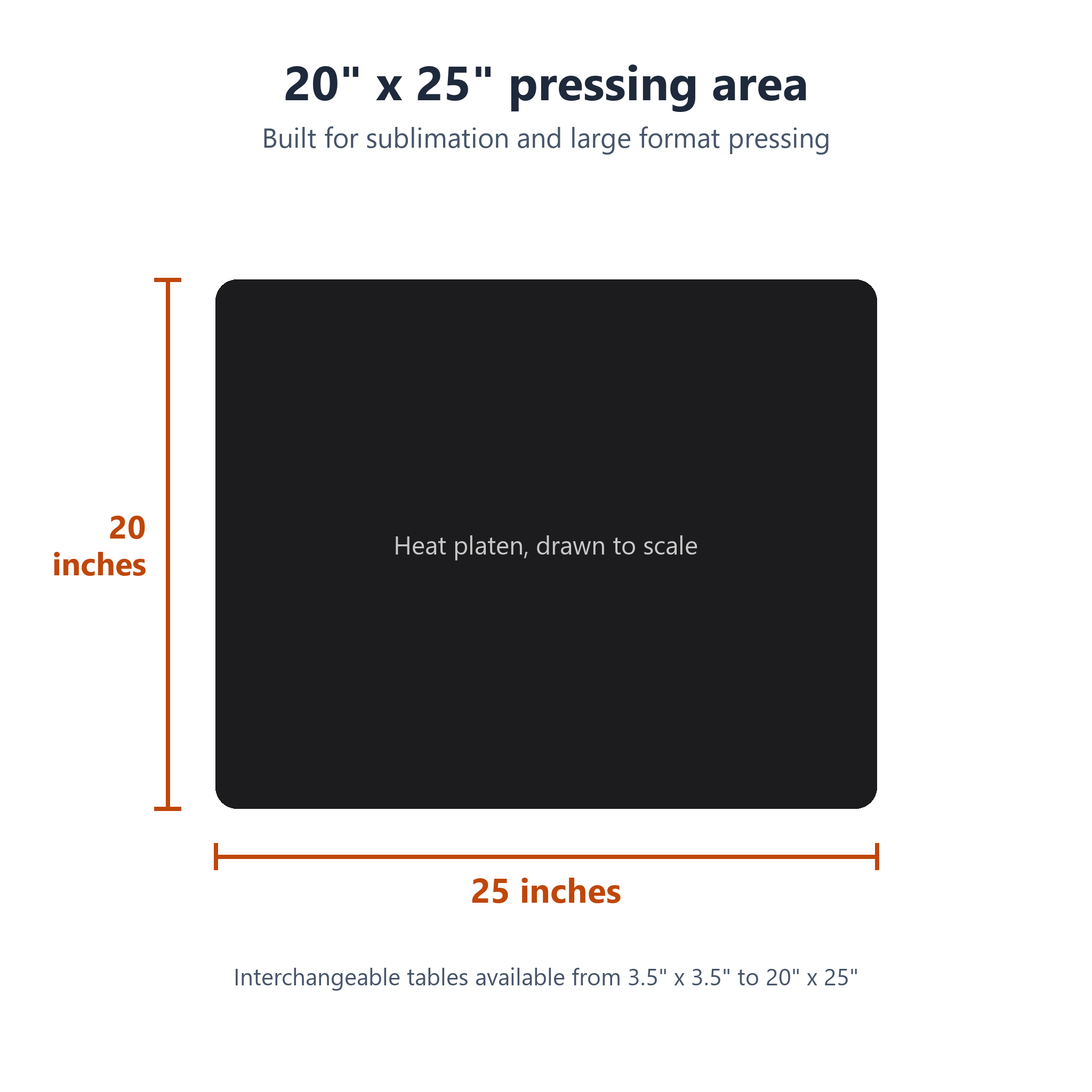

ALL THREAD™ Drop In Tables are available in sizes from 3½ x 3½ and 3½ x 5 through 6 x 8, 10 x 12, 12 x 14, 13 x 20, 14 x 16 and 16 x 20 up to 20 x 25, including 3½" and 5" sleeve tables, a shoe table and an 8" diameter circular table. Optional bottom heat and control units are also offered in 20 x 25, 16 x 20 and 14 x 16 sizes for materials that press better from both sides. Other accessories in the range include a Universal Stand, DC Drop On Tables and Cap Drop On Tables.

This machine is built to be leaned on for years. Solid steel welded framework keeps the platen aligned under full force, and the included heavy duty stand with lockable casters lets you roll it into position then lock it down solid.

• Lifetime warranty on the heat platen
• 5 year warranty on the frame
• 3 year warranty on the controller
• 1 year warranty on parts
• Free lifetime tech support

Need a size beyond 20 x 25? Custom large platens are available. Contact Us for details.

Shipping is $300 per press, and two presses ship at twice that rate. Your press travels by truck freight in a 500 lb crate with curbside delivery and liftgate included. The carrier calls ahead to schedule, so plan for someone to be there to sign for it.

Every DK25SP is built to order, and we confirm the build time and dispatch date when you place your order.
