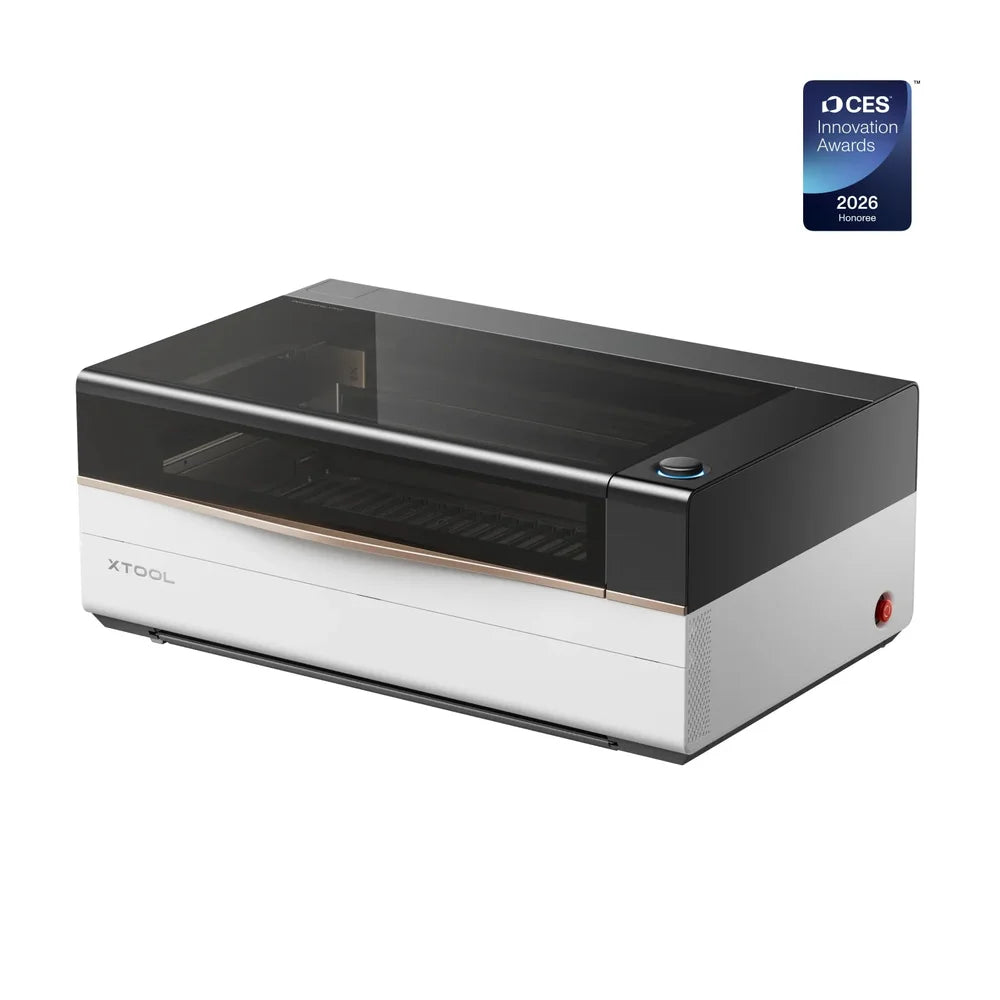

xTool P3 80W CO2 Laser Cutter with 36 x 18 Inch Area

The 80W CO2 laser cuts thick stock in one pass while reaching a maximum working speed of 47.2 ips (1200 mm/s). X-axis acceleration reaches 19600 mm/s² for faster movement between cuts.

• Basswood cutting: Up to 0.79" (20 mm) in ONE PASS
• Acrylic cutting: Up to 0.98" (25 mm) in ONE PASS
• Processing modes: Laser Cutting and Laser Engraving

The 36" x 18" (915 mm x 458 mm) working area is 2.3 times larger than the P2S work area. It gives you room for wall pieces, larger layouts, and batches of smaller products without splitting the design across several jobs.

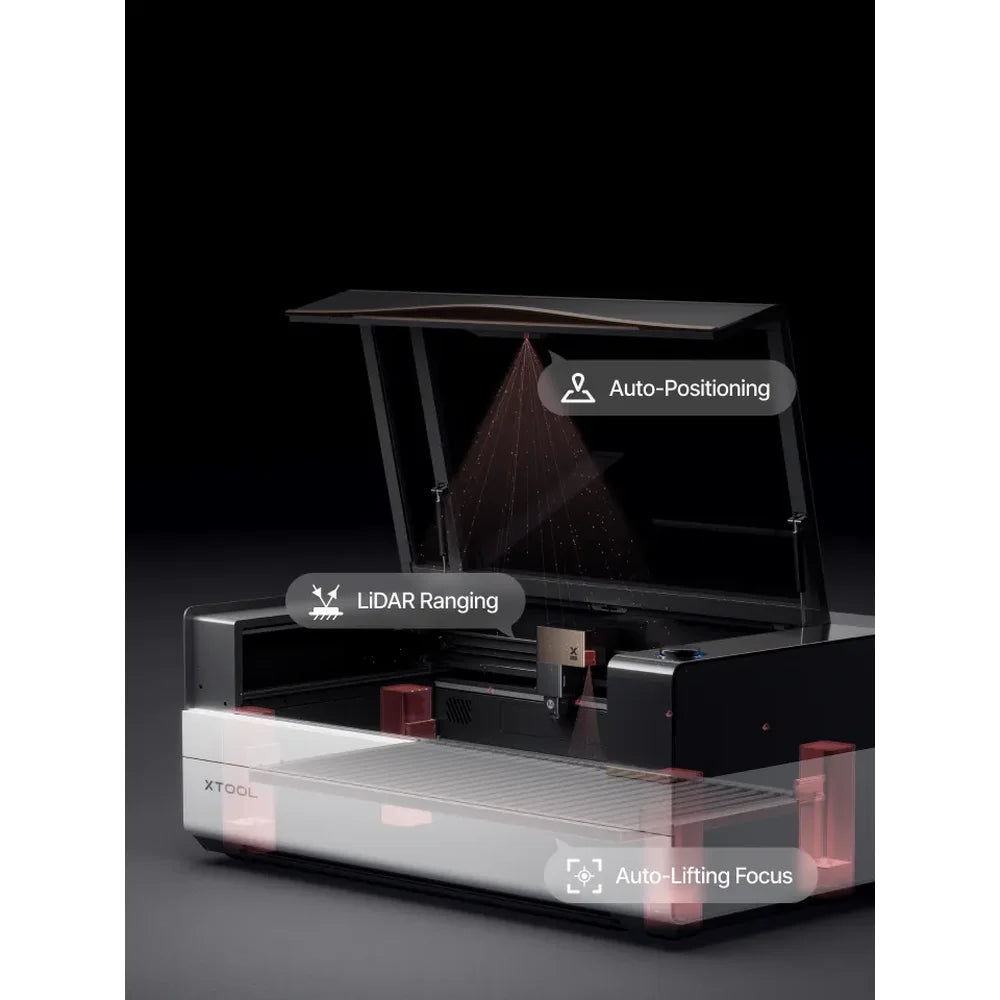

ACS™ coordinates material positioning, LiDAR measurement, focusing, and bed movement around a simple place your material and go process.

• Auto-Positioning captures the workspace for design placement.
• Autofocus measures the material surface without manual focus tools.
• Auto LiDAR Ranging checks the distance to the workpiece.
• AutoLift Base moves the material to the focal point.

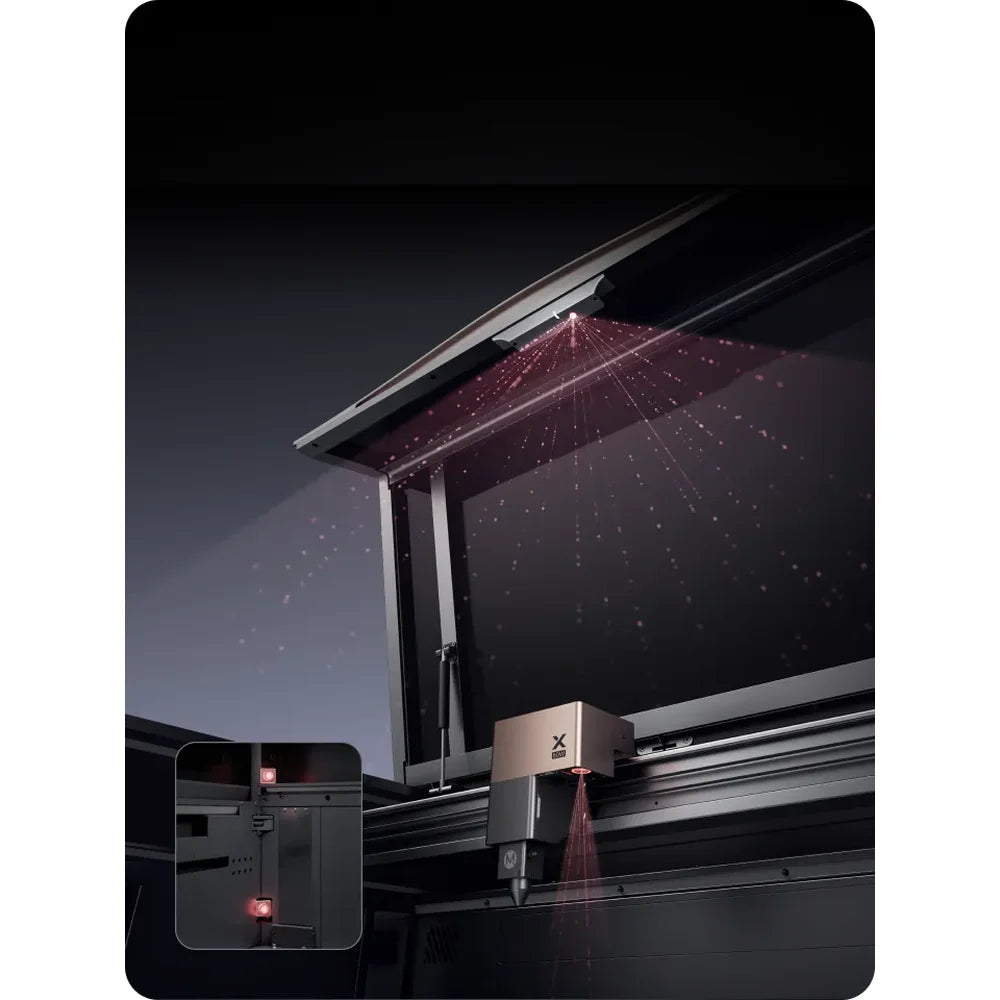

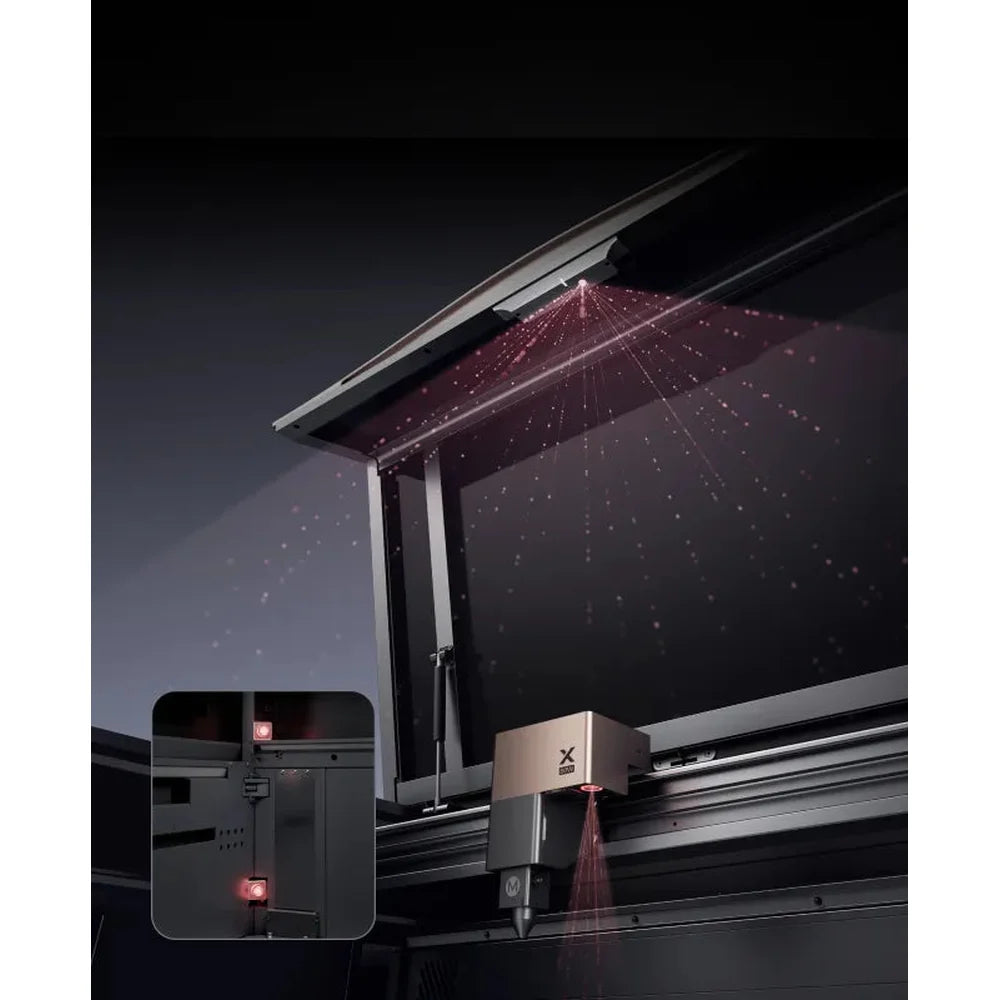

A 16 MP SkyView Panoramic Camera captures the full work bed, while a close-range camera supplies a closer look for accurate design placement. Two side cameras add workspace observation and take the built-in camera count to four.

Dual-camera positioning reaches 0.0079" (0.2 mm) camera positioning precision, helping you place artwork directly over the visible material in xTool Studio.

The standard motorized AutoLift Base supplies 8.66" (220 mm) of vertical processing space. Its maximum weighing capacity is 35.3lbs (16kg), leaving room for flat materials, gift boxes, briefcases, and rotary setups without a separate manual riser base.

Three focal lens choices let you match the laser spot to detailed engraving, everyday work, or thicker cutting.

• S Focal Lens optional: 0.0055" × 0.0063" (0.14 mm × 0.16 mm)
• M Focal Lens standard: 0.0059" × 0.0071" (0.15 mm × 0.18 mm)
• L Focal Lens optional: 0.0071" × 0.0079" (0.18 mm × 0.20 mm)

The standard 80W CO2 laser cuts wood, acrylic, fabric, leather, and more. It engraves glass, bamboo, ceramic, leather, acrylic, wood, and other compatible surfaces.

An optional 5W IR Laser expands direct engraving to plastics and metals such as stainless steel, aluminum, brass, and copper. The 5W IR Module is sold separately when it is not part of the selected bundle.

The integrated Inverter Water Chiller actively cools the 80W laser system and regulates temperature as operating conditions change. Its reservoir, pump, fans, and tubing form an enclosed cooling circuit for steady output during extended production sessions.

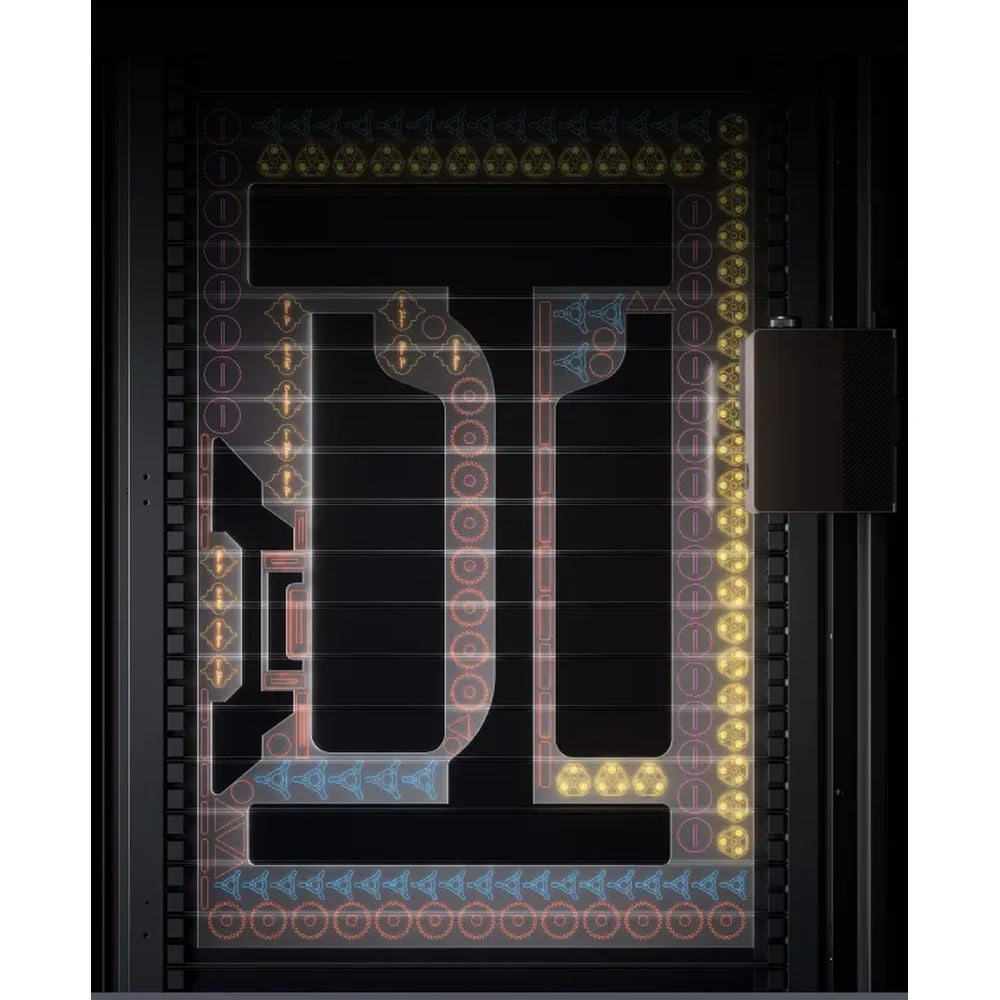

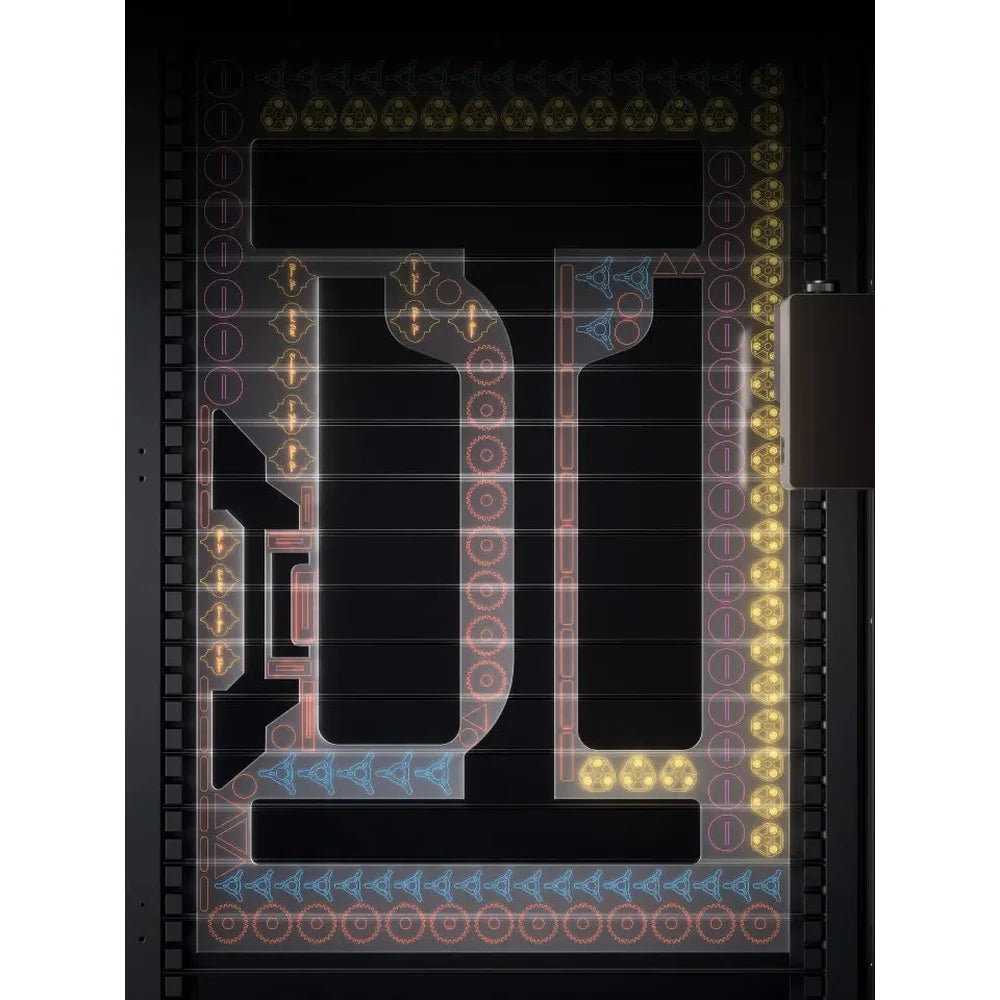

xTool Studio brings design placement, material settings, and job preparation into one workspace. Its tools include Smart Nesting, assisted design, EasySet 2.0, and Batch Fill.

• Operating systems: Windows and MacOS
• Connections: USB and Wi-Fi
• File formats: SVG, DXF, JPG, JPEG, PNG, BMP, and TIF
• Almake compatibility: Yes

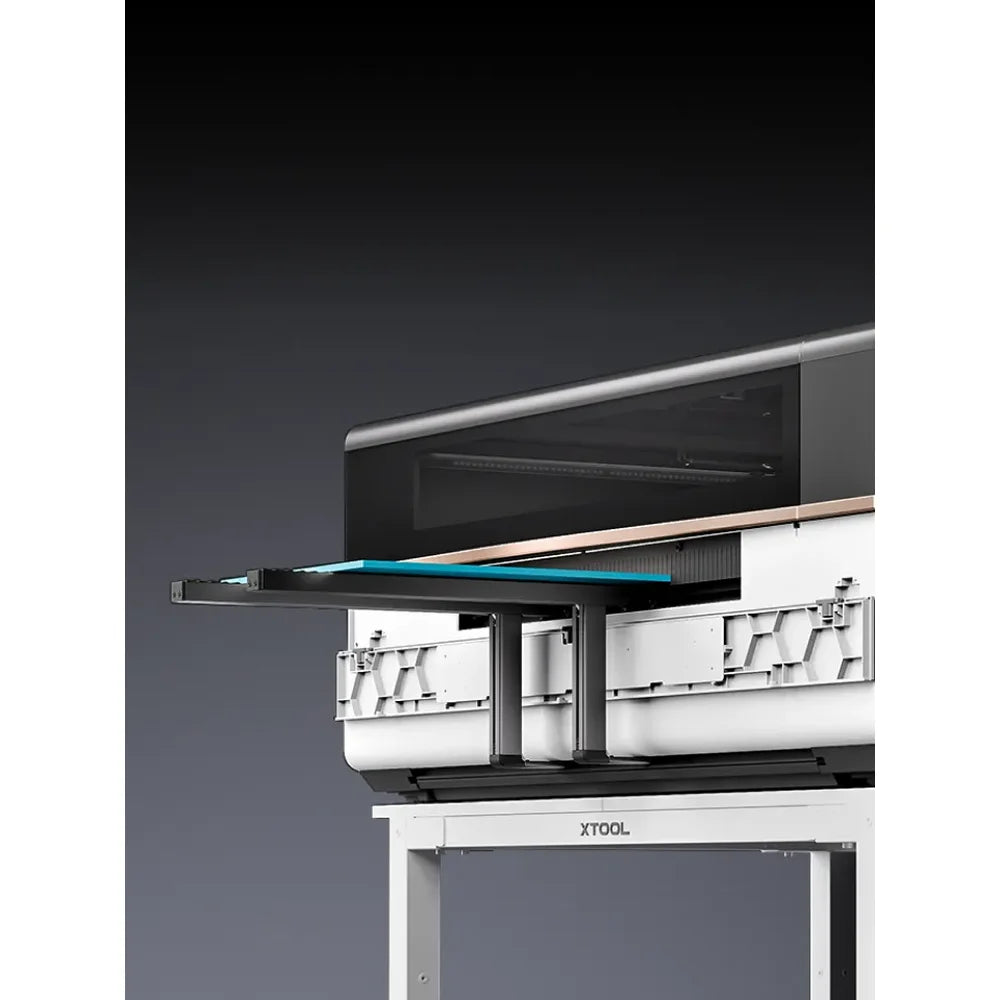

The optional Intelligent Conveyor Feeder uses camera imaging for a full material preview, then automates clamping, placement, homing, and feeding. Its integrated design installs once and remains ready for long-format work.

Compared with the P2 Automatic Conveyor Feeder, it processes 22% wider and 85% thicker materials, supports virtually unlimited material length, and produces less material waste. The conveyor is sold separately when it is not included in the selected bundle.

The optional RA3 adds Rotary Mode Recognition, 360° LiDAR Mapping™, and a 3D preview before engraving. Supported setups include revolving vases, batches of cylinders, irregular cylinders, spheres, and rings.

• MagSwap™ setup: Tool-free accessory changes
• Batch Processing: Handles repeated rotary work
• Larger grip: Holds larger cylinders more securely
• Engraving speed: 2.4x faster than RA2 Pro on the xTool P2S
• Rotary engraving diameter: 0 - 7.87" (0 - 200 mm)

The RA3 Rotary is sold separately when it is not included in the selected bundle.

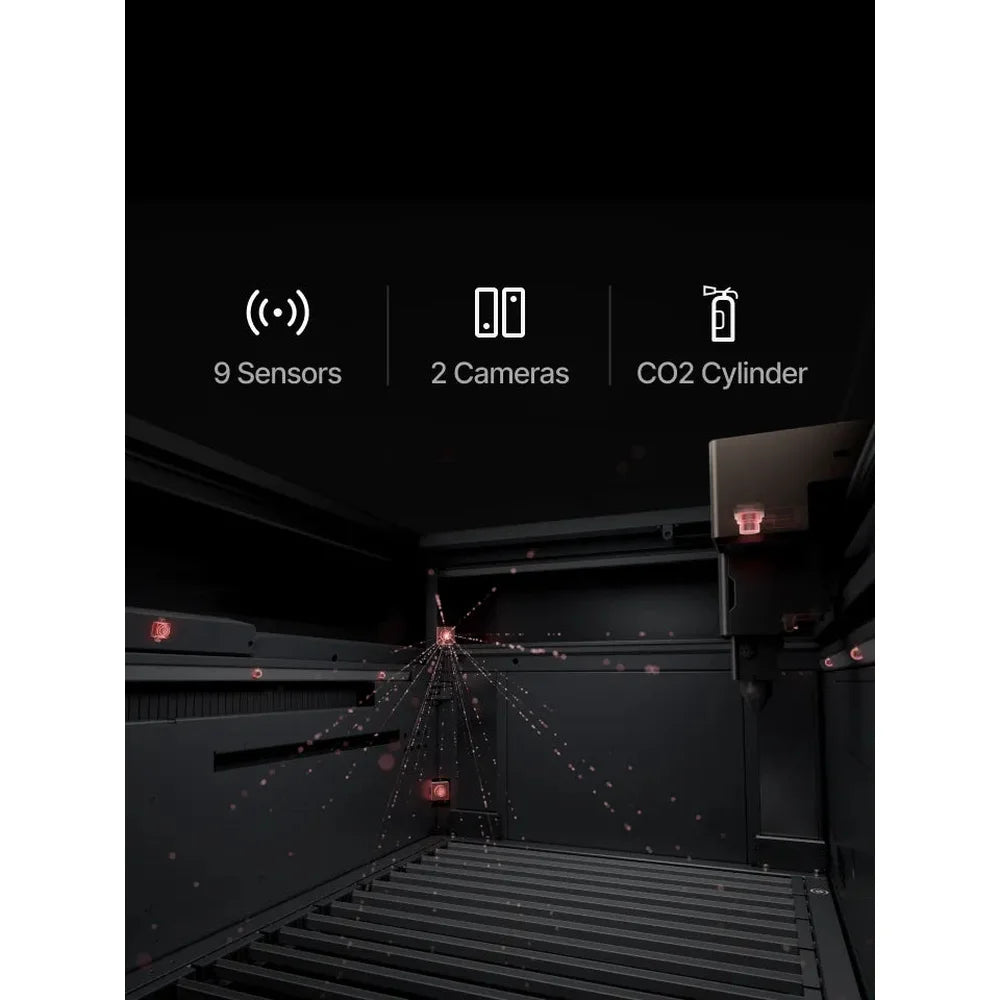

The certified Class 1 Laser Safety enclosure combines eight infrared flame sensors, one temperature sensor, and two side cameras with vision-based detection. A built-in CO2 active fire suppression system responds through the included CO2 cylinder.

Separate front and side camera views let you watch the laser head and work bed during processing. The two angles make it easier to observe activity inside the enclosed workspace without opening the lid.

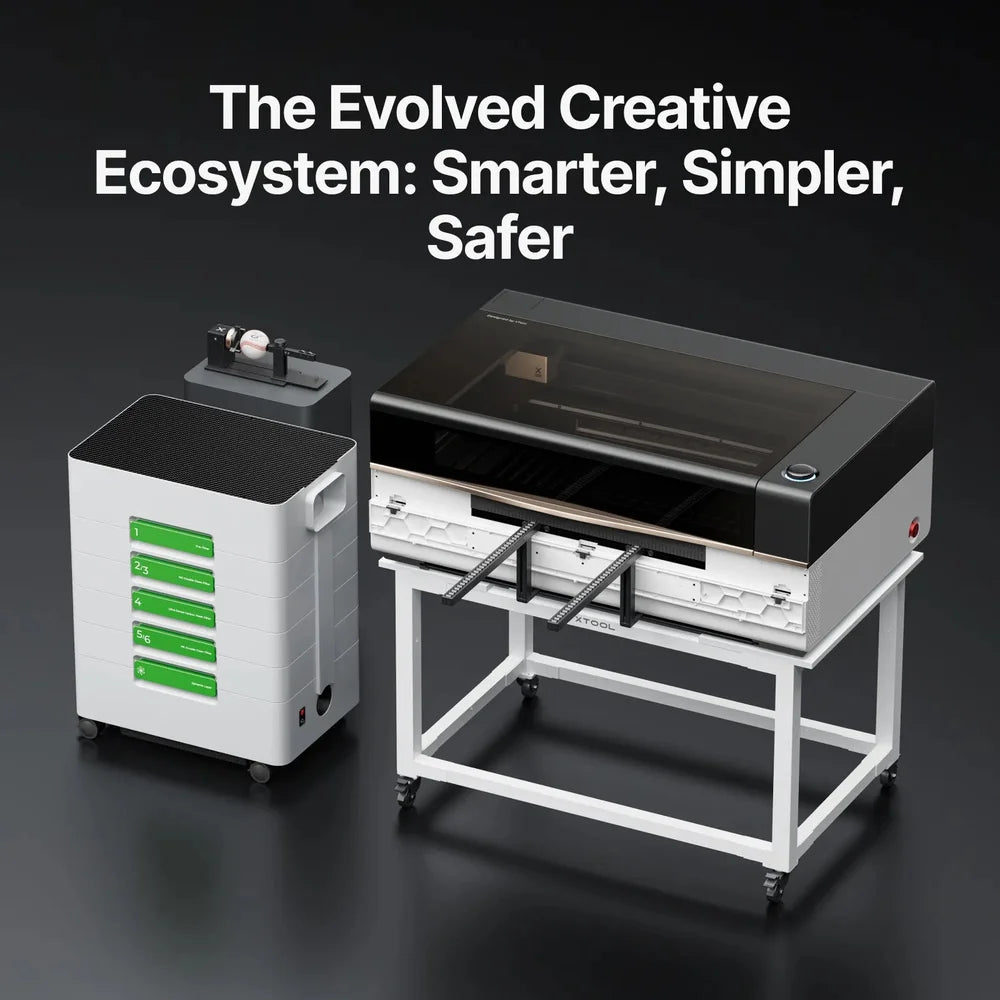

The optional SafetyPro™ AP2 Max is made for heavy-duty laser cutters such as the P3 and MetalFab. It supplies over 4.6x airflow compared with the AP2 and carries 4x filter capacity for a longer filter lifespan.

An added formaldehyde filter decomposes harmful gases into harmless substances. A flexible exhaust hose connects the purifier to the machine.

The P3 moves beyond the P2S in laser output, working area, movement speed, vertical handling, cooling, automation, rotary preparation, and enclosed safety.

• Laser output: 80W CO2 compared with 55W on P2S
• Maximum speed: 1200mm/s compared with 600mm/s
• Height handling: Standard motorized AutoLift Base compared with the optional manual P2S Riser Base, which reaches 215mm
• Conveyor setup: Integrated automatic preparation compared with manual assembly for each P2S use
• Rotary preparation: 3D preview and LiDAR mapping compared with manual measurements, no preview, and single-item processing
• Safety class: Class 1 compared with Class 4
• Fire response: Built-in CO2 suppression compared with the separately purchased P2S Fire Safety Set

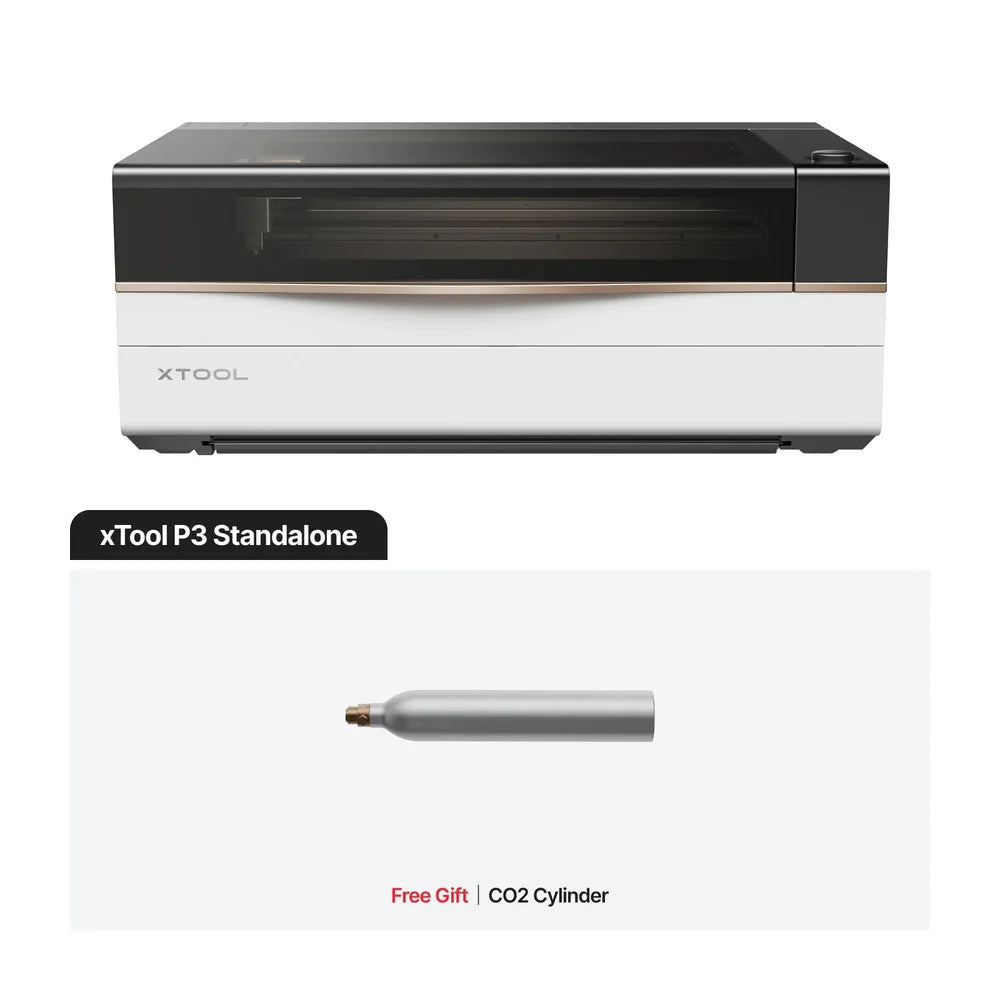

Select P3 Standalone under the Package option for $6999.00, VAT Excl. Its SKU is P0101000118.

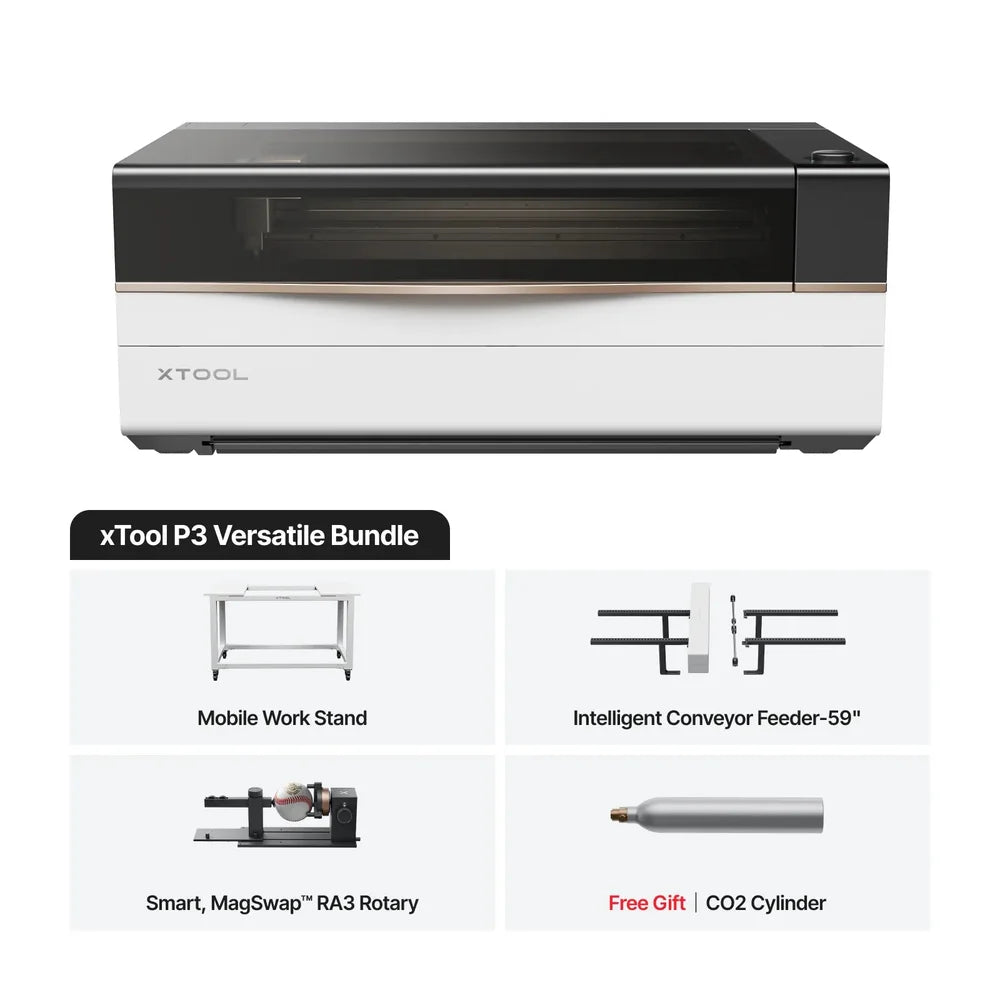

Select P3 Versatile Bundle under the Package option for $8209.00. Its SKU is P0101000118-P0101000117-P0102000110-P5010454.

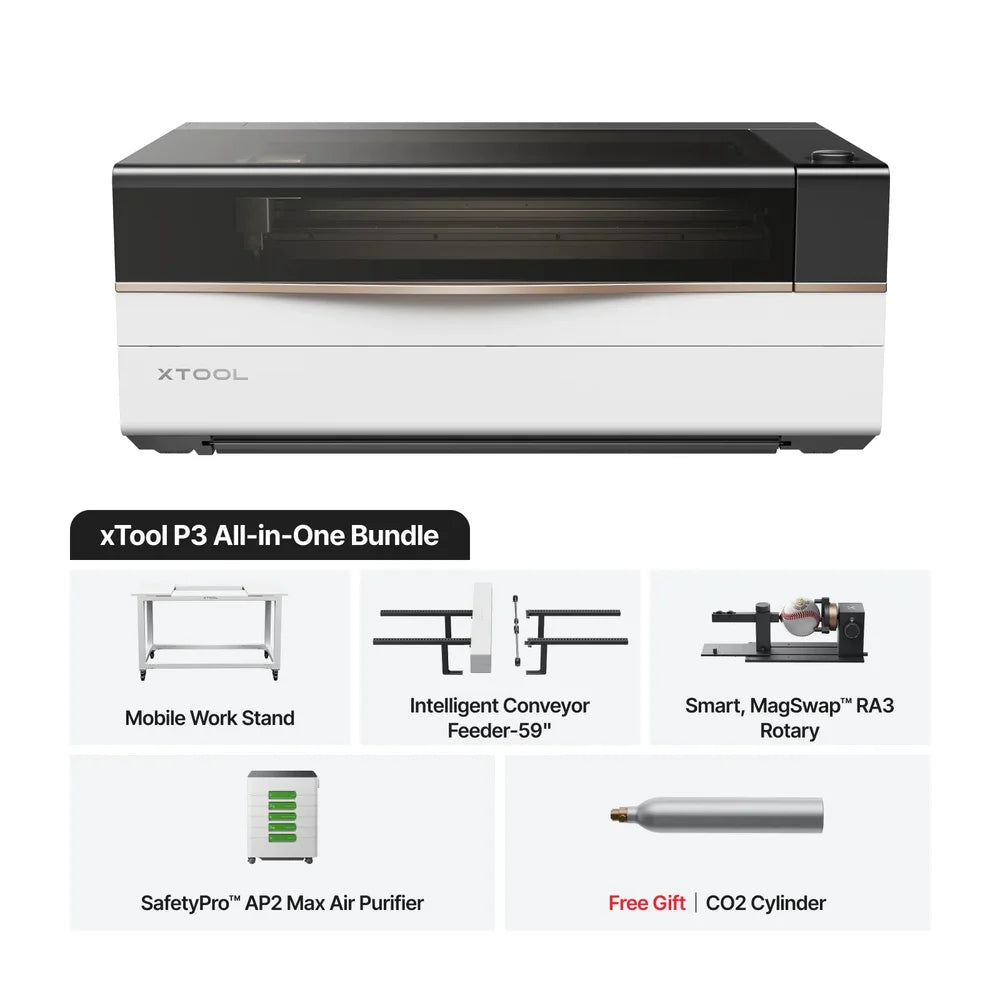

Select P3 All-in-one Bundle under the Package option for $10459.00. Its SKU is P0101000118-P0101000117-P0102000110-P5010454-P0101000131.

Optional xToolCare adds accident and quality-issue coverage, priority service, and $0.00 repair costs. The 1-Year Plan costs $499.00, while the 2-Year Plan costs $799.00.

• Tax exemption: 3% - 13% tax savings for today and future orders
• Trade Up: Get $50-$800 from your old machine
• Shipping: Orders ship in 3-5 business days
• Purchase coverage: 60 Day Price Guarantee, 12-Month Warranty, and 14-Day Return Policy*

Published specifications and processing features come from internal testing under optimized conditions. Results may vary with the individual machine, material, usage pattern, environment, and other outside factors. Project images show creative possibilities, while finished results depend on technique, material choice, and environmental conditions.

Product comparisons use public information or internal testing under comparable conditions. Different testing methods, configurations, and environments can produce different results. P3 versions may have slight exterior differences around the pump silencer and power switch, while function and performance remain the same.
