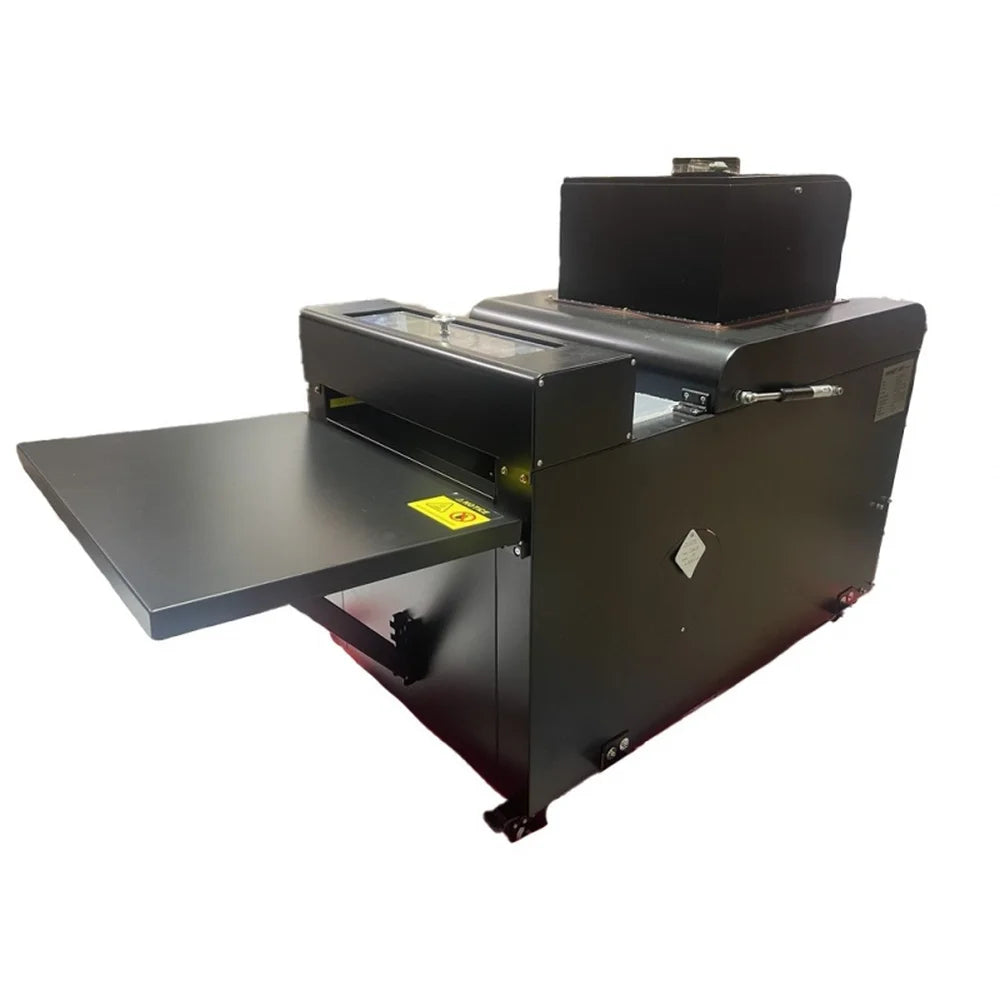

UNINET 14 in Auto DTF Powder Shaker Oven Purifier 120v for Roll to Roll Printers

Even Coats and Clean Cures From the UNINET 14 in Auto DTF Powder Curing Machine Purifier 120v

Tired of shaking powder by hand, chasing uneven coverage and sweeping wasted adhesive off the floor? This machine takes over the messy middle of your Direct to Film workflow. Pour in your powder and it applies, shakes off, cures and rolls up your printed film automatically, while a built in purifier filters the fumes. Connect it inline with your DTF 1200 or any roll to roll DTF printer, and your prints come out ready to press on rolls up to 14" wide.

• Automatic powdering: Pour in powder and it coats every print evenly, with variable adjustable speed controls.
• Less wasted powder: Excess is shaken off and gathered in a collection chamber for easy reuse.
• Built in purifier: Integrated filter system handles curing fumes, no external extractor required. Optional vent attaches to the top exhaust port.
• Hands free take up: Film sensor turns roll collection on or off automatically, and an extra tension bar winds tidier rolls.
• Inline ready: Works with the UNINET DTF 1200 or any roll to roll Direct to Film printer, on media up to 14" wide.
• Does not print: Cures the adhesive on printed film and requires a matching DTF roll fed printer.
• Commercial use: Use in a well ventilated area with PPE and keep humidity above 50%. Not recommended for home settings.
• Specs: 120v, crated 48 in x 28 in x 40 in, 190lbs. Color typically Black/Gray or Red, varies by availability.

Hands Free Coating With the UNINET DTF Powder Applicator

Manual powdering is slow and inconsistent. Here you simply pour powder into the powdering section and the machine spreads it evenly across every print.

• Variable adjustable speed controls let you set the pace to match your printer's output.
• Automatic powder removal shakes excess adhesive off the film before curing.
• Powder collection chamber catches the leftover powder so you can reuse it easily, cutting waste on every run.

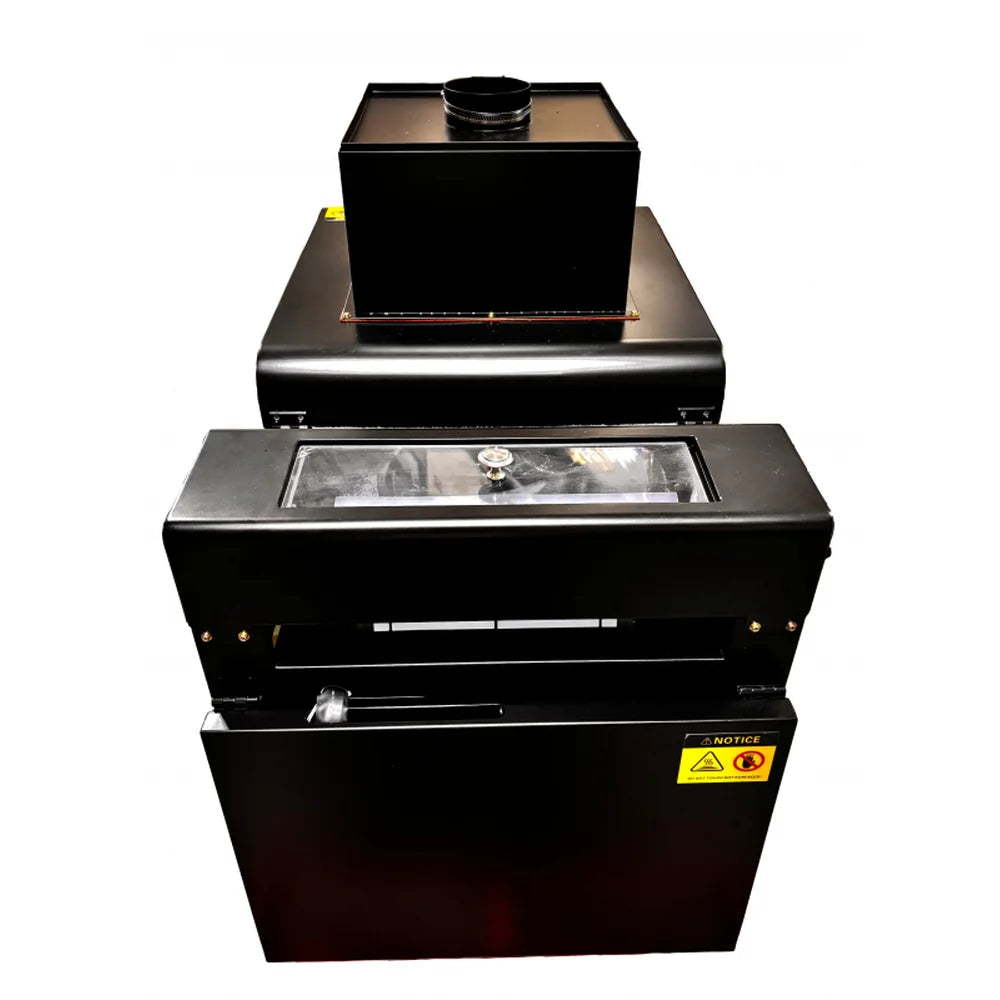

• Powder hopper with handle and a clear windowed powdering cover let you load powder easily and keep an eye on the coating as it happens.

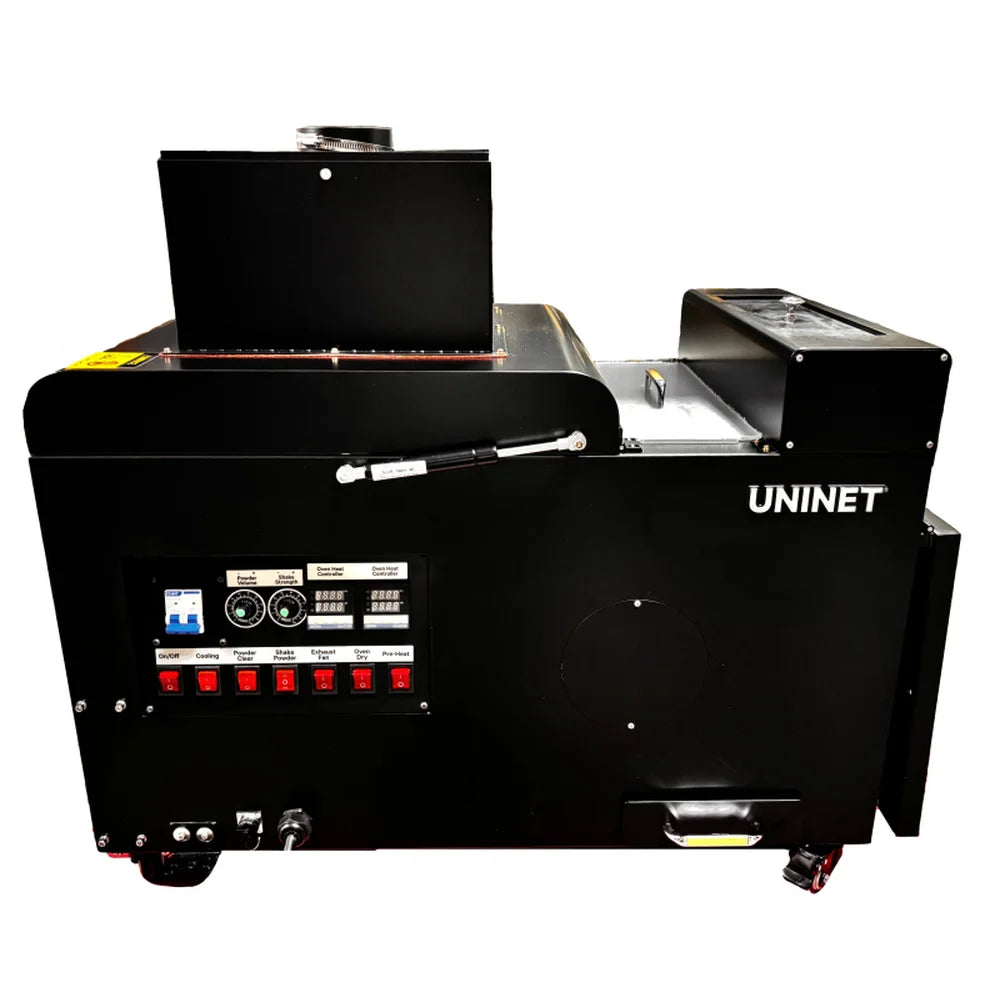

• Control panel includes a circuit breaker, Powder Volume and Shake Strength dials, two digital Oven Heat Controllers, and red rocker switches for On/Off, Cooling, Powder Clear, Shake Powder, Exhaust Fan, Oven Dry and Preheat.

The result is a cleaner workspace and less money spent replacing adhesive powder that used to end up on the floor.

Built In Fume Filtering on the UNINET DTF Powder Curing Machine 14 in Auto Purifier 120v

Curing TPU adhesive powder releases fumes. Instead of adding a separate unit to your setup, this machine handles them with its own built in filter system.

• No external extractor required for the integrated purifier to do its job.

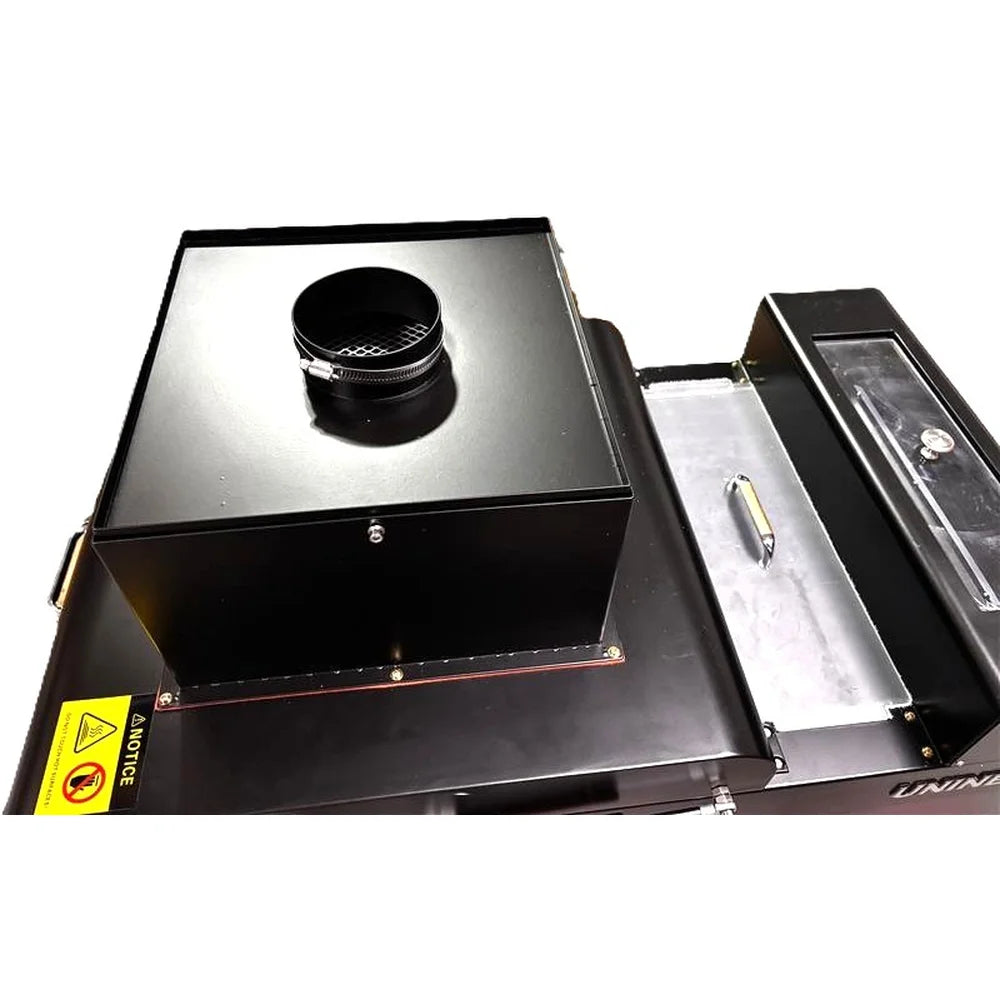

• Fume exhaust port on top, a round port with a mesh grate and hose clamp, accepts an optional vent if you want to route air elsewhere.

Smart Film Sensing and a Tighter Take Up Roll

Finished film needs to wind up neatly, without you standing over it. The built in film sensor detects the film and turns the roll collection on or off automatically, so your printed and cured DTF roll is collected as it comes through.

An advanced take up system adds an extra tension bar that helps roll up your finished films better, leaving you with tidy rolls that are easier to store and handle at the press.

Built to Run Inline With Your Roll Fed DTF Printer

This unit is designed to sit right after your printer as an inline addition to the UNINET DTF 1200 (Part #ICPDTF1200) or any roll to roll Direct to Film printer. It handles DTF media rolls up to 14" wide.

Please note: this item does not print. It cures the adhesive applied to the printed sheet and requires a matching DTF roll fed printer.

Setting Up a Safe, Productive DTF Workspace

DTF equipment is intended for commercial environments. UNINET does not recommend using it in a residential or in home setting. Keep these points in mind:

• Work in a well ventilated area. UNINET highly recommends a fume extractor to handle fumes from TPU adhesive powder curing.
• Wear protection: full body covering, a respirator or N95 mask, goggles and gloves guard against uncured TPU powder that may become airborne during handling. Inhaling TPU adhesive powder or fumes may be hazardous to your health.
• Keep humidity above 50% to reduce the risk of ink clogs and film buckling.
• Use of DTF equipment, chemicals, powders, inks and accessories is at the sole risk of the user.
• A yellow notice label is placed on the side of the machine.

Color and external shell style may vary depending on option and availability, typically Black/Gray or Red.

Product Specs

Product Attachments

UNINET DTF Powder Applicator Instruction Manual
