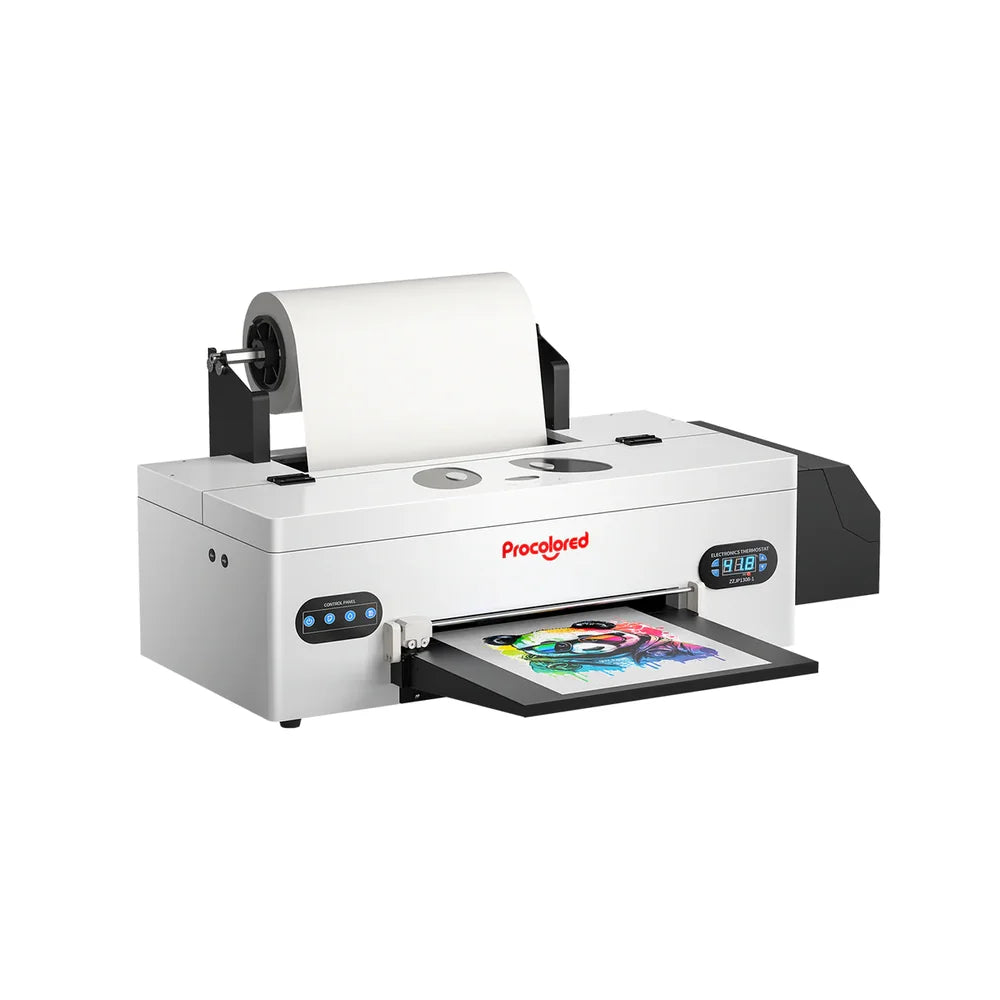

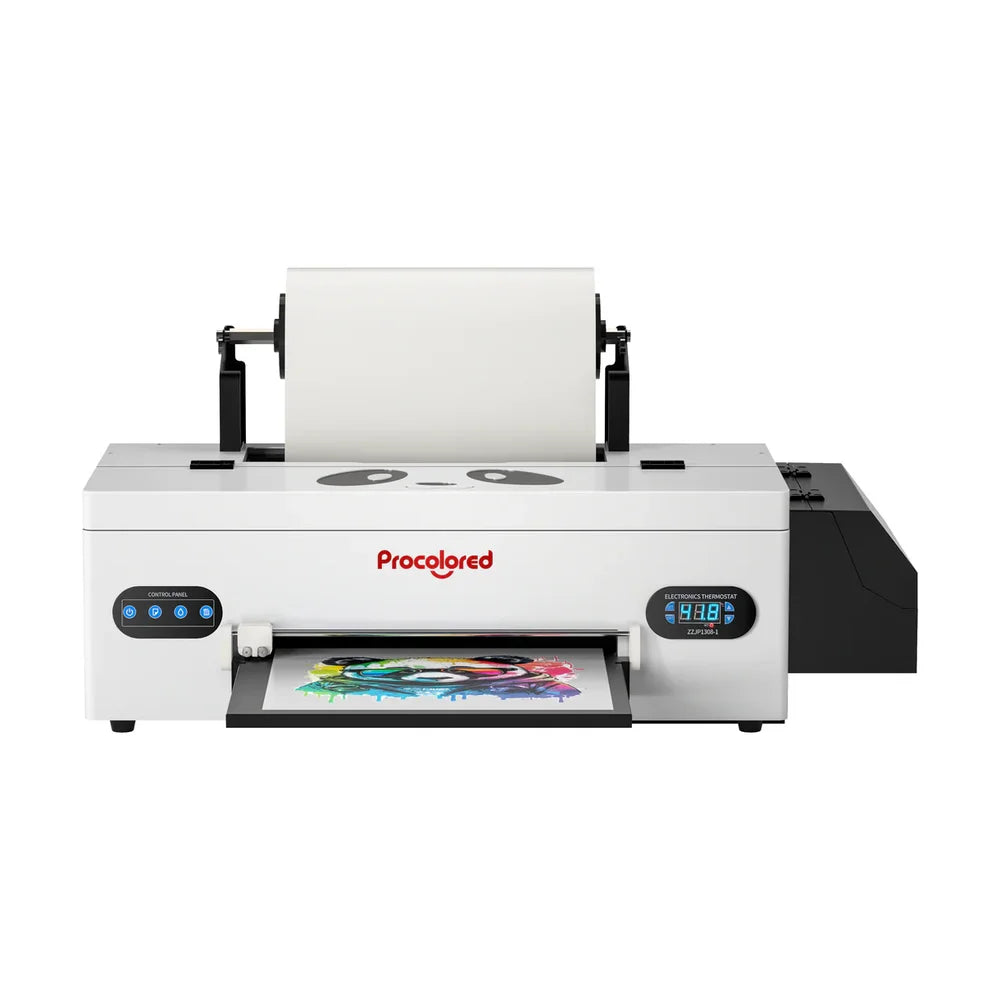

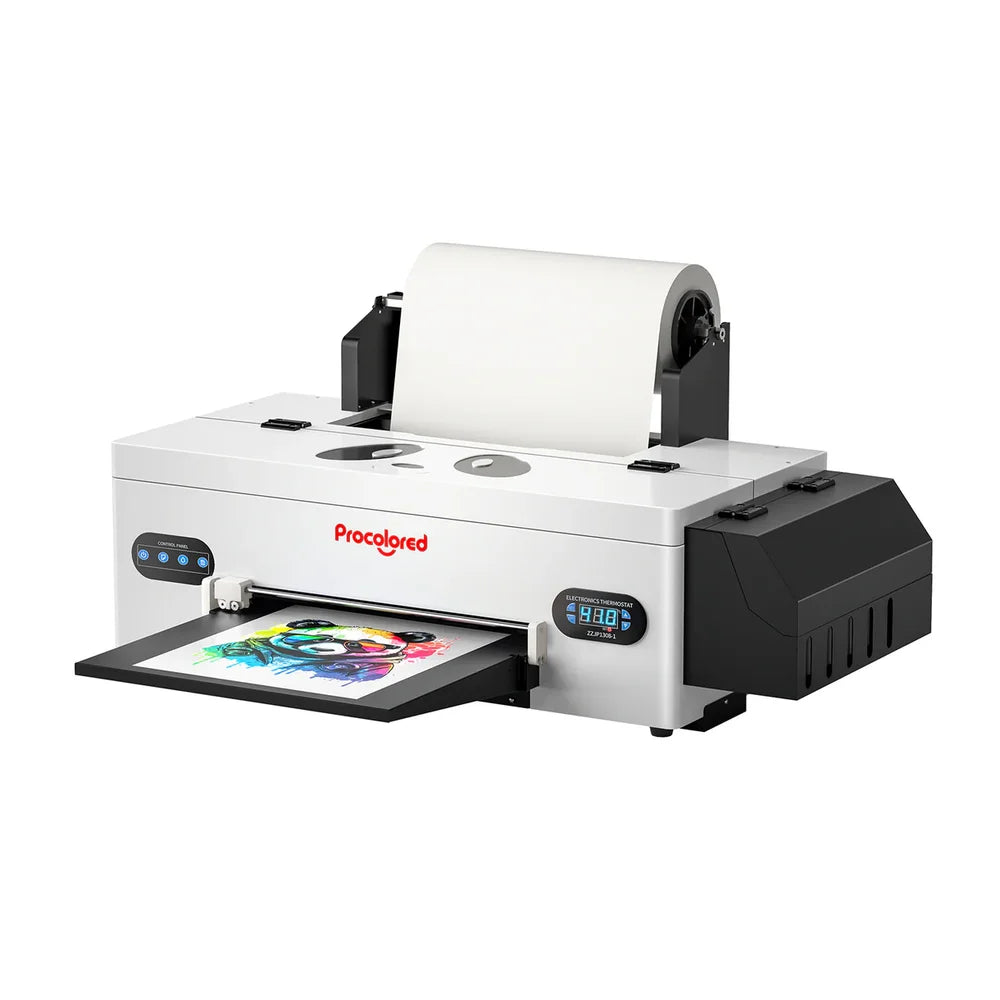

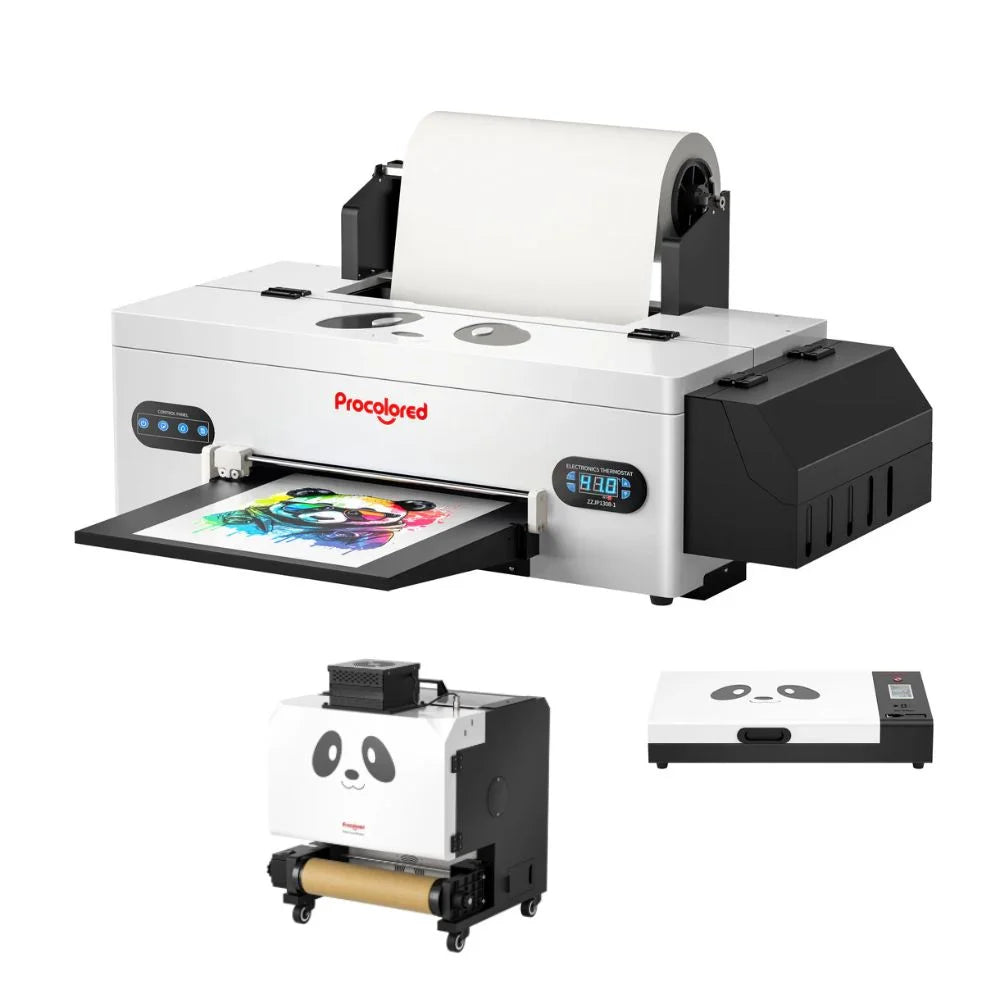

Procolored F13 Panda DTF Printer 13" A3 L1800

Take Control of Your Transfers With the Procolored F13 DTF Printer

Tired of outsourcing your DTF transfers, waiting on turnaround, and watching your margins shrink? Cheap converted printers clog, misfeed film, and leave you guessing at quality. The F13 Panda brings full-color garment production in-house with sharp 1440 × 1440 DPI output, white ink circulation, and a complete ready-to-print bundle plus a curing oven. You get control over quality, speed, and cost without the footprint of an industrial system.

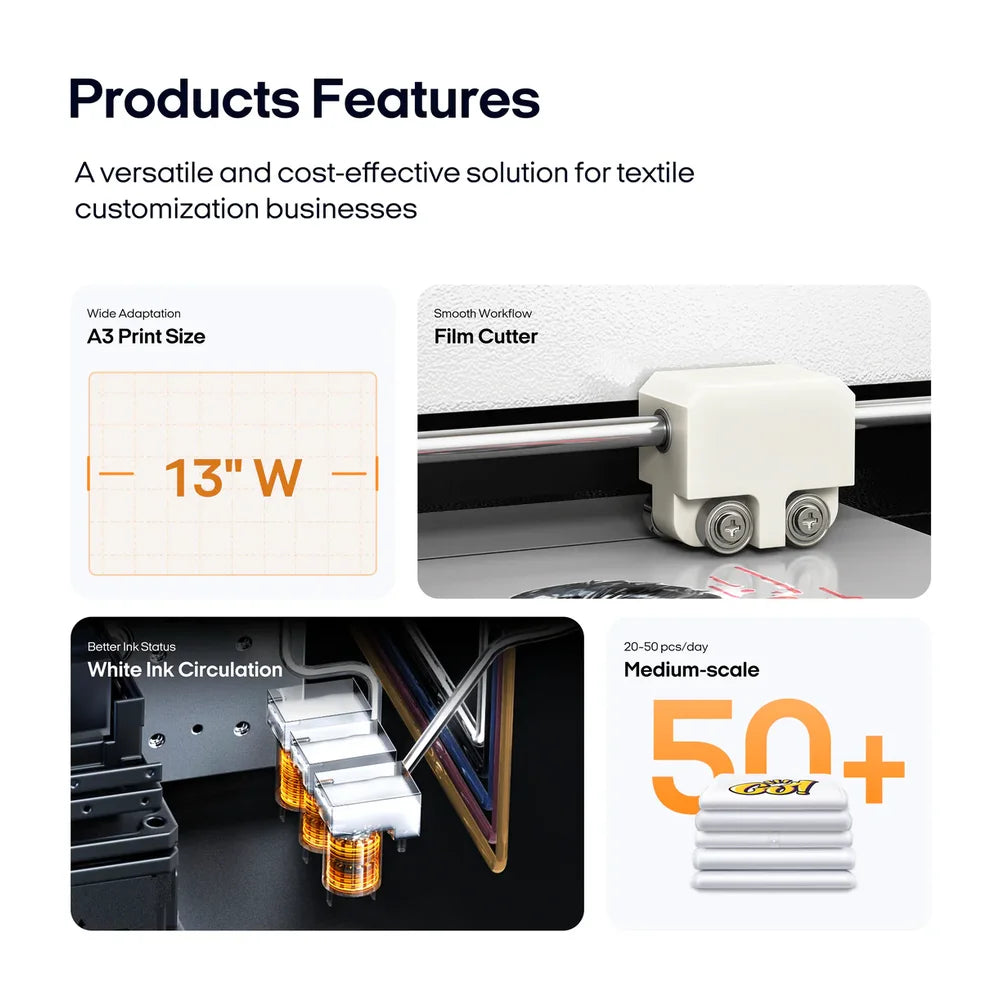

• Print size: A3, 13-inch / 330mm print width for full-size garment graphics.
• Print quality: 1440 × 1440 DPI, 8-pass accuracy with the L1800 printhead for sharp, professional-looking transfers.
• Ink setup: CMYK + WW configuration prints full-color designs on both light and dark fabrics.
• Fabric range: Works on cotton, polyester, blends, and dark garments, plus tote bags, caps, and flags.
• No pretreatment: Skips the messy pretreatment step, so setup and daily use stay simpler.
• White ink care: Built-in circulation system helps fight settling, clogs, banding, and weak opacity.
• Printhead protection: Auto-cleans every 10 hours when powered on to lower downtime risk.
• Film handling: Suction bed and upgraded roller feeder keep film flat and reduce jams and misfeeds.
• Built-in cutter: Rail-mounted cutter head lets you slice finished film cleanly without extra tools.
• Software: Included Pro RIP software gives full control over color modes, layout, and ink sliders on Windows OS.
• Curing oven included: Even-heating oven with built-in exhaust filter cures powder for better adhesion and wash durability.
• Oven capacity: Handles sheets up to 13" × 16.5" with a 0–130°C / 0–266°F range and dual-voltage support.
• Complete bundle: Includes ink, film, powder, cleaning supplies, RIP dongle, and cables to start printing right away.
• Real maintenance needed: Requires daily nozzle checks, white ink shaking, and weekly cleaning for reliable output.
• Warranty: 12 months on most components and accessories, 6 months on the mainboard and registered L1800 printhead.
• SKU: 10966837  |  UPC: 781108369151

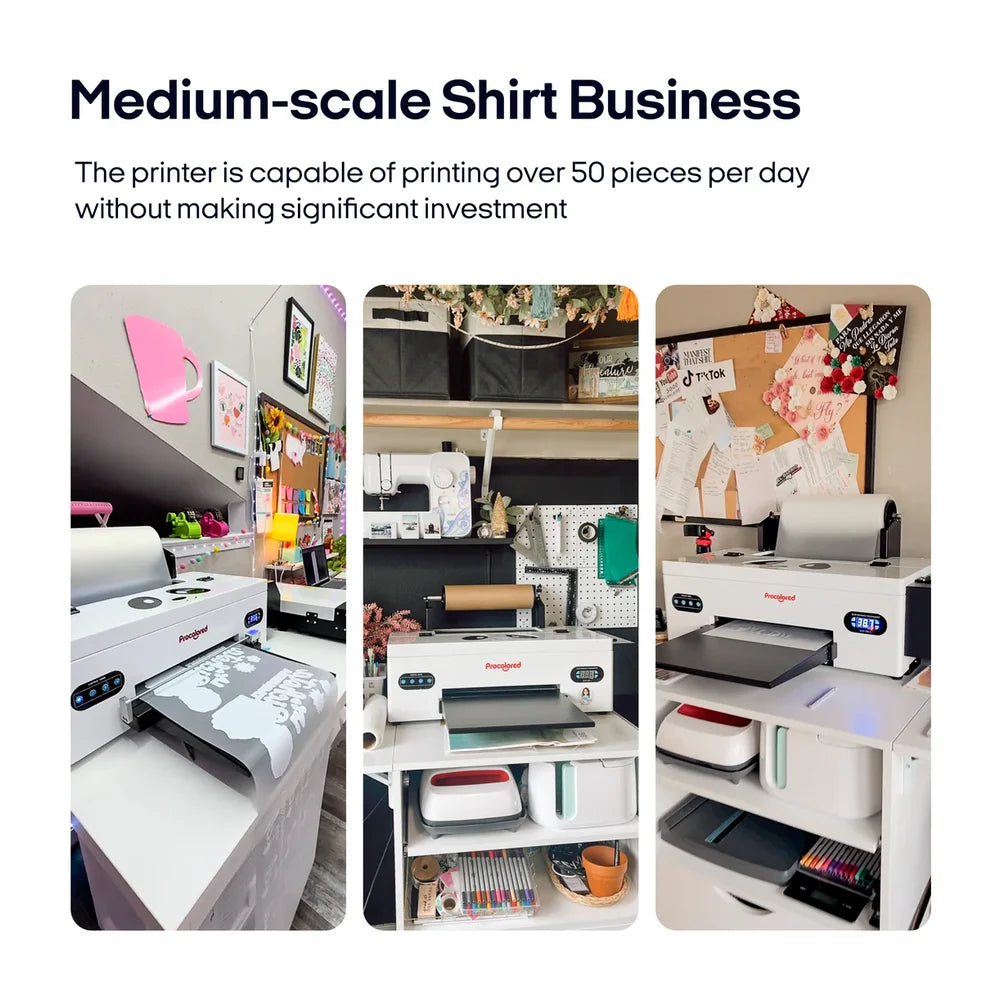

Built For Small-Business Production

This is the machine for growing apparel brands, Etsy and Shopify sellers, and shops stepping up from hobby gear. It suits operators running roughly 50+ prints per day or preparing to scale into that volume.

• A3 13-inch / 330mm print width for full-size garment graphics
• Fits custom shirts, small-batch brand drops, and short-run jobs where fast turnaround matters
• A serious step up from outsourced transfers, without moving into a factory-scale line

You gain control over turnaround, print quality, and margins by producing transfers yourself instead of paying a middleman.

Sharp Detail With 1440 × 1440 DPI Print Accuracy

Every transfer prints at 1440 × 1440 DPI across 8 passes using the L1800 printhead in a single-array configuration. The result is cleaner artwork reproduction and sharper detail, which means higher perceived quality and fewer customer complaints. A CMYK + WW ink configuration handles full-color designs with a white ink backing, so your work looks strong on both light and dark fabrics.

Works Across Common Fabrics And Products

One machine covers a wide range of orders. The DTF workflow works with cotton, polyester, blends, and dark garments, giving you far more flexibility than material-specific decoration methods.

• Custom t-shirts and small-batch brand drops
• Tote bags and canvas accessories
• Caps and hats
• Flags and fabric banners
• Dark garment transfers with white ink backing

Best of all, no garment pretreatment is required, which removes a messy, time-consuming step and cuts down on beginner setup errors.

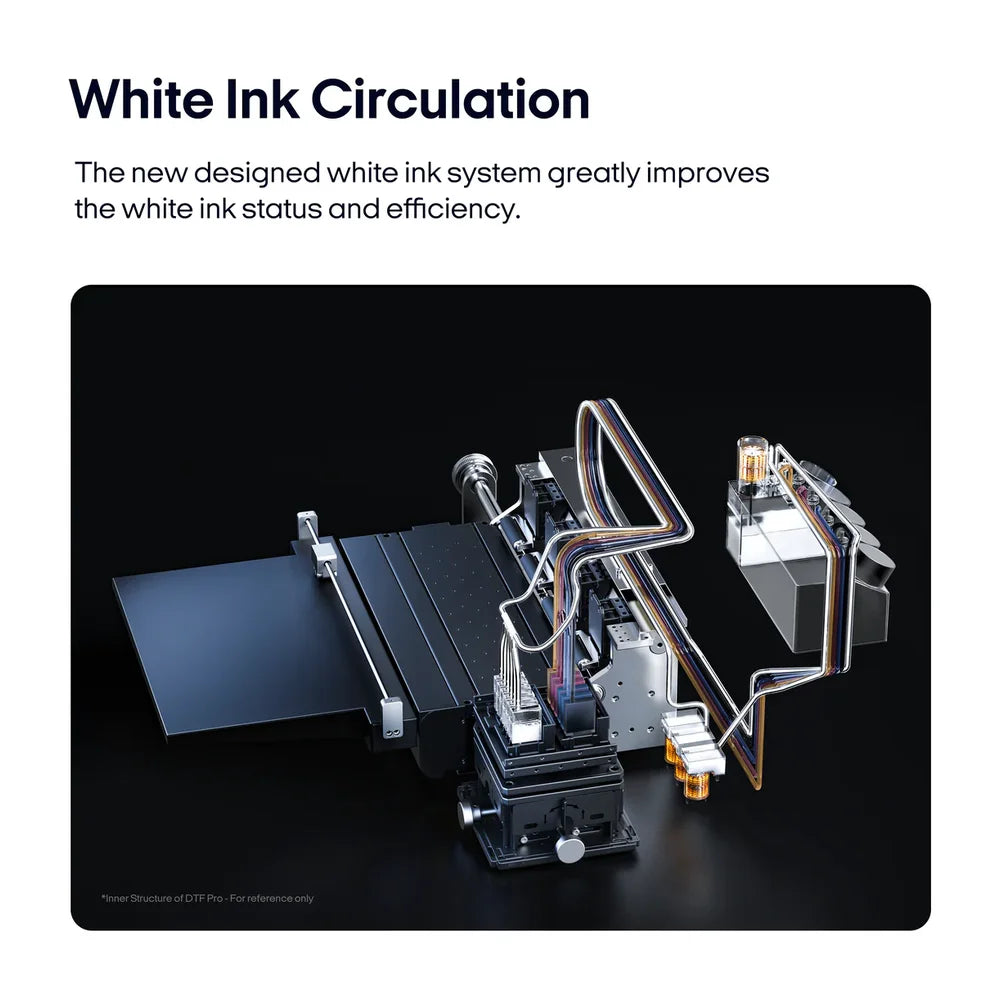

White Ink Circulation That Fights Settling

White ink is the biggest headache in DTF. Left sitting, it settles and causes clogs, banding, and weak opacity. The F13 keeps white ink moving with a circulation system that reduces settling and supports more consistent white performance over time. Pair that with a simple daily habit of shaking the white ink, and you protect both print quality and your printhead investment.

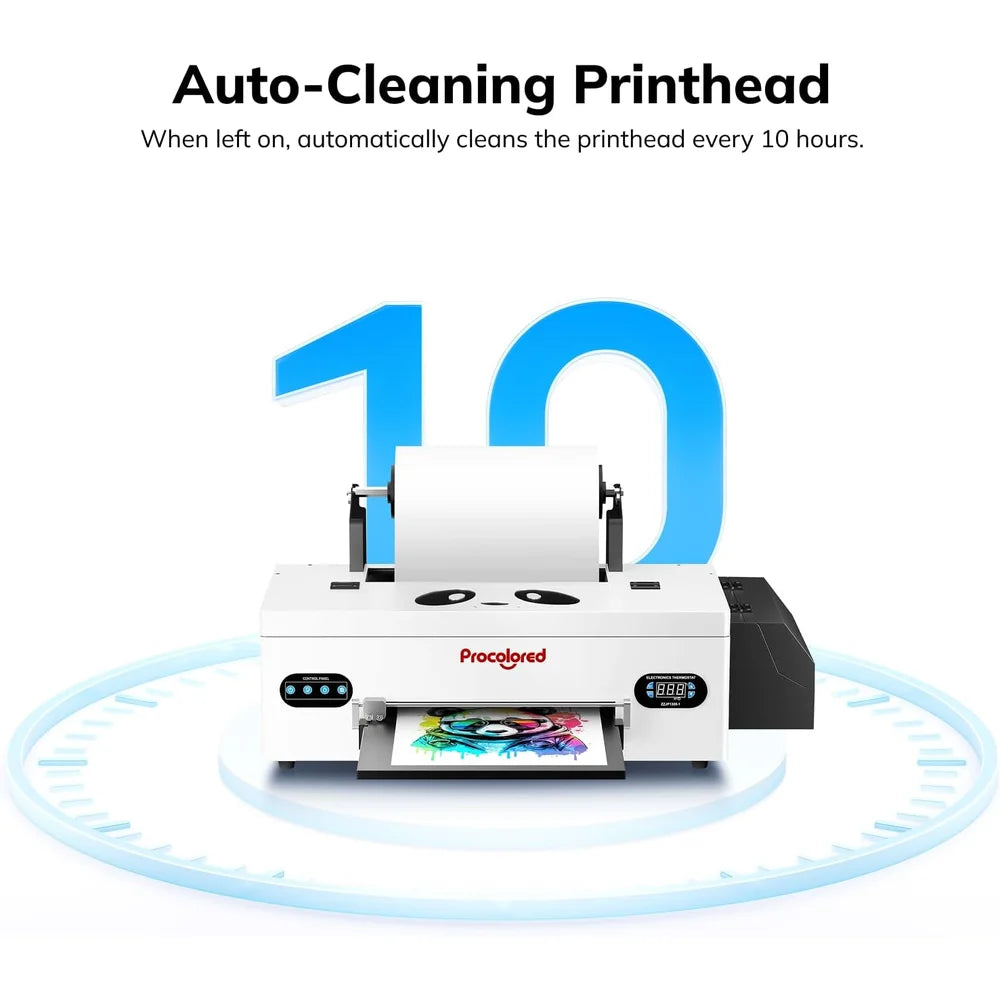

Auto-Cleaning Printhead Support

When you leave the printer powered on, it automatically cleans the printhead every 10 hours. This proactive care lowers the risk of downtime and expensive printhead problems between print runs. It is not a replacement for your routine care, but it adds a strong layer of built-in protection so your machine stays ready to print.

Steady Film Handling With Suction And Roller Feed

Film buckling and feeding errors waste materials and ruin good designs. The F13 tackles both:

• Suction-based printing bed and film adsorption keep film flat during printing, reducing head strikes, distorted prints, and wasted film
• Upgraded roller feeder improves film tension and guides film more consistently, meaning fewer jams and more reliable back-to-back runs
• Built-in preheating with adjustable temperature warms ink for better flow, giving sharper detail and stronger color consistency
• Ink collection captures excess ink for cleaner, more predictable operation

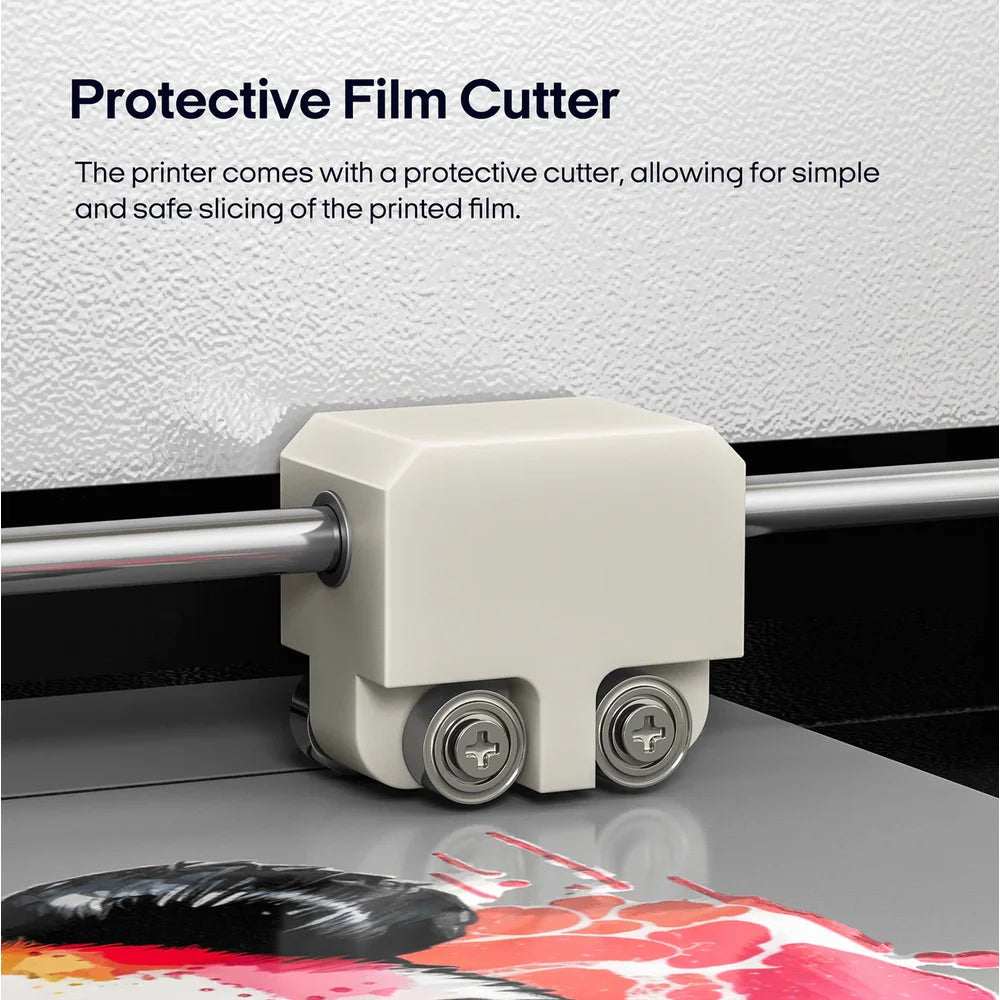

Protective Film Cutter

A built-in cutter head rides along the metal rail above your printed film, letting you slice finished film simply and safely. It keeps your workflow tidy between print jobs and helps you separate transfers cleanly without reaching for extra tools.

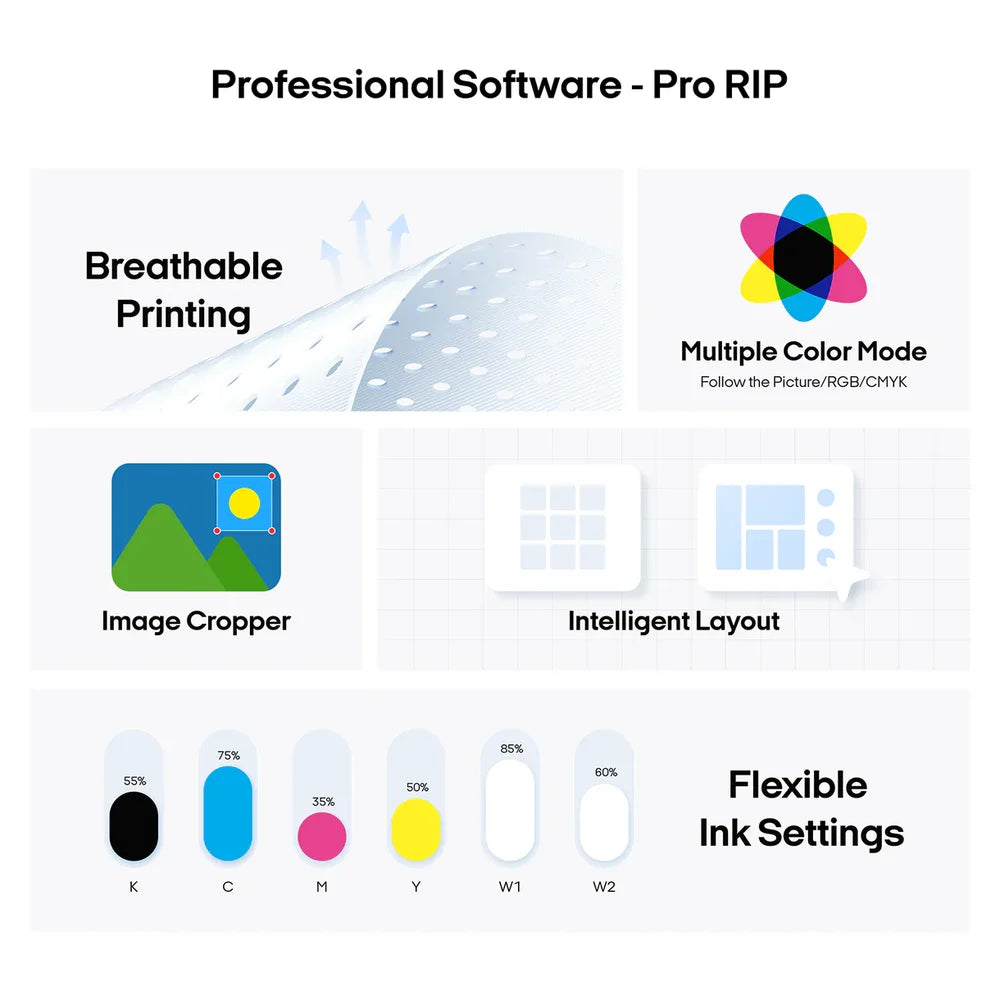

Pro RIP Software Control

The included Pro RIP software gives you a dedicated DTF workflow with far more control than a basic print driver. Key panels include:

• Breathable printing mode
• Multiple color modes following your picture in RGB or CMYK
• Image cropper
• Intelligent layout for arranging designs efficiently
• Flexible ink settings with adjustable K, C, M, Y, W1, and W2 sliders

The software runs on Windows OS and needs a C drive with at least 50GB free and at least 8GB of RAM.

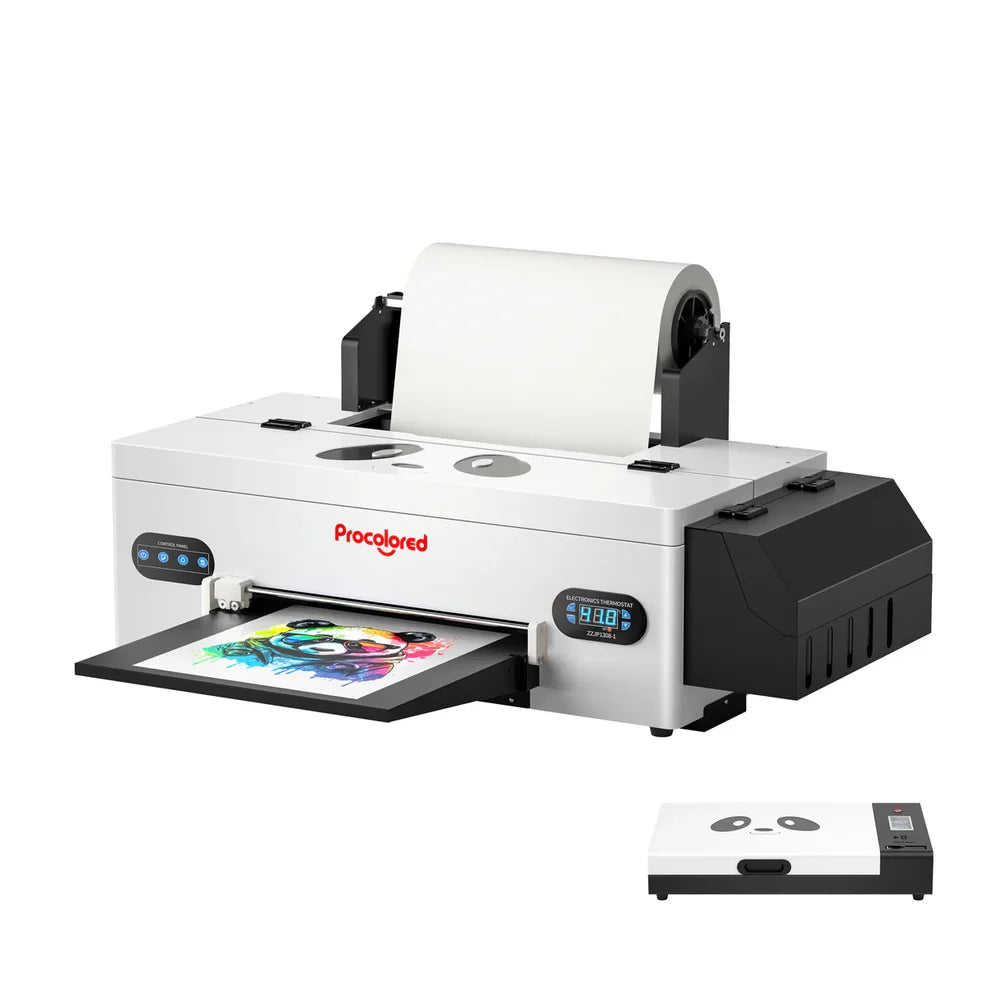

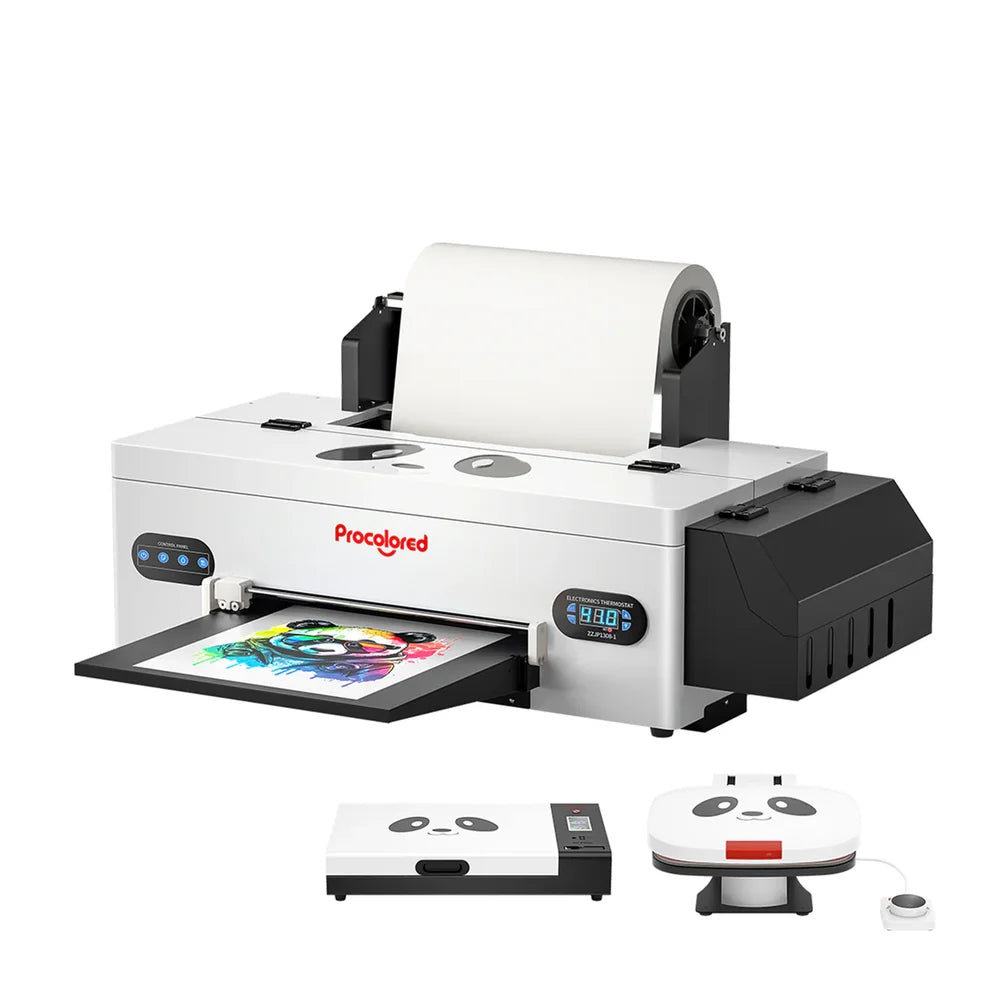

Even Powder Curing With the Included Oven

Curing consistency directly affects how durable and wash-resistant your transfers turn out, so the F13 bundle includes an upgraded DTF powder curing oven as a real production component, not an afterthought.

• Even heating technology distributes heat consistently through the chamber, reducing undercured or overcured spots for better adhesion and wash durability
• Integrated exhaust filter reduces airborne powder and curing fumes without a separate external purifier, keeping your workspace cleaner
• Easier-clean interior makes powder residue cleanup faster and reduces downtime
• Integrated power supply supporting 110V and 220V for flexible installation

It handles sheets up to 13" × 16.5" with a heating range of 0–130°C / 0–266°F, plus a built-in air purifier and a sleep mode for quiet periods.

A Simple Print, Powder, Cure, Press Workflow

The DTF process is more straightforward than traditional pretreatment. Here is the basic flow:

• Print your design onto DTF film
• Apply adhesive powder to the printed film
• Cure the powdered film in the included oven
• Preheat the garment, then heat press the transfer
• Peel the film after proper cooling
• Run a second press to improve surface texture and durability

Getting started each day is simple: turn on the rear power switch, press the front start button and wait for startup to complete, load your print film using the left-side arrow button, then run a printhead cleaning and nozzle check before production. At the end of the day, confirm all print jobs are completed or deleted, clean ink spills around the printhead and capping station, clean the encoder strip, make sure the printhead and capping station are properly sealed, then turn off the printer using the start button followed by the rear power switch.

Honest note: this is not a maintenance-free machine. DTF printing still needs daily nozzle checks, white ink shaking, and end-of-day cleaning around the printhead, wiper blades, and capping station, plus weekly pinch roller and encoder strip cleaning. Also clean the pinch rollers whenever you replace film, empty the waste tank regularly, and grease the carriage rail as needed if you hear squeaking. Follow the routine and the F13 rewards you with consistent, reliable output. For the best results, keep your operating temperature above 22°C / 71°F, humidity above 50%, place the oven in a ventilated area, and keep ink, film, and powder out of direct sunlight.

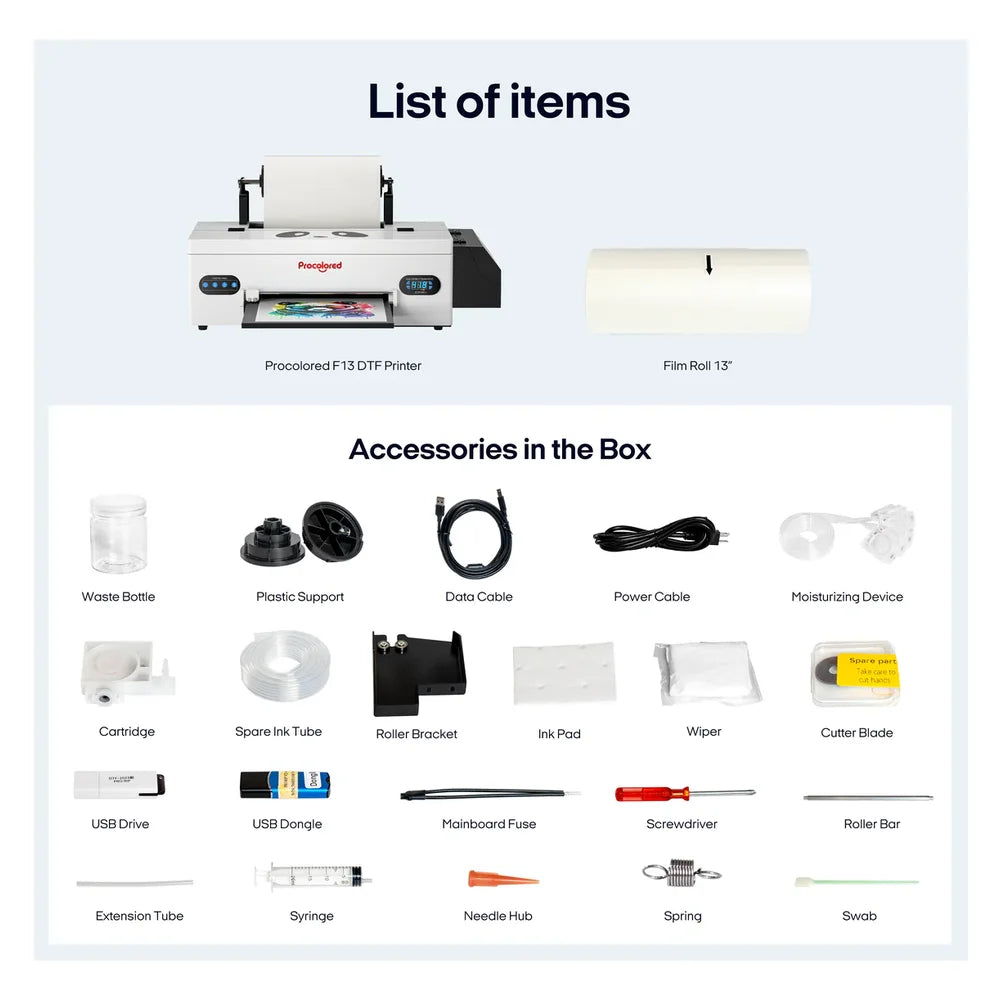

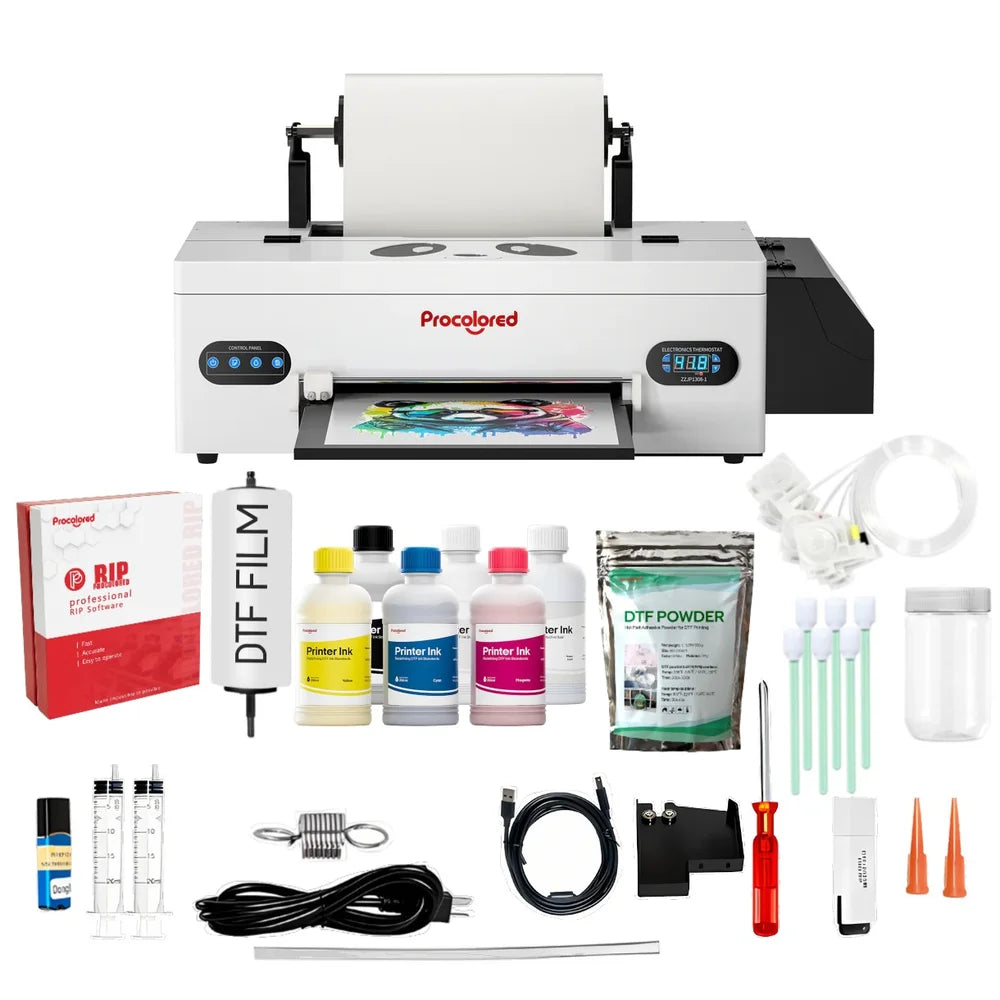

What Comes In The Box

The bundle gets you printing faster with the core startup materials in one package:

• F13 Panda DTF Printer with L1800 printhead
• Full CMYKW ink set: 5 × 250ml bottles
• 500g adhesive powder
• Printhead moisturizing device
• 250ml nozzle protection fluid
• One 328ft cold-peel film roll
• Pro RIP software for Windows OS with USB dongle
• USB drive
• Power cable, USB data cable, ink tube, and spare ink tube
• Spare cartridge and ink pad
• Roller bracket and roller bar
• Spare wiper and spare cutter blade
• Waste bottle and plastic support
• Extension tube, needle hub, and spring
• Mainboard fuse and screwdriver
• Dust-free cloth, swab, and syringe
• Upgraded DTF powder curing oven

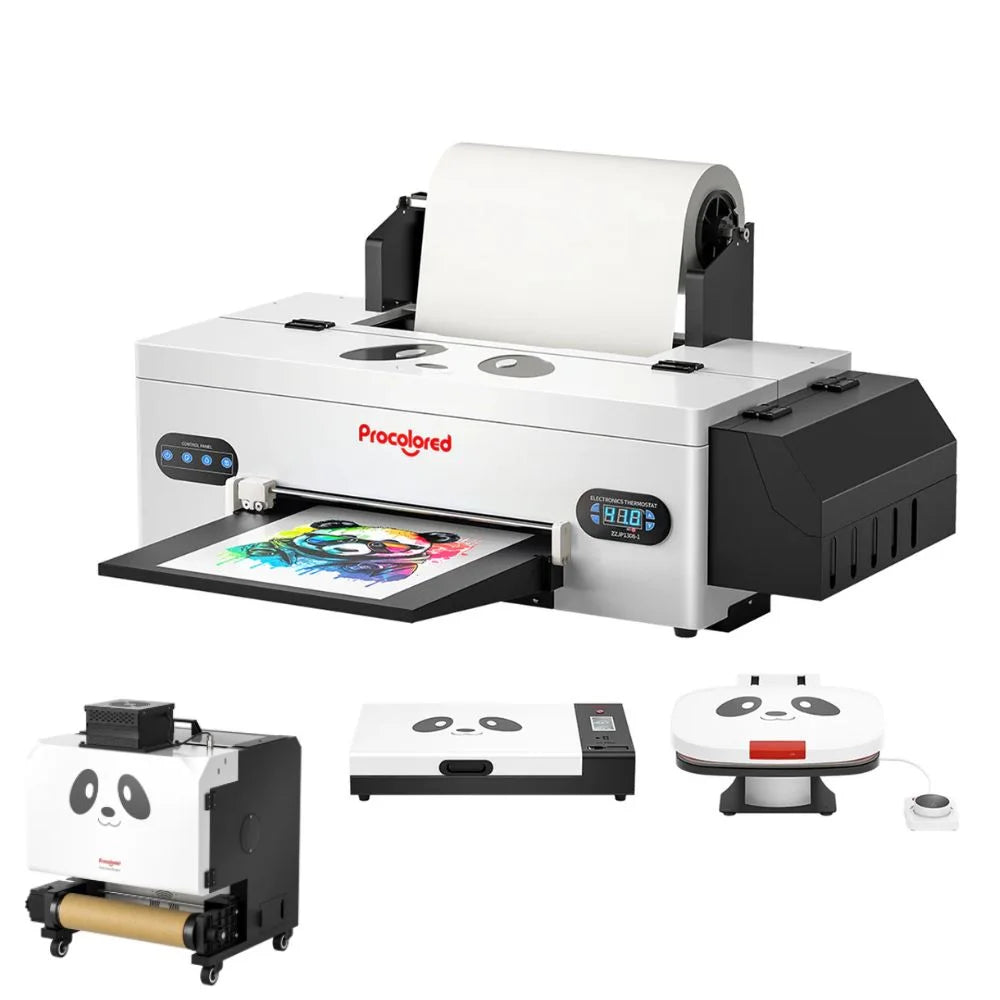

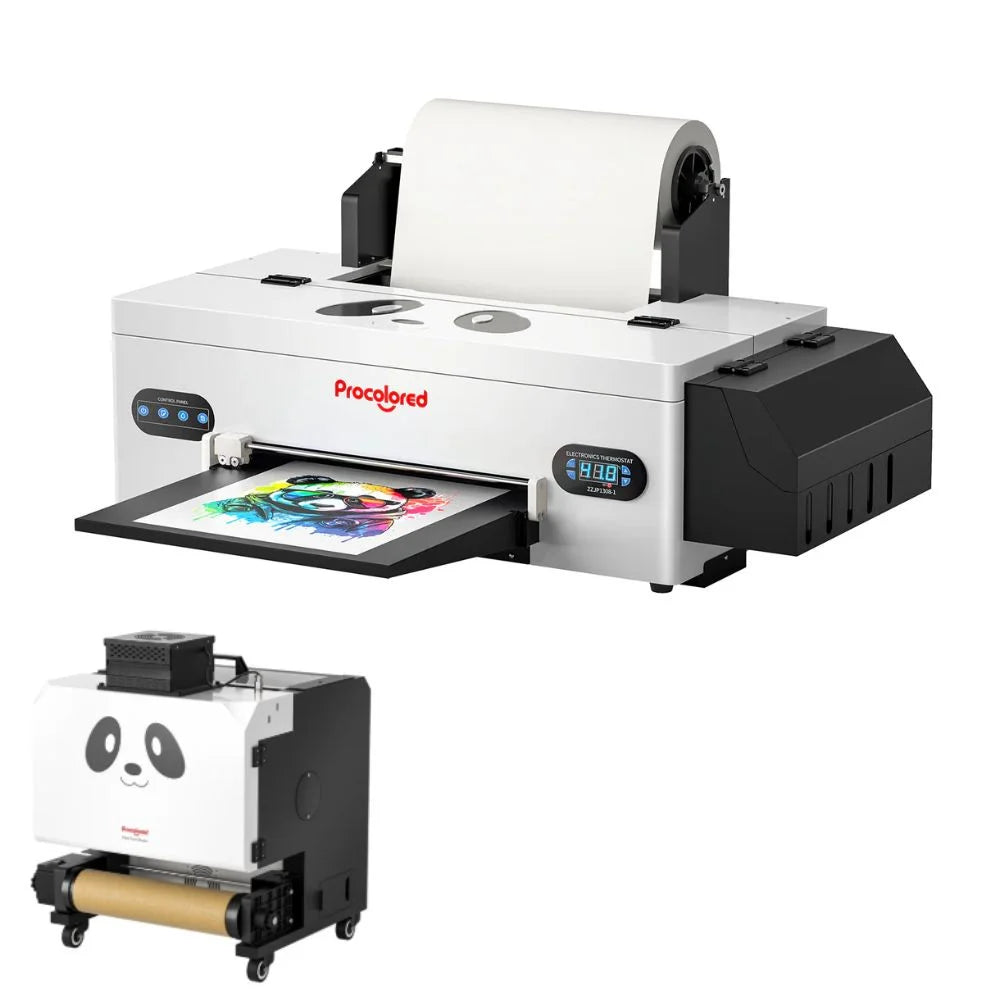

Depending on your setup, you may want to add a heat press machine with LED temperature and time controls or a powder shaking and drying machine for gang sheet workflows. Plan for ongoing consumables like ink, film, powder, and cleaning supplies as normal operating costs.

What the F13 Panda Warranty Covers

Coverage depends on warranty registration, proper use, and exclusive use of approved Procolored consumables. Key points:

• Components not directly in contact with ink are covered for 12 months from shipment date, unless damage is user-induced
• The single-head mainboard carries a 6-month warranty from shipment date with eligibility for one replacement during the warranty period
• Printheads and ink-contact components generally have no warranty, but after registration the L1800 printhead is covered for 6 months from shipment date, limited to one replacement
• Other accessories are covered for 12 months from shipment date

Warranty does not cover printhead blockage caused by third-party inks or damage from misuse. If damage occurs within one month of receiving the printer, Procolored covers both the component cost and shipping fees; if reported after one month, Procolored covers the component cost but not shipping fees. Returns or exchanges are accepted only if the printer arrives within one week with no ink added and original packaging — once ink has been added, returns or exchanges cannot be processed. Contact Us for any questions about coverage or returns.
