hotronix Fusion IQ Heat Press 16 x 20 Inch
Accurate, Repeatable Transfers with the hotronix Fusion IQ heat press
Tired of resetting your press for every fabric and transfer? Save setup time with unlimited presets, live readings, and two loading motions. A 16" x 20" platen and heat free loading area let you prepare garments safely while maintaining precise control over each pressing cycle.
- Touchscreen control: Built in display stores unlimited presets with time, temperature, and pressure readouts for fast changeovers between fabrics.

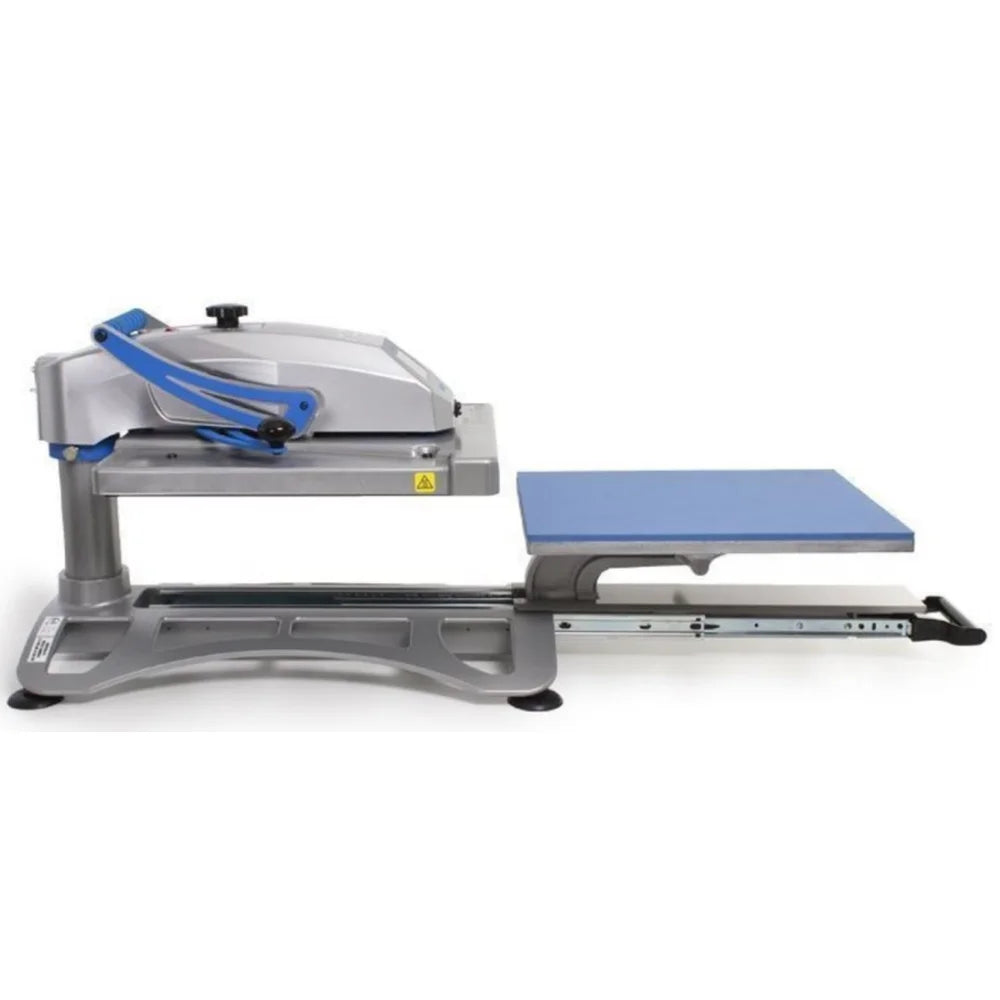

- Dual loading motion: Swing or draw operation keeps the lower platen in a heat free area for safer garment placement.
- Platen size: 16" x 20" flat platen, 3/4" thick, with a quick release EZ On design for easy swaps.
- Interchangeable platens: Compatible with sleeve, round, youth, and can cooler platens for varied projects.
- Remote management: Web based access to machine statistics and settings, plus self diagnostic function to cut down on support calls.
- Energy saving: Auto on/off and a 4 hour sleep mode help manage power use during idle periods.
- Secure settings: Password protection with multilevel access limits unauthorized changes.
- Production tracking: Built in cycle counter logs completed presses.
- US made build: Cast aluminum frame, portable design, UL/ULC/CE/RoHS compliant.
- Warranty coverage: Lifetime warranty on the heating element, five years on casting and framework, two years on the circuit board, plus lifetime technical support.
- Support contact: Technical support for this press is handled by Stahls, not UNINET®.
- Price: $2,850.00 USD, with financing available through Affirm (subject to qualification).
- Shipping note: Ships on a skid by truck. A flat $250 fee applies, and we ship within the contiguous US only (the lower 48 states and DC).
Preset Control Through the stahls hotronix Fusion IQ
The built in touchscreen, introduced as an industry first for heat presses, stores unlimited preset programs with time and temperature settings. It displays the current pressing temperature, remaining time, and applied pressure, helping you move between fabric types with fewer manual adjustments.
- Bright, large LCD: A wide viewing angle keeps settings and live readings easy to see.
- Online settings: Store time and temperature settings for transfers and manage more than one Fusion IQ through the web.
- Machine statistics: View press information through the Fusion IQ website.
- Self diagnostic function: Helps reduce guesswork when checking machine operation.
- Protected controls: Password restricted settings and multilevel password options limit unauthorized changes.
- Flexible timing: Unlimited presets and multiple time settings support varied transfer requirements.
- Automated operation: Auto on/off settings and an energy saving 4 hour sleep mode manage idle periods.
- Production tracking: A cycle counter records completed pressing cycles.
Flat Platen Flexibility on the hotronix Fusion IQ heat press
This model centers on a 16" x 20" flat platen for garment transfers. Its dual function design supports swing or draw motion, keeping the lower platen in a heat free loading position. The EZ On Platen design uses a quick release system, letting you change the entire lower platen or adjust its orientation for easier garment placement.
The 3/4" thick platen accepts easy to install interchangeable platen options:
- 11 in x 15 in (279 x 381mm) Platen for Youth and Ladies Garments for Fusion Heat Press, UNINET® Part #PL11X15
- 6 in x 20 in Sleeve/Leg Platen for Fusion Heat Press, UNINET® Part #PLLS
- 8 in x 10 in Quick Change Platen for Hotronix Fusion Press, UNINET® Part #PL8X10
- 7 in Round Quick Change Platen for Hotronix Fusion Press, UNINET® Part #PL7R
- 6 in x 10 in Quick Change Platen for Hotronix Fusion Press, UNINET® Part #PL6X10
- Can Cooler Platen for Hotronix Fusion Press, 16 in x 20 in x 5 in, UNINET® Part #PLCAN
Recommended press accessories include:
- Upper Nonstick Heat Press Cover 16 in x 20 in (406 x 506mm), UNINET® Part #12180
- Lower Nonstick Heat Press Cover 16 in X 20 in (406 x 506mm), UNINET® Part #12156
- Premium Reusable PTFE based Sheet for Heat Press 18 in x 20 in, UNINET® Part #RCS1820
American Construction with Long Warranty Coverage

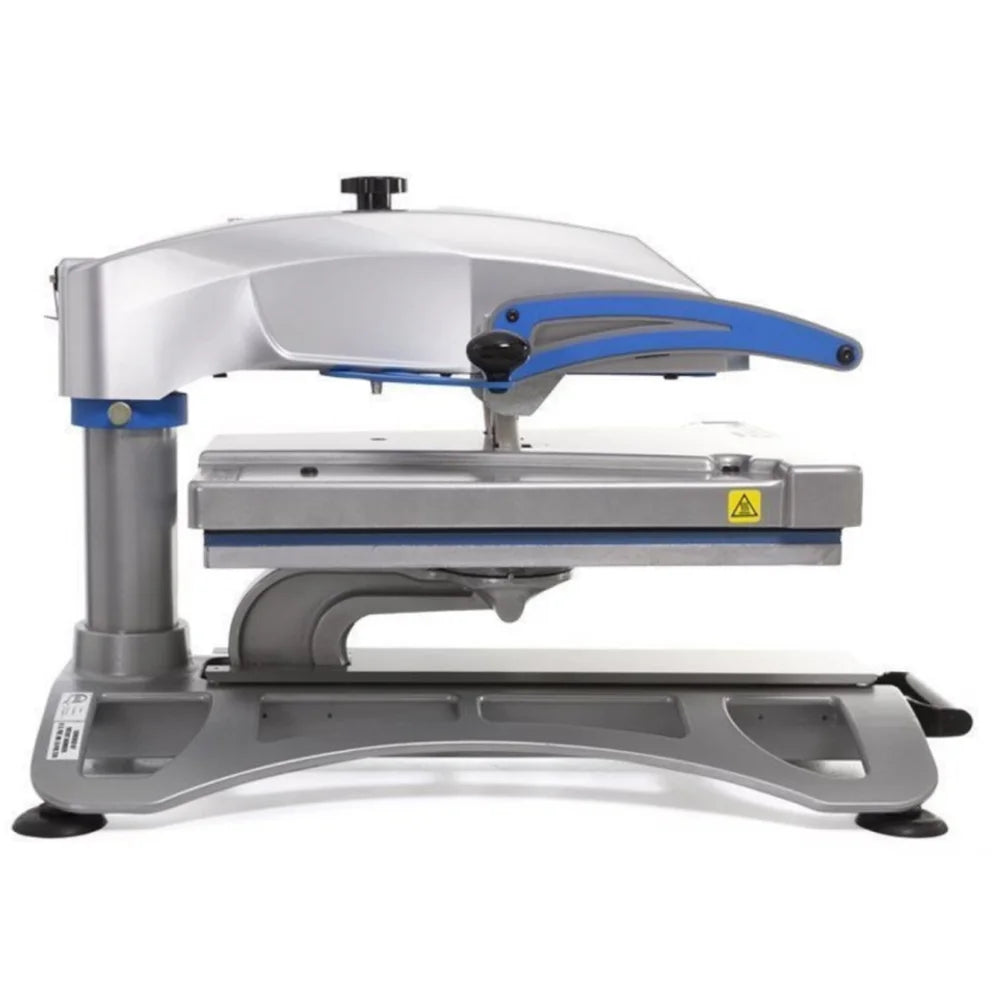

Hotronix products have been made in the United States for over twenty five years. This press uses a cast aluminum frame in a portable design and meets UL/ULC/CE/RoHS requirements.
- Heating element: Lifetime warranty
- Casting and framework: Five year warranty
- Circuit board: Two year warranty
- Technical help: Lifetime technical support is included. Contact Us so we can route your request to the team handling product support. Support is not handled by UNINET®.
Freight Shipping and Checkout Details
The listed price is $2,850.00 USD. Financing is available through Affirm, subject to qualification.
This item does not qualify for free shipping. A flat rate of $250 is added at checkout. We ship within the contiguous US only (the lower 48 states and DC).
The press ships on a skid by truck, so the ship to address must accept skid shipments.
Product Specs
| Spec Name | Spec Value |
|---|---|
| Product Type | Heat Press |
| SKU | XF (120V), XF230V (230V) |
| Voltage | 120V or 230V |
| Platen Size | 16" x 20" |
| Platen Thickness | 3/4" |
| Watts/Amps | 1800W, 15 amps at 120V |
| Operating Motion | Swing or draw |
| Frame | Cast aluminum |
| Compliance | UL/ULC/CE/RoHS compliant |
| Shipping Weight | 150 lbs. |
| Shipping Dimensions | 37" x 25" x 24" |
