Mimaki UJV100-160 Plus

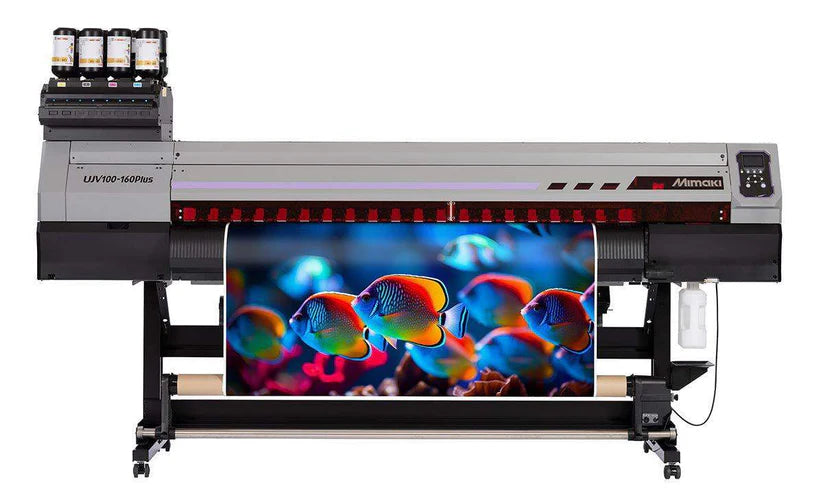

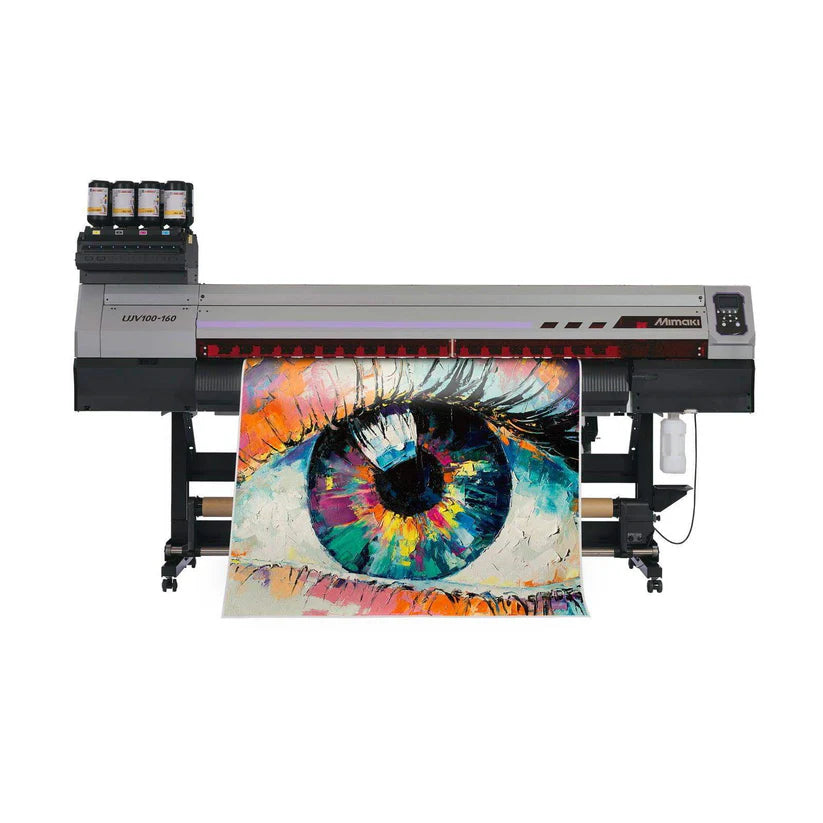

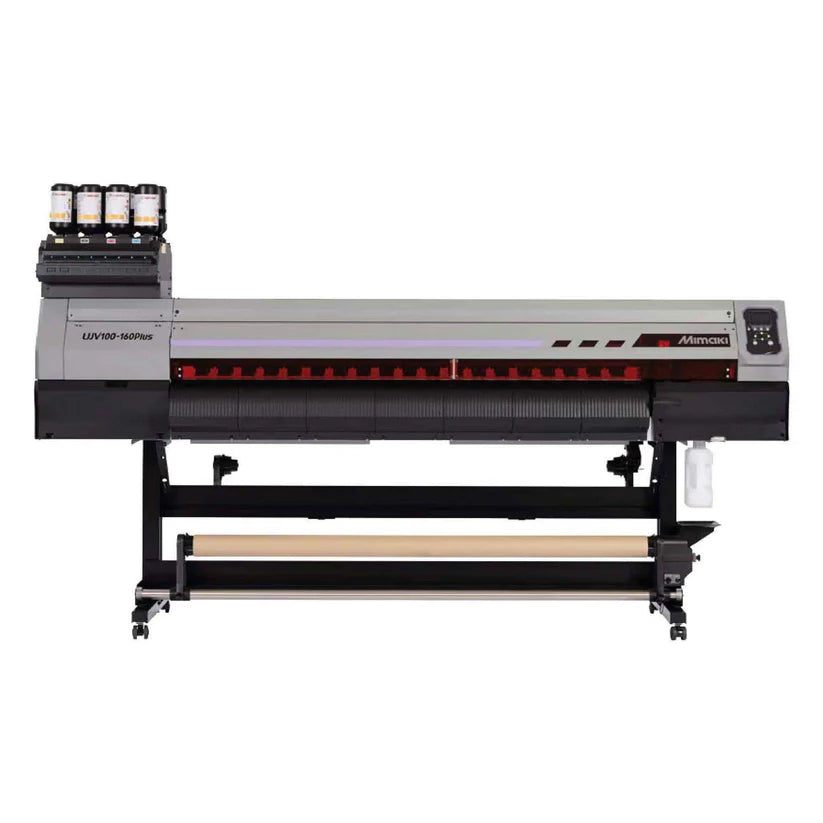

Mimaki UJV100-160Plus UV-LED Printer
The Mimaki UJV100-160Plus is a 64" UV-LED roll-to-roll printer engineered for fast, high-quality output with ultra-low power consumption and versatile media support. It delivers instant-dry prints ideal for immediate lamination, reducing turnaround time and maximizing workflow efficiency.
This model builds on the UJV100-160 platform with enhanced ink-saving technology, expanded functionality, and support for advanced multi-layer and backlit applications—making it a reliable and eco-efficient solution for commercial print environments.
Key Features
-
64" UV-LED roll-to-roll printer
-
Prints on paper, PET film, vinyl, fabric, and more
-
2 staggered on-demand piezo printheads for fast output
-
Ink-saving tech reduces usage by up to 50% without color compromise
-
Instant-dry UV inks allow immediate lamination
-
LUS-170 six-color ink set: CMYK + White + Clear (1L bottles)
-
Nozzle Check Unit (NCU) and Nozzle Recovery System (NRS) reduce downtime
-
Dot Adjustment System (DAS) automates print alignment and feeding
-
Compatible with multi-layer and backlit printing
-
Eco-friendly: Max 0.5kW power draw (up to 80% lower than alternatives)
-
USB and Ethernet connectivity
Specifications
Feature | Details |
---|---|
Model | Mimaki UJV100-160Plus |
Print Width | Max 63.4 inches |
Media Width | Max 63.8 inches |
Printheads | Dual staggered piezo |
Ink Type | UV-LED (LUS-170), 6-color |
Ink Bottles | 1L: CMYK, White, Clear |
Print Cure | Instant UV curing |
Max Power Usage | 0.5 kW |
Connectivity | USB 2.0, Ethernet |
Applications | Backlit, signage, decals, labels, more |
Maintenance Features | NCU, NRS, DAS (automated corrections) |
