Most Relevant Info at One Glance
- Double-wide 10" heater – Enables full wrap-around printing (handle to handle, up to 10" high, within 1/2" of handle) on mugs, extra tall water bottles, thermoses, travel mugs, etc., or simultaneous printing of two standard mugs
- Professional full wrap results - handle to handle, top to bottom coverage up to 5" high
- Works with all standard mugs - 11oz, 15oz, 16oz cylindrical mugs, steins, travel mugs (2.7"-3.4" diameter)
- Patented SuperCoil technology - superior heat distribution, fast heat-up, always ready for continuous production
- Built to last - industrial steel construction, 3-year/3,000 mug platen warranty, 5-year frame warranty
- Consistent professional quality - digital precision (±2°F), programmable presets, adjustable pressure
- Fast & easy workflow - extra wide opening, quick load/unload, accommodates imperfect mugs
Not compatible with tapered latte mugs
Features

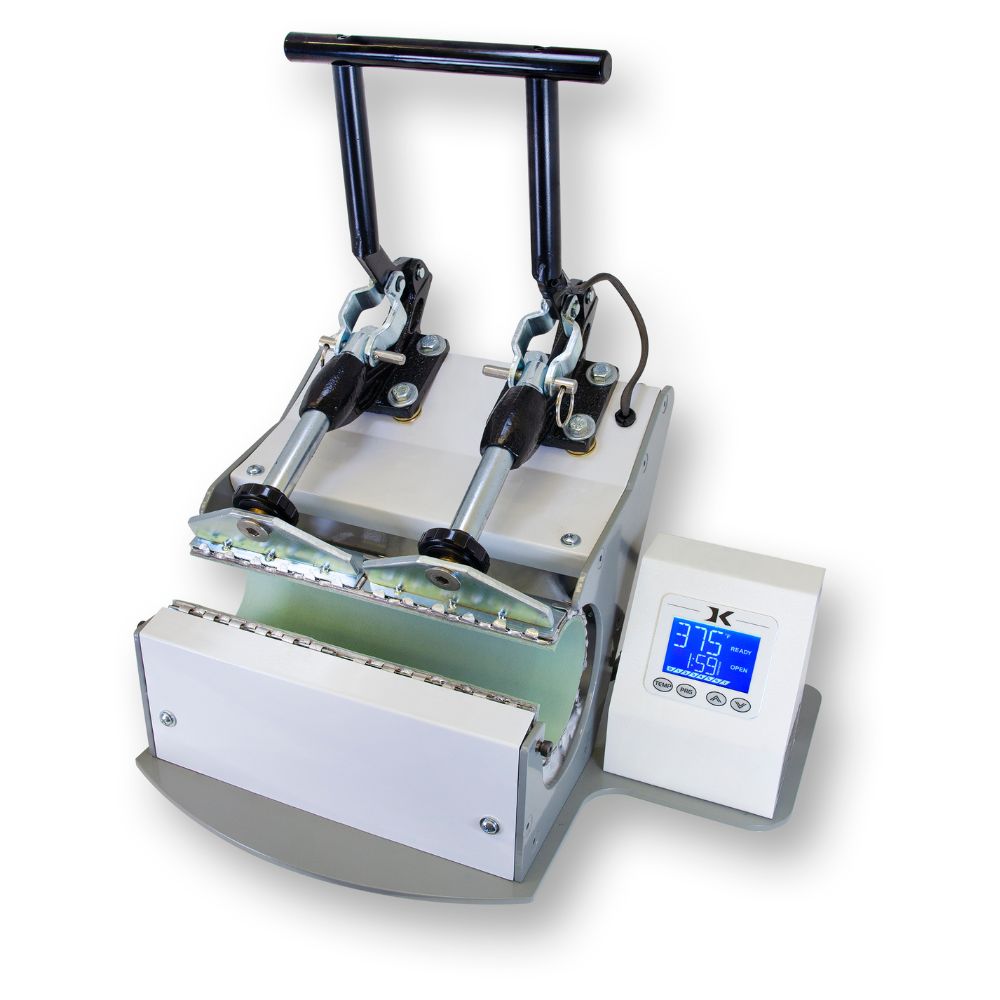

The DK3D Digital Mug Press is a specialty press in the Digital Knight line, designed exclusively for pressing mugs with full wrap-around, handle to handle, top-to-bottom printing capabilities. Featuring a double-wide 10" heater, patented SuperCoil-Microwinding™ heater technology, and a solid steel framework, this industrial-grade press accommodates all cylindrical mugs on the market and delivers consistent, professional results with every press.
With an unprecedented 3-year warranty on heat-control electronics and a 3-year/3,000 mug warranty on the heat platen, the DK3D offers unmatched reliability at a competitive price.
Printing Capabilities
- Full wrap-around printing from handle to handle and top to bottom with double-wide 10" heater
- Image height up to 10 inches on extra tall water bottles, thermoses, and travel mugs, or up to 5 inches on standard mugs with placement as close as 1/2" from the handle (depending on mug size)
- Simultaneous printing of two standard mugs
- Full bleed transfers on even the most demanding mugs
- Accommodates drinkware between 2.7" and 3.4" diameter
Mug Compatibility
- Fully adjustable to accommodate all cylindrical mugs available on the market
- Compatible with 11 oz, 15 oz, and 16 oz mugs, steins, stainless steel travel mugs, extra tall water bottles, and thermoses
- Extra wide opening for easy and fast loading and unloading of mugs
- Soft heater liner for accommodating inconsistent or less than perfectly straight mugs
- Note: Not compatible with tapered latte mugs
Heater Technology
- Double-wide 10" heater enables full wrap-around printing (handle to handle, up to 10" high, within 1/2" of handle) or simultaneous printing of two standard mugs
- SuperCoil-Microwinding™ heater technology - patented stainless steel mug band heater with embedded heater windings
- Extremely even heat distribution throughout the entire platen
- Fast heat-up times - ready in only a few minutes
- Fast recovery times for continuous production
- Runs constantly at set temperature instead of lower idle temperature
- Superior reliability compared to traditional silicone blanket heaters
Digital Control System
- State-of-the-art digital control system with fully digital temperature control
- Automatic digital timer for precise cycle timing
- Programmable presets for consistent results
- Cycle counter that records number of pressing cycles done
- Temperature readout accuracy of ±2°F
- User selectable end-of-cycle alarms
Construction & Durability
- Solid steel welded framework for heavy-duty, non-stop use
- Die-cast heavy pressure clamp assembly for industrial-grade performance
- Adjustable clamp pressure for optimal transfer results
Specifications
| Specification | Details |
|---|---|
| Power | 900W / 8A / 120V |
| Dimensions | 20"W x 13"H x 15"L |
| Counter Footprint | 13"D x 16"W |
| Weight | 40 lbs |
| Mug Diameter Range | 2.7" - 3.4" |
| Maximum Image Height | Up to 10" (extra tall items) / 5" (standard mugs) |
| Minimum Distance from Handle | 1/2" (depending on mug size) |
| Temperature Control | Fully digital |
| Temperature Accuracy | ±2°F |
| Timer | Automatic digital |
| Heater Technology | SuperCoil-Microwinding™ |
