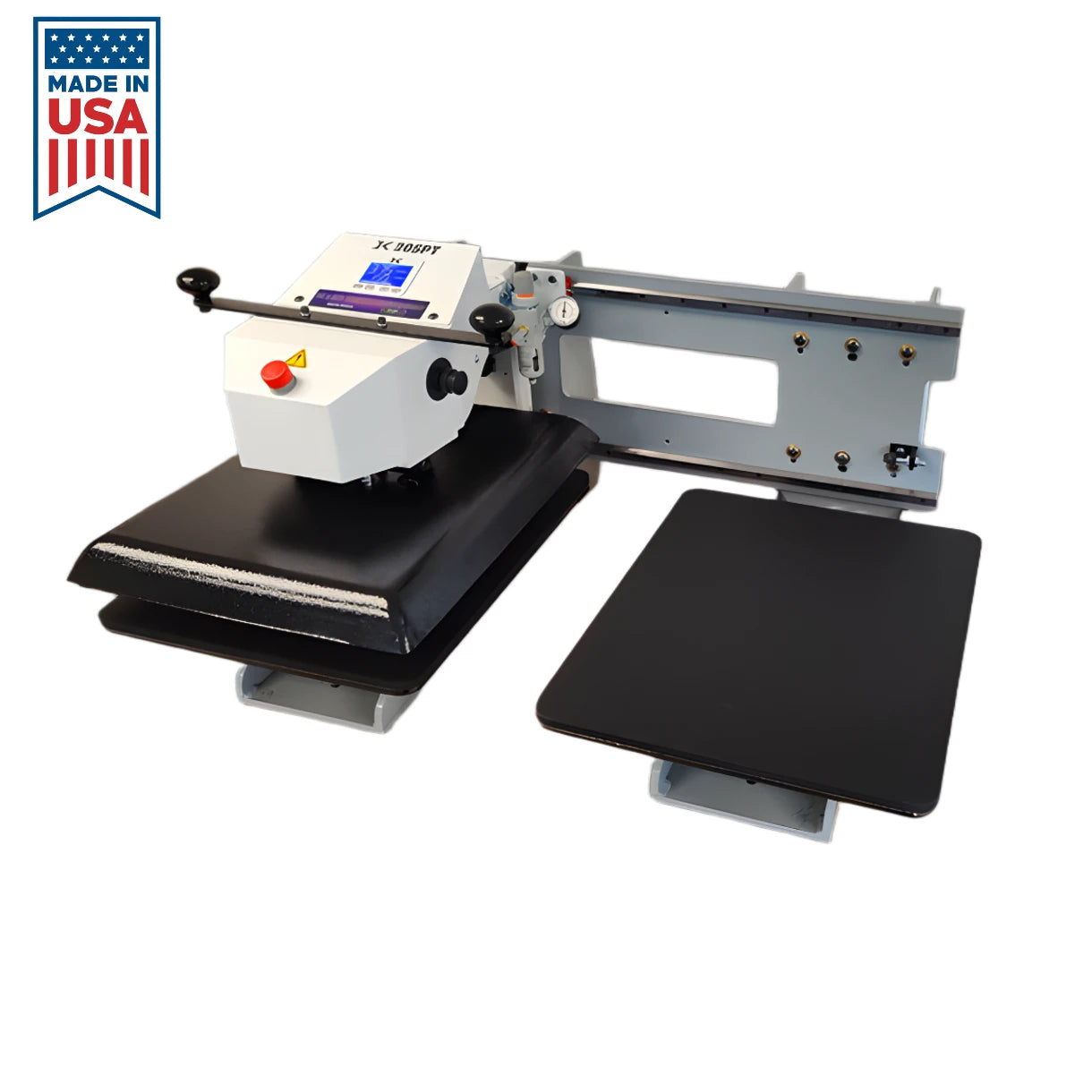

Geo Knight DK20SPT Digital Knight 16x20 TWIN Air Automatic Heat Press
SKU DK20SPT
by Geo Knight
$4,950.00
Most Relevant Info at One Glance
- SuperCoil-Microwinding™ Heating Technology — Ensures extreme temperature accuracy and even heat distribution
- 70 Programmable Presets — Switch between jobs instantly for maximum productivity
- Air-Operated Automatic Opening — Hands-free release for consistent results and operator safety
- 32-600°F Temperature Range — Handles everything from delicate fabrics to rigid substrates
- 3-Year Digital Control Warranty — Extended coverage on advanced controller with lifetime heating element warranty
- Dual Timer System — Main and pre-press timers for complex multi-step applications
Features
The Digital Knight DK20SPT is a 16x20 automatic swinger heat press machine featuring air-operated automation, programmable presets, and advanced digital controls. With its 32-600°F temperature range, dual timer capabilities with up to 99 minutes 59 seconds, and air-regulated pressure system.
This 115 lb professional press delivers precision and consistency for high-volume production. Built on a steel frame with SuperCoil-Microwinding™ heating technology, the DK20SPT combines automatic operation, programmable job memory, and safety features in a swing-away design that accommodates thick substrates.
Design & Build Quality
- Swing-Away Design Opens fully for easy loading of thick items and substrates
- Air-Operated Automatic System Closes and opens automatically for hands-free consistent operation
- Steel Frame Construction Heavy-duty build ensures stability and long-term durability
- Adjustable Platen Height Accommodates items up to 1/4" thick with simple knob adjustment
- Safety Dual-Button Activation Both buttons required together keeping operator hands clear
- Optional Rolling Stand Available with lockable casters for easy positioning and mobility
- Replaceable Silicone Pad 3/8" thick pad protects substrates and ensures even pressure
Heat & Temperature Control
- 32-600°F Temperature Range Handles delicate fabrics through rigid metal and ceramic substrates
- Dual Display Options Shows current actual temperature and set point simultaneously
- Ready Indicator Alerts when temperature is within 5°F of target setting
- Temperature Drop Sensing Optional alarm warns if temperature falls below acceptable range
- Over-Temp Safety Alarm Automatic warning if temperature exceeds set point by 40°F
- Fahrenheit or Celsius User-selectable temperature units for international compatibility
Pressure Control
- Air Regulator Control Adjustable PSI setting provides precise repeatable pressure control
- Pressure Gauge Monitoring Visual confirmation of pressure levels for consistent results
- Adjustable Release Speed Flow control valve customizes opening speed to prevent slamming
- Preset Pressure Reference Each programmable preset stores recommended pressure setting reminder
Timer & Programming
- Dual Timer System Main timer and pre-press timer for multi-step processes
- Up to 99:59 Range Minutes and seconds mode handles most applications
- Hours:Minutes Mode Available Extended timing up to 99 hours for special substrates
- 70 Programmable Presets Store temperature time pre-press and pressure for instant job switching
- Auto-Start Timer Automatically begins countdown when press closes for consistent timing
- Press Count Odometer Records total pressings for maintenance scheduling and production tracking
- Countdown Odometer Set specific quantity and track remaining pressings for batch jobs
- Interrupt Function Press buttons again during cycle for quick pre-press operations
- Automatic Reset Timer returns to preset value after each cycle completion
User Interface & Alerts
- Digital Membrane Keypad Simple 4-button control for temperature time and programming
- Large LED Display Easy-to-read temperature time and status at a glance
- 10 Customizable Alarm Patterns Different beep patterns distinguish between multiple presses or timers
- Finished Warning Beep Optional 3-second countdown alert before automatic press opening
- Separate Pre-Press Alarms Dedicated alarm pattern differentiates pre-press from main timer
- Keypad Sound Control Beeper can be silenced for quiet work environments
- Operator Lockout Feature Prevents unauthorized changes to settings and presets
- Error Mode Protection Automatically shuts off heating if temperature sensor fails
Included Items
- Digital Knight DK20SPT 16x20 Automatic Swinger Heat Press
- 3/8" x 16" x 20" Silicone Sponge Pad
- Power Cord with Modular Inlet Connection
- Owner's Manual with Programming Guide
Specifications
| Specification | Details |
|---|---|
| Model | Digital Knight DK20SPT |
| Platen Size | 16" x 20" |
| Weight | 115 lbs |
| Temperature Range | 32-600°F |
| Temperature Accuracy | ±2°F |
| Temperature Display | Fahrenheit or Celsius, dual display (actual and set point) |
| Platen Coating | Teflon-coated heating surface |
| Maximum Material Thickness | 1/4" (adjustable) |
| Timer Type | Digital countdown, dual timer (main and pre-press) |
| Timer Range | 0-99:59 (minutes:seconds) or 0-99:59 (hours:minutes) |
| Pre-Press Timer | Available, up to 99:59 |
| Programmable Presets | 70 presets (stores temperature, time, pre-press, pressure reference) |
| Pressure System | Air-operated with adjustable regulator and gauge |
| Heating Technology | SuperCoil-Microwinding™ |
| Frame Construction | Steel |
| Power Requirements | 1200W / 10A / 110V |
| Air Connection | 1/4" or 3/8" NPT female pipe thread |
| Control Features | Programmable presets, dual timers, press odometer, countdown odometer, temperature drop sensing, customizable alarms, operator lockout, auto-start timer |
| Warranty - Press | 1 year (original purchaser) |
| Warranty - Control | 3 years |
| Warranty - Heating Element | Lifetime (original purchaser, excludes temperature sensor) |
