Most Relevant Info at One Glance
- Auto-Release "Pop-Up" Technology — Automatic opening for faster production
- 32°F-800°F Temperature Range — Versatile digital control for all applications
- 70 Programmable Presets — Instant job switching with stored settings
- Digital Pressure Bar Graph — Visual 0-9 scale ensures consistency
- Dual Programmable Timers — Pre-press capability streamlines multi-step processes
- Lifetime Heating Element Warranty — SuperCoil-Microwindng™ technology for original purchaser
Features

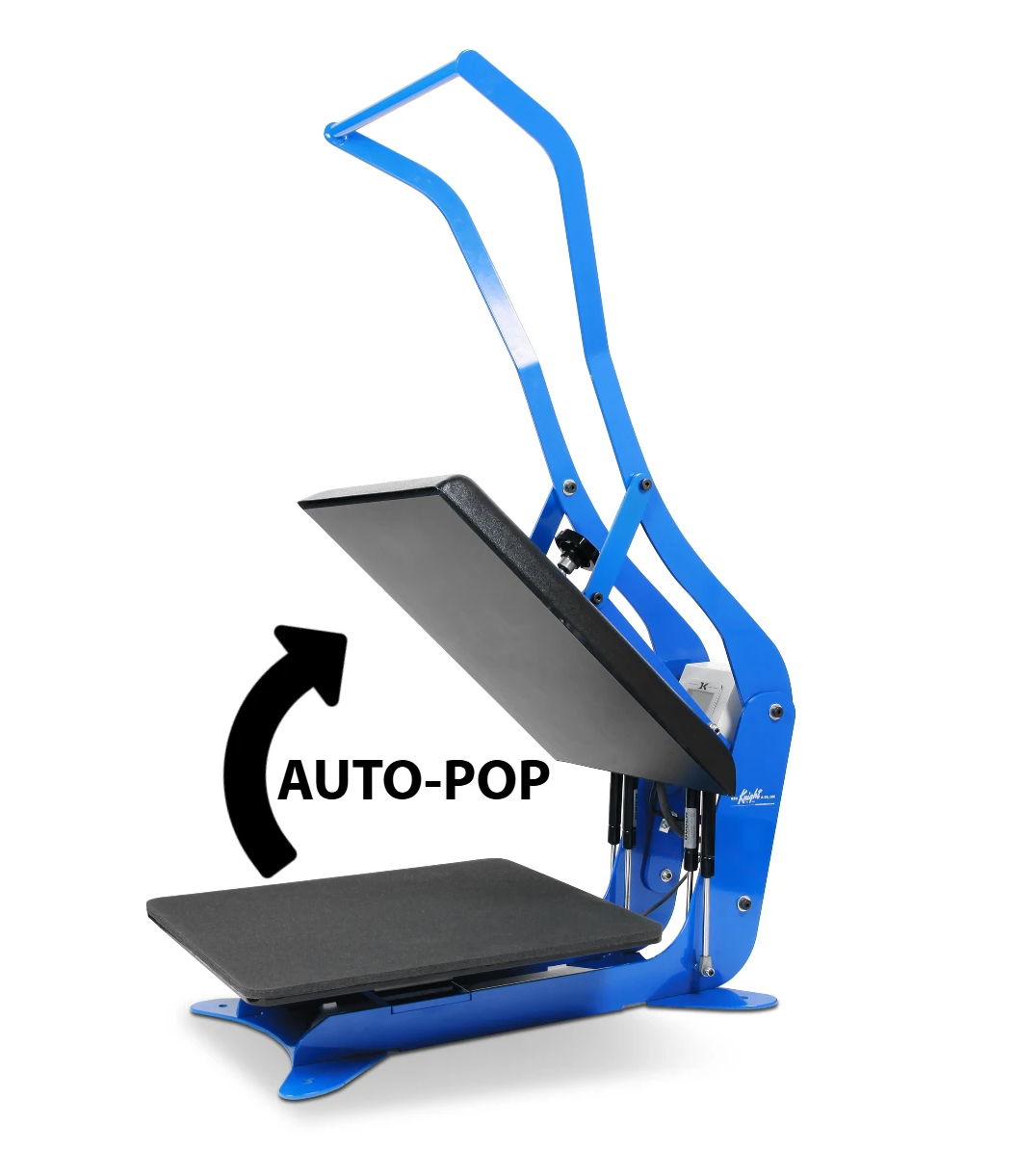

The Digital Knight DK20A is an auto-release clamshell heat press machine featuring digital temperature control, automatic opening, and programmable presets. With its 32°F-800°F temperature range, dual programmable timers with pre-press capability, and digital pressure bar graph system, this 103 lb professional-grade press delivers consistent, repeatable results with hands-free operation. Built on a solid steel welded frame with SuperCoil-Microwindng™ heater technology and automatic pop-up release, the DK20A combines speed, precision control, and industrial durability in a space-saving clamshell design.
Design & Build Quality
- Auto-Release Clamshell Design Automatic pop-up opening increases production speed and reduces operator fatigue
- All-Thread™ Construction Heavy-duty steel welded frame ensures long-term durability
- Hover Feature Optional 2-position bracket allows resting position for heat-curing surfaces
- Interchangeable Lower Tables Swap platens in seconds for different sized substrates
- Mounting Options Bolt-down capability prevents hopping during automatic release cycles
- Replaceable Silicone Pad Easy maintenance keeps pressing surface in optimal condition
Heat & Temperature Control
- 32°F-800°F Range Handles everything from low-temp vinyl to high-temp sublimation
- Digital Display See actual temperature at a glance in °F or °C
- Ready Indicator Know instantly when press reaches set temperature
- Temperature Drop Sense Optional alarm warns if temperature falls below range
- Quick Temperature Adjustment Set precise temperatures with up/down arrow keys
- Over-Temp Alarm Automatic safety alert prevents damage from thermal runaway
Pressure Control
- Manual Pressure Knob Adjust clamping force easily for different substrate thicknesses
- Digital Pressure Bar Graph 0-9 scale display ensures consistent pressure application
- Calibration Capability Set minimum and maximum pressure references for accuracy
- Visual Feedback See pressure reading during each press cycle
- Preset Pressure Memory Store pressure settings with each programmed preset
Timer & Programming
- Dual Programmable Timers Main timer and pre-press timer for multi-step processes
- 70 Programmable Presets Store complete job settings for instant recall
- 0-99 Minutes 59 Seconds Range Standard timer range for most applications
- Hours/Minutes Mode Extended timing capability for specialty applications up to 99 hours
- Automatic Timer Start Closes and locks press to begin countdown
- Recorded Pressings Odometer Track total production cycles for maintenance scheduling
- Countdown Odometer Monitor remaining pressings for batch job management
- Quick Preset Loading Switch between jobs in seconds with stored settings
- Easy Preset Editing Modify temperature, time, pre-press, and pressure reference values
User Interface & Alerts
- Digital Control Panel Simple three-button interface with clear display
- At-a-Glance Status See temperature, time, pressure, and heating/timing status simultaneously
- 10 Customizable Alarm Patterns Differentiate multiple presses or timer functions audibly
- Finished Warning Beep 3-second countdown alert before automatic opening
- Keypad Beeper Control Silence button feedback when needed
- Operator Lockout Prevent unauthorized changes to settings
- Open/Timing/Done Indicators Clear visual cues for current press status
- Temperature Drop Alert Configurable warning prevents out-of-spec pressing
Included Items
- Digital Knight DK20A 16x20 Auto-Release Clamshell Press
- Lower table with 3/8" silicone pad (16x20)
- Digital controller with membrane keypad
- Power cord and inlet assembly
- Pressure adjustment knob
- User attachable end-of-cycle alarms
- Owner's manual
Specifications
| Specification | Details |
|---|---|
| Model | DK20A 16x20 Auto-Release |
| Platen Size | 16" x 20" |
| Weight | 103 lbs |
| Temperature Range | 32°F - 800°F |
| Temperature Display | Digital, Fahrenheit or Celsius |
| Silicone Pad Thickness | 3/8" |
| Maximum Substrate Thickness | Adjustable via pressure knob |
| Timer Type | Dual programmable digital timers |
| Timer Range | 0-99 minutes 59 seconds (or 0-99 hours optional) |
| Pre-Press Timer | Yes, programmable |
| Programmable Presets | 70 presets |
| Pressure Adjustment | Manual threaded adjustment knob |
| Pressure Display | Digital bar graph (0-9 scale) |
| Heater Technology | SuperCoil-Microwindng™ |
| Frame Construction | All-Thread™ steel welded frame |
| Auto-Release Feature | Automatic pop-up opening at end of cycle |
| Power Requirements | 1800W / 15A / 110V |
| Shipping Dimensions | 30" L x 17" W x 16" H |
| Control Features | Auto-release, 70 programmable presets, dual timers, pressure monitoring, recorded/countdown odometers, customizable alarms, operator lockout, temperature drop sense, finished warning beep |
| Warranty - Press | 1 year (original purchaser) |
| Warranty - Control | 3 years free lifetime tech support |
| Warranty - Heating Element | Lifetime (original purchaser, excludes sensor failure/damage) |
