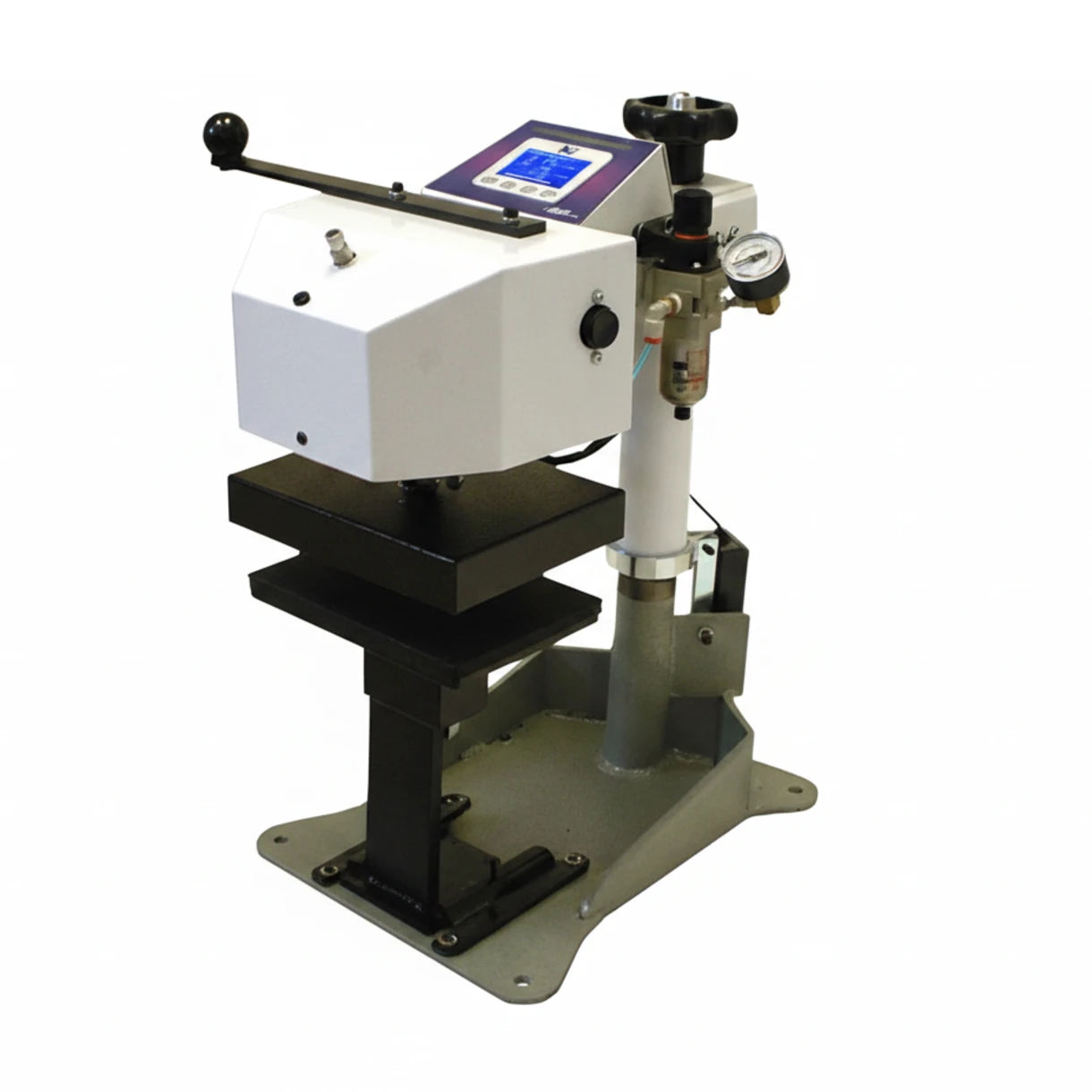

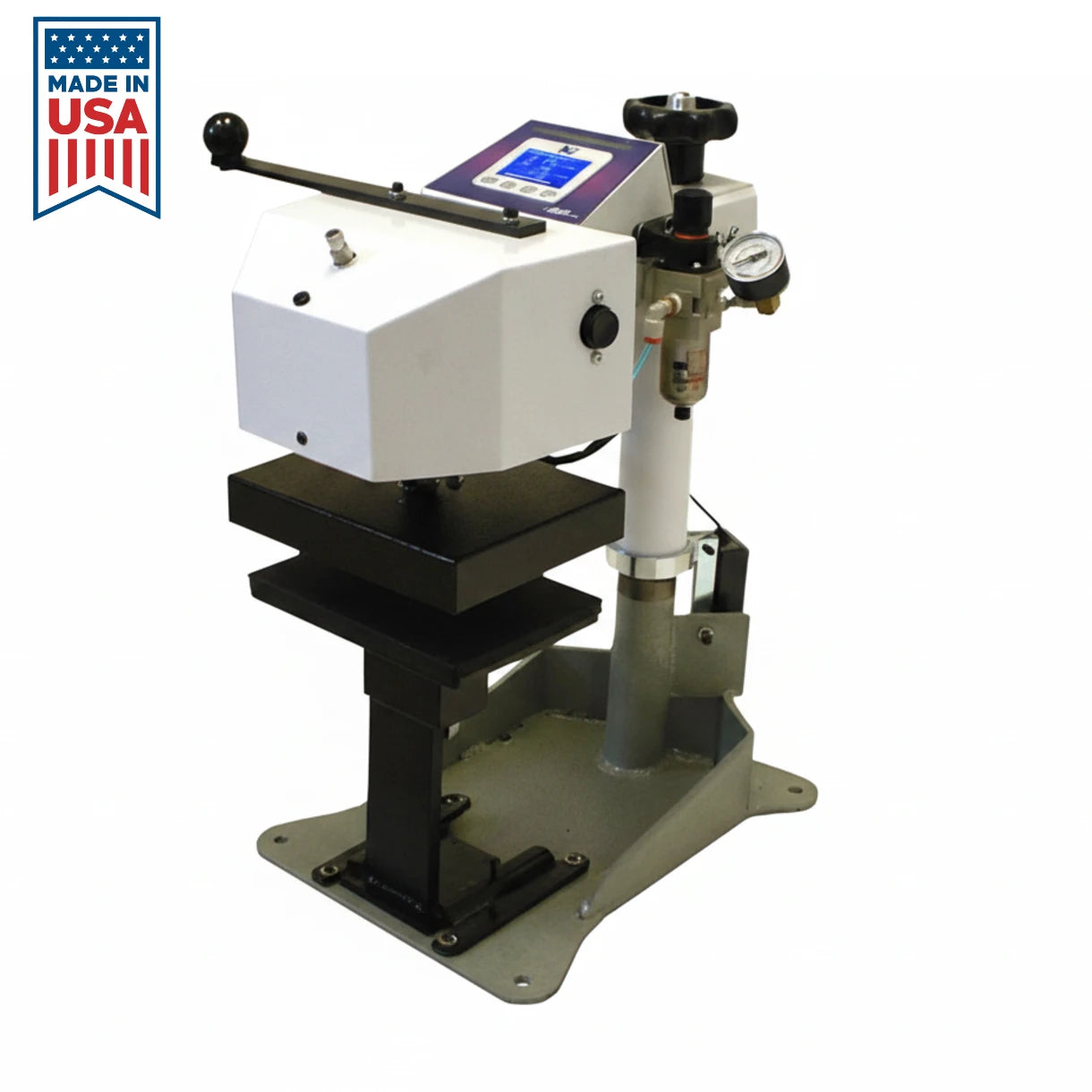

Geo Knight DC8AP Digital Combo 6x8 Air Automatic Swing Away Heat Press

Geo Knight DC8AP Digital Combo 6x8 Air Automatic Swing Away Heat Press

SKU DC8AP
by Geo Knight
$2,575.00

Notify me when back in stock

Most Relevant Info at One Glance

  • Fully Automatic Operation — air-operated swing-away with auto open feature
  • SuperCoil-Microwindingâ„¢ Heat Technology — solid steel framework for professional results
  • 70 Programmable Presets — instantly switch jobs with stored settings
  • Temperature Accuracy ±2°F — precise 20-400°F digital control with dual display
  • Auto Timer & Dual Press Zones — automatic timing with 20-110 PSI air regulation
  • Comprehensive 5-Year Warranty — includes lifetime heat platen coverage guarantee

Features

The DC8AP is an air-operated, automatic 5x8 label-sized swing-away heat press featuring interchangeable heat platens, tables, and advanced digital controls. With its fully automatic operation, 70 programmable presets, and SuperCoil-Microwindingâ„¢ heat technology, this 115 lb professional-grade machine delivers consistent results for embroidered patches, labels, and small pressing applications.

Built on a solid steel welded framework with Teflon-coated 3/8" thick heat platen, the DC8AP combines precision temperature control (±2°F accuracy), dual press zones with air pressure regulation (20-110 PSI), and automatic timing in a compact swing-away design ideal for cap configurations and applications requiring 6-inch heat platens.

Design & Build Quality

  • Swing-Away Design offers complete access to pressing area for easy loading
  • Compact 5x8 Label Size ideal for patches, caps, and small item production
  • Solid Steel Welded Framework ensures durability and consistent pressure distribution
  • Interchangeable Heat Platens and Tables switch between applications in seconds
  • Air-Operated Automatic Operation eliminates manual clamping for faster workflow
  • 16"D x 11"W Counter Footprint fits efficiently in production workspaces
  • Heavy-Duty 115 lb Construction provides stability during high-volume operations
  • Optional Configurations Available customize with different platen sizes and attachments

Heat & Temperature Control

  • 20-400°F Temperature Range handles sublimation, transfers, patches, and specialty applications
  • ±2°F Temperature Accuracy ensures consistent professional results across all materials
  • Digital Display with °F or °C choose preferred temperature units for international standards
  • SuperCoil-Microwindingâ„¢ Technology delivers uniform heat distribution across entire platen surface
  • Teflon-Coated 3/8" Heat Platen prevents scorching and ensures easy release
  • Ready Indicator shows when temperature reaches set point for reliable pressing
  • Over-Temp Alarm prevents damage by alerting when temperature exceeds safe limits
  • Temperature Drop Sense warns if temperature falls below optimal range during production

Pressure Control

  • Air Regulator and Gauge provides precise 20-110 PSI range compression control
  • Dual Press Zones accommodate varying material thicknesses for consistent results
  • 500 lbs Maximum Force delivers professional-grade pressure for demanding applications
  • Digital Pressure Bar Graph displays 0-9 scale for at-a-glance pressure monitoring
  • Adjustable Air Pressure customize force for delicate fabrics or rigid substrates
  • Pressure Presets Stored save optimal settings for each job in programmable memory

Timer & Programming

  • Automatic Timer starts when press closes and resets when opened
  • Dual Time Settings main timer plus pre-press timer for multi-step processes
  • 70 Programmable Presets store complete job settings for instant recall
  • Seconds or Hours/Minutes Units flexible timing from seconds to extended cycles
  • Recorded Pressings Odometer tracks total production for maintenance scheduling
  • Countdown Odometer monitors remaining pressings for batch job management
  • Quick Preset Loading switch jobs with two button presses
  • Easy Preset Editing update temperature, time, prepress, and pressure in one workflow
  • Auto Operation Mode press closes, times, and opens automatically for hands-free production

User Interface & Alerts

  • Fully Digital Control Panel clear display shows temperature, time, and pressure simultaneously
  • Simple 4-Button Interface TEMP, PRG, and up/down arrows control all functions
  • 10 Customizable Alarm Patterns differentiate between multiple presses or processes
  • Finished Warning Beep sounds during final 3 seconds before press opens
  • Keypad Beeper Control enable or disable button press confirmation sounds
  • Temperature Drop Alert customizable alarm when temperature falls 10-30°F below setpoint
  • OPEN/TIMING/DONE Indicators show press status at a glance
  • HEATING/READY Status confirm when machine reaches working temperature
  • Operator Lockout Feature prevent unauthorized changes to critical settings
  • ERR Mode Display automatic safety shutdown if temperature sensor fails

Included Items

  • DC8AP Digital Combo 6x8 Air Automatic Press
  • 5x8" Heat Platen with Teflon coating
  • Matching 5x8" Lower Table with silicone pad
  • Air Regulator with Pressure Gauge (20-110 PSI)
  • Digital Knight Processor Board
  • Power Inlet/Switch/Cord Kit
  • Owner's Manual

Specifications

Specification Details
Model DC8AP Digital Combo 6x8 Air Automatic
Platen Size 5" x 8"
Weight 115 lbs
Counter Footprint 16"D x 11"W
Shipping Dimensions (Add $26 for 22"W international)
Temperature Range 20°F - 400°F
Temperature Accuracy ±2°F
Temperature Display Digital, selectable °F or °C
Heat Platen Thickness 3/8" thick
Platen Coating Teflon-coated
Maximum Thickness 500 lbs force capacity
Timer Type Automatic with dual press zones
Pre-Press Timer Yes, programmable per preset
Timer Units Selectable seconds or hours/minutes
Programmable Presets 70 presets
Pressure Control Air-operated with regulator and gauge
Pressure Range 20-110 PSI
Heater Technology SuperCoil-Microwindingâ„¢
Frame Construction Solid steel welded framework
Power Requirements 1200W / 10A / 120V
Control Features Programmable presets, dual timers, pressure bar graph, odometers, customizable alarms, operator lockout, temperature drop sense, over-temp alarm
Warranty - Press 1 year from invoice date (original purchaser)
Warranty - Digital Control 3 years no-charge support
Warranty - Heating Element Lifetime (original purchaser, excludes sensor)
Made in the US Superior American Quality
Free Shipping USA-wide No Extra Costs
Hassle-Free Returns 7-day Returns with Full Money-Back Guarantee
0% Sales Tax Tax-Free Shopping (Except for Colorado)
Description

Most Relevant Info at One Glance

  • Fully Automatic Operation — air-operated swing-away with auto open feature
  • SuperCoil-Microwindingâ„¢ Heat Technology — solid steel framework for professional results
  • 70 Programmable Presets — instantly switch jobs with stored settings
  • Temperature Accuracy ±2°F — precise 20-400°F digital control with dual display
  • Auto Timer & Dual Press Zones — automatic timing with 20-110 PSI air regulation
  • Comprehensive 5-Year Warranty — includes lifetime heat platen coverage guarantee

Features

The DC8AP is an air-operated, automatic 5x8 label-sized swing-away heat press featuring interchangeable heat platens, tables, and advanced digital controls. With its fully automatic operation, 70 programmable presets, and SuperCoil-Microwindingâ„¢ heat technology, this 115 lb professional-grade machine delivers consistent results for embroidered patches, labels, and small pressing applications.

Built on a solid steel welded framework with Teflon-coated 3/8" thick heat platen, the DC8AP combines precision temperature control (±2°F accuracy), dual press zones with air pressure regulation (20-110 PSI), and automatic timing in a compact swing-away design ideal for cap configurations and applications requiring 6-inch heat platens.

Design & Build Quality

  • Swing-Away Design offers complete access to pressing area for easy loading
  • Compact 5x8 Label Size ideal for patches, caps, and small item production
  • Solid Steel Welded Framework ensures durability and consistent pressure distribution
  • Interchangeable Heat Platens and Tables switch between applications in seconds
  • Air-Operated Automatic Operation eliminates manual clamping for faster workflow
  • 16"D x 11"W Counter Footprint fits efficiently in production workspaces
  • Heavy-Duty 115 lb Construction provides stability during high-volume operations
  • Optional Configurations Available customize with different platen sizes and attachments

Heat & Temperature Control

  • 20-400°F Temperature Range handles sublimation, transfers, patches, and specialty applications
  • ±2°F Temperature Accuracy ensures consistent professional results across all materials
  • Digital Display with °F or °C choose preferred temperature units for international standards
  • SuperCoil-Microwindingâ„¢ Technology delivers uniform heat distribution across entire platen surface
  • Teflon-Coated 3/8" Heat Platen prevents scorching and ensures easy release
  • Ready Indicator shows when temperature reaches set point for reliable pressing
  • Over-Temp Alarm prevents damage by alerting when temperature exceeds safe limits
  • Temperature Drop Sense warns if temperature falls below optimal range during production

Pressure Control

  • Air Regulator and Gauge provides precise 20-110 PSI range compression control
  • Dual Press Zones accommodate varying material thicknesses for consistent results
  • 500 lbs Maximum Force delivers professional-grade pressure for demanding applications
  • Digital Pressure Bar Graph displays 0-9 scale for at-a-glance pressure monitoring
  • Adjustable Air Pressure customize force for delicate fabrics or rigid substrates
  • Pressure Presets Stored save optimal settings for each job in programmable memory

Timer & Programming

  • Automatic Timer starts when press closes and resets when opened
  • Dual Time Settings main timer plus pre-press timer for multi-step processes
  • 70 Programmable Presets store complete job settings for instant recall
  • Seconds or Hours/Minutes Units flexible timing from seconds to extended cycles
  • Recorded Pressings Odometer tracks total production for maintenance scheduling
  • Countdown Odometer monitors remaining pressings for batch job management
  • Quick Preset Loading switch jobs with two button presses
  • Easy Preset Editing update temperature, time, prepress, and pressure in one workflow
  • Auto Operation Mode press closes, times, and opens automatically for hands-free production

User Interface & Alerts

  • Fully Digital Control Panel clear display shows temperature, time, and pressure simultaneously
  • Simple 4-Button Interface TEMP, PRG, and up/down arrows control all functions
  • 10 Customizable Alarm Patterns differentiate between multiple presses or processes
  • Finished Warning Beep sounds during final 3 seconds before press opens
  • Keypad Beeper Control enable or disable button press confirmation sounds
  • Temperature Drop Alert customizable alarm when temperature falls 10-30°F below setpoint
  • OPEN/TIMING/DONE Indicators show press status at a glance
  • HEATING/READY Status confirm when machine reaches working temperature
  • Operator Lockout Feature prevent unauthorized changes to critical settings
  • ERR Mode Display automatic safety shutdown if temperature sensor fails

Included Items

  • DC8AP Digital Combo 6x8 Air Automatic Press
  • 5x8" Heat Platen with Teflon coating
  • Matching 5x8" Lower Table with silicone pad
  • Air Regulator with Pressure Gauge (20-110 PSI)
  • Digital Knight Processor Board
  • Power Inlet/Switch/Cord Kit
  • Owner's Manual

Specifications

Specification Details
Model DC8AP Digital Combo 6x8 Air Automatic
Platen Size 5" x 8"
Weight 115 lbs
Counter Footprint 16"D x 11"W
Shipping Dimensions (Add $26 for 22"W international)
Temperature Range 20°F - 400°F
Temperature Accuracy ±2°F
Temperature Display Digital, selectable °F or °C
Heat Platen Thickness 3/8" thick
Platen Coating Teflon-coated
Maximum Thickness 500 lbs force capacity
Timer Type Automatic with dual press zones
Pre-Press Timer Yes, programmable per preset
Timer Units Selectable seconds or hours/minutes
Programmable Presets 70 presets
Pressure Control Air-operated with regulator and gauge
Pressure Range 20-110 PSI
Heater Technology SuperCoil-Microwindingâ„¢
Frame Construction Solid steel welded framework
Power Requirements 1200W / 10A / 120V
Control Features Programmable presets, dual timers, pressure bar graph, odometers, customizable alarms, operator lockout, temperature drop sense, over-temp alarm
Warranty - Press 1 year from invoice date (original purchaser)
Warranty - Digital Control 3 years no-charge support
Warranty - Heating Element Lifetime (original purchaser, excludes sensor)
Shipping

Shipping is FREE on all orders to customers within the United States.

We believe in keeping things straightforward and transparent. No hidden fees, no surprise charges.

Order Confirmation:

Once you place your order, you'll immediately receive an order confirmation email. This confirms we've successfully received your order details and have pre-authorized your payment method for the purchase amount.

Upon receiving your order, we automatically verify inventory availability to ensure immediate fulfillment. Should any item be temporarily out of stock or on backorder, we'll promptly void the pre-authorization and contact you to discuss alternative solutions or arrangements.

When your item(s) are confirmed as available for immediate dispatch (within 5 business days), we'll process the payment and begin preparing your order for shipment.

Order Shipment:

For in-stock orders where payment has been successfully processed, your equipment will ship within three business days from your order date.

You'll receive shipping confirmation within 24 hours of your order departing our fulfillment center, sent to the email address provided during checkout.

Should you not receive shipping confirmation within four business days of placing your order, please don't hesitate to contact us at info@veprintshop.com.

International Orders:

While our products meet United States safety and performance standards, they have not been certified for use with international electrical safety requirements.

We're delighted to serve our international customers and will gladly ship our premium printing equipment worldwide. Given the diverse dimensions and specifications of our commercial equipment, we provide customized shipping quotes upon request.

Once you approve our shipping quote, we'll prepare your order and process payment through our secure online payment system.

Damages:

Please carefully examine the packaging condition when your equipment arrives. If you observe any visible damage, document this when signing for delivery or refuse to accept the shipment.

Should you accept delivery, immediately photograph any damaged packaging or equipment using your smartphone or camera – this documentation is essential for processing damage claims.

If your equipment arrives damaged, please send an email to info@veprintshop.com, including the photos. For more information, visit our returns page.

Easy Returns

At VE Printshop, we have complete confidence in every piece of equipment we offer. However, we recognize that occasionally you may need to reconsider your purchase or discover that the equipment doesn't quite meet your specific requirements.

That's why we provide a comprehensive 7-Day Return Policy.

Should you wish to return any item for whatever reason within 7 days of receiving your order, simply contact us at info@veprintshop.com with your order number, and we'll walk you through the return process step by step.

Please be aware that customers are responsible for covering return shipping expenses for their items.

After we receive and examine your returned equipment at our facilities, you'll receive an email confirmation that your refund has been processed.

Important: To qualify for a full refund, returned equipment must arrive at our distribution center in "Like New" condition, including all original packaging, manuals, and accessories.

"Like New" condition means the equipment shows no visible signs of use or wear whatsoever.

Equipment showing signs of use, wear, or operational issues will not be accepted for return, and no refund will be issued.

To initiate a return, reach out to us at info@veprintshop.com with your order number, and our team will guide you through the process. We're committed to making returns as straightforward as possible.

Damages

Should your equipment arrive damaged, please note this immediately upon delivery signature and send photographs to info@veprintshop.com on the same day.

VE Printshop covers all shipping costs for defective, damaged, or incorrectly shipped merchandise.

Always retain original packaging materials for any equipment requiring return.

Our customer service team must authorize all returns before processing begins.

We guarantee you'll receive the exact equipment you ordered in perfect condition as quickly as possible. Equipment damaged through use is not eligible for refund unless covered under manufacturer warranty terms.

Cancellations

To cancel an order, contact our customer service team immediately via email or phone to avoid return shipping charges.

Cancellations processed before shipment qualify for complete refunds.

Orders canceled after shipping will follow our standard 7-Day Return Policy and incur return shipping costs.

Additional Return Policy Information:

  • When specific vendors or products have different return terms, this information will be clearly displayed in product descriptions or dedicated return policy sections.

  • Equipment marked as certified pre-owned or used cannot be returned under any circumstances.

  • VE Printshop exclusively serves customers who plan to utilize equipment throughout its operational lifespan. Equipment purchased specifically for "single-use or temporary applications" is not eligible for return under any conditions. This policy includes but is not limited to: equipment intended for trade shows or conference use, purchases made by promotional companies, and orders placed by trade show organizers.
