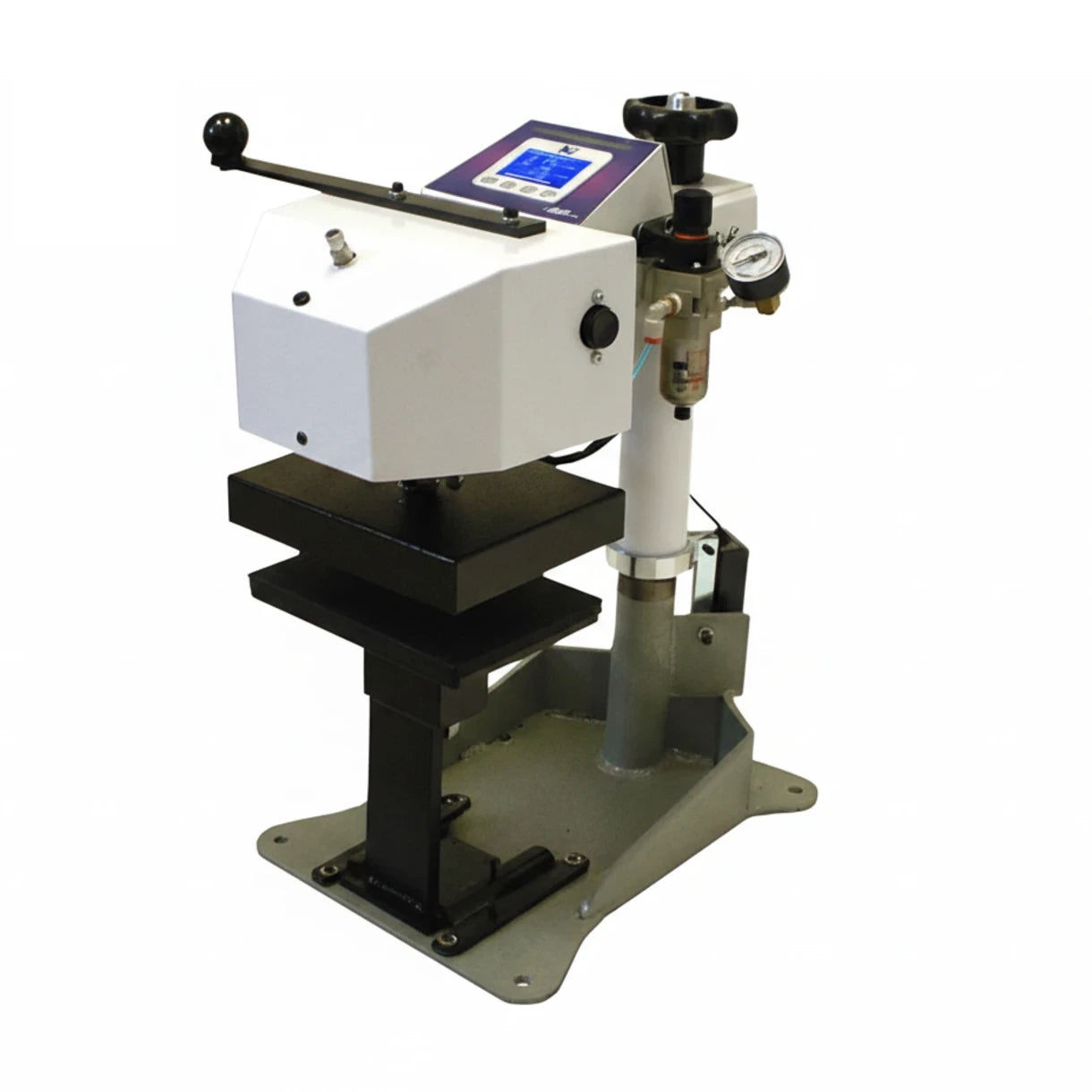

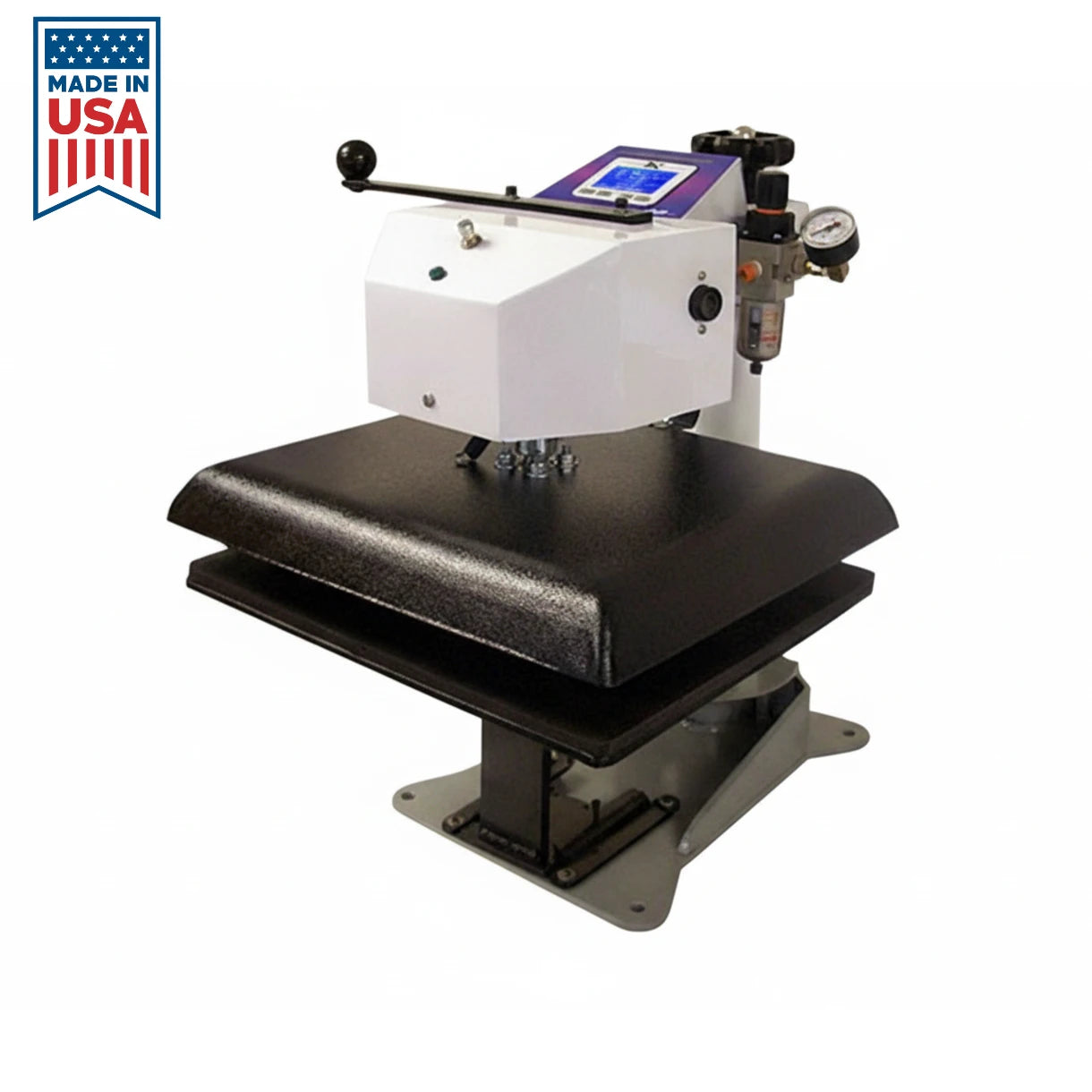

Geo Knight DC16AP Digital Combo 14x16 Air Automatic Swing Away Heat Press

Most Relevant Info at One Glance

• Automatic Air-Operated Pressing — Touch both buttons for hands-free pressure application and release

• Full Digital Temperature Control — Precise 32-400°F range with visual heating and timing status

• Dual Timer System — Main timer plus pre-press timer for multi-step processes

• 70 Programmable Presets — Store complete job settings for instant switching between applications

• Interchangeable Heat Platens & Tables — Hot-swappable attachments for caps, mugs, plates, and multiple sizes

• SuperCoil-Microwinding  Technology — Superior heat distribution and lifetime heating element warranty

Features

The DC16AP is an automatic swing-away heat press machine featuring air-operated pressing, fully digital temperature and timer controls, and interchangeable heat platens. With its 32-400°F temperature range, dual timer system with up to 99:59 range, and air-regulated pressure control, this 95 lb automatic press delivers professional results across multiple applications. Built on a steel frame with SuperCoil-Microwinding heating technology, the DC16AP combines versatility, precision, and hands-free operation in a compact 14x16 swing-away design.

Design & Build Quality

• Swing-Away Design provides complete access when heat platen swings clear

• Automatic Air Operation eliminates manual clamping with pneumatic pressure application

• Dual-Button Safety Activation ensures both hands clear of pressing area

• Interchangeable Heat Platens switch between shirt, cap, mug, and plate attachments

• Hot-Swappable Attachments change platens without waiting for cool-down periods

• Adjustable Pedestal Alignment slides and rotates for perfect platen positioning

• Steel Frame Construction provides durability and stability for production environments

• Height Adjustment Knob accommodates items up to 1.5" thick gap

• Quick-Release Pin System enables fast attachment changes between jobs

• Emergency Stop Button provides immediate one-hand air pressure release

Heat & Temperature Control

• 32-400°F Temperature Range handles plastisol, sublimation, vinyl, and specialty transfers

• SuperCoil-Microwinding Heating Element ensures uniform heat across entire 14x16 platen

• Fahrenheit/Celsius Display switches between temperature units in user menus

• READY/HEATING Indicators show at-a-glance heating status on main screen

• ±5°F READY Window confirms temperature within working range for pressing

• Temperature Drop Alarm warns when excessive use drops temperature below range

• Temperature Drop Timer Disable prevents automatic activation when temperature falls below threshold

• Over-Temp Safety Alarm sounds if press exceeds set temperature by 40°F

• ERR Mode Protection shuts off heating if temperature sensor signal lost

• Teflon-Coated Heat Platen provides non-stick surface for clean transfers

Pressure Control

• Air Regulator with PSI Gauge provides precise visual pressure monitoring

• Variable Pressure Adjustment controlled via air regulator for different materials

• Height Gap Adjustment independent of pressure for accommodating thick items

• Pressure Reference in Presets stores reminder values for consistent job setup

• Automatic Pressure Application applies consistent force when buttons activated

• Air Filter/Regulator/Gauge Assembly maintains clean air supply for reliable operation

Timer & Programming

• Automatic Digital Timer starts when press closes and stops at completion

• 0-99:59 Time Range in minutes/seconds or hours/minutes modes

• Pre-Press Timer runs separate timing cycle before main press time

• 70 Programmable Presets store temperature, time, pre-press, and pressure reference

• One-Touch Preset Loading press PRG key and select preset number

• Interrupt Timer Function press buttons again to stop timing for quick presses

• Auto-Reset After Cycle timer returns to preset time when cycle completes

• Recorded Pressings Odometer tracks total number of pressing cycles completed

• Countdown Odometer counts down remaining pressings from set amount for production

• Quick Time Adjustment hold arrow keys for rapid time setting changes

• Both Arrows Reset press both arrow keys together to return to zero

User Interface & Alerts

• 3-Key Digital Controller simple TEMP, PRG, and arrow key operation

• Dual-Display Screen shows temperature above and time below simultaneously

• OPEN/TIMING/DONE Status displays current cycle state on right side

• 10 Selectable Alarm Patterns differentiate multiple presses or customize beep length

• Finished Warning Beep sounds during last 3 seconds before cycle completion

• Pre-Press Alarm Customization separate alarm patterns for pre-press timer cycles

• Keypad Beeper Control silence button confirmation sounds in user menus

• Operator Lockout Feature prevents unauthorized users from changing settings

• Green Light Operation Indicator must be illuminated for press to activate

Included Items

• DC16AP 14x16 Automatic Digital Combo Swing-Away Press
• 14" x 16" Heat Platen with Teflon coating
• 14" x 16" Drop-On Lower Table with silicone pad
• Air Regulator/Filter/Gauge Assembly
• Power Cord with modular connector
• Digital Controller with membrane keypad
• Dual activation button panel with emergency stop
• Height adjustment knob
• Quick-release pin and linkage assembly
• Owner's Manual
