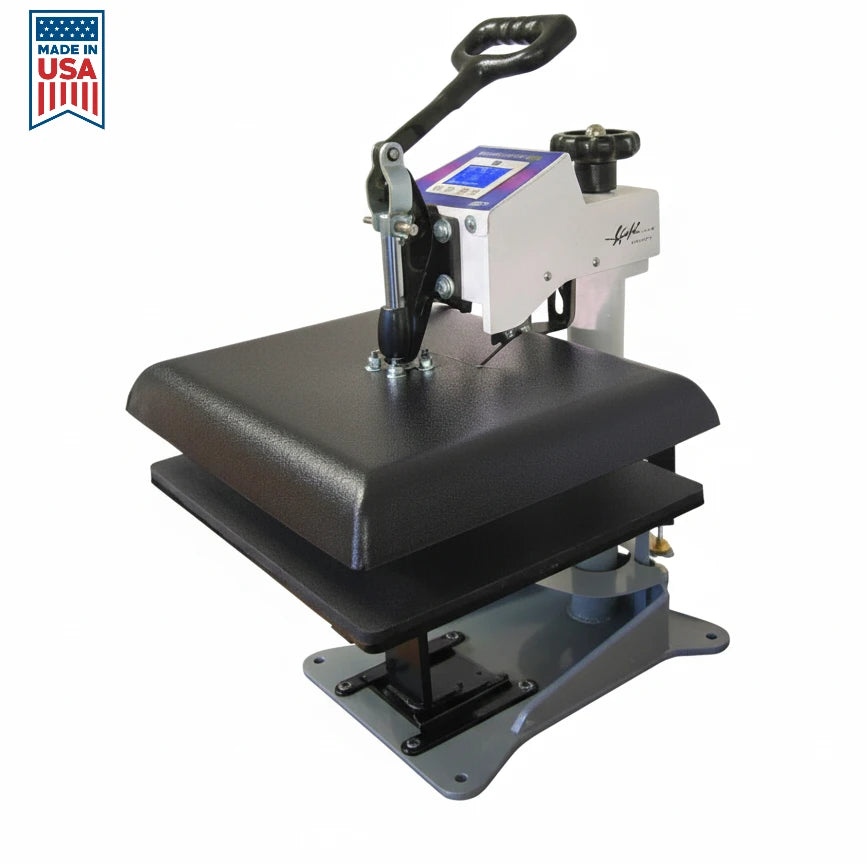

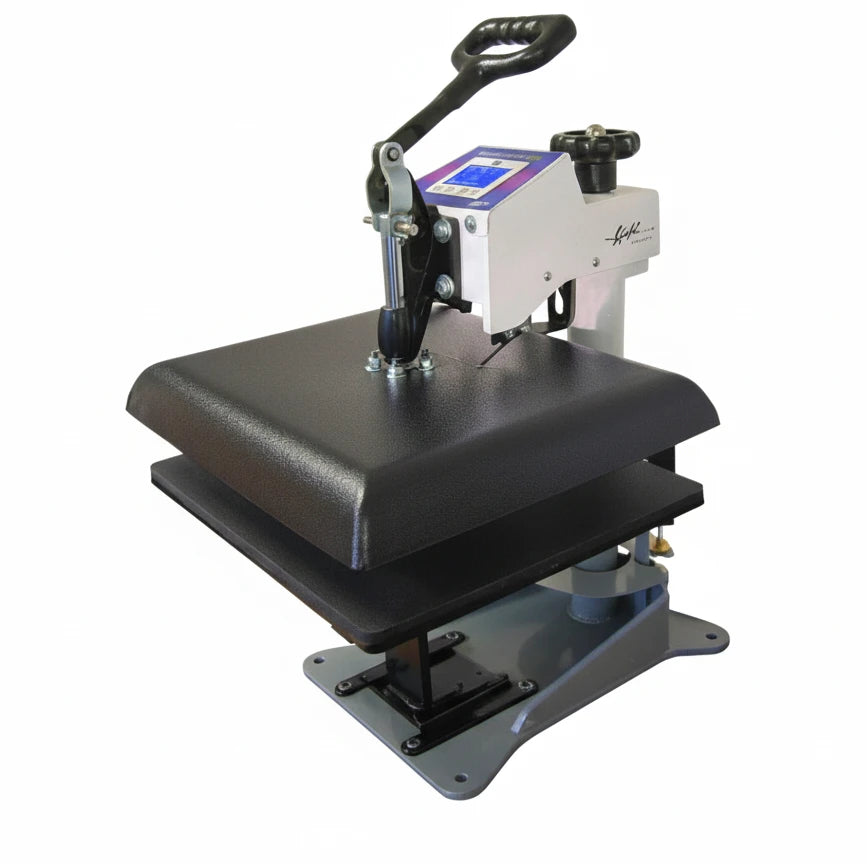

Geo Knight DC16 Digital Combo 14x16 Heat Press

Most Relevant Info at One Glance

• Fully Digital Temperature Control 32°-600°F — ±2°F accuracy for consistent professional results

• 70 Programmable Presets — instantly switch jobs with stored settings

• Multi-Purpose Interchangeable Platens — transform to cap, mug, plate in seconds

• Digital Pressure Bar Graph — visual 0-9 scale for optimal pressure

• Swing-Away Design with 14"x16" Platen — complete access eliminates burns, speeds production

• Lifetime Heating Element Warranty — SuperCoil-Microwinding™ backed by lifetime coverage

Features

The DC16 Digital Combo is a multi-purpose swing-away heat press machine featuring interchangeable heat platens, fully programmable digital controls, and precision pressure monitoring. With its 32°-600°F temperature range, dual countdown timers, and digital pressure bar graph system, this 65 lb professional-grade press delivers consistent results across T-shirts, caps, mugs, plates, and specialty substrates. Built on a heavy-duty steel frame with SuperCoil-Microwinding™ heating technology, the DC16 combines versatility, precision, and durability in a compact swing-away design that provides complete access to the work area.

Design & Build Quality

• Swing-Away Design speeds loading and prevents garment burns during transfers

• Heavy-Duty Steel Frame Construction ensures years of reliable commercial use

• 14"x16" Standard Heat Platen accommodates most garments and substrate sizes

• Hot-Swappable Platen System switches between attachments in seconds without cooling

• Interchangeable Lower Tables customize for pockets, bags, and specialty applications

• Adjustable Pedestal Alignment slides and rotates for perfect platen registration

• Modular Quick-Release Pin System enables fast attachment changes during production

• Cap Hold-Down Device secures curved surfaces for wrinkle-free cap printing

• Optional Caster Stand provides mobility for multi-station production environments

Heat & Temperature Control

• 32°-600°F Temperature Range handles sublimation, plastisol, vinyl, and specialty applications

• ±2°F Temperature Accuracy ensures consistent professional results across all transfers

• Fahrenheit/Celsius Display Options accommodates international users and technical specifications

• READY Indicator shows when press reaches set temperature to prevent premature pressing

• Over-Temp Alarm protects against thermal runaway for safe unattended operation

• Temperature Drop Sense Alert warns when excessive use drops temp below range

• ERR Mode Safety Shutoff prevents overheating if temperature sensor fails

• SuperCoil-Microwinding™ Heating Technology delivers fast recovery and lifetime reliability

Pressure Control

• Manual Pressure Adjustment Knob provides infinite control for varied substrate thicknesses

• Digital Pressure Bar Graph 0-9 displays real-time clamping force for consistency

• Pressure Calibration Function lets you define minimum and maximum settings

• Visual Pressure Reference in Presets reminds operator of required settings per job

• Heavy-Duty Clamp/Linkage Assembly maintains consistent pressure through thousands of cycles

Timer & Programming

• Dual Countdown Timers handle pre-press and main press cycles automatically

• 0-99 Minutes 59 Seconds Range accommodates quick transfers to long sublimation cycles

• Hours/Minutes Mode Option extends range for specialty four-minute ceramic applications

• 70 Programmable Presets store complete job settings for instant recall

• Pre-Press Timer Function automates multi-step moisture removal and pressing processes

• Automatic Timer Start begins countdown when press locks without manual activation

• TIMING/DONE Status Indicators show progress at a glance across the shop

• Pressings Countdown Odometer tracks remaining jobs for production run management

• Recorded Pressings Odometer monitors total cycles for maintenance scheduling

• Preset Quick-Load Function switches complete job settings with three button presses

User Interface & Alerts

• Simple 4-Button Keypad provides intuitive control with minimal training required

• Large Digital Display shows temperature, time, and status clearly from distance

• 10 Customizable Alarm Patterns differentiate between multiple presses or process stages

• Pre-Press Alarm Customization uses distinct sounds to differentiate from main timer

• Finished Warning Beep alerts operator three seconds before automatic press opening

• Keypad Beeper On/Off silences button feedback for quiet work environments

• Operator Lockout Feature prevents unauthorized settings changes in production environments

• OPEN/HEATING/READY Indicators provide instant at-a-glance status information

Included Items

• DC16 Digital Combo 14"x16" Swing-Away Press
• 14"x16" Heat Platen with SuperCoil-Microwinding™ heating element
• 14"x16" Lower Table with 3/8" silicone sponge pad
• Cap Attachment with curved heat platen and hold-down device
• Cap Curved Pedestal (Standard, Mid-Size, and Youth forms)
• Mug Attachment with 11oz-15oz diameter range
• Plate Attachment with circular heat platen
• 3-Sided Aluminum Protective Tray for plate pressing
• 1/2" White Nomex Heat Felt padding
• 1/8" Green Circular Cushion Pad
• Modular Power Cord with inlet/switch assembly
• Digital Knight Processor and Power Boards
• Owner's Manual with application guidelines

Specifications
