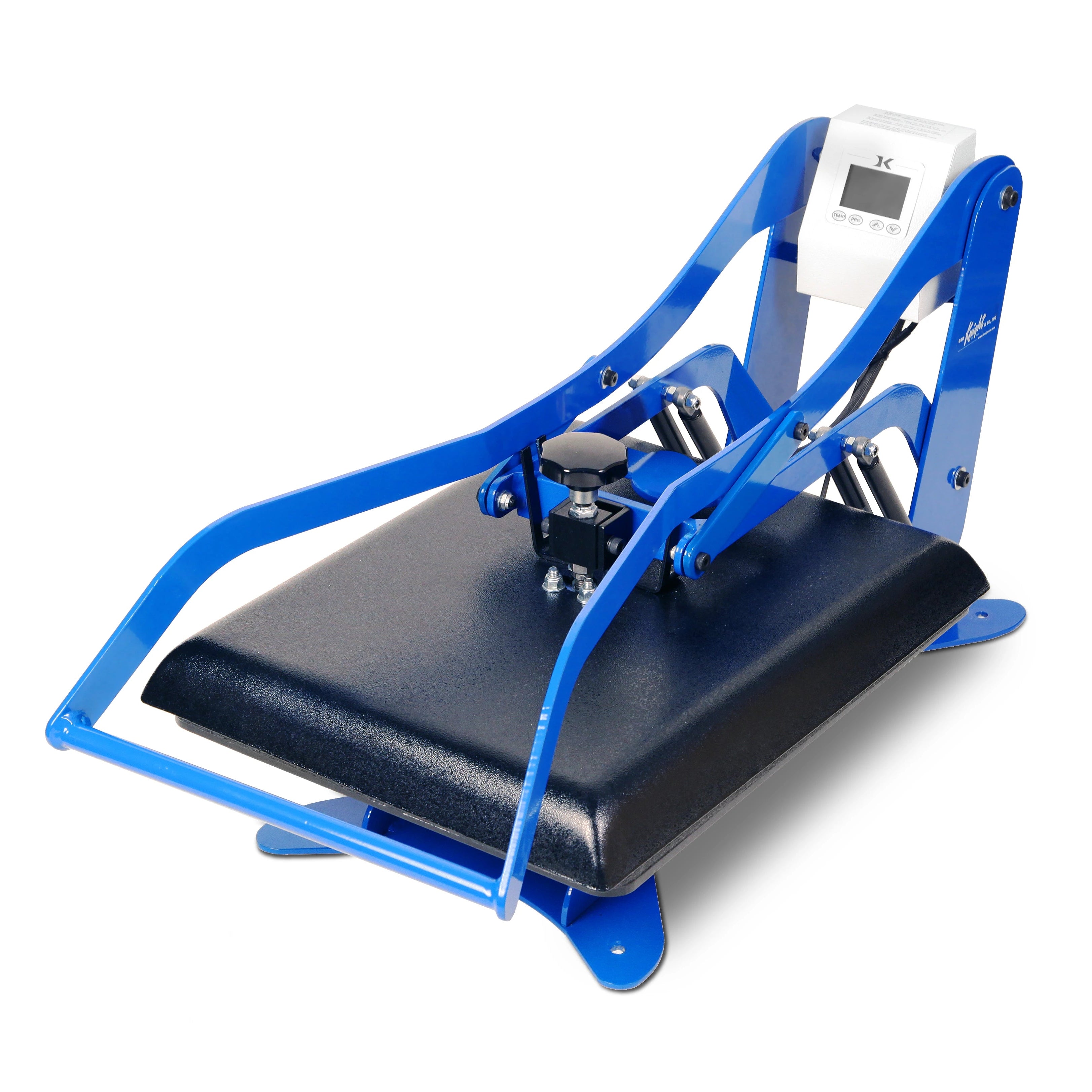

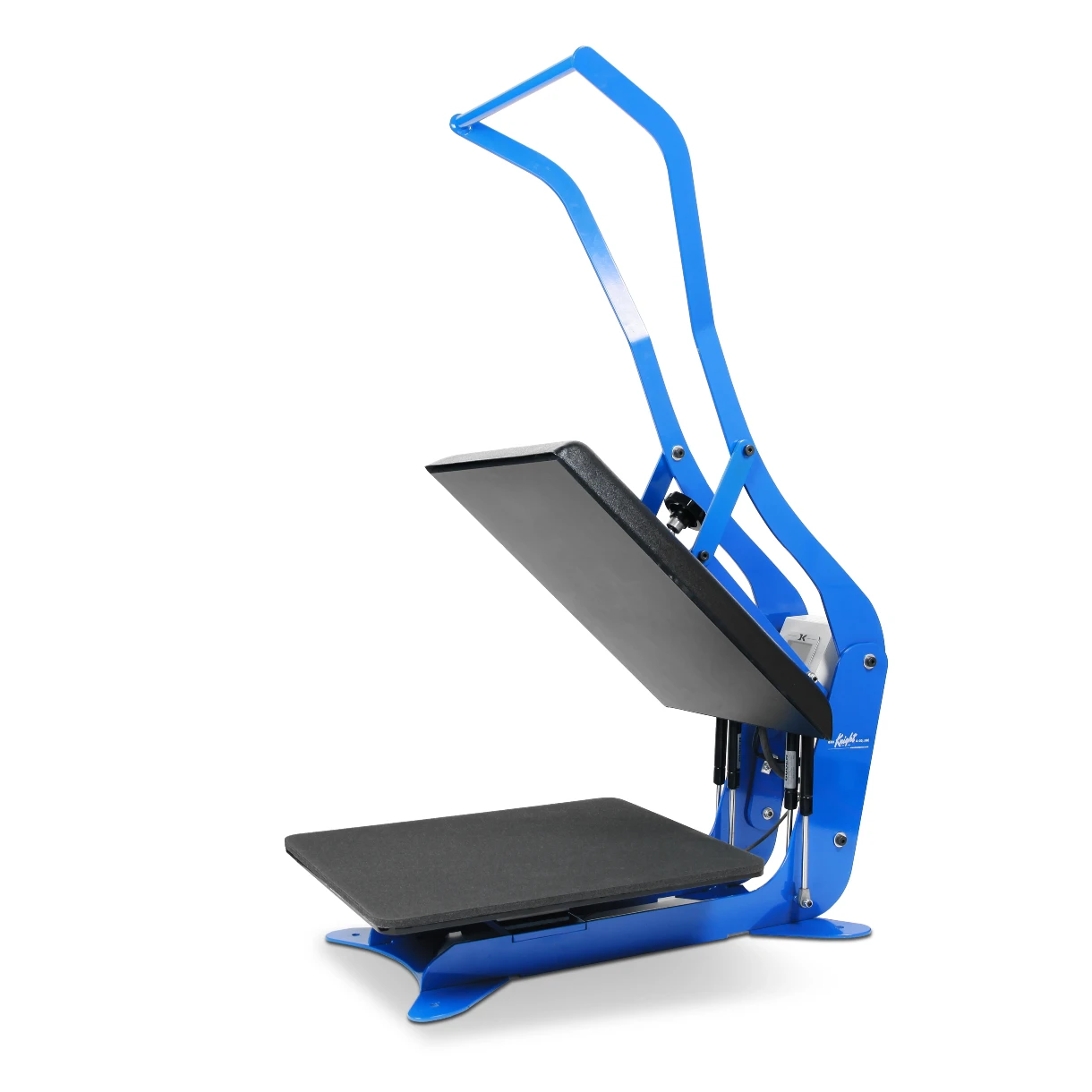

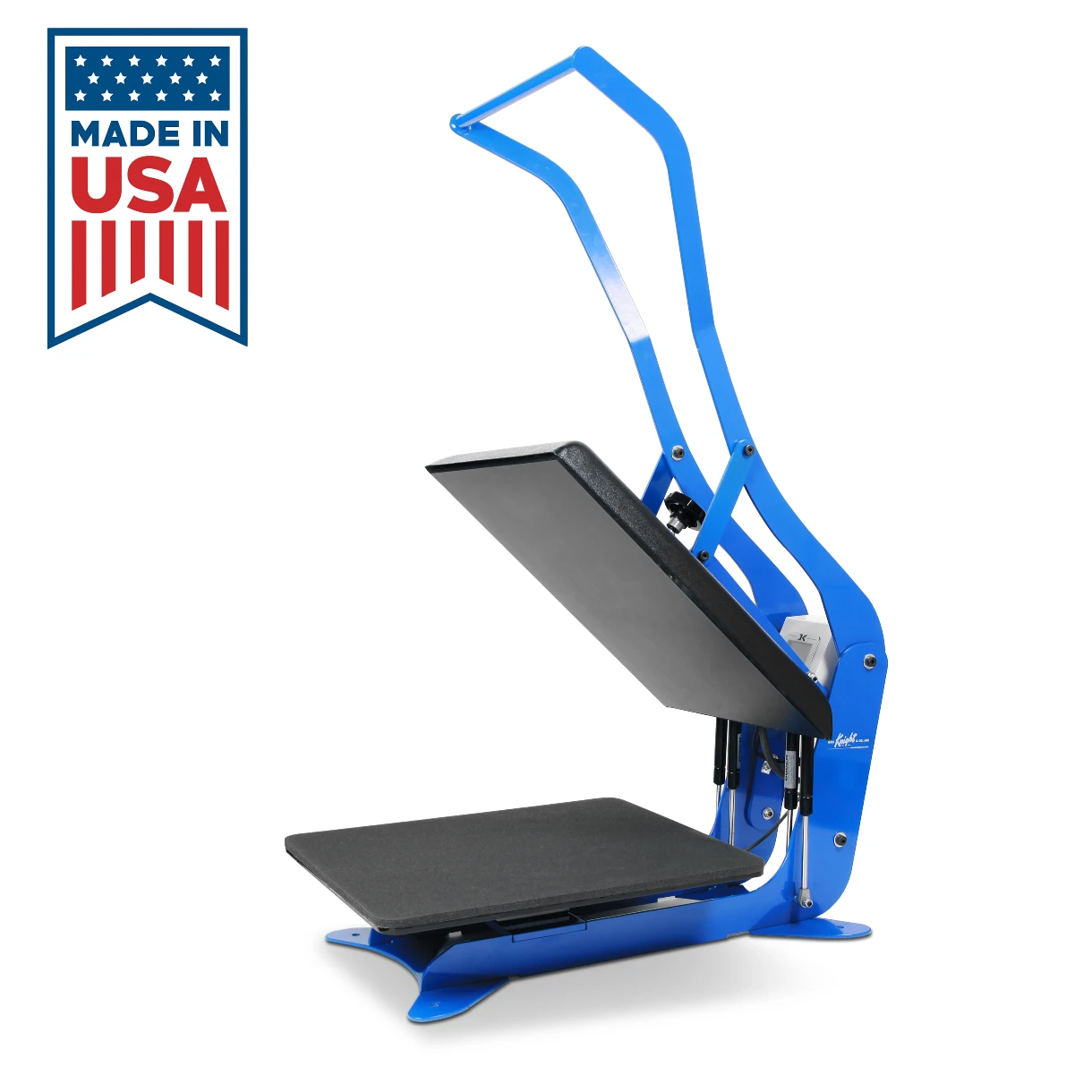

Geo Knight DK16A 14x16 Clam Auto Popup Heat Press

Geo Knight DK16A 14x16 Clam Auto Popup Heat Press

SKU DK16A
by Geo Knight
$1,475.00

Notify me when back in stock

Most Relevant Info at One Glance

  • 14 x 16 Inch Pressing Area: Ideal for garments, substrates & diverse projects
  • Automatic Popup Release: Hands-free opening boosts productivity & safety
  • 70 Programmable Presets: Switch jobs instantly—no manual adjustments
  • Digital Pressure Display (0-9): Consistent, professional results every time
  • Dual Timer System: Easy multi-step applications with main + pre-press timers
  • Precise Temperature: Up to 400°F+ digital control for any transfer media
  • Space-Saving Design: Clamshell with interchangeable tables for versatility
  • Built for Reliability: 3-year digital control + lifetime heating element warranty
  • Complete Package: Includes controller, table, silicone pad & all essentials

Features

The Digital Knight DK16A 14x16 Digital Clamshell press combines precision, versatility, and convenience in a compact heat transfer solution. Featuring an advanced digital controller with 70 programmable presets and automatic popup release functionality, this professional-grade press delivers consistent, high-quality results for all your heat transfer applications.

Built with durability in mind and equipped with a comprehensive digital pressure bar graph system, the DK16A makes heat pressing efficient and user-friendly.



Included Items

  • DK16A Digital Knight 14x16 Clamshell Press with Auto Popup
  • Digital Controller with Membrane Keypad
  • 14 x 16 Inch Lower Table with Silicone Pad
  • 3/8 x 14 x 16 Inch Silicone Sponge Pad
  • Teflon-Coated Heat Platen Assembly (120V)
  • 80# Gas Spring (GGS43)
  • Power Cord and Inlet Kit
  • Pressure Sensor Kit
  • Quick Release Pin (5/16" x 2½")
  • Owner's Manual

Specifications

Specification Details
Model DK16A (14x16 Auto Popup)
Press Type Digital Clamshell with Auto-Release
Pressing Area 14 x 16 inches
Temperature Range Adjustable (up to 400°F+)
Temperature Display Digital (°F or °C selectable)
Temperature Accuracy Within 5°F when READY indicator shown
Timer Range 0-99 minutes 59 seconds (expandable to hours/mins mode)
Timer Types Main timer + Pre-press timer
Programmable Presets 70 memory locations
Preset Storage Temperature, Time, Pre-press Time, Pressure Reference
Pressure Control Manual adjustment knob with digital 0-9 bar graph display
Pressure System Digital pressure sensor with real-time feedback
Gas Spring Force 80 pounds (GGS43)
Auto-Release Magnetic automatic opening system
Lower Table Interchangeable drop-on design
Silicone Pad Size 3/8 x 14 x 16 inches
Heat Platen Coating Teflon non-stick surface
Voltage 120V
Controller Features Digital display, 70 presets, dual timers, pressure graph, odometers
Alarm Options 10 customizable beeping patterns plus finished warning beep
Safety Features Over-temp alarm, ERR mode, temperature drop sense, timer disable
User Menus F/C selection, timer units, odometers, pressure calibration, alarms, lockout
Mounting Rear and front mounting holes for workbench bolting
Recommended Bench Height 27-32 inches
Design Clamshell vertical opening
Warranty - Full Press 1 Year
Warranty - Digital Control 3 Years
Warranty - Heating Element Lifetime (original purchaser)
Manufacturer Geo Knight & Co Inc, Brockton MA USA
Description

Most Relevant Info at One Glance

  • 14 x 16 Inch Pressing Area: Ideal for garments, substrates & diverse projects
  • Automatic Popup Release: Hands-free opening boosts productivity & safety
  • 70 Programmable Presets: Switch jobs instantly—no manual adjustments
  • Digital Pressure Display (0-9): Consistent, professional results every time
  • Dual Timer System: Easy multi-step applications with main + pre-press timers
  • Precise Temperature: Up to 400°F+ digital control for any transfer media
  • Space-Saving Design: Clamshell with interchangeable tables for versatility
  • Built for Reliability: 3-year digital control + lifetime heating element warranty
  • Complete Package: Includes controller, table, silicone pad & all essentials

Features

The Digital Knight DK16A 14x16 Digital Clamshell press combines precision, versatility, and convenience in a compact heat transfer solution. Featuring an advanced digital controller with 70 programmable presets and automatic popup release functionality, this professional-grade press delivers consistent, high-quality results for all your heat transfer applications.

Built with durability in mind and equipped with a comprehensive digital pressure bar graph system, the DK16A makes heat pressing efficient and user-friendly.



Included Items

  • DK16A Digital Knight 14x16 Clamshell Press with Auto Popup
  • Digital Controller with Membrane Keypad
  • 14 x 16 Inch Lower Table with Silicone Pad
  • 3/8 x 14 x 16 Inch Silicone Sponge Pad
  • Teflon-Coated Heat Platen Assembly (120V)
  • 80# Gas Spring (GGS43)
  • Power Cord and Inlet Kit
  • Pressure Sensor Kit
  • Quick Release Pin (5/16" x 2½")
  • Owner's Manual

Specifications

Specification Details
Model DK16A (14x16 Auto Popup)
Press Type Digital Clamshell with Auto-Release
Pressing Area 14 x 16 inches
Temperature Range Adjustable (up to 400°F+)
Temperature Display Digital (°F or °C selectable)
Temperature Accuracy Within 5°F when READY indicator shown
Timer Range 0-99 minutes 59 seconds (expandable to hours/mins mode)
Timer Types Main timer + Pre-press timer
Programmable Presets 70 memory locations
Preset Storage Temperature, Time, Pre-press Time, Pressure Reference
Pressure Control Manual adjustment knob with digital 0-9 bar graph display
Pressure System Digital pressure sensor with real-time feedback
Gas Spring Force 80 pounds (GGS43)
Auto-Release Magnetic automatic opening system
Lower Table Interchangeable drop-on design
Silicone Pad Size 3/8 x 14 x 16 inches
Heat Platen Coating Teflon non-stick surface
Voltage 120V
Controller Features Digital display, 70 presets, dual timers, pressure graph, odometers
Alarm Options 10 customizable beeping patterns plus finished warning beep
Safety Features Over-temp alarm, ERR mode, temperature drop sense, timer disable
User Menus F/C selection, timer units, odometers, pressure calibration, alarms, lockout
Mounting Rear and front mounting holes for workbench bolting
Recommended Bench Height 27-32 inches
Design Clamshell vertical opening
Warranty - Full Press 1 Year
Warranty - Digital Control 3 Years
Warranty - Heating Element Lifetime (original purchaser)
Manufacturer Geo Knight & Co Inc, Brockton MA USA
