Most Relevant Info at One Glance
- Perfect for labels, pockets, collars, socks, sleeves & small transfers - 6"×8" compact pressing area with 3"×5" and 3"×3" interchangeable tables included
- Tall pedestal design isolates specific garment areas - press only what you need without flattening bulky items or unwanted sections
- 70 programmable presets - save your exact settings for different materials and repeat jobs instantly
- Precise temperature control 32°-600°F with ±2°F accuracy and digital display (°C or °F)
- Automatic timer with dual pre-press timer and selectable end-of-cycle alarms for consistent results
- Self-lifting gas spring - effortless opening and closing, reduces operator fatigue
- Solid steel construction with hardened pivot points and 3/4" thick Teflon-coated platen for durability
- Tracks pressing cycles - monitor production and maintenance needs
Features

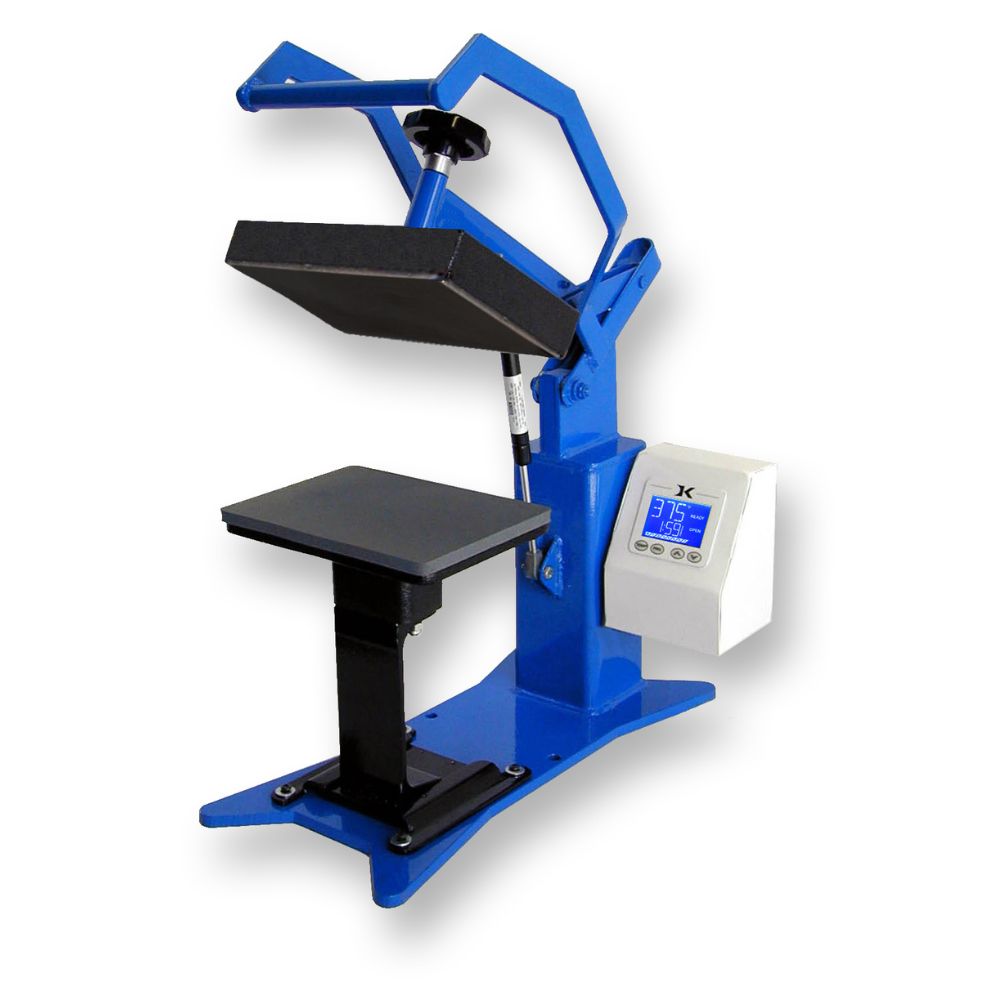

The DK8 Label Press is a compact 6x8 small platen heat press designed specifically for label printing and small transfer & applique sealing. With its tall pedestal design, this machine allows precise pressing of isolated areas like pockets, collars, socks, and sleeves without flattening unnecessary parts of garments.
The included interchangeable tables make it versatile enough to press areas as small as 3x3 inches, making it ideal for detailed work on bulky items.
Versatility & Precision
- Multiple Interchangeable Tables - Includes 6"x8", 3"x5", and 3"x3" bottom tables for maximum versatility in pressing different sized areas
- Tall Pedestal Design - Allows precise isolation and positioning of specific garment areas (pockets, collars, socks, sleeves) without pressing unnecessary bulky sections
Digital Control & Programming
- Fully Digital Temperature Control - Wide temperature range from 32°F to 600°F with ±2°F accuracy
- Temperature Display Options - User selectable display in Fahrenheit or Celsius
- Advanced Timing System - Automatic digital timer with dual pre-press timer functionality for multi-step processes
- 70 Programmable Presets - Store temperature, time, and pre-press settings for quick job changes and consistent results
User-Friendly Features
- User Selectable End-of-Cycle Alarms - Multiple alarm patterns available to differentiate between tasks
- Pressing Cycle Counter - Records and tracks the number of pressing cycles completed
- Self-Lifting Gas Spring - Wide opening design for easy loading and unloading
Construction & Durability
- Solid Steel Framework - Built with hardened high-strength pivot points for long-lasting performance
- Professional Heat Platen - Teflon-coated 3/4" thick heat platen for even heat distribution
Warranty & Support
- Free Lifetime Technical Support - Ongoing support included with purchase
- Comprehensive Warranty Coverage - Lifetime warranty on heat platen, 5-year frame warranty, 3-year controller warranty, and 1-year parts warranty
Included Items
- DK8 Label Digital Clamshell Press
- 6"x8" Bottom Table
- 3"x5" Bottom Table
- 3"x3" Bottom Table
- Silicone Pad
- Power Cord
Specifications
| Specification | Details |
|---|---|
| Model | DK8 Label Press |
| Platen Size | 6" x 8" |
| Temperature Range | 32°F - 600°F |
| Temperature Accuracy | ±2°F |
| Temperature Display | Fahrenheit or Celsius (user selectable) |
| Timer | Automatic digital timer with dual pre-press timer |
| Programmable Presets | 70 presets |
| Heat Platen | 3/4" thick, Teflon-coated |
| Opening Mechanism | Self-lifting gas spring |
| Frame Construction | Solid steel with hardened high-strength pivot points |
| Power | 600W / 5A / 110V |
| Weight | 65 lbs |
| Counter Footprint | 18"D x 8"W |
| Shipping Dimensions | 19"L x 12"W x 18"H |
| Warranty - Heat Platen | Lifetime |
| Warranty - Frame | 5 years |
| Warranty - Controller | 3 years |
| Warranty - Parts | 1 year |
