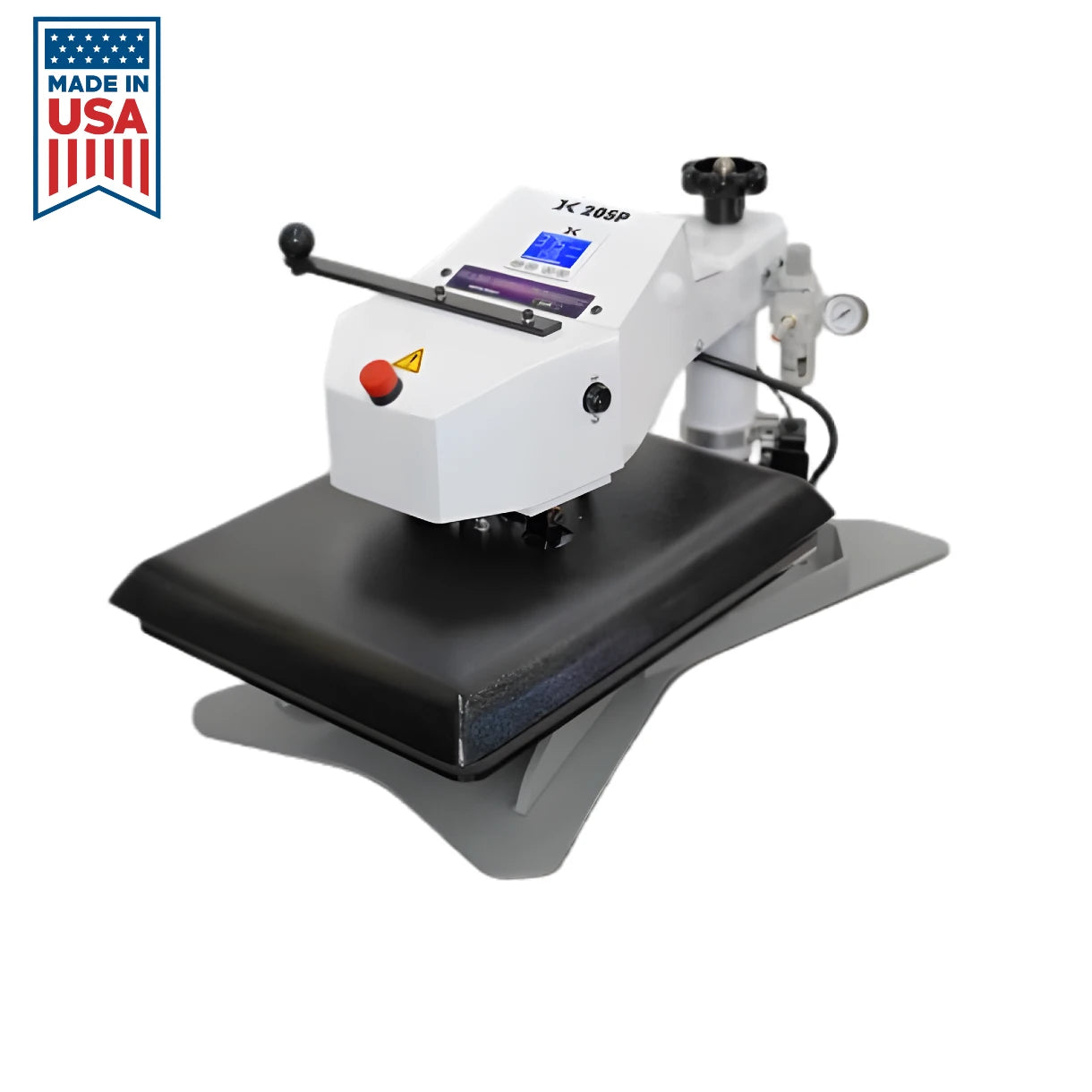

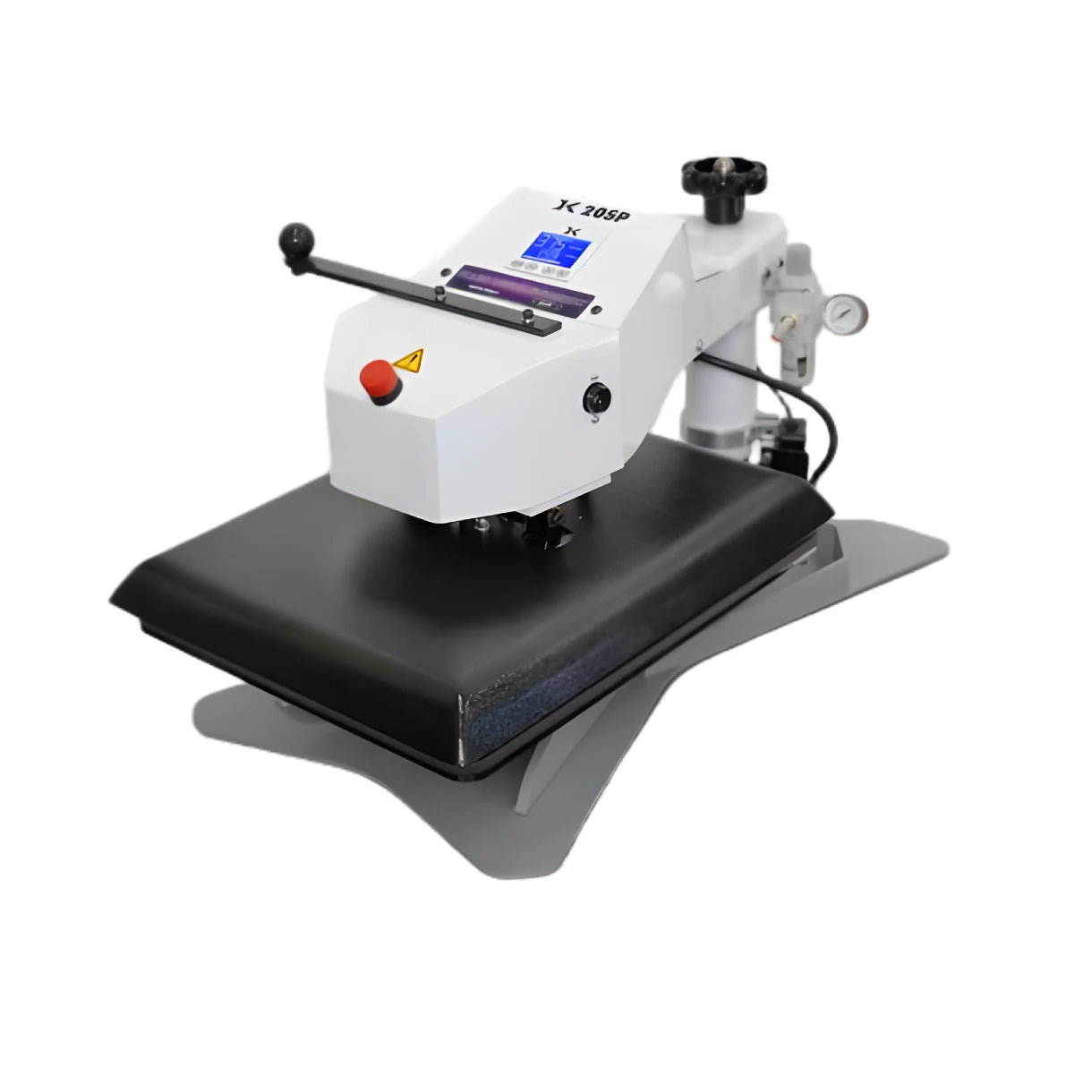

Geo Knight DK20SP Digital Knight 16x20 Air Automatic Swing Away Heat Press

Most Relevant Info at One Glance

• 70 Programmable Presets — Store complete settings for instant job switching
• Air-Operated Automatic Operation — Push-button activation with automatic timer-controlled release
• SuperCoil-Microwinding™ Heater Technology — Lifetime warranty heating element with superior heat distribution
• Full Digital Temperature Control — Precise 32°F-600°F range with ±2°F accuracy
• 16x20 Professional Platen Size — Large format capacity for diverse applications

Features

The Digital Knight DK20SP is an air-operated automatic swing-away heat press featuring advanced digital temperature and time controls, programmable presets, and automatic operation.

With its 32°F-600°F temperature range, dual timer system with 70-program memory, and air-regulated pressure control, this 140 lb professional press delivers consistent, repeatable results. Built on a heavy-duty metal frame with SuperCoil-Microwinding™ heater technology and All-Thread™ table loading design, the DK20SP combines precision, durability, and ease of use in a space-efficient swing-away format.

Design & Build Quality

• All-Thread™ Swing-Away Design Rotates full 360° for easy garment loading and removal
• Air-Operated Automatic System Simply press both buttons together for hands-free timed operation
• Heavy-Duty Metal Frame Durable construction with optional bolt-down mounting for stability
• Adjustable Platen Height Accommodates materials up to 1/4" thick with simple knob adjustment
• Replaceable Silicone Pad 3/8" thick heat-resistant pad ensures even pressure distribution
• Dual Safety Button System Both buttons must be pressed simultaneously for operator safety
• Emergency E-Stop Release Red button provides immediate one-hand air pressure release
• Lockable Caster Stand Available Optional mobility solution for workshop flexibility

Heat & Temperature Control

• Wide Temperature Range 32°F-600°F accommodates diverse transfer applications and materials
• ±2°F Temperature Accuracy Precision control ensures consistent professional results every time
• Digital Display Options Switch between Fahrenheit and Celsius for international compatibility
• Ready/Heating Indicators Know at-a-glance when press reaches target temperature
• Over-Temp Alarm Automatic 40-degree safety alert prevents thermal runaway and material damage
• Temperature Drop Sensing Optional alarm warns when heat falls below optimal pressing range
• ERR Mode Protection Automatic shutoff if temperature sensor fails prevents overheating
• SuperCoil-Microwinding™ Technology Lifetime-warranted heating element with superior heat distribution

Pressure Control

• Air Regulator System Adjust pressure precisely with integrated gauge for material-specific requirements
• 0-160 PSI Range Air compressor compatibility provides consistent professional-grade pressure
• Visual Pressure Gauge Monitor exact pressure settings for repeatable quality results
• Height Adjustment Knob Easily accommodate thicker substrates while maintaining proper pressure
• Adjustable Release Speed Brass flow control valve lets you customize opening speed
• Pressure Reference in Presets Store pressure reminders with each programmed setting

Timer & Programming

• 70 Programmable Presets Store complete job settings for instant switching between applications
• Dual Timer System Independent main timer and pre-press timer for multi-step processes
• Flexible Time Range Set from seconds to hours based on application requirements
• Automatic Timer Start Closes and begins timing immediately when both buttons pressed
• Quick Interrupt Function Press buttons again to stop timing for shorter press cycles
• Preset Memory Storage Saves temperature, time, pre-press time, and pressure reference per preset
• Simple Preset Loading Press PRG, select number, press PRG again to instantly update settings
• Easy Preset Programming Step-by-step TEMP key interface guides you through editing presets
• Pressings Odometer Tracks total completed cycles with resettable counter for production management
• Countdown Odometer Set specific pressing quantities and track remaining jobs automatically
• Timer Display Replacement Option to show countdown odometer instead of timer during production

User Interface & Alerts

• Easy 4-Key Control Panel Simple TEMP, PRG, and arrow key interface minimizes learning curve
• Large Digital Display Clearly shows current temperature, set temperature, timer, and status
• Customizable Alarm Patterns 10 different beep patterns differentiate multiple presses or timers
• Finished Warning Beep Optional 3-second countdown alert prepares operator for automatic opening
• Keypad Beeper Control Silence button feedback sounds for quieter work environments
• Pre-Press Alarm Options Separate customizable alerts distinguish pre-press from main timer completion
• Operator Lockout Feature Prevent unauthorized setting changes with password protection
• Open/Timing/Done Status Right-side display indicators show exact press operational state
• User Menu System Press TEMP+PRG together to access 15+ configuration options

Included Items

• Digital Knight DK20SP 16x20 Automatic Swing-Away Heat Press
• 16" x 20" Heat Platen with SuperCoil-Microwinding™ heating element
• 3/8" x 16" x 20" Replaceable Silicone Sponge Pad
• Digital Control Panel with Membrane Keypad
• Air Regulator with Panel-Mounted 0-160 PSI Gauge
• Dual Black Push-Button Activation Switches
• Red E-Stop Emergency Release Button
• Power Cord with Modular Inlet Connection
• Height Adjustment Knob
• Operator's Manual (PDF format)
