Most Relevant Info at One Glance
- Professional results guaranteed – ±2°F digital accuracy ensures consistent, perfect transfers every time
- 70 programmable presets – save settings and switch between jobs instantly
- Extreme high-pressure system – handles any material up to 2" thick
- SuperCoil-Microwinding™ technology – eliminates hot spots for edge-to-edge perfection
- Dual timer system – dedicated pre-press and main cycle timers
- Safe swinger design – heat platen swings away from work area
- Compact and portable – only 62 lbs with 21"D x 14"W footprint
- Built to last – solid steel frame with lifetime heating element warranty
- Temperature drop alerts – stay notified to prevent failed transfers during heavy use
- 12x14" Teflon-coated platen – non-stick surface for easy cleaning
- Ready to use – plugs into standard 110V household outlet
Features

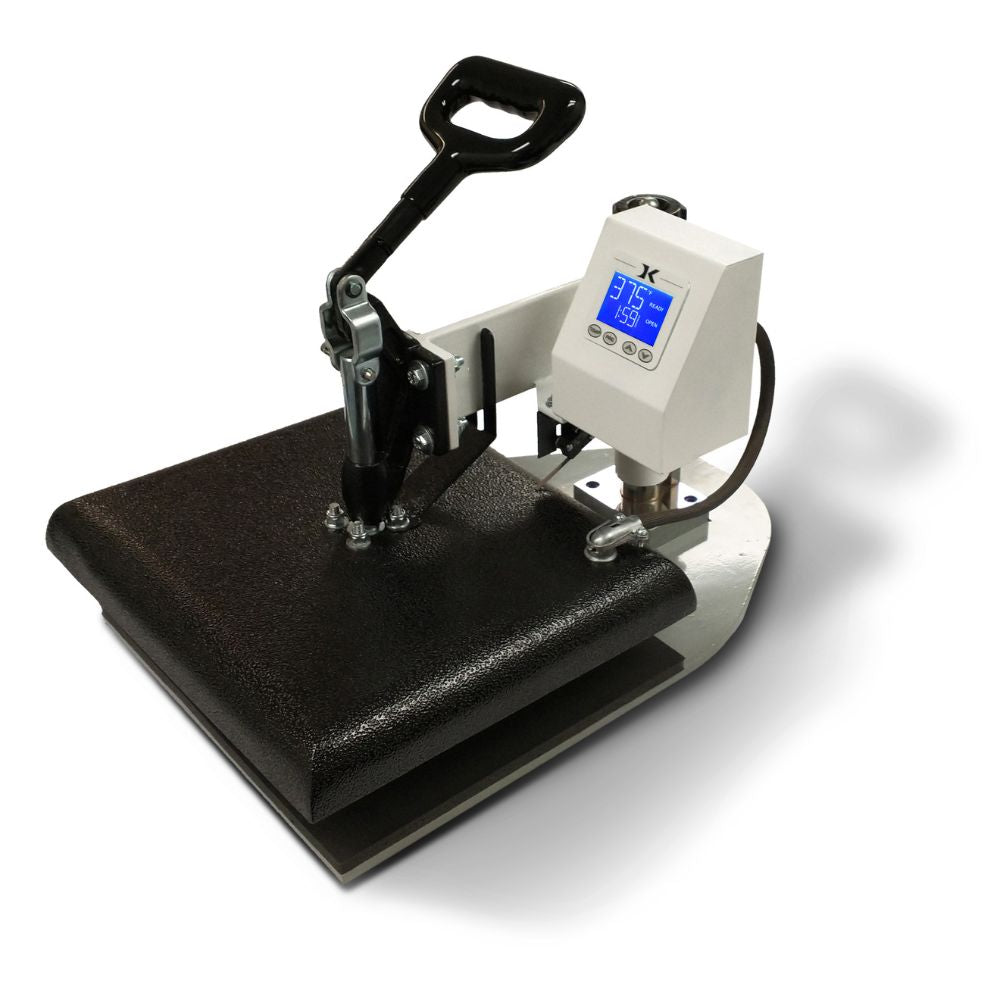

The Digital Knight DK14S is a compact, portable heat press machine featuring advanced digital controls and professional-grade performance. With its fully digital temperature control ranging from 32°-600°F, automatic timer with dual pre-press capability, and extreme high-pressure system, this 62 lb powerhouse delivers consistent, professional results for all your heat transfer applications.
Built on a solid steel framework with innovative SuperCoil-Microwinding™ heater technology, the DK14S combines precision, durability, and ease of use in a space-saving tabletop design.
Design & Build Quality
- Compact Portable Tabletop Design – Space-saving footprint of 21"D x 14"W fits easily on any work surface
- Super-Portable Lightweight – Only 62 lbs for easy transportation and repositioning
- Digital Swinger Design – Heat platen swings away from work area for safe, efficient loading and unloading
- Solid Steel Framework – Heavy-duty construction ensures stability and longevity
- Accommodates Thick Materials – Handles materials up to 2" thick for versatile applications
Heat & Temperature Control
- 12x14 Teflon-Coated Heat Platen – 3/4" thick platen with durable Teflon coating for superior heat transfer and easy cleaning
- SuperCoil-Microwinding™ Heater Technology – Innovative heating element design ensures consistent temperature distribution
- Fully Digital Temperature Control – Precise temperature range from 32°-600°F with ±2°F readout accuracy
- Switchable Temperature Display – User selectable between °F and °C
- Temperature Drop Sensing – Alerts operator when temperature falls outside optimal range during heavy use
Pressure Control
- Extreme High Pressure Capability – Powerful pressure system delivers consistent, professional-grade compression
- Manual Pressure Adjustment – Easy-to-use adjustment knob for optimal pressure control
Timer & Programming
- Automatic Digital Timer – Precise countdown timer for consistent pressing cycles
- Dual Pre-Press Timer – Dedicated secondary timer for multi-step pressing processes
- 70 Programmable Presets – Store temperature, time, pre-press time, and pressure reference settings for instant job switching
- Timer Units Selection – Choose between Minutes/Seconds or Hours/Minutes display
- Pressing Cycle Counter – Built-in odometer records total number of pressing cycles completed
- Countdown Odometer – Optional feature to track remaining pressings for batch jobs
User Interface & Alerts
- Digital Control System – User-friendly membrane keypad with clear display
- User-Selectable Alarms – 10 different alarm patterns to customize end-of-cycle notifications
- Finished Warning Beep – 3-second countdown alert before cycle completion
- Operator Lockout Feature – Prevents unauthorized changes to settings
Included Items
- Digital Knight DK14S 12x14 Heat Press
- 12x14 Teflon-Coated Heat Platen
- 3/8" x 12" x 14" Silicone Sponge Pad
- Digital Control System with Membrane Keypad
- Power Cord with Inlet/Switch Kit
- User Manual
Specifications
| Specification | Details |
|---|---|
| Model | DK14S 12x14 Digital Swinger |
| Platen Size | 12" x 14" |
| Weight | 76 lbs |
| Machine Weight | 62 lbs (portable weight) |
| Counter Footprint | 21"D x 14"W |
| Temperature Range | 32°F - 600°F |
| Temperature Accuracy | ±2°F |
| Temperature Display | °F or °C (user selectable) |
| Heat Platen Thickness | 3/4" |
| Platen Coating | Teflon |
| Maximum Material Thickness | 2" |
| Timer Type | Automatic Digital Countdown |
| Pre-Press Timer | Dual timer capability |
| Timer Units | Minutes/Seconds or Hours/Minutes (selectable) |
| Programmable Presets | 70 presets |
| Pressure Adjustment | Manual with adjustment knob |
| Heater Technology | SuperCoil-Microwinding™ |
| Frame Construction | Solid Steel |
| Power Requirements | 1200W / 10A / 110V |
| Shipping Dimensions | 24"L x 20"W x 21"H |
| Control Features | Digital temperature & time control, programmable presets, alarm options, cycle counter |
| Warranty - Press | 1 year |
| Warranty - Digital Control | 3 years |
| Warranty - Heating Element | Lifetime (original purchaser) |
