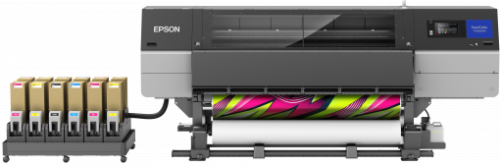

Epson SureColor SC-F10000H
The Epson SC-F10000H is Epson’s highest-output dye-sublimation printer, engineered for demanding production environments in fashion, soft signage, sportswear, and home textiles. With six PrecisionCore MicroTFP printheads, flexible ink configurations, and integrated automation, it delivers industry-leading speed and reliability.
Built for continuous high-speed operation, the SC-F10000H supports hot-swappable 3L or 10L ink tanks, a 9-inch touchscreen, and advanced media control systems for minimal downtime and consistent quality.
Key Features
-
High-Speed Output – Prints up to 246 m²/hr
-
Printhead System – Six PrecisionCore MicroTFP heads with 19,200 nozzles
-
Ink Configuration – CMYK with optional fluorescent (Pink/Yellow) or light inks (LC/LM)
-
Bulk Ink System – Hot-swappable 3L or 10L tanks minimize interruptions
-
Precision Dot Technology – Combines Halftone, LUT & Micro Weave for superior output
-
Auto Media Handling – Auto tension control, RGB camera, and real-time adjustments
-
9” Touchscreen Panel – Full job control, environmental data, and supply monitoring
-
Remote Monitoring – Track performance and maintenance via software
Specifications
| Feature | Details |
|---|---|
| Print Width | 64 inches |
| Resolution | Up to 1200 × 1200 dpi |
| Ink Type | Ultrachrome DS (CMYK + LC/LM or Fluorescents) |
| Ink Tank Capacity | 3L or 10L per color |
| Max Print Speed | 246 m²/hr |
| Min Droplet Size | 3.8 pl |
| Media Thickness | Up to 1 mm |
| Dimensions (W×D×H) | 5008 × 1303 × 1886 mm |
| Weight | 767 kg |
| Interfaces | USB 3.0 |
| OS Compatibility | Windows 7/8/8.1/10 (32 & 64 bit) |
| Software | Epson Edge Print |
| Power Supply | AC 200–240 V |
